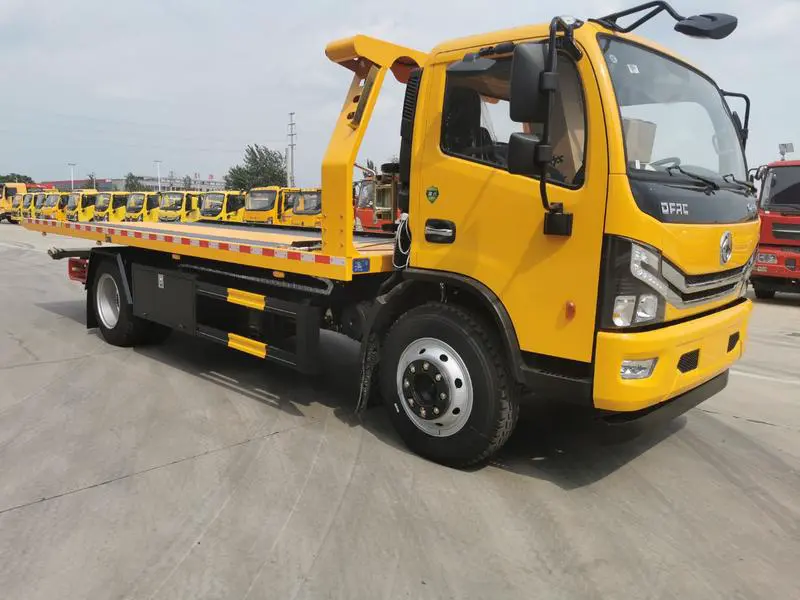

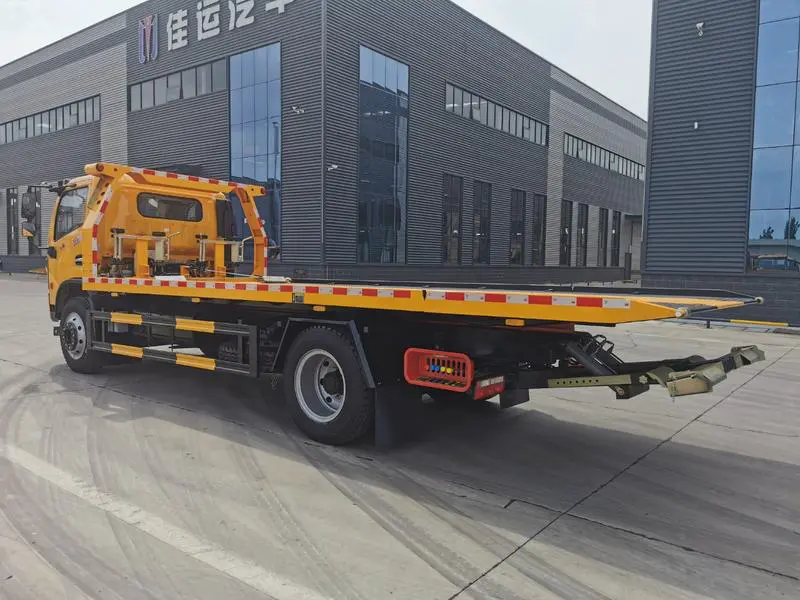

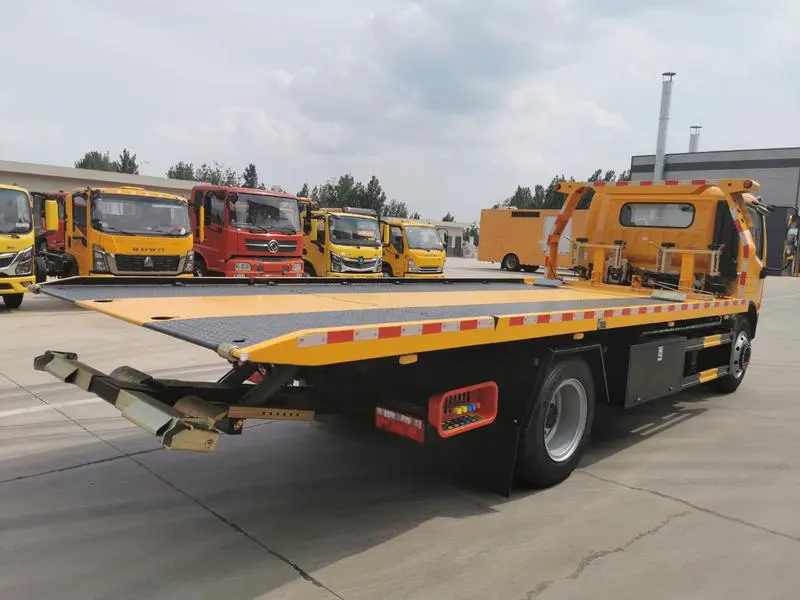

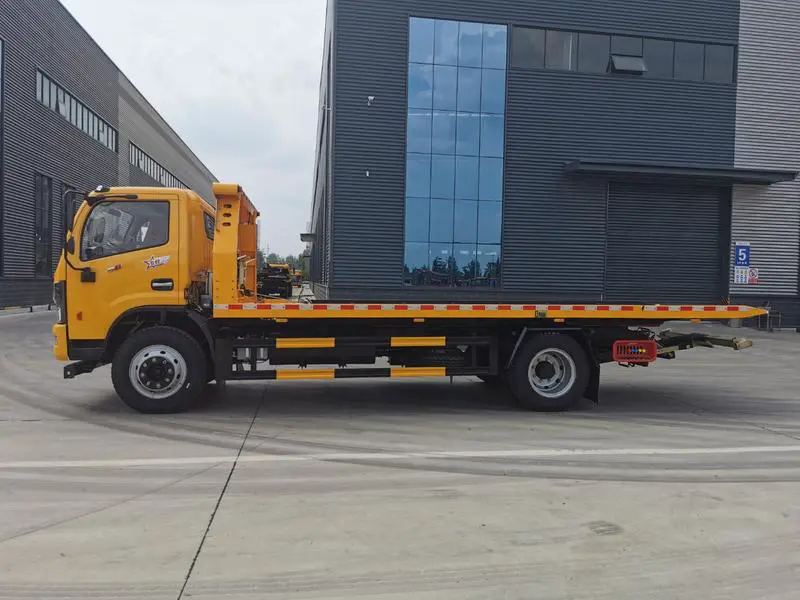

DFAC D8 4×2 Tow Truck – Integrated One-Tow-Two Design

I. Product Introduction

The DFAC D8 4×2 Tow Truck is a heavy-duty recovery vehicle designed for professional towing and roadside assistance operations. Built on the reliable Dongfeng Duolika D8 chassis, this wrecker combines robust structural integrity with powerful lifting and towing capabilities. Ideal for recovering light to medium-duty trucks, buses, and passenger vehicles, it delivers exceptional performance for towing companies, municipal fleets, and highway maintenance teams.

II. Core Parameters

III. Exterior Dimensions, Body Design & Material Concept

• Overall Dimensions: Designed to accommodate the 4400 mm wheelbase chassis, ensuring balanced weight distribution and stable towing dynamics.

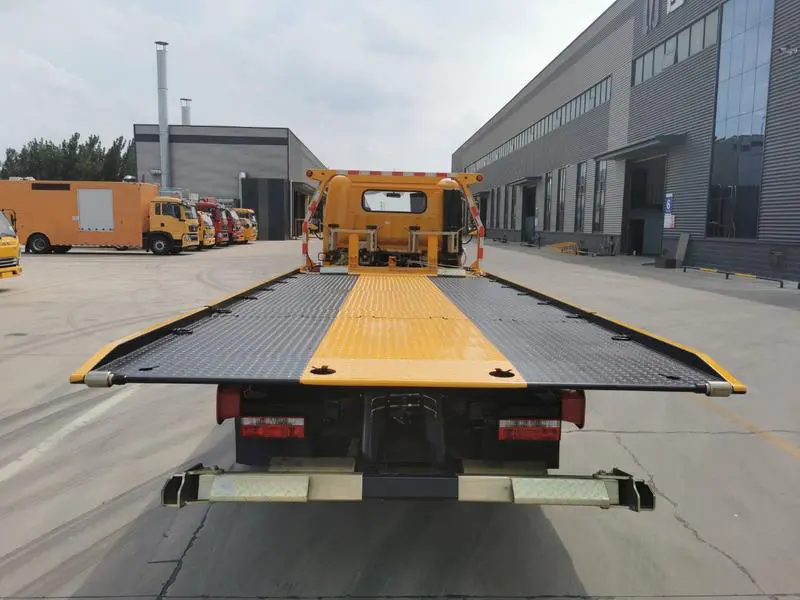

• Carriage Body: Flatbed with 8 mm thick slide rails, providing enhanced durability under heavy recovery loads.

• Deck Material: 5-section diamond-checkered steel plate, offering superior anti-slip performance for safe vehicle loading and unloading.

• Design Philosophy: The integrated one-tow-two design allows simultaneous transport of two vehicles or towing of one while carrying another, maximizing operational efficiency. The 5T recessed body lowers the center of gravity, improving stability during transport.

IV. Structural Advantages – Powertrain, Transmission & Axles

• Engine (Yuchai YCY30165-60): Delivers 165 HP with advanced China VI emission technology, ensuring compliance in strict markets while providing ample low-end torque for heavy pulling.

• Transmission (Fast 8-speed): The 8-speed manual gearbox offers precise gear ratios, optimizing fuel efficiency and providing smooth power delivery during both highway driving and low-speed recovery operations.

• Front & Rear Axles: The 3.9T front axle and 7T rear axle are engineered to withstand high dynamic loads, offering exceptional stability when operating the hydraulic winch or lifting the towing arm.

• Hydraulic System: Features dual-side synchronized control for convenient operation from either side of the vehicle. The system includes:

  • 110 mm telescopic cylinder

  • 96 mm lift cylinder

  • 96 mm tow arm lift cylinder

• Towing Equipment: Equipped with a 5T hydraulic winch (25 m steel cable), a 3.5T towing arm, L-shaped tire clamps, tire sleeves, wheel chocks, auxiliary support wheels, and 4 tie-down straps with chain hooks.

V. Product Features & Manufacturer Advantages (Chengli Group)

Product Features

• High Lifting Capacity: The 5-ton recessed body combined with a 5-ton hydraulic winch allows efficient recovery of a wide range of vehicles.

• Reinforced Slide Rail: The 8 mm thick slide rail ensures long-term structural integrity even under frequent heavy loading.

• Comprehensive Recovery Kit: Includes all necessary accessories such as L-type tire clamps, tire sleeves, wheel chocks, auxiliary wheels, and straps, allowing operators to handle diverse recovery scenarios without additional equipment.

• User-Friendly Operation: The dual-side synchronized control system enhances safety and convenience, allowing the operator to maintain optimal visibility during recovery operations.

Chengli Group Advantages

As a leading manufacturer in the special-purpose vehicle industry, Chengli Group brings decades of expertise to every unit. Our factory advantages include:

• Integrated Production: From chassis modification to complete vehicle assembly, all processes are managed in-house, ensuring strict quality control.

• Proven Engineering: The CLW5121TQZ6 model incorporates field-tested designs, including the optimized hydraulic cylinder sizing and slide rail thickness, tailored for real-world recovery conditions.

• Compliance Assurance: All vehicles are manufactured in accordance with national standards, with full documentation for registration and operation.

• Global Export Experience: Chengli vehicles are exported to markets worldwide, supported by comprehensive after-sales documentation and parts availability.
