DFAC Liuzhou 6×2 Hazardous Materials Transport Truck – 9.6-Meter Explosives Transport Truck

I. Product Introduction

The DFAC Liuzhou 6×2 Hazardous Materials Transport Truck is a specialized vehicle designed for the safe transport of explosives, blasting materials, and other dangerous goods. Built on a premium DFAC Liuzhou 6×2 chassis with a 2050+5350 mm wheelbase, this 9.6-meter explosives transport truck is powered by a Yuchai 270 HP engine (YCS06270-60) paired with a Fast 8JS105TA transmission, delivering reliable performance for long-haul dangerous goods transport. With a gross vehicle weight of 22.3 tons and a rated load capacity of 9.99 tons, this vehicle is engineered to meet strict safety regulations for hazardous materials transport. The cargo box is constructed with advanced composite materials, featuring anti-static interior, ventilation systems, and comprehensive safety equipment including EBS, TPMS, LDWS, and FCW.

II. Core Parameters

III. Exterior Dimensions, Cargo Box Specifications & Design Philosophy

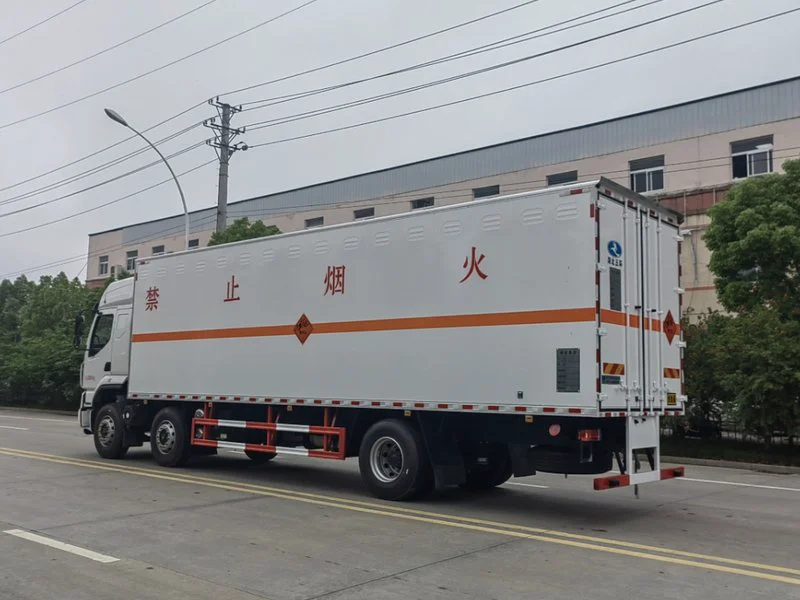

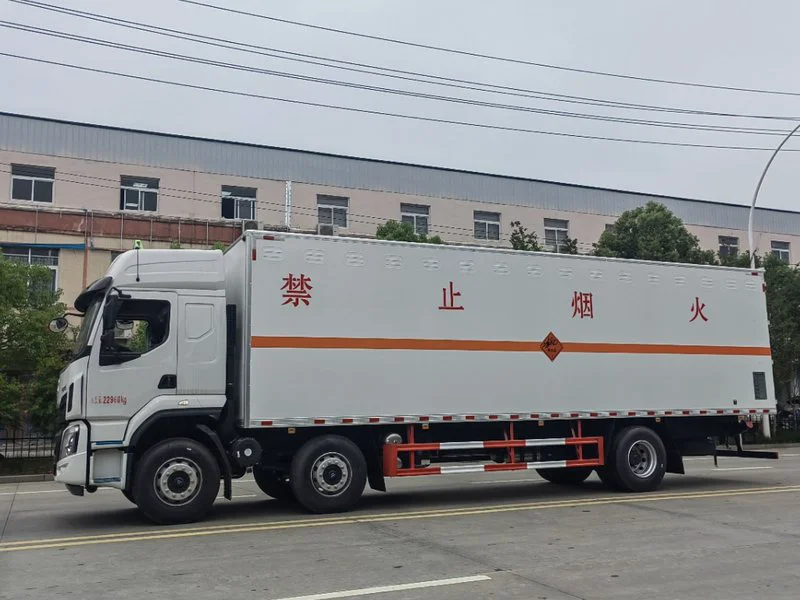

• Overall Dimensions: With an overall length of 12,000 mm and a 2050+5350 mm wheelbase, the vehicle offers excellent stability and weight distribution for hazardous materials transport.

• Cargo Box Dimensions: The cargo area measures 9600 × 2450 × 2500 mm, providing substantial capacity for explosives and blasting materials while maintaining structural integrity.

• Cargo Box Construction: The cargo box is manufactured using advanced composite technology, combining:

  • Exterior: 1mm cold-rolled steel plate with integrated louvered vents

  • Interior: Conductive aluminum plate with ventilation holes for static dissipation

  • Frame: Rectangular tube skeleton for structural strength

  • Insulation: Breathable, moisture-proof, flame-retardant extruded polystyrene board

• Design Features: The cargo box features aluminum alloy edge trim, rubber padding on the floor and front lower section, dual rear doors, and two pairs of side doors on the right side. Interior tie-down rings secure cargo during transit.

• Design Philosophy: The vehicle prioritizes safety, static dissipation, and compliance with hazardous materials transport regulations. The multi-layer composite construction provides structural strength, thermal insulation, and static conductivity, while the ventilation system ensures proper airflow to prevent fume accumulation.

IV. Structural Advantages – Engine, Transmission, Axles & Safety Systems

• Engine (Yuchai YCS06270-60 – 270 HP): Powered by a Yuchai 270 HP diesel engine, delivering strong low-end torque for heavy loads with proven reliability and fuel efficiency for long-haul hazardous materials transport.

• Transmission (Fast 8JS105TA): Equipped with a Fast 8-speed manual gearbox, offering precise gear ratios for smooth acceleration and optimal power delivery across varying road conditions.

• Front Axles: 2 × 5.5T disc brake front axles provide superior braking performance and heat dissipation, essential for hazardous materials transport safety.

• Rear Axle: 440 rear axle with a 4.875 ratio and widened brakes ensures reliable load-carrying capacity and braking stability.

• Frame: 282 mm (8) heavy-duty frame provides exceptional structural integrity for the 22.3-ton gross vehicle weight.

• Suspension: Leaf spring configuration (3/3/-) with front mechanical and rear air cab suspension for enhanced ride comfort.

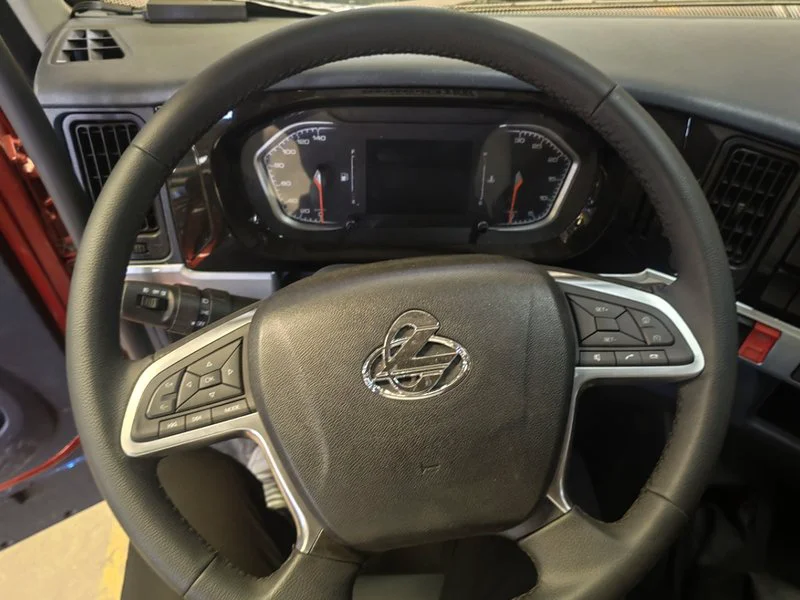

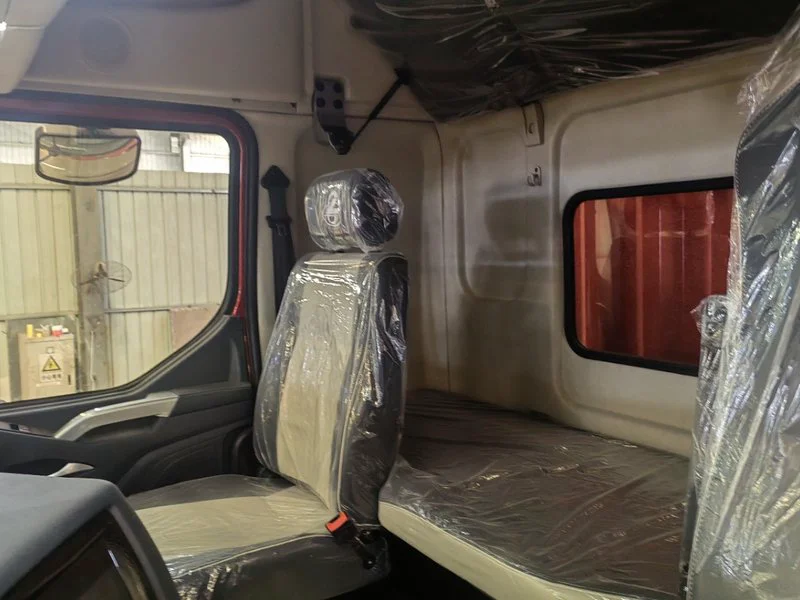

• Cab Features: H53S cab with hydraulic electric tilt, laminated glass, power windows, mechanical suspension driver seat, LCD instrument cluster, MP5 + radio, automatic air conditioning, cruise control, multi-function leather steering wheel, external sun visor, aluminum air tanks, central locking, and reverse camera.

• Safety Systems: Comprehensive safety equipment includes:

  • EBS (Electronic Braking System) for enhanced brake control

  • TPMS (Tire Pressure Monitoring System) for real-time tire monitoring

  • LDWS (Lane Departure Warning System) for driver alert

  • FCW (Forward Collision Warning) for collision prevention

  • ABS for anti-lock braking

  • Front tire burst emergency safety device

  • Disc brakes on front axles for superior braking performance

  • Exhaust spark arrester for flame prevention

  • Hazardous materials warning light on cab roof

  • ECU speed limiter (80 km/h)

  • Battery master switch in cab

  • Static-conductive rubber drag strip

V. Product Features & Chengli Group Manufacturer Advantages

Product Features

• 9.6-Meter High-Capacity Cargo Box: The spacious 9600 × 2450 × 2500 mm cargo area provides ample capacity for explosives and blasting materials while maintaining structural integrity.

• Advanced Composite Construction: The cargo box combines cold-rolled steel exterior, conductive aluminum interior, rectangular tube skeleton, and flame-retardant insulation, offering superior strength, static dissipation, and thermal protection.

• Ventilation System: Louvered exterior vents and perforated aluminum interior panels ensure proper airflow, preventing fume accumulation while maintaining security.

• Anti-Static Interior: The conductive aluminum interior lining dissipates static electricity, reducing ignition risks during transport.

• Comprehensive Safety Equipment: Equipped with EBS, TPMS, LDWS, FCW, ABS, front tire burst emergency device, exhaust spark arrester, hazardous materials warning light, ECU speed limiter, and static-conductive drag strip.

• Disc Brake Front Axles: Dual 5.5T disc brake front axles provide superior stopping power and heat dissipation, essential for hazardous materials transport safety.

• Driver Comfort: H53S cab with automatic air conditioning, cruise control, LCD instrument cluster, MP5 with reverse camera, and multi-function leather steering wheel ensures fatigue-free long-haul operations.

• Regulatory Compliance: Strictly designed to meet national hazardous materials transport regulations, including front disc brakes, exhaust spark arrester, speed limiter, and all required safety markings.

• Versatile Applications: Suitable for explosives transport, blasting materials delivery, and other dangerous goods logistics.

Chengli Group Manufacturer Advantages

Chengli Group, a leading manufacturer in China’s special-purpose vehicle industry, brings decades of expertise to every hazardous materials transport vehicle. Key advantages include:

• Large-Scale Production: Modern facilities with high annual capacity ensure short delivery lead times and consistent supply.

• Comprehensive Quality Control: From raw material selection to final assembly, strict quality management ensures every vehicle meets rigorous safety standards.

• Technical R&D Strength: A dedicated engineering team continuously optimizes cargo box design, safety systems, and hazardous materials transport features.

• Complete Compliance Certification: All vehicles are certified under national standards with full documentation for smooth registration and operation, including hazardous materials transport permits.

• Global Service Network: Products are exported worldwide, supported by responsive after-sales service and parts availability.

• Customization Capability: Flexible manufacturing allows for tailored configurations to meet specific explosives transport requirements.

• Cost-Effective Value: Chengli offers competitive pricing without compromising on quality, delivering exceptional value for hazardous materials transport operators.
