JAC V5 Dangerous Goods Transport Truck | 4.2m Hazardous Material Box Truck | 3 Ton Payload | Transport Class 1-9 Dangerous Goods
I. Product Introduction
The JAC Junling V5 Blue Plate Dangerous Goods Box Truck is a premium light-duty hazardous material transport vehicle built on the renowned JAC Junling V5 chassis. Specifically engineered for safe and compliant transportation of dangerous goods, this 4.2-meter cargo box truck features a lightweight design that maximizes payload capacity without compromising structural integrity. With a rated load capacity of 1 ton, this model offers multiple engine options to suit diverse operational needs: Yuchai 160 hp, Cummins 150 hp, or Weichai 130 hp. Certified to transport all Classes 1 through 9 dangerous goods—including explosives, gases, flammable liquids, corrosives, and hazardous wastes—this vehicle meets the strictest safety standards for hazardous material logistics. The Blue Plate status allows operation with a standard C-class driver's license, making it highly accessible for urban and regional distribution of dangerous cargo.
II. Key Specifications
Chassis Model: JAC Junling V5 (HFC1045P32K5C7ZS / HFC1045P32K2C7S)
Engine Options:
Yuchai: 160 hp (approx. 118 kW)
Cummins: 150 hp (111 kW, model HFC4DE2-2E2 / HFC4DE3-2E5)
Weichai: 130 hp (96 kW, model WP2.3NQ130E61)
Transmission: 5-speed / 6-speed manual options depending on engine configuration
Dimensions (L×W×H): 5995 mm × 2050-2260 mm × 2750-3350 mm (sub-6-meter length for Blue Plate operation)
Cargo Box Dimensions (L×W×H): 4100-4200 mm × 1850-2100 mm × 1700-2300 mm (4.2m class)
Wheelbase: 3365 mm
Gross Vehicle Weight (GVW): 4495 kg
Rated Load Capacity: 750-1100 kg (1 ton class)
Curb Weight: 3280-3550 kg (lightweight optimized)
Front Axle: 2 tons
Rear Axle: 4.5 tons
Frame Section: 180 mm × 65 mm × 5 mm high-strength steel frame
Tires: 7.00R16LT 8PR / 10PR radial tires
Braking System: Front disc brakes, rear drum brakes, dual-channel ABS
Safety Features: LDWS (Lane Departure Warning System), FCWS (Forward Collision Warning System), limited to 80 km/h, exhaust brake, front-mounted exhaust pipe, flame-proof wiring
Cab: JAC Junling V5 1900 mm wide cab (single row, 3-person capacity) with ergonomic design
Comfort Features: Multi-function steering wheel with cruise control, power windows, central door lock with remote key, heated side mirrors, adjustable steering wheel, original air conditioner, LED daytime running lights
III. Exterior Dimensions, Body Material & Design Concept

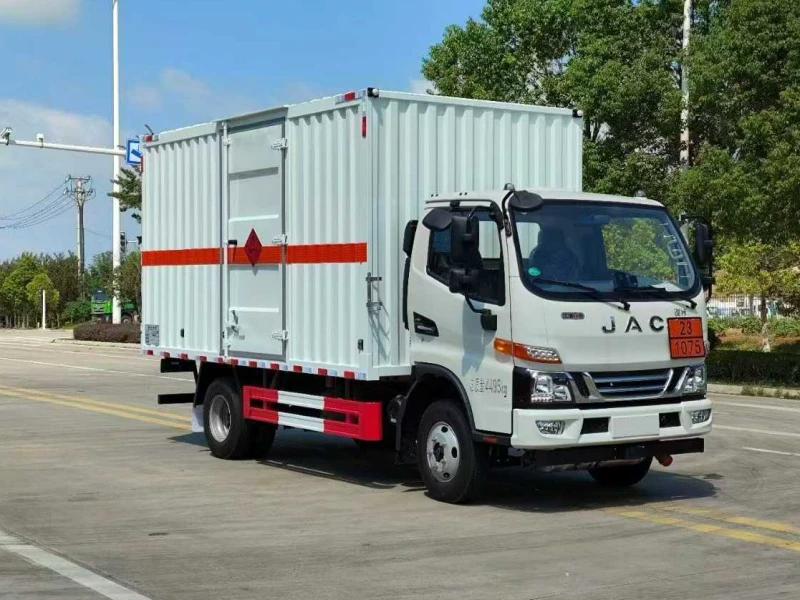

Exterior Dimensions: With overall dimensions of 5995 mm (L) × 2050-2260 mm (W) × 2750-3350 mm (H), the JAC Junling V5 Dangerous Goods Truck is precision-engineered to stay under the critical 6-meter length threshold, allowing Blue Plate operation with a standard C-class driver's license in urban and regional environments. The 3365 mm wheelbase provides excellent stability and maneuverability in confined spaces.
Body Material & Construction: The cargo box features a composite sandwich panel construction with multiple material options:
Composite Panel Version: Outer skin of high-quality baked finish plate (color options: white, gray, lemon yellow) with ventilation louvers; inner lining of conductive aluminum flat panel with perforations for ventilation; rectangular tube frame structure filled with fire-retardant insulation material; riveted composite construction for durability
Corrugated Panel Version: Outer skin of cold-rolled steel corrugated panels; internal channel steel frame; diamond plate floor with anti-static rubber mat

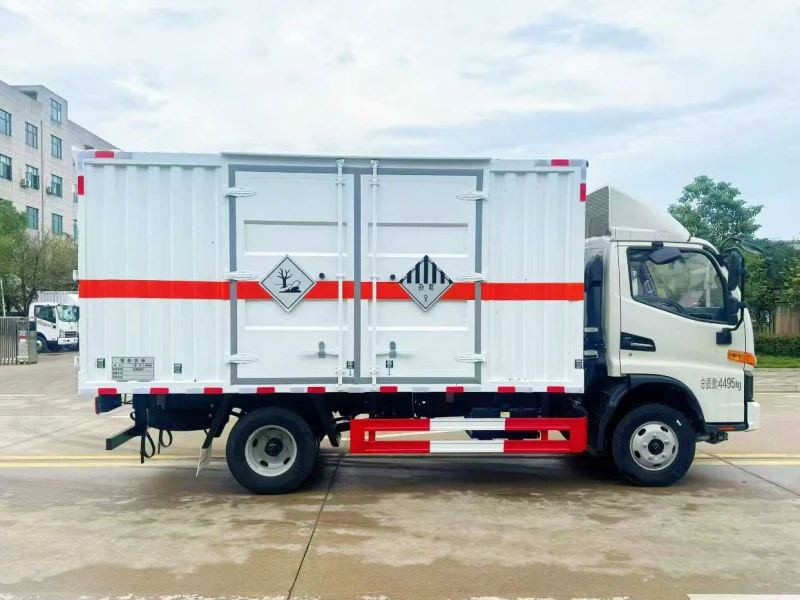

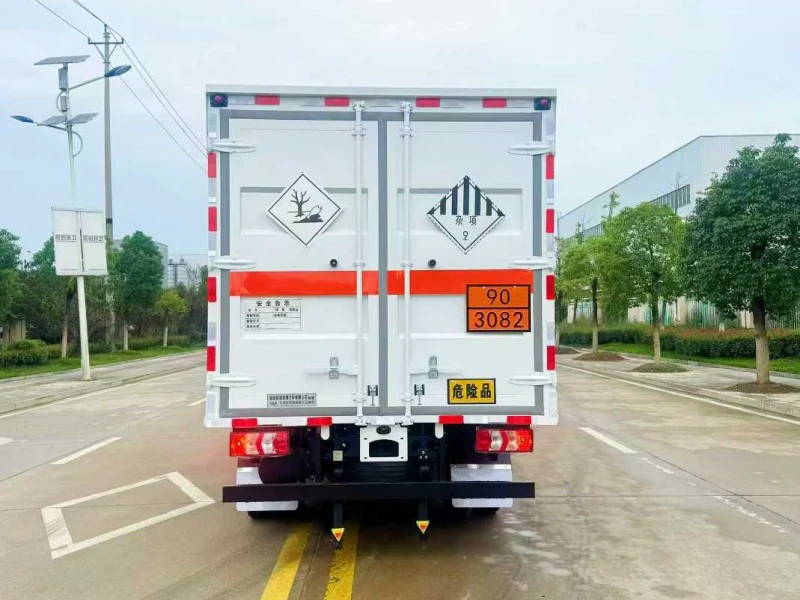

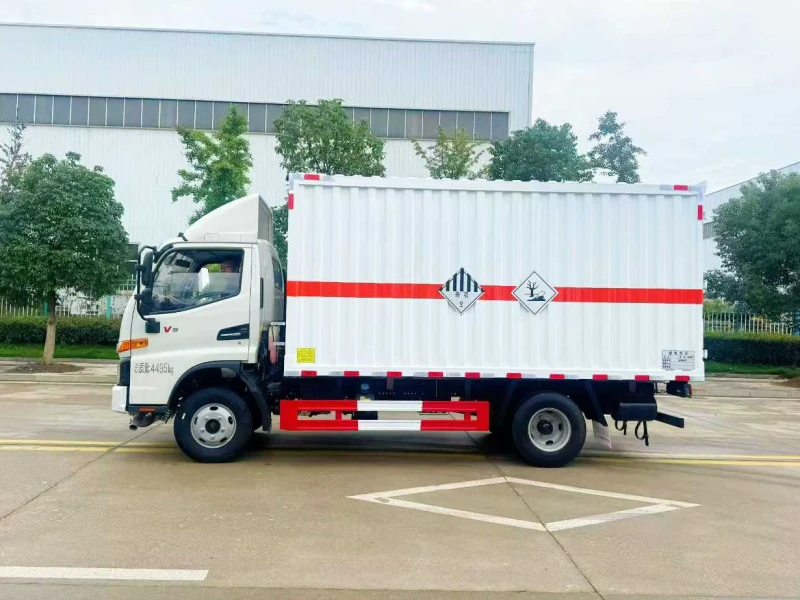

Protective Features: The box features aluminum alloy profile edging around all corners, anti-static grounding straps, orange reflective tape around the perimeter, and hazard warning diamonds with safety instruction signs. The floor is covered with anti-static conductive rubber mat to prevent spark generation.
Design Concept: The design philosophy centers on "lightweight safety" — maximizing payload capacity through advanced materials and structural optimization while maintaining the highest safety standards for dangerous goods transport. The vehicle incorporates new technologies, new structures, and new materials to achieve weight reduction without compromising strength. The lightweight chassis design features fewer leaf springs combined with high-power density rear axles and tubeless tires, ensuring unchanged load-bearing capacity while improving fuel efficiency and driving stability. Every element from the high-strength steel frame to the composite box panels is optimized for weight reduction while maximizing structural integrity and corrosion resistance.
IV. Detailed Structure & Component Advantages
Engine Options (Versatile Powertrain Choices): The Junling V5 offers three proven engine options to match specific operational requirements:
Weichai 130 hp (WP2.3NQ130E61): A 2.3L turbo diesel delivering 96 kW with excellent low-end torque for urban stop-and-go operations. Features fuel preheating for cold starts and electronic control high-pressure injection system for fuel efficiency.
Cummins 150 hp (HFC4DE2-2E2 / HFC4DE3-2E5): A 2.95L engine producing 111 kW and 380 N·m torque, renowned for reliability and fuel economy. Features EGR+DOC+DPF+SCR+ASC technology for Euro VI compliance.
Yuchai 160 hp: A high-output option delivering 118 kW and 460 N·m torque for demanding applications requiring extra power.
All engines feature turbocharged intercooled design and meet Euro VI emission standards, combining environmental responsibility with robust performance.
Transmission Options: Depending on engine configuration, the vehicle is equipped with either 5-speed (ML532A/ML540A) or 6-speed (WLY5GS36/LC6T450B) manual transmissions, providing smooth gear shifts and optimal torque delivery for varying load conditions.
Chassis & Frame: The 180 mm × 65 mm × 5 mm high-strength steel frame provides exceptional torsional rigidity while supporting the lightweight design philosophy. The frame is engineered to accommodate the specific requirements of dangerous goods transport, including reinforced mounting points for safety equipment.
Front & Rear Axles: The 2-ton front axle and 4.5-ton rear axle are specifically calibrated for the 4.5-ton GVW class, featuring high-power density reduction for efficient power transmission. The axles work in tandem with the lightweight suspension system (optional few-leaf springs 4/4+2) to maintain stability while reducing overall vehicle weight.
Advanced Safety Systems: The vehicle comes standard with comprehensive safety features mandated for dangerous goods transport:
Dual-channel ABS for enhanced control on slippery surfaces
LDWS (Lane Departure Warning System) and FCWS (Forward Collision Warning System) – meeting latest regulations
Engine speed limiter (maximum 80 km/h) as required for hazardous cargo
Front disc brakes with automatic slack adjusters
Exhaust brake for enhanced downhill control
Tire pressure monitoring system and blowout prevention device
Front-mounted exhaust pipe to prevent ground spark ignition
Flame-proof wiring harness and electromagnetic power master switch

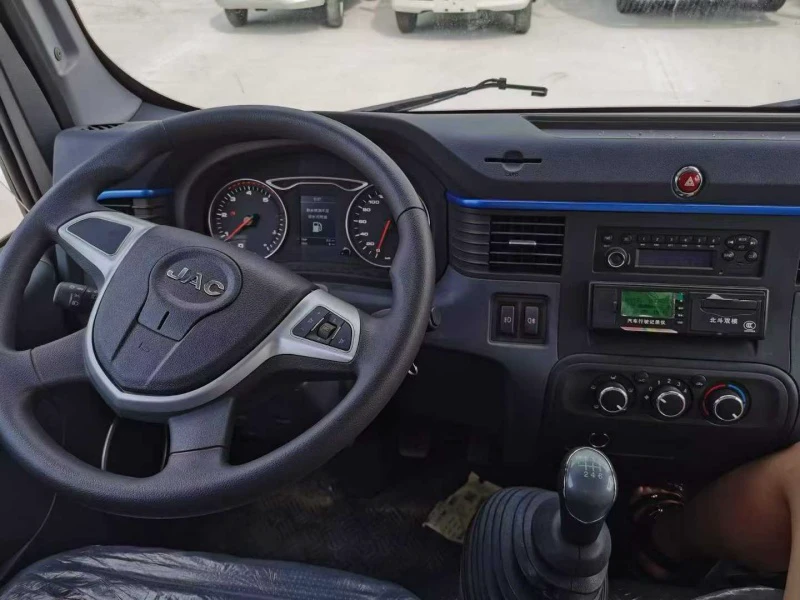

Operator Comfort & Convenience: The 1900 mm wide cab provides generous space for three occupants. Standard comfort features include multi-function steering wheel with cruise control, power windows, central door lock with remote key, electrically heated side mirrors for all-weather visibility, adjustable steering wheel, original air conditioner, LED daytime running lights, and multi-function instrument cluster with voice alerts.
V. Product Features & Chengli Group Manufacturer Advantages
Comprehensive Dangerous Goods Certification: The JAC Junling V5 is fully certified to transport all Classes 1 through 9 dangerous goods:
Class 1: Explosives (black powder, detonators, fireworks, propellants)
Class 2: Gases (cylinder gases, flammable/non-flammable/toxic gases)
Class 3: Flammable liquids (paints, methanol, solvents)
Class 4: Flammable solids
Class 5: Oxidizing substances
Class 6: Toxic substances
Class 8: Corrosives
Class 9: Miscellaneous hazardous wastes
The vehicle meets all regulatory requirements for dangerous goods transport, including ADR-equivalent standards where applicable.
Specialized Cargo Box Features: The dangerous goods box is equipped with comprehensive safety systems:
Smoke alarm system inside the cargo compartment for early fire detection
Anti-theft alarm on doors to prevent unauthorized access
Fixed cargo rings (tie-down rings) inside for securing loads during transit
Weather-resistant door seals (one-piece molded) for dust and moisture protection
Rust-proofed floor with anti-corrosion treatment
Hot-dip galvanized door hinges and rods for long-term corrosion resistance
Optional side doors (various configurations available per regulatory specifications)
Optional hydraulic tail lift for easier loading/unloading
Lightweight Design Advantages: The lightweight engineering of this model offers significant operational benefits:
Increased payload capacity through weight reduction without compromising strength
Improved fuel economy (up to 10% reduction in fuel consumption)
Reduced tire wear and lower operating costs
Extended maintenance intervals (engines up to 50,000 km service intervals)
Enhanced acceleration and hill-climbing ability
Blue Plate compliance while maintaining competitive payload
Chengli Group Advantages: As a premier manufacturer under the Chengli Group umbrella, this JAC Junling V5 Dangerous Goods Truck benefits from decades of specialized vehicle expertise:
Integrated Engineering: Unlike simple conversions, these vehicles feature fully integrated body-chassis design with engineered safety systems and structural reinforcements specifically for dangerous goods transport.
Quality Control: Built in ISO-certified facilities with rigorous testing of all systems—electrical, fire suppression, alarm systems, and chassis integration. All vehicles undergo extensive road testing before delivery.
Customization Capability: Chengli offers extensive customization options including:
Multiple box constructions (composite panel or corrugated panel)
Various side door configurations as permitted by regulatory specifications
Hydraulic tail lift integration
Enhanced floor options (4mm thickness available)
Custom interior layouts for specific cargo types
Nationwide Service Network: Comprehensive after-sales support with trained technicians and genuine parts availability across China. Warranty coverage: 1 year or 30,000 km on the superstructure, with chassis service through JAC's national dealer network.
Export Experience: Years of experience in international shipping of dangerous goods vehicles, handling all documentation, container loading, and compliance with destination country regulations. We provide complete CKD (Completely Knocked Down) and CBU (Completely Built Unit) solutions.
Value Engineering: Competitive pricing through bulk chassis procurement from JAC and efficient manufacturing, offering premium safety features at accessible price points. The company has thousands of satisfied customers worldwide trusting Chengli for durable, compliant dangerous goods transport solutions.
