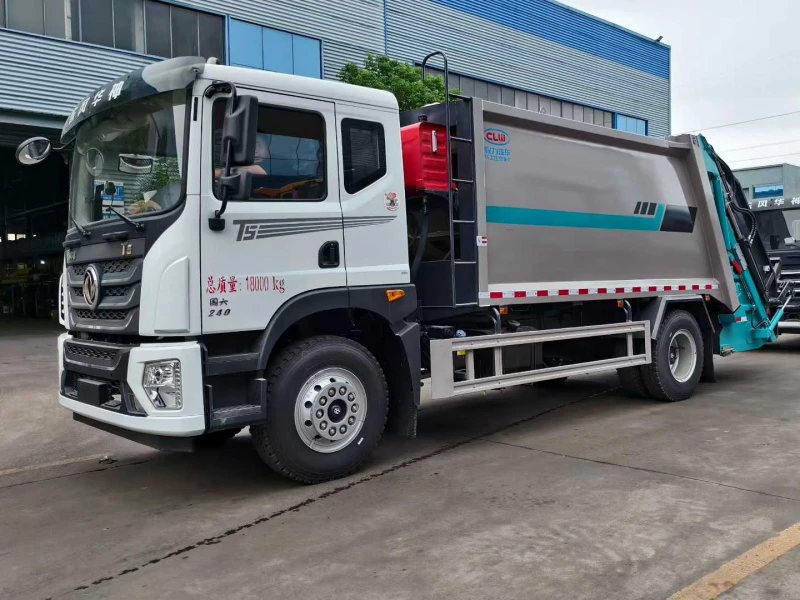

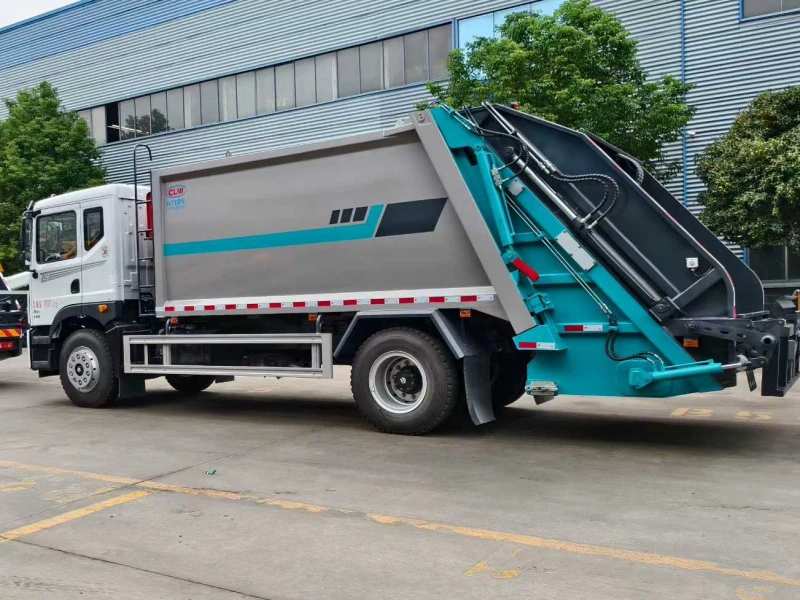

Dongfeng 14 Cubic Meter Compressed Garbage Truck | Chengli Special Vehicle
1. Product Overview
The Chengli CL5183ZYS6AHQ Compressed Garbage Truck is a high-efficiency, modern sanitation vehicle and waste management truck designed for urban and suburban refuse collection and compaction. Built on a reliable Dongfeng commercial truck chassis, it integrates advanced garbage compaction technology to maximize load capacity, reduce transportation trips, and improve municipal sanitation operational efficiency. This compaction garbage truck is an ideal solid waste handling solution for city garbage collection departments and environmental services companies.
2. Key Specifications & Performance Data
Model: Chengli CL5183ZYS6AHQ Compactor Garbage Truck
Emission Standard: China VI (国六) Diesel Engine
Total Mass: 18000 kg (GVWR)
Rated Load Capacity: Ranges from approx. 6955 kg to 8005 kg
Curb Weight: From 9865 kg to 10850 kg
Maximum Speed: 88 km/h
Garbage Compartment Volume: 14 cubic meters (CBM)
Fuel Type: Diesel
3. Dimensions, Body Construction & Design Engineering
Overall Vehicle Dimensions (LxWxH): Multiple truck sizes available (Lengths: 7960-9150mm, Width: 2500mm, Heights: 3150-3360mm).
Approach/Departure Angle: 25/10 or 28/11 degrees for good vehicle maneuverability.
Wheelbase Options: From 3950 mm to 5100 mm for various route planning needs.
Body Material & Manufacturing: The waste container is built with heavy-duty steel plates (side: 4mm, bottom: 5mm). Features robotic welding for structural integrity and electrocoating paint for superior corrosion protection and vehicle durability.
Chassis Frame & Design: Engineered for optimal weight distribution and load stability, ensuring safe operation and fuel efficiency.
4. Detailed Chassis & Powertrain Configuration
Chassis Model: Dongfeng EQ1180GL6DJ truck chassis.
Engine Power: Equipped with a Yuchai diesel engine (200 HP), delivering strong torque and fuel economy for stop-and-go driving cycles.
Gearbox System: Features a durable Shaanxi Fast manual transmission (8-speed), known for reliable performance and easy maintenance.
Axle & Suspension System: Robust front and rear axles with high load capacity. Leaf spring suspension (9/11+8 or 3/4+3) ensures ride comfort and load handling on uneven roads.
Tires & Wheels: 6 units of heavy-duty tires (10.00R20 18PR or 295/80R22.5 16PR) for excellent road grip and weight support.
Driver Cabin: A comfortable truck cab with safety features like ABS braking system, air conditioning, central locking, and power windows.
5. Product Features & Manufacturer Strengths
Waste Compaction System: Utilizes an efficient hydraulic packing system with an external slide plate cylinder design for high compaction force and greater waste density.

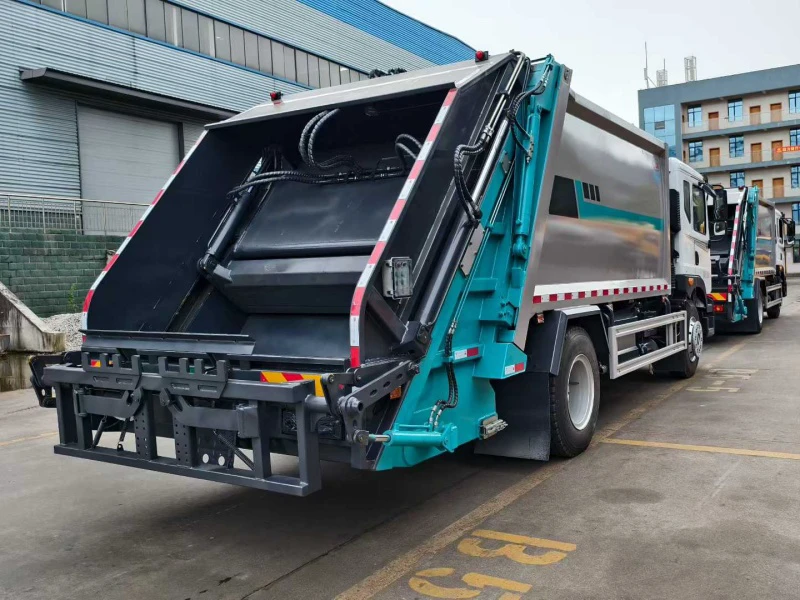

Loading Mechanism & Hopper: Rear automatic bin lifter handles standard 120L/240L wheelie bins. Optional sealed hopper or triangle hopper prevents litter spillage and controls odor emission.
Hydraulic Components: Uses premium hydraulic valves (Weisheng Bole) and gear pumps (WanYe) for a leak-free, reliable hydraulic system with precise control.
Chengli Group Advantages: As a leading special vehicle manufacturer in China, Chengli offers custom truck building, strict quality assurance, a nationwide service network, and competitive pricing. Their expertise in refuse truck bodies and compactor design ensures a low-maintenance, cost-effective, and high-productivity solution for waste disposal and city cleaning operations. Ideal for garbage truck fleet buyers.
