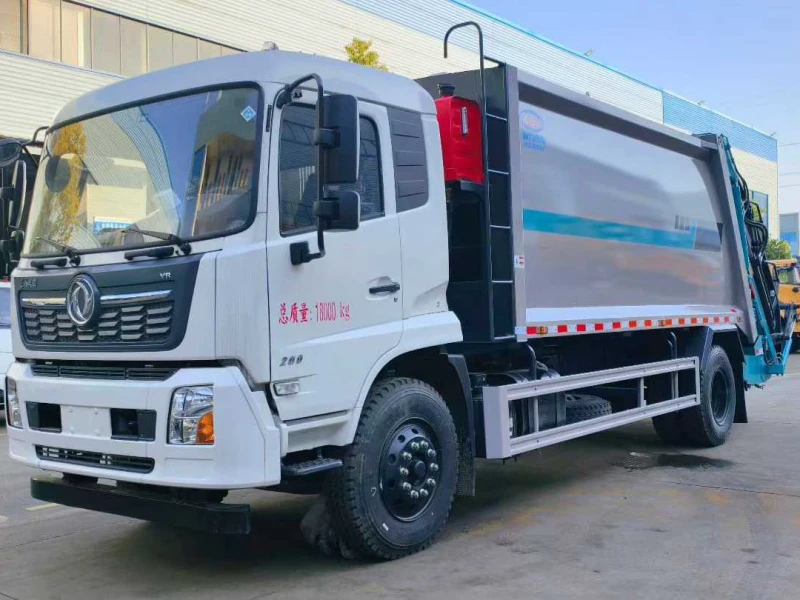

Product Introduction: Dongfeng Tianjin 18 Cubic Meter Compressed Garbage Truck

1. Product Overview
The Chengli CL5185ZYS6GX Compressed Garbage Truck is a high-performance municipal waste collection vehicle built on the renowned Dongfeng Tianjin heavy-duty truck chassis. Designed for efficient urban sanitation and residential waste management, this compaction garbage truck integrates advanced hydraulic compression technology with intelligent control systems to optimize collection route efficiency and support sustainable city cleaning operations. Its 18-cubic-meter capacity makes it ideal for medium to high-volume refuse collection in both municipal services and private waste contracting.

2. Core Specifications

• Product Model: Chengli CL5185ZYS6GX Front Loader Garbage Truck (Compressed Type)

• Emission Certification: Compliant with China VI (Guoliu) environmental standards

• Gross Vehicle Weight Rating (GVWR): 18,000 kg

• Legal Payload Capacity: Options of 7,305 kg or 6,805 kg

• Kerb Weight: 10,500 kg / 11,000 kg

• Maximum Speed: 89 km/h, suitable for city and suburban routes

• Refuse Compartment Volume: 18 cubic meters (CBM)

• Fuel Type: Diesel-powered commercial vehicle

3. Dimensions, Body Construction & Engineering Design

• Overall Truck Dimensions (L×W×H): Available in multiple configurations with lengths from 8,850 mm to 9,700 mm, standard width of 2,550 mm, and height of 3,330 mm, ensuring road legal compliance and excellent maneuverability in narrow streets.

• Body Material & Manufacturing: The main compression chamber is fabricated from premium high-tensile steel plates using automated welding processes for superior structural integrity and impact resistance in demanding waste handling applications.

• Surface Protection Technology: Features electrophoretic coating (E-coat) paint system for complete corrosion protection, chemical resistance, and extended vehicle service life under harsh sanitation working conditions.

• Functional Design: Incorporates dual wastewater collection tanks (side and rear positions) with dedicated drainage outlets to prevent leachate spillage and ensure environmental compliance during refuse transport.

4. Chassis & Powertrain System Advantages

• Chassis Base: Dongfeng DFH1180EX8 two-axle commercial truck chassis with 5,000 mm wheelbase for optimal weight distribution and turning radius.

• Engine Performance: Powered by a Cummins 6-cylinder 230 horsepower diesel engine, delivering excellent fuel efficiency, low noise levels, and reliable power output for frequent stop-start collection cycles.

• Transmission System: Equipped with a Fast Gear 8-speed manual transmission (synchronized gearbox), known for smooth gear shifting, robust construction, and easy maintenance in heavy-duty applications.

• Axle & Suspension Configuration: Heavy-duty front and rear axles with 6,500/11,500 kg load capacity. Progressive leaf spring suspension (7/9+6, 8/10+8, etc.) provides superior load cushioning and road stability on uneven surfaces.

• Tires & Wheels: Steel-belted radial tires (10.00R20 18PR or 275/80R22.5 18PR) on 6-wheel configuration, offering excellent load-bearing capacity and puncture resistance for urban waste collection routes.

• Operator Cabin: Dongfeng Tianjin extended cab with ergonomic features including adjustable halogen headlights, automatic brake adjusters, hydraulic power steering, ABS braking system, central locking, and climate control AC for enhanced driver productivity.

5. Key Features & Manufacturer Strengths

• Advanced Compression Mechanism: Utilizes push plate and scraper compression technology with an integrated compaction control valve to maximize refuse density and payload optimization per collection cycle.

• Premium Hydraulic Components: Features Hydros brand hydraulic cylinders, Zhongmei directional control valves, and WanYe dual hydraulic gear pumps for reliable system performance, low maintenance requirements, and energy-efficient operation.

• Intelligent Control System: CAN bus electronic control unit (similar to Zoomlion systems) with wireless remote control, in-cab operation panel, emergency stop function, and real-time system monitoring for precise operational control and safety management.

• Efficient Loading System: Rear hydraulic swing arm with 240-liter bin lifting mechanism capable of dual-container handling, significantly improving collection speed and labor efficiency for curbside pickup operations.

• Safety & Operational Features: Includes LED work area lighting for night collection safety, rear-mounted control panel with emergency switches, and weatherproof electrical components for all-weather reliability.

• Chengli Special Vehicle Capabilities: As a leading Chinese specialized vehicle manufacturer, Chengli offers complete vehicle customization, ISO-certified quality control, nationwide parts distribution, and comprehensive after-sales technical support. This model demonstrates their expertise in developing high-efficiency waste management solutions that meet the evolving needs of municipal sanitation departments, waste management companies, and environmental service providers seeking cost-effective fleet modernization.
