Product Introduction: Dongfeng Duolika 10 Cubic Meter Compressed Garbage Truck

1. Product Overview

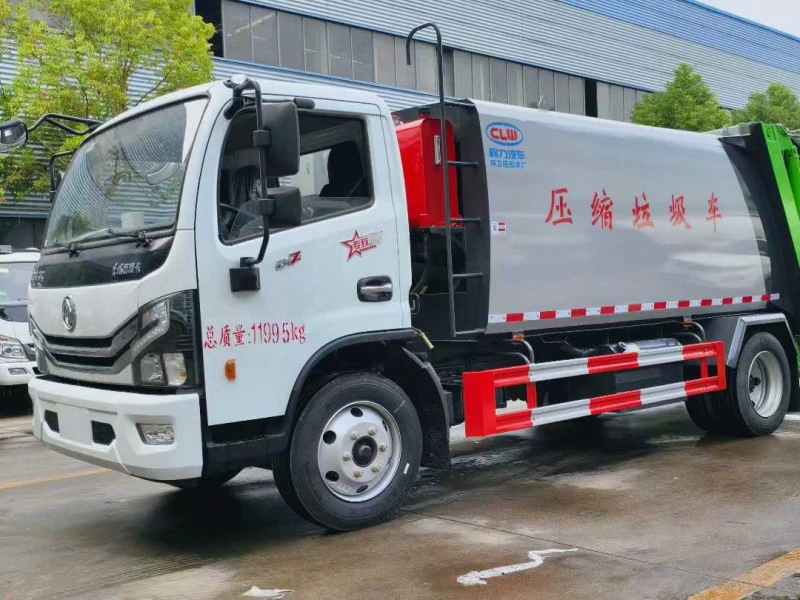

The Chengli CL5120ZYSD6 Compressed Garbage Truck is a versatile light-duty refuse collection vehicle built on the reliable Dongfeng Duolika commercial truck chassis. Designed for municipal waste management and residential garbage collection, this 10-cubic-meter capacity compactor truck combines compact urban maneuverability with efficient waste compression technology. Its optimized design makes it ideal for street cleaning operations, community waste pickup, and small-scale waste transfer in both urban and suburban environments.

2. Core Specifications

• Product Model: Chengli CL5120ZYSD6 Light Duty Compactor Garbage Truck

• Emission Standard: China VI (Guoliu) certified diesel vehicle

• Gross Vehicle Weight Rating (GVWR): 11,995 kg

• Legal Payload Capacity: Options of 5,100 kg, 4,800 kg, or 4,450 kg

• Kerb Weight: 6,700 kg / 7,000 kg / 7,350 kg

• Maximum Speed: 103 km/h, suitable for city and highway routes

• Refuse Compartment Volume: 10 cubic meters (CBM)

• Fuel Type: Diesel-powered sanitation vehicle

3. Dimensions, Body Construction & Engineering Design

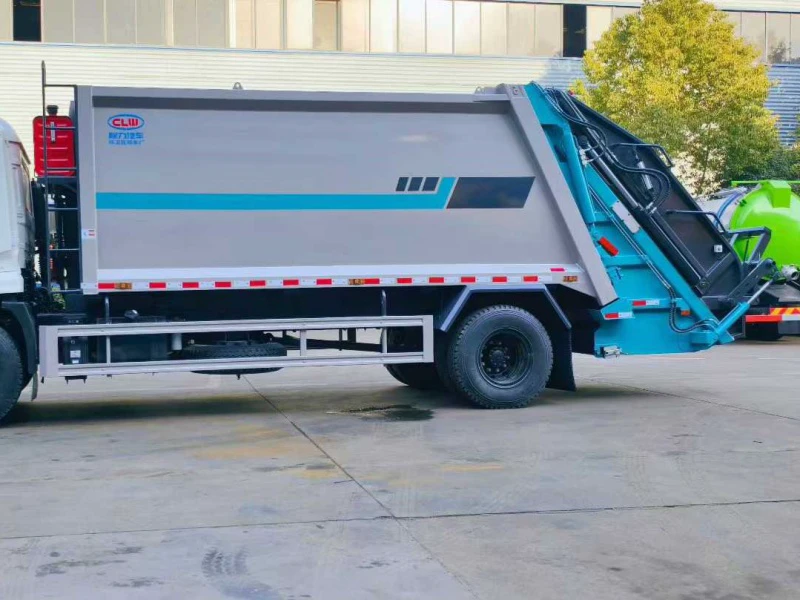

• Overall Vehicle Size (L×W×H): Compact configurations with lengths from 7,400 mm to 7,700 mm, standard width of 2,300 mm, and height options of 2,380 mm, 2,800 mm, or 3,000 mm, providing excellent maneuverability in narrow streets and residential areas.

• Body Material & Manufacturing: Constructed using high-strength Q600 steel alloy plates with side wall thickness of 4mm and floor thickness of 5mm for superior structural integrity and long-term durability in waste handling applications.

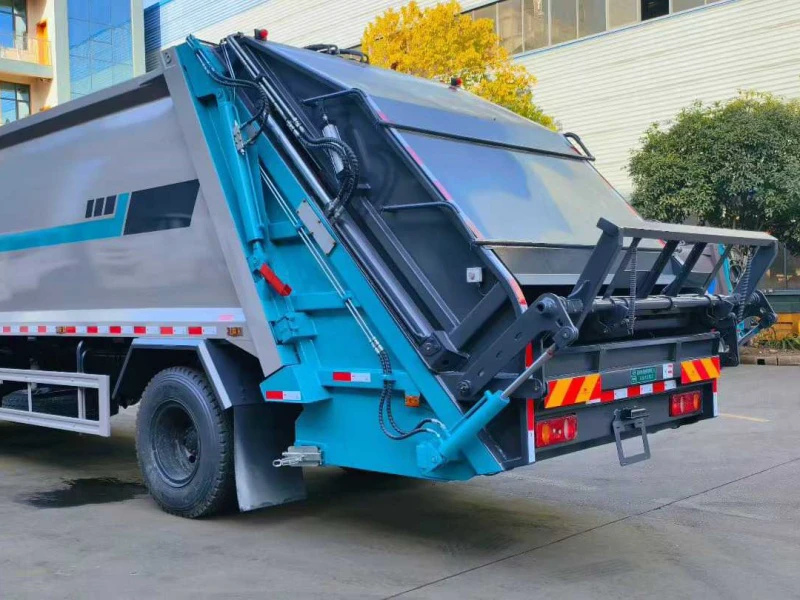

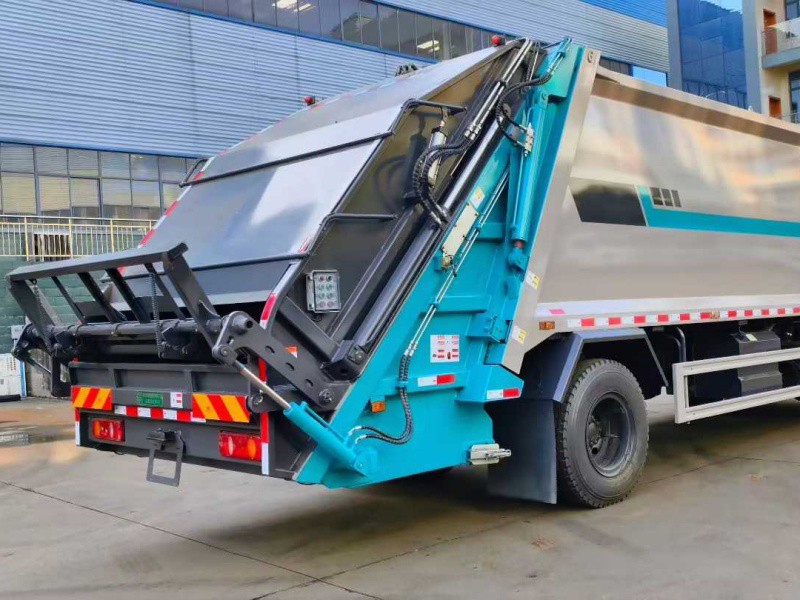

• Design Features: Arc-shaped body structure enhances internal waste flow and compaction efficiency. Externally mounted slide plate cylinders ensure easy maintenance access and reliable hydraulic performance.

• Environmental Protection Systems: Equipped with dual-position wastewater containment tanks (side and rear) to prevent leachate leakage and ensure environmental compliance during waste transport operations.

4. Chassis & Powertrain System Advantages

• Chassis Base: Dongfeng EQ1125SJ8CDC light-duty truck chassis with multiple wheelbase options from 3,600 mm to 4,700 mm for customized route optimization.

• Engine Performance: Configurable with power-efficient diesel engines: Yuchai 165 HP, Yunnei 150 HP, or Yunnei 170 HP, providing balanced power-to-weight ratio and fuel economy for stop-start collection cycles.

• Transmission Systems: Paired with Wanliyang 6-speed manual transmission (for Yuchai/Yunnei 150 HP) or Fast Gear 8-speed manual gearbox (for Yunnei 170 HP), offering smooth shifting performance and reliable power transmission.

• Axle & Suspension Configuration: Heavy-duty front and rear axles with 4,350/7,645 kg load capacity. Multi-stage leaf spring suspension (8/10+7 or 12/12+9) provides excellent load support and ride comfort on urban roads.

• Tires & Wheels: 6-tire configuration with options including 245/70R19.5 radial tires, 8.25R20 steel-belted tires, or 245/70R19.5 16PR reinforced tires for optimal traction and load-bearing performance.

• Operator Cabin: Ergonomically designed driver compartment with excellent visibility, comfortable seating, and essential operational controls for enhanced driver productivity.

5. Key Features & Manufacturer Strengths

• Advanced Compression Technology: Features bidirectional compression mechanism with externally mounted hydraulic slide plate for efficient waste compaction and increased payload capacity. Integrated compaction control valve optimizes refuse density and loading volume.

• Premium Hydraulic Components: Utilizes Boli brand hydraulic cylinders, British DLI high-performance seals, Weisenbole directional control valves, and Anhui Wanye dual hydraulic pumps for reliable system operation and minimal maintenance requirements.

• Intelligent Control System: Programmable Logic Controller (PLC) and Controller Area Network (CAN) bus control system with photoelectric sensors, wireless remote operation, and in-cab control panel for precise operational management and safety monitoring.

• Loading & Environmental Features: Dual wastewater containment system with easy-access drainage ports, emergency stop functionality, and user-friendly control interfaces for safe and compliant waste handling.

• Chengli Special Vehicle Advantages: As a leading Chinese specialized vehicle manufacturer, Chengli provides custom configuration options, ISO-certified quality assurance, comprehensive after-sales technical support, and competitive commercial vehicle pricing. This model demonstrates their expertise in developing practical, cost-effective waste management solutions for municipal sanitation departments, private waste contractors, and environmental service companies seeking reliable, maneuverable collection vehicles.
