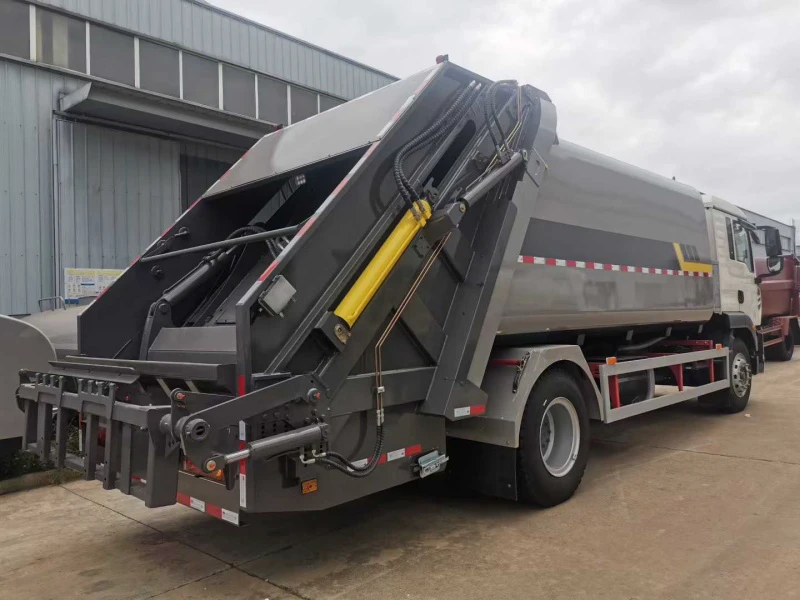

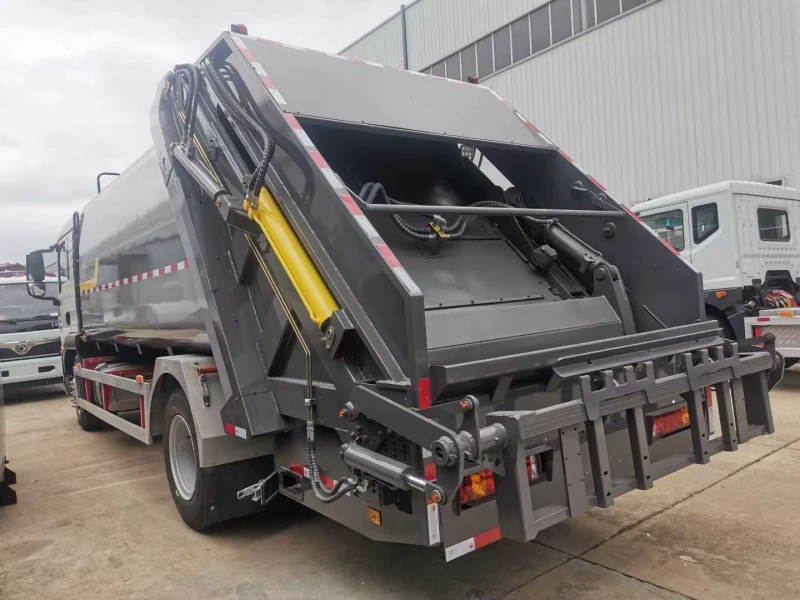

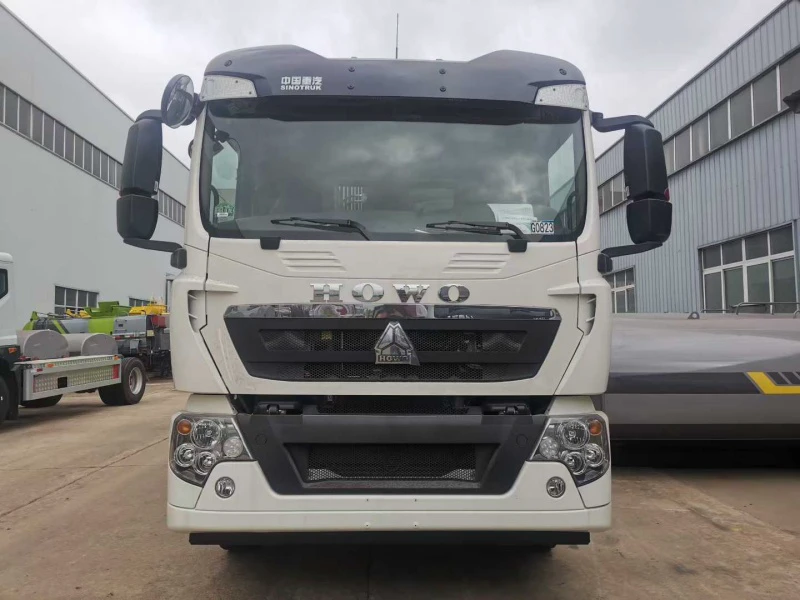

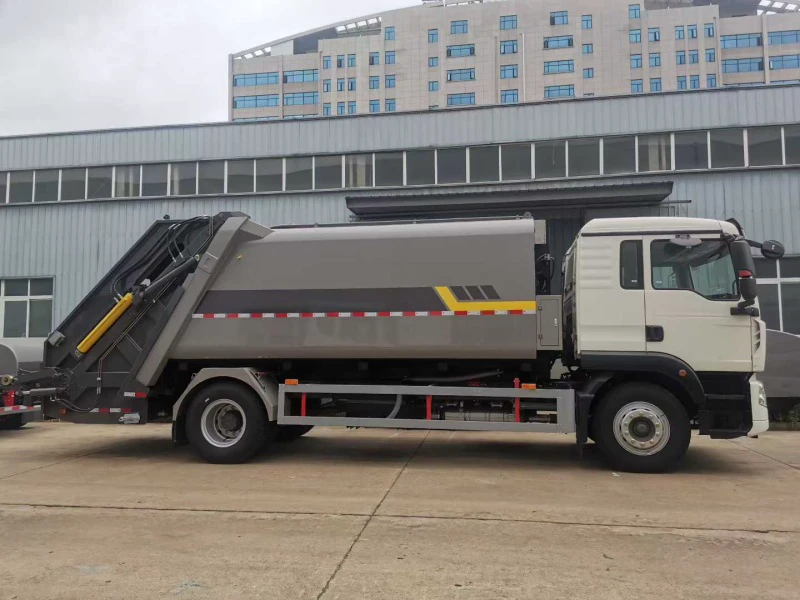

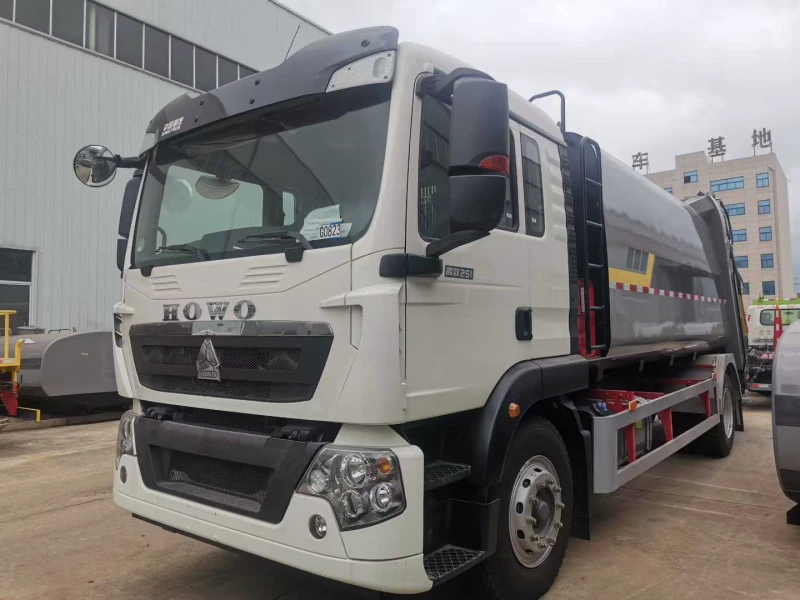

Product Introduction: Sinotruk HOWO 18 m³ Compressed Garbage Truck

1. Product Overview

The Chengliwei CLW5184ZYSBHJ is a heavy-duty front-loading waste compactor truck engineered for high-volume municipal solid waste collection. Built on the robust Sinotruk HOWO commercial vehicle platform, this 18 cubic meter capacity waste transport vehicle combines advanced compaction mechanisms with a durable heavy-duty chassis to deliver superior performance in urban sanitation services, commercial waste disposal, and industrial refuse handling operations. Designed to optimize collection route efficiency and operational payload capacity, it represents a reliable waste management solution for demanding municipal and industrial applications.

2. Core Specifications

• Product Model: Chengliwei CLW5184ZYSBHJ Compacted Waste Collection Vehicle

• Environmental Compliance: China VI (Guoliu) Emission Standard certified diesel truck

• Gross Vehicle Weight Rating (GVWR): 18,000 kg

• Legal Payload Capacity: 6,305 kg to 6,770 kg range

• Kerb Weight: 11,100 kg to 11,500 kg

• Maximum Road Speed: 89 km/h (suitable for urban and highway operations)

• Effective Refuse Compartment Volume: 18 cubic meters (m³) waste storage capacity

• Fuel System: Diesel-powered commercial sanitation vehicle

3. Dimensions, Body Construction & Engineering Design

• Overall Vehicle Dimensions (L×W×H): Multiple configurations: 8,670 mm / 8,820 mm / 9,350 mm length × 2,540 mm width × 3,300 mm height

• Body Configuration & Materials: Features an arc-shaped monocoque body structure constructed from high-strength Q345 carbon steel plates, with critical stress reinforcement zones utilizing premium T710 grade steel for enhanced structural integrity and impact resistance.

• Engineering Features: Incorporates an external slide-plate hydraulic cylinder configuration with graphene-reinforced composite nylon sliders to ensure smooth compression cycles, reduced mechanical friction, extended component lifespan, and minimized maintenance requirements.

• Design Philosophy & Environmental Systems: Focuses on maximized volumetric efficiency, structural durability under cyclic loading conditions, and operator safety protocols. Includes a rear-mounted wastewater containment tank with dual drainage port system (Zoomlion-style design) and optional side auxiliary wastewater tank. A pneumatically actuated sealing cover system enhances environmental containment, odor emission control, and regulatory compliance.

4. Chassis & Powertrain System Advantages

• Chassis Platform: Sinotruk ZZ1184N5617F1 heavy-duty two-axle commercial truck chassis with reinforced construction

• Engine Performance: Powered by a Yuchai YCS06245-60 heavy-duty diesel engine (245 horsepower), delivering superior low-end torque output, excellent fuel efficiency metrics, and reliable operational performance in demanding stop-start collection duty cycles

• Transmission System: Mated to a heavy-duty 8-speed manual synchromesh gearbox, offering smooth shift performance characteristics, robust gear construction, and optimized power transfer efficiency for maximum load operations

• Axle & Suspension System: High-load capacity front steering axle and rear drive axle configuration (6,500/11,500 kg load distribution). Multi-stage parabolic leaf spring suspension systems (3/3+3, 3/10+8, 7/7+5, etc.) provide superior load cushioning performance, enhanced road stability, and improved ride comfort on uneven urban surfaces

• Tire & Wheel Configuration: Equipped with 10.00R20 18PR steel-belted radial commercial tires (alternative options: 11R22.5 18PR or 275/80R22.5 18PR), ensuring excellent road traction characteristics, superior puncture resistance, and maximum load-bearing capability across various operating conditions

• Operator Cabin Environment: The Sinotruk HOWO V5X commercial truck cabin features manual tilt mechanism for service access, dual-layer reinforced frame construction, 220L aluminum alloy fuel tank, remote throttle control system, multi-function ergonomic steering wheel, power window controls & central locking system, integrated MP3/Bluetooth audio connectivity, and factory-installed climate control air conditioning for enhanced driver comfort and operational productivity optimization

5. Key Features & Manufacturer Capabilities

• Advanced Waste Compaction Technology: Equipped with high-efficiency bidirectional compression mechanism featuring standard integrated back-pressure valve system to increase compaction ratio performance and maximize payload density optimization

• Premium Hydraulic System Components: Utilizes Zhongmei large-diameter integrated pneumatic-hydraulic multi-directional control valves, joint-venture manufactured iron-cased hydraulic gear pumps, Jiashan heavy-duty power take-off (PTO) unit, and Hengli brand hydraulic cylinders (with comprehensive 2-year warranty coverage) for reliable high-pressure system operation and minimal fluid leakage performance

• Intelligent Control & Automation Systems: Integrates Changsha Fuli CAN-bus electronic control unit (ECU) with rear-mounted silicone control panel interface, standard wireless remote control operation, photoelectric sensor protection devices, and programmable logic control functionality for precise operational management, enhanced safety protocols, and user-friendly interface design

• Versatile Loading & Attachment Options: Features reinforced rear bin lifting mechanism compatible with multiple attachment interface systems (triangular refuse hopper, fully sealed collection hopper, hydraulic swing arm attachments) for flexible waste collection solutions from various container types and collection scenarios

• Chengli Special Vehicle Manufacturing Advantages: As a leading Chinese specialized vehicle manufacturer and exporter, Chengli provides comprehensive vehicle customization services, rigorous quality assurance testing protocols, nationwide after-sales service and parts distribution network, and competitive commercial vehicle pricing solutions. This model exemplifies their engineering expertise in developing high-performance, low-maintenance waste management equipment specifically tailored for municipal sanitation authorities, professional waste management contractors, and industrial facility operators seeking to enhance collection system efficiency, operational cost reduction, and environmental regulatory compliance in modern waste handling applications.
