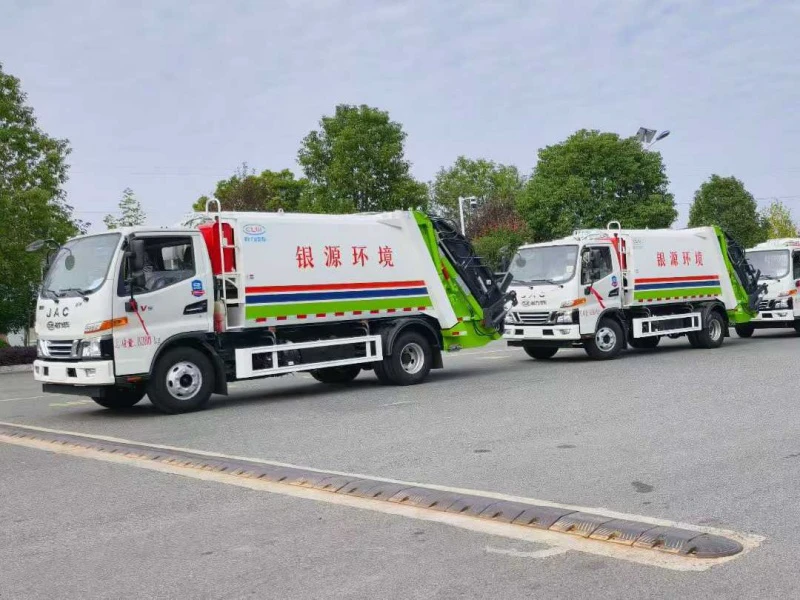

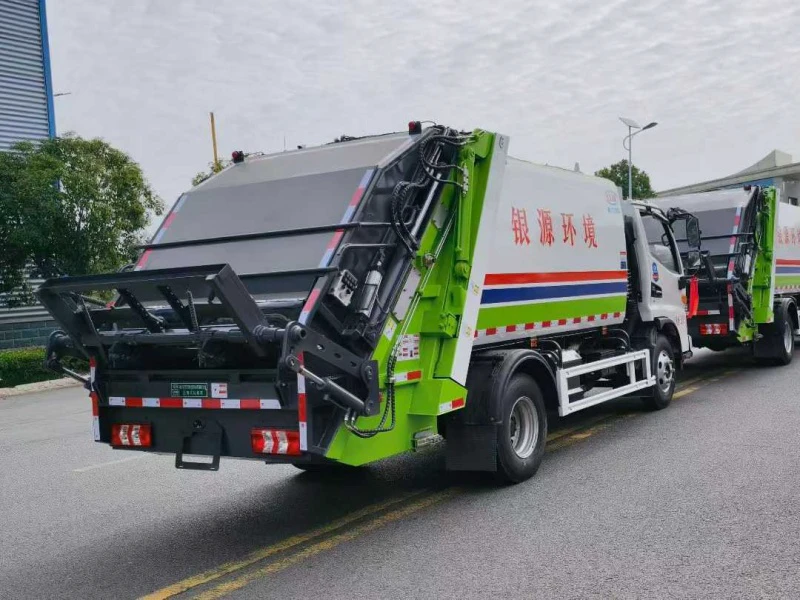

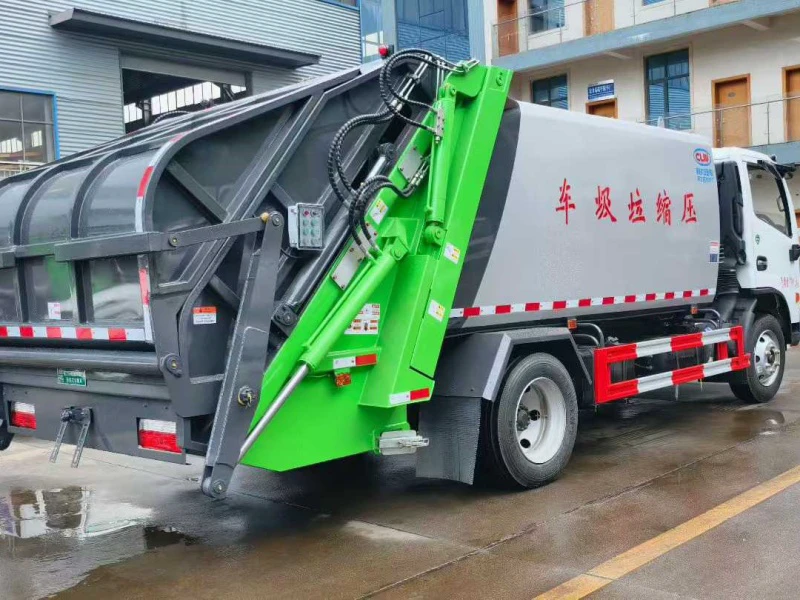

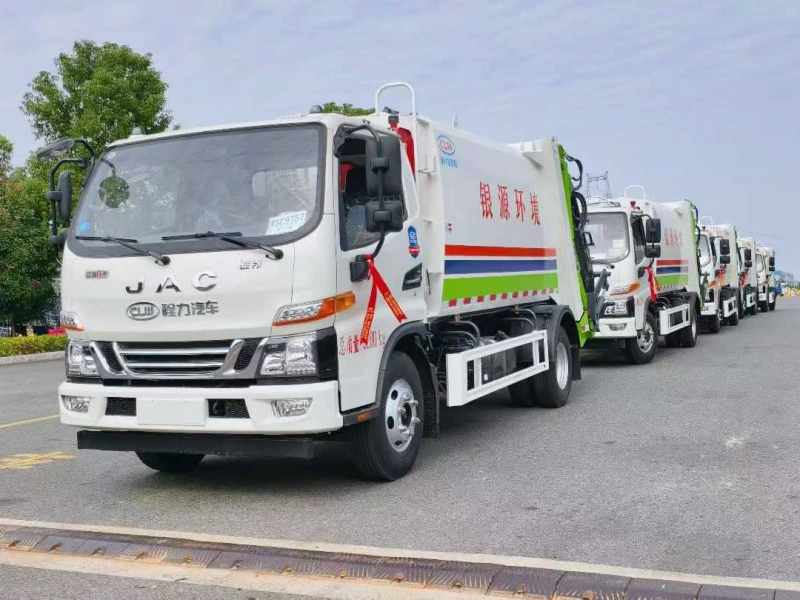

Product Introduction: JAC 5.8 Cubic Meter Compressed Garbage Truck

1. Product Overview
The Chengli CL5045ZYS6AHQ Compressed Garbage Truck is a compact blue license plate garbage truck designed for urban waste management and community sanitation services. Built on the JAC Junling E3 light-duty commercial chassis, this 5.8-cubic-meter capacity refuse collection vehicle combines high maneuverability with advanced compaction technology, making it ideal for residential area cleaning, street waste collection, and small-scale commercial waste handling in high-density urban environments.

2. Core Specifications

• Product Model: Chengli CL5045ZYS6AHQ Light Duty Compactor Truck

• Emission Standard: China VI (Guoliu) certified diesel vehicle

• Gross Vehicle Weight Rating (GVWR): 4,495 kg

• Legal Payload Capacity: 500 kg

• Curb Weight: 3,865 kg

• Maximum Speed: 100 km/h, suitable for city roads and local routes

• Refuse Compartment Volume: 5.8 cubic meters (CBM)

• Fuel Type: Diesel-powered sanitation vehicle

3. Dimensions, Body Construction & Engineering Design

• Overall Vehicle Size (L×W×H): 5,800-5,995 mm in length, 2,050 mm in width, and 2,450 mm in height, providing excellent urban mobility and easy access to narrow streets.

• Body Dimensions: Compartment size options include 2,650/2,700 mm in length, 1,800 mm in width, and heights ranging from 1,200 mm to 1,880 mm.

• Body Material & Manufacturing: Constructed from high-strength steel alloy plates with side wall thickness of 3mm and floor thickness of 4mm for optimal weight-to-strength ratio and long-term durability.

• Design Features: Arc-shaped body structure enhances internal waste flow and compaction efficiency. Externally mounted slide plate cylinders ensure easy maintenance access and reliable hydraulic operation.

• Environmental Protection Systems: Equipped with dual-position wastewater containment tanks (side and rear) to prevent leachate leakage and ensure environmental compliance.

4. Chassis & Powertrain System Advantages

• Chassis Base: JAC HFC1041P23K1B4QZS light-duty truck chassis with 2,850 mm wheelbase for excellent turning radius and urban maneuverability.

• Engine Performance: Powered by a Quanchai 143 horsepower diesel engine, delivering fuel-efficient operation and sufficient power output for stop-start collection cycles.

• Transmission System: Paired with a Wanliyang 5-speed manual transmission, offering smooth gear shifting and reliable performance in urban driving conditions.

• Axle & Suspension Configuration: Light-duty front and rear axles with 1,620/2,875 kg load capacity. Multi-leaf spring suspension (8/7+6) provides stable load support and ride comfort.

• Tires & Wheels: 6-tire configuration with options including 6.50R16LT 10PR or 7.00R16LT 8PR commercial tires for good road traction and load-bearing performance.

• Operator Cabin: JAC Junling E3 wide-body cab with factory-installed air conditioning, central locking system, power windows, ABS braking system, and ergonomic interior design for enhanced driver comfort.

5. Key Features & Manufacturer Strengths

• Advanced Compression Technology: Features external slide plate cylinder design with bidirectional compression capability for efficient waste compaction. Integrated compaction control valve optimizes refuse density and loading capacity.

• Premium Hydraulic Components: Utilizes Boli brand hydraulic cylinders, British DLI high-performance seals, Weisenbole directional control valves, and Anhui Wanye hydraulic pumps for reliable system operation and minimal maintenance requirements.

• Intelligent Control System: Programmable Logic Controller (PLC) and Controller Area Network (CAN) bus control system with photoelectric sensors, wireless remote operation, and in-cab control panel for precise operational management.

• Loading & Environmental Features: Dual wastewater containment system with easy-access drainage ports, emergency stop functionality, and user-friendly control interfaces for safe and compliant waste handling.

• Chengli Special Vehicle Advantages: As a leading Chinese specialized vehicle manufacturer, Chengli provides custom configuration options, ISO-certified quality assurance, comprehensive after-sales technical support, and competitive commercial vehicle pricing. This model demonstrates their expertise in developing compact, efficient waste management solutions for municipal sanitation departments, property management companies, and environmental service providers operating in urban and residential areas.
