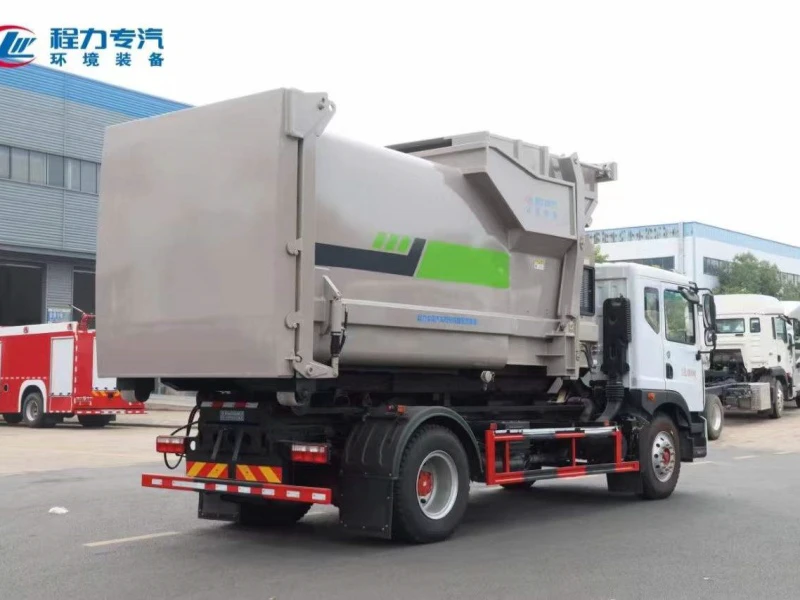

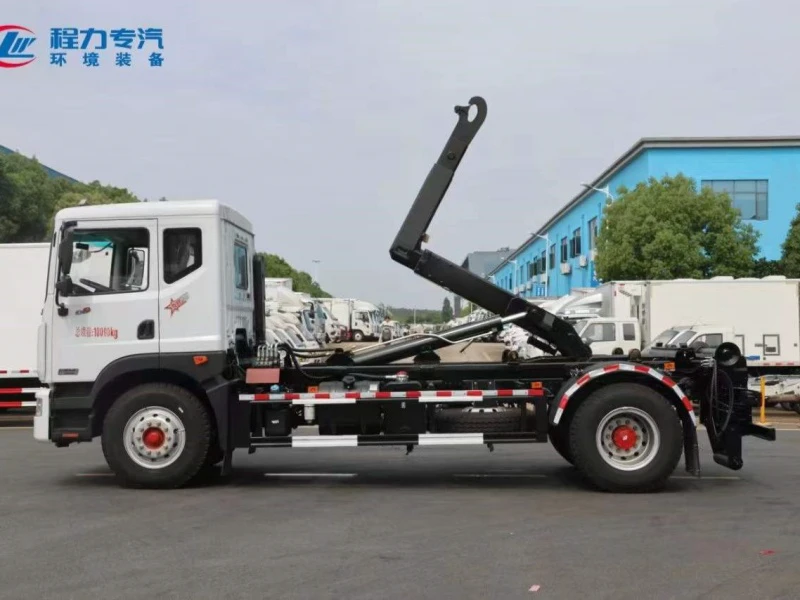

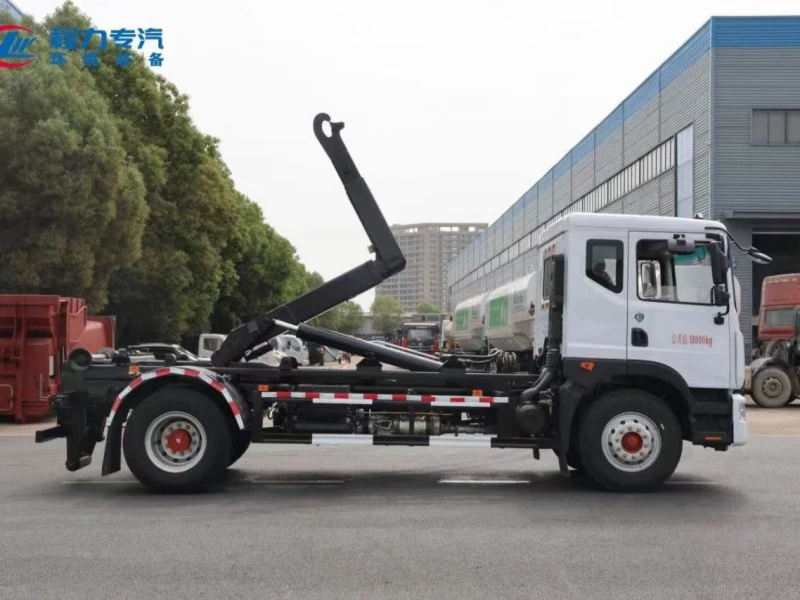

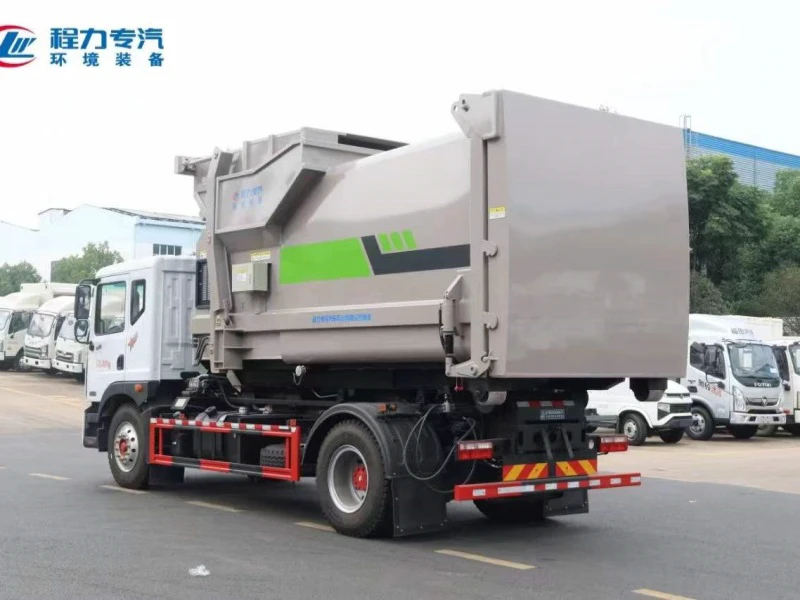

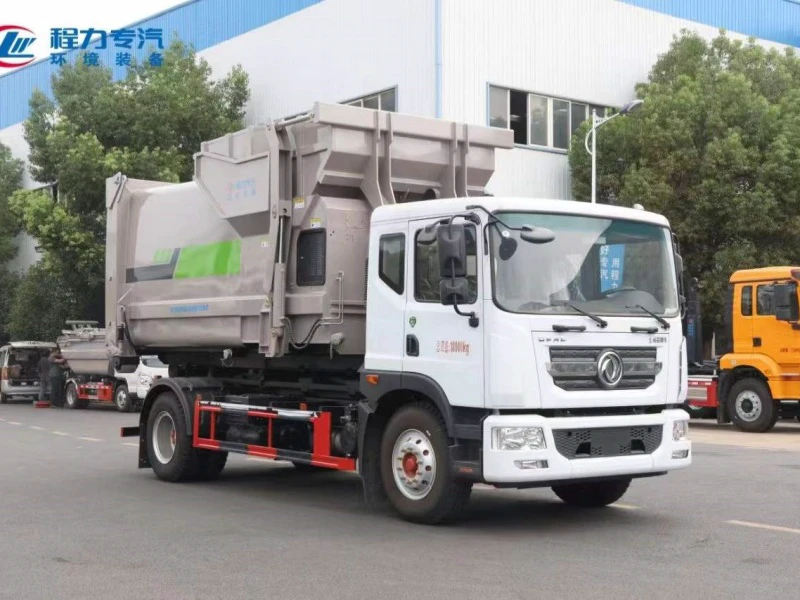

Product Introduction: Dongfeng 4×2 D9 Hook Arm Truck with 12 m³ Mobile Compression Container

1. Product Overview
The Chengliwei CLW5180ZXXBHJ is a specialized detachable container garbage truck built on the reliable Dongfeng Duolika D9 commercial vehicle chassis. This hook arm refuse collection vehicle features a 12 cubic meter mobile compression container designed for municipal waste management and residential waste collection operations. Engineered for urban sanitation services and rural waste transportation, this compressed waste handling system provides efficient garbage transfer solutions for community waste disposal, property management services, and small-scale waste transfer station operations. The vehicle's multi-container compatibility allows flexible waste collection operations with single truck multi-container cycling capability.

2. Core Specifications

• Product Model: Chengliwei CLW5180ZXXBHJ Detachable Container Garbage Truck

• Environmental Compliance: China VI (Guoliu) Emission Standard certified diesel vehicle

• Gross Vehicle Weight Rating (GVWR): 18,000 kg

• Legal Payload Capacity: 10,395–10,460 kg range

• Kerb Weight: 7,410 kg

• Maximum Road Speed: 89–105 km/h (optimized for urban and highway operation)

• Chassis Specification: Dongfeng EQ1185LJ9CDE 4×2 commercial truck chassis

• Container System: 12 m³ mobile compression waste container

• Fuel Type: Diesel-powered waste collection vehicle

3. Dimensions, Construction & Engineering Design

• Overall Vehicle Dimensions (L×W×H): 6,220 mm / 6,570 mm / 7,120 mm length × 2,500 mm width × 3,100 mm height

• Wheelbase Configurations: Multiple options including 3,600 mm / 3,950 mm / 4,500 mm / 4,700 mm / 5,000 mm / 5,300 mm for route adaptability optimization

• Hook Arm Construction: High-strength steel plate manufactured main lifting arm with telescopic arm mechanism controlled by dual hydraulic cylinder system

• Hydraulic System Technology: Features integrated safety pressure relief valve (proprietary technology), brand-name hydraulic control valves, high-pressure hydraulic pumps, balance valve mechanisms, and hydraulic locking systems

• Design Philosophy: Focused on operator safety enhancement, work efficiency optimization, and equipment durability assurance with hydraulic stabilizer legs, transverse locking mechanisms, dual-mode control systems, and wireless remote operation capability

4. Chassis & Powertrain System Advantages

• Chassis Platform: Dongfeng Duolika D9 reinforced commercial vehicle chassis with 250 mm double-layer frame construction

• Engine Performance Options: Cummins 195 horsepower or Cummins 230 horsepower diesel engines providing reliable power output and fuel-efficient operation

• Transmission System: Fast Gear 8-speed manual transmission delivering smooth gear shifting performance and adaptability to varied working conditions

• Axle & Suspension Configuration: 4.5-ton capacity front steering axle and 10-ton heavy-duty rear axle with 8/10+7 multi-leaf spring suspension system for maximum load support and stable driving characteristics

• Tire Specifications: 295/80R22.5 18PR or 10.00R20 18PR commercial grade tires offering superior road traction and enhanced durability

• Operator Cabin Features: Equipped with climate control air conditioning system, power window controls, full air brake system, and ergonomic interior design for improved driver comfort and operational efficiency

5. Key Features & Manufacturer Advantages

• Intelligent Control Systems: Dual-mode operational control (indoor cabin and external control) with anti-misoperation protection features and wireless remote control capability

• Container Compatibility: Designed for 10–16 cubic meter hook arm containers or mobile compression station systems enabling versatile waste collection solutions and multi-container operation efficiency

• Quality & Reliability: Utilizes brand-name hydraulic components including control valves and pump systems with high-strength structural engineering for long-term heavy-duty performance

• Chengli Specialized Vehicle Manufacturing Capabilities: Leveraging Chengli Automotive Group's industry expertise in special purpose vehicle production, offering custom vehicle engineering solutions, comprehensive warranty coverage, national service network support, and competitive pricing structures. This waste management equipment demonstrates technical innovation in solid waste handling technology suitable for municipal sanitation departments, commercial waste service providers, property management companies, and urban-rural collection systems requiring efficient waste transportation solutions and flexible container handling systems for modern waste management operations and environmental service applications.
