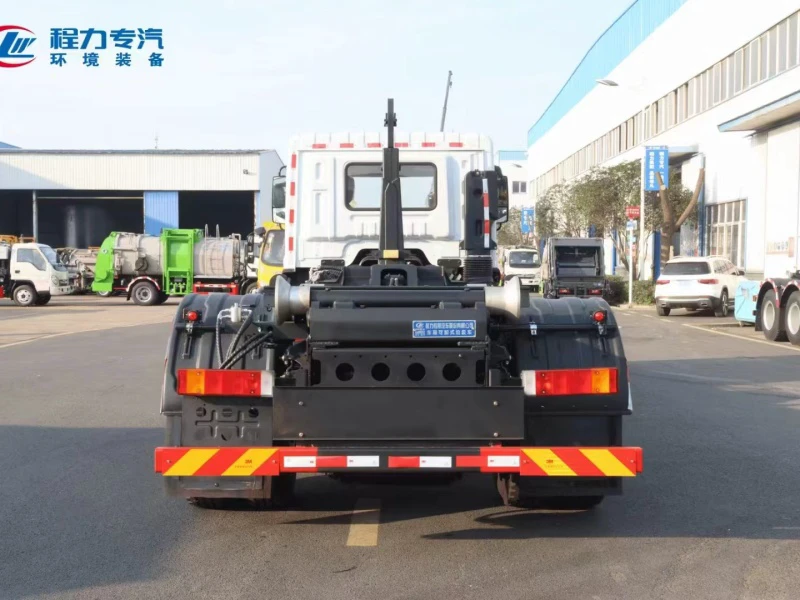

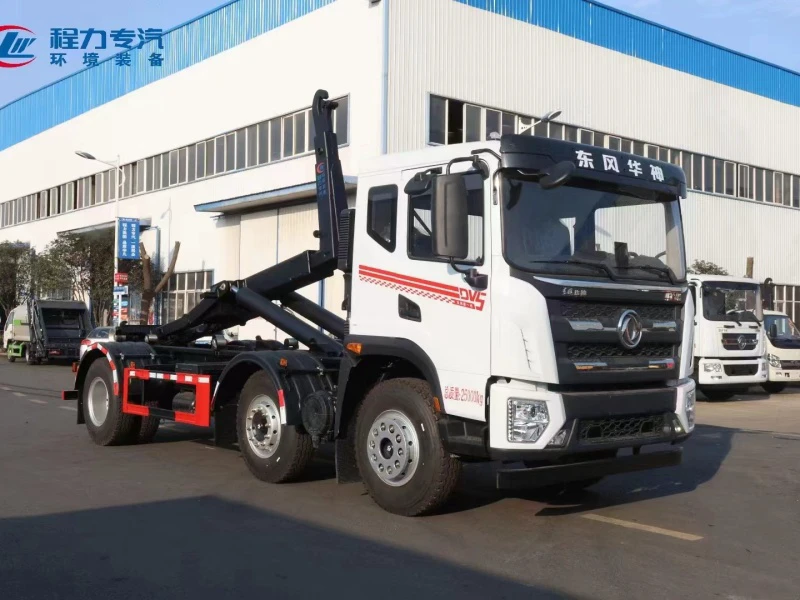

Product Introduction: Dongfeng Huashen 6×2 Hook Arm Garbage Truck with 20 m³ Compressed Container

1. Product Overview
The Chengliwei CLW5257ZXXBHJ is a professional heavy-duty hook lift garbage truck designed for commercial waste management and municipal sanitation operations. This 6×2 detachable container vehicle integrates a 20 cubic meter compressed waste container with a 25-ton reinforced hook arm system, providing an efficient waste transportation solution for urban refuse collection, construction site cleanup, and industrial waste disposal. Built on the Dongfeng Huashen heavy-duty truck chassis, this waste transfer vehicle delivers superior lifting performance and operational reliability in demanding solid waste handling applications.

2. Core Specifications

• Model Designation: Chengliwei CLW5257ZXXBHJ Detachable Container Garbage Truck

• Environmental Certification: China VI (Guoliu) Emission Standard compliant diesel vehicle

• Gross Vehicle Weight Rating (GVWR): 25,000 kg

• Legal Payload Capacity: 15,365–15,430 kg

• Kerb Weight: 9,440 kg

• Maximum Road Speed: 88 km/h (optimized for urban operation)

• Hook Arm Capacity: 25-ton reinforced telescopic lifting system

• Container Specifications: 20 m³ compressed waste container for high-density waste storage

• Fuel System: Diesel-powered commercial sanitation vehicle

3. Dimensions, Construction & Engineering Design

• Overall Vehicle Dimensions (L×W×H): 7,100–8,200 mm × 2,550 mm × 3,120 mm

• Container Specifications: 20 cubic meter capacity compressed refuse container with optimized internal volume design

• Wheelbase Configurations: Multiple options including 1,750+2,550 mm and 1,900+2,850 mm for flexible route adaptability

• Hook Arm Construction: Fabricated from high-strength Q460 square tube steel with telescopic arm mechanism and dual hydraulic cylinder lifting system

• Frame Engineering: Integrated sub-frame assembly with roller bracket system to minimize operational friction and enhance mechanical efficiency

• Design Philosophy: Focused on maximum lifting capacity optimization, operator safety protocols, and smooth container handling performance with advanced control systems

4. Chassis & Powertrain System Advantages

• Chassis Platform: Dongfeng EQ1256GL6DJ1 tri-axle heavy-duty commercial chassis

• Engine Performance: Powered by Yuchai 245 horsepower diesel engine meeting China VI emission compliance standards

• Transmission System: Fast Gear 10-speed manual transmission providing precise gear selection and effective power management

• Axle Configuration: 5-ton capacity front steering axle with 13-ton heavy-duty rear axle utilizing multi-leaf spring suspension system (10/10/10+8 configuration)

• Tire Specifications: 295/80R22.5 18PR or 11.00R20 18PR commercial grade tires for optimal load distribution and road traction

• Operator Cabin: Equipped with central locking system, power window controls, air suspension seating, and ergonomic control interfaces for enhanced driver comfort and operational productivity

5. Key Features & Manufacturer Advantages

• Hook Arm Technology: 25-ton capacity reinforced telescopic arm system with integrated safety limiters and precision-cast components

• Hydraulic System: Dual hydraulic cylinder design with manual/wireless remote dual-control valves and multi-directional hydraulic control valves

• Safety Engineering: Comprehensive linkage locking system, hydraulic rear support legs, reinforced locking frames, and cylinder safety mechanisms

• Operation Control: Dual-mode operational system (manual + wireless remote control) featuring smooth telescopic functionality

• Container System: 20 m³ high-capacity compressed container enabling maximum waste density and efficient transport logistics

• Chengli Manufacturing Advantages: Custom engineering solutions, comprehensive quality assurance programs, national service network coverage, and competitive commercial vehicle pricing. This model demonstrates specialized vehicle manufacturing expertise in developing heavy-duty waste management equipment for municipal sanitation departments, waste management service providers, construction companies, and industrial facilities requiring reliable waste transportation solutions and efficient material handling systems.
