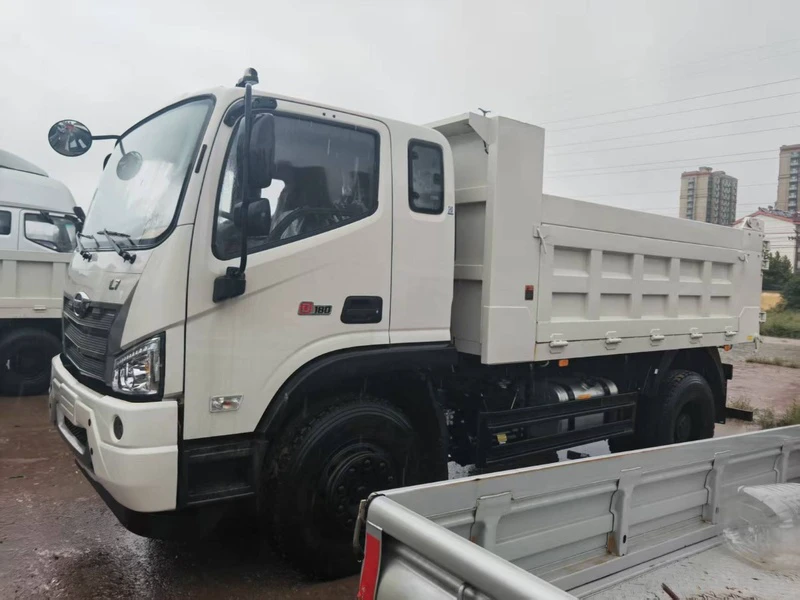

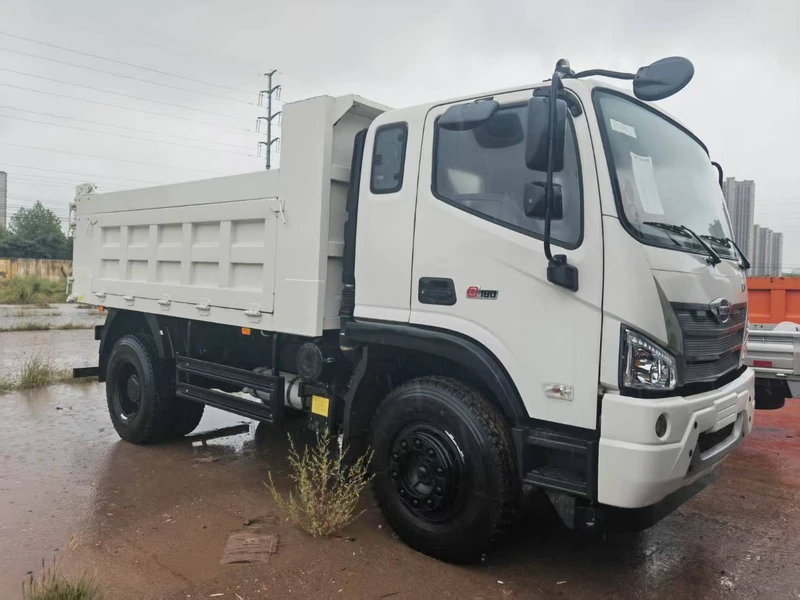

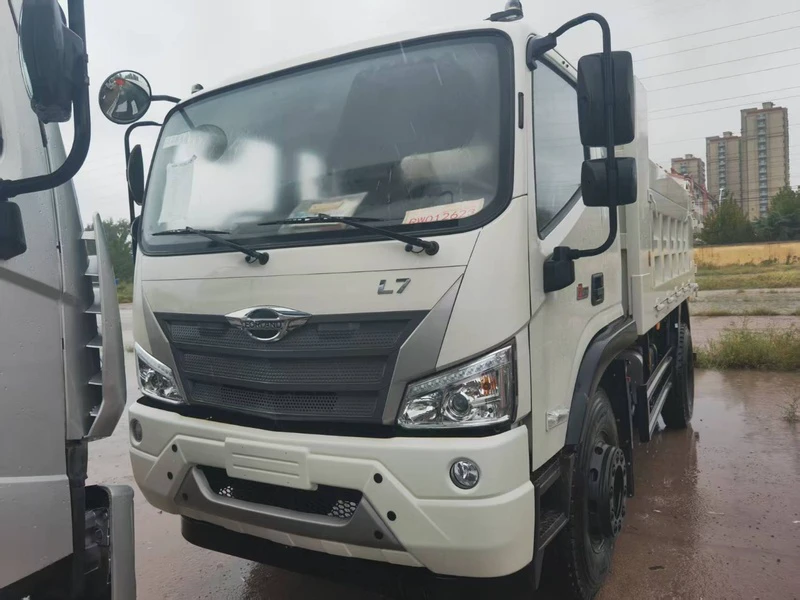

Foton 4×2 Dump Truck / Self-Unloading Tipper

I. Product Overview

The Foton 4×2 dump truck is a versatile light-duty tipper built on the reliable Foton chassis, specifically engineered for urban construction support, material transport, landscaping, and municipal maintenance applications. This self-unloading vehicle is powered by a Yuchai 160 HP Euro V engine and equipped with a small 8-speed transmission, delivering reliable power and smooth operation for demanding job site conditions. The 3,300 mm wheelbase and compact dimensions provide excellent maneuverability for narrow urban streets and confined job sites. The cab features factory air conditioning, central door lock, and power windows, ensuring operator comfort during extended working hours. With a 3,800 × 2,070 × 800 mm dump body constructed with 3 mm sides and 4 mm floor, this vehicle combines durability, efficiency, and versatility for a wide range of material handling applications.

II. Core Specifications

III. Dimensions, Materials, and Design Concept

Overall Dimensions: 6,035 × 2,318 × 2,630 mm — compact footprint for urban maneuverability and job site access

Wheelbase: 3,300 mm — balanced design providing stability for loaded operation while maintaining turning radius suitable for urban environments

Cargo Body: 3,800 × 2,070 × 800 mm steel dump body with 3 mm side plates and 4 mm floor plate for exceptional durability

Tires: 8.25R20 steel wire radial tires engineered for load capacity and puncture resistance across varied working conditions

Design Concept:

The design philosophy centers on operational versatility, structural durability, and operator comfort. The 3,300 mm wheelbase provides optimal balance between maneuverability for urban job sites and stability for loaded transport. The reinforced cargo body with 3 mm sides and 4 mm floor ensures long-term durability for demanding material handling applications. The cab with factory air conditioning, central door lock, and power windows provides a comfortable work environment, reducing operator fatigue during extended working hours. The Yuchai 160 HP engine delivers reliable power with excellent fuel economy for short-haul transport operations.

IV. Detailed Structure and Component Advantages

Chassis Platform:

The Foton 4×2 chassis features a robust frame specifically engineered for dump truck applications. The 3,300 mm wheelbase balances maneuverability for urban job sites with stability for loaded operation. The 4.2-ton front axle and 8-ton rear axle provide exceptional load capacity for demanding construction applications. The 8.25R20 steel wire tires ensure reliable load capacity and puncture resistance across varied working conditions.

Power Train:

The Yuchai YC4S160-50 160 HP Euro V engine delivers reliable power with excellent low-end torque for self-unloading operations and job site maneuvering. The small 8-speed manual transmission provides smooth shifting and precise control during tipping operations and tight maneuvering on construction sites. This combination ensures adequate power for full loads even on steep grades and challenging terrain.

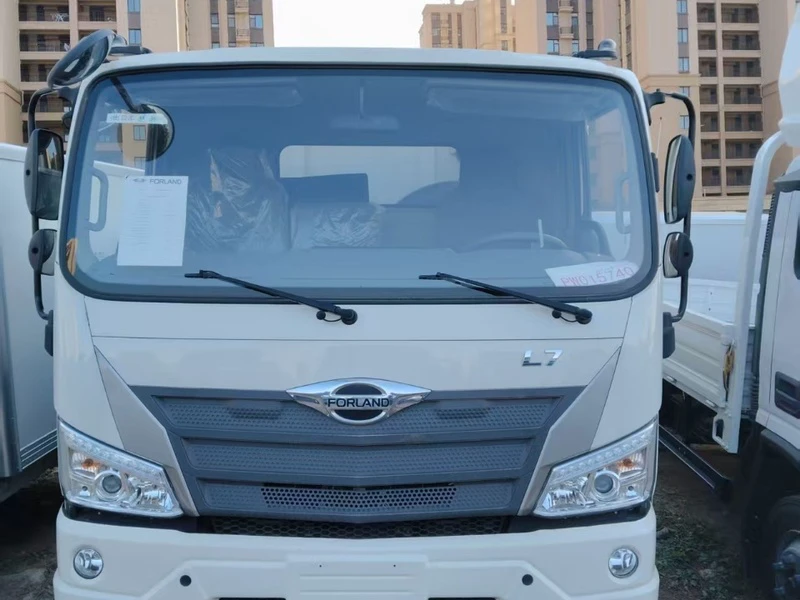

Cab and Comfort:

The cab features factory air conditioning, central door lock, and power windows, providing a comfortable work environment for extended operating hours. The ergonomic design includes intuitive controls and good visibility for safe operation in urban environments and construction sites.

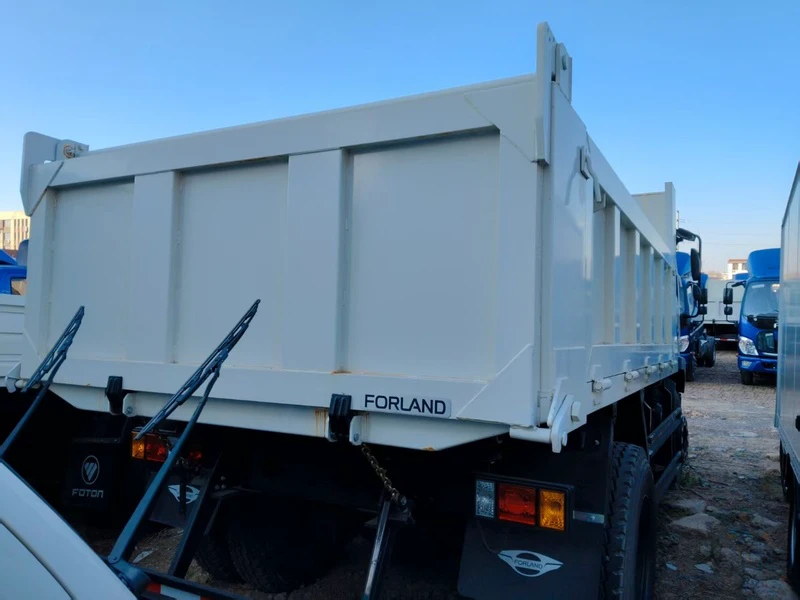

Dump Body:

The 3,800 × 2,070 × 800 mm steel dump body is constructed with 3 mm side plates and 4 mm floor plate for exceptional durability in demanding material handling applications. The tipping mechanism is engineered for reliability, handling soil, gravel, sand, construction debris, landscaping materials, and aggregates with ease. The reinforced construction ensures long-term performance even under continuous heavy load operations.

V. Product Features and Manufacturer Advantages

Product Features

Versatile Application: The vehicle is widely used for construction material transport, landscaping supply delivery, road maintenance aggregates, waste disposal, and municipal support operations, demonstrating exceptional versatility.

Reliable Power: The Yuchai 160 HP engine delivers proven reliability and fuel efficiency for short-haul transport operations, reducing operating costs and ensuring consistent performance.

Durable Construction: The reinforced cargo body with 3 mm sides and 4 mm floor, combined with the 8-ton rear axle and 8.25R20 steel wire tires, provides exceptional load capacity and long-term durability.

Operator Comfort: Factory air conditioning, central door lock, and power windows provide a comfortable work environment, reducing operator fatigue during extended working hours.

Urban Maneuverability: The 3,300 mm wheelbase and compact overall dimensions provide excellent turning radius for operation in narrow urban streets, alleyways, and confined job sites.

Chengli Group Manufacturer Advantages

As a leading Chinese special vehicle manufacturer, Chengli Special Automobile Co., Ltd. delivers comprehensive quality across all production aspects:

• Complete Vehicle Announcements: The vehicle is included in the national vehicle announcement directory, ensuring legal registration nationwide

• Reliable Quality: Utilizes Foton original chassis with Yuchai engine and proven drivetrain components for long-term reliability

• Durable Engineering: The 3 mm side plates and 4 mm floor plate construction reflects Chengli's commitment to structural durability for demanding material handling applications

• Factory Direct Sales: Direct factory sales model eliminates intermediaries, offering competitive pricing and comprehensive pre-sales and after-sales service

• Nationwide After-Sales Support: Chassis service provided by Foton service network and superstructure support provided by Chengli technical support and parts supply

This Foton 4×2 dump truck combines versatile application, reliable power, and durable construction, making it the ideal choice for construction contractors, landscaping companies, municipal maintenance departments, and material transport operators requiring a dependable and cost-effective self-unloading vehicle.
