Foton 4×4 Dump Truck / Four-Wheel Drive Self-Unloading Tipper

I. Product Overview

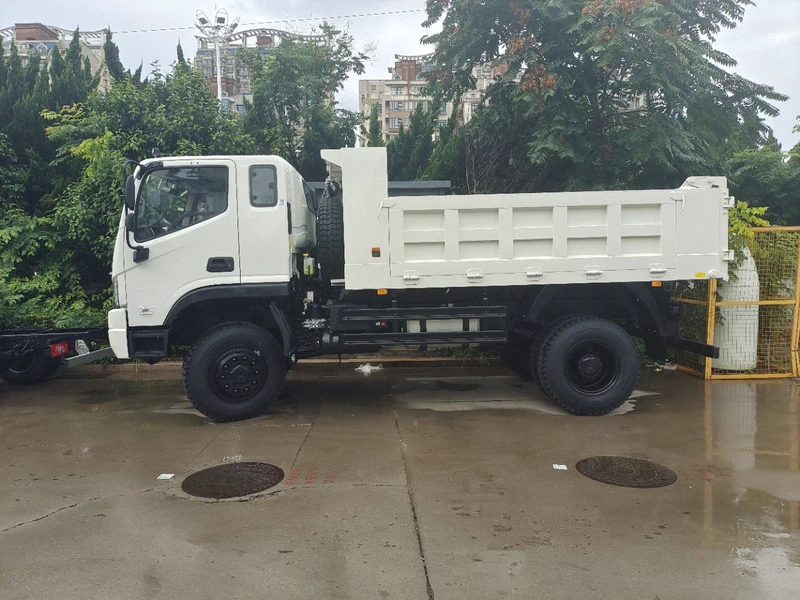

The Foton 4×4 dump truck is a rugged all-wheel drive tipper engineered for off-road construction, mountainous terrain transport, and challenging job site conditions. Built on the reliable Foton chassis and powered by a Yuchai 160 HP Euro V engine, this four-wheel drive self-unloading vehicle delivers exceptional traction and mobility where conventional two-wheel drive trucks cannot operate. The 3,700 mm wheelbase and 9.00R20 steel wire tires provide stability and ground clearance for rough terrain, while the 6-speed transmission enables precise control for steep grades and uneven surfaces. The cab features factory air conditioning, central door lock, and power windows, ensuring operator comfort during extended working hours. With a 3,800 × 2,100 × 800 mm dump body constructed with 3 mm sides and 4 mm floor, this vehicle combines all-terrain capability, durability, and versatility for demanding construction, mining, forestry, and infrastructure applications.

II. Core Specifications

III. Dimensions, Materials, and Design Concept

Overall Dimensions: Approximately 6,800-7,200 × 2,400 × 2,800 mm (based on chassis and cab configuration)

Wheelbase: 3,700 mm — extended wheelbase for stability on rough terrain and uneven surfaces

Cargo Body: 3,800 × 2,100 × 800 mm steel dump body with 3 mm side plates and 4 mm floor plate for exceptional durability

Tires: 9.00R20 steel wire radial tires — larger diameter for improved ground clearance and off-road traction

Design Concept:

The design philosophy centers on all-terrain capability, structural durability, and operator confidence. The 4×4 drive system provides power to all wheels, delivering superior traction on muddy construction sites, loose gravel, snow-covered roads, and steep grades. The extended 3,700 mm wheelbase enhances stability when navigating uneven terrain and carrying heavy loads. The larger 9.00R20 tires increase ground clearance and provide a larger contact patch for improved off-road performance. The reinforced cargo body with 3 mm sides and 4 mm floor withstands the rigors of rock transport, aggregate handling, and heavy construction materials. The 6-speed transmission offers a wider gear ratio spread for precise control during low-speed maneuvering on steep slopes.

IV. Detailed Structure and Component Advantages

Chassis and 4×4 Drivetrain:

The Foton 4×4 chassis features a robust four-wheel drive system engineered for off-road applications. Power is distributed to both front and rear axles, providing superior traction in challenging conditions including mud, sand, snow, and loose surfaces. The 4.2-ton front axle and 8-ton rear axle are specifically designed for all-wheel drive operation, ensuring reliable performance under heavy loads. The 3,700 mm wheelbase provides a stable platform for navigating uneven terrain while maintaining maneuverability on forest roads and construction access routes.

Power Train:

The Yuchai YC4S160-50 160 HP Euro V engine delivers reliable power with excellent low-end torque for off-road operations and steep grade climbing. The 6-speed manual transmission provides a wider gear ratio spread compared to 5-speed units, enabling precise control during low-speed maneuvering on rough terrain and efficient cruising on paved roads. This combination ensures adequate power for full loads even on mountainous terrain.

Tires and Suspension:

The 9.00R20 steel wire radial tires provide exceptional ground clearance, puncture resistance, and off-road traction. The larger diameter reduces rolling resistance on soft surfaces and provides a larger contact patch for improved stability on uneven ground. The suspension system is tuned for load carrying while maintaining adequate articulation for off-road conditions.

Cab and Operator Comfort:

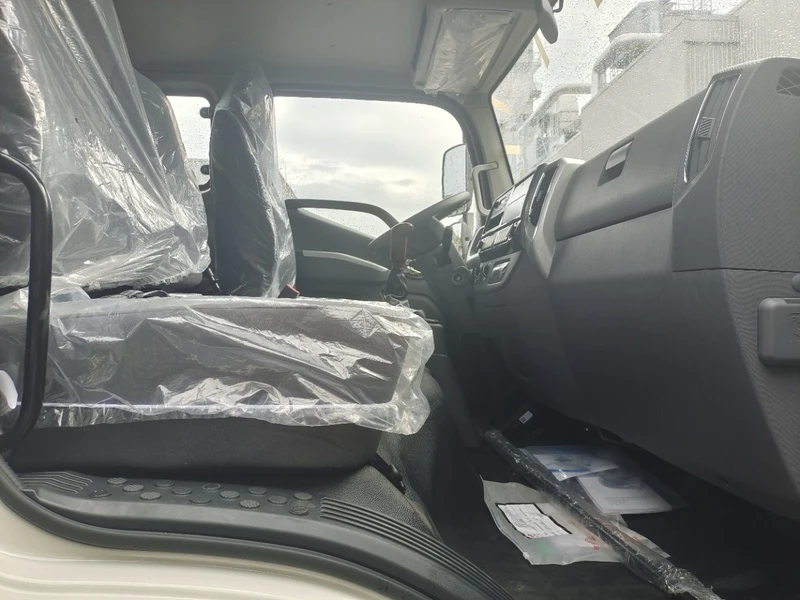

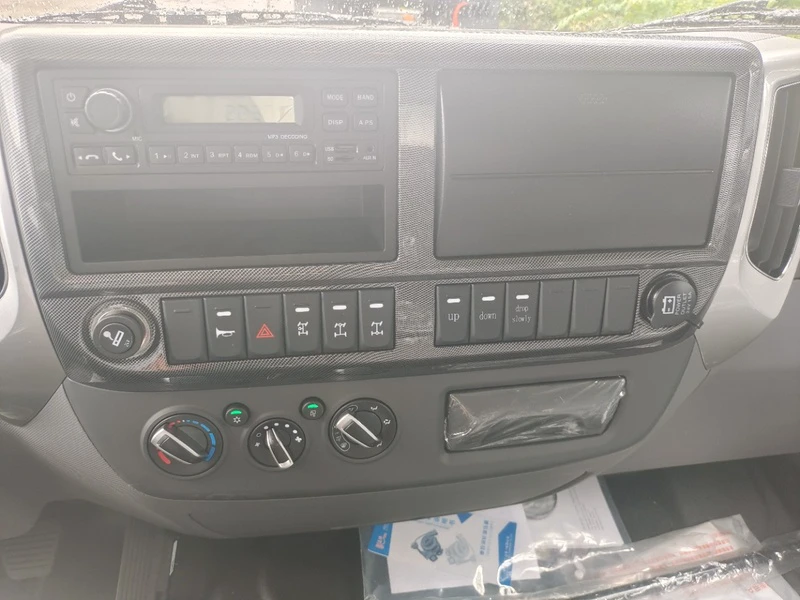

The cab features factory air conditioning, central door lock, and power windows, providing a comfortable work environment for extended operating hours in remote locations. The ergonomic layout includes intuitive controls and good visibility for safe operation on challenging terrain.

Dump Body:

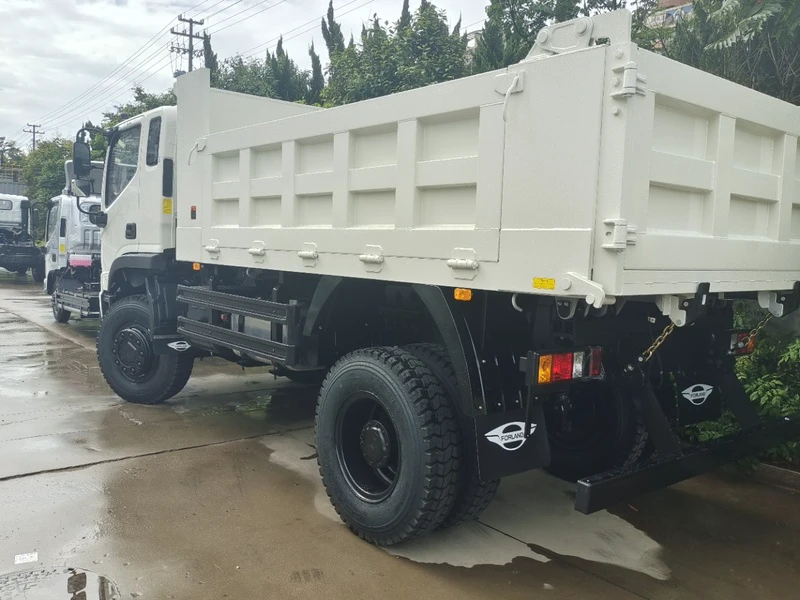

The 3,800 × 2,100 × 800 mm steel dump body is constructed with 3 mm side plates and 4 mm floor plate for exceptional durability in demanding material handling applications. The reinforced construction withstands the impact of rock loading, aggregate dumping, and heavy construction materials. The tipping mechanism is engineered for reliability on uneven ground, ensuring stable operation during unloading.

V. Product Features and Manufacturer Advantages

Product Features

All-Terrain Capability: The 4×4 drive system provides superior traction on muddy construction sites, loose gravel, snow-covered roads, and steep grades, enabling operation where conventional 4×2 trucks cannot go.

Extended Wheelbase Stability: The 3,700 mm wheelbase provides a stable platform for navigating uneven terrain and carrying heavy loads, reducing vehicle pitch and improving operator confidence.

Enhanced Ground Clearance: The 9.00R20 tires provide increased ground clearance for navigating rough terrain, rocky paths, and unimproved roads common at construction sites and mining operations.

Durable Construction: The reinforced cargo body with 3 mm sides and 4 mm floor, combined with the 4.2-ton front axle and 8-ton rear axle, provides exceptional load capacity and long-term durability for demanding off-road applications.

Precise Control: The 6-speed transmission offers a wider gear ratio spread for precise control during low-speed maneuvering on steep slopes and rough terrain, while enabling efficient cruising on paved roads.

Operator Comfort: Factory air conditioning, central door lock, and power windows provide a comfortable work environment, reducing operator fatigue during extended working hours in remote locations.

Wide Application: The vehicle is ideal for mountainous construction projects, mining operations, forestry access roads, remote infrastructure development, agricultural material transport, and utility maintenance in challenging terrain.

Immediate Availability: This vehicle is in stock and available for immediate delivery, minimizing waiting time for fleet expansion or replacement needs.

Chengli Group Manufacturer Advantages

As a leading Chinese special vehicle manufacturer, Chengli Special Automobile Co., Ltd. delivers comprehensive quality across all production aspects:

• Complete Vehicle Announcements: The vehicle is included in the national vehicle announcement directory, ensuring legal registration nationwide

• 4×4 Engineering Expertise: The four-wheel drive configuration reflects Chengli's specialized engineering for off-road and all-terrain applications

• Reliable Quality: Utilizes Foton original chassis with Yuchai engine and proven drivetrain components for long-term reliability in demanding conditions

• Durable Construction: The 3 mm side plates and 4 mm floor plate construction ensures structural integrity for heavy off-road use

• Factory Direct Sales: Direct factory sales model eliminates intermediaries, offering competitive pricing and comprehensive pre-sales and after-sales service

• Nationwide After-Sales Support: Chassis service provided by Foton service network and superstructure support provided by Chengli technical support and parts supply

This Foton 4×4 dump truck combines all-terrain capability, durable construction, and operator comfort, making it the ideal choice for construction contractors, mining operations, forestry services, infrastructure developers, and utility maintenance teams requiring a reliable, capable, and versatile self-unloading vehicle for challenging terrain and remote job site conditions. Available now in stock for immediate delivery.
