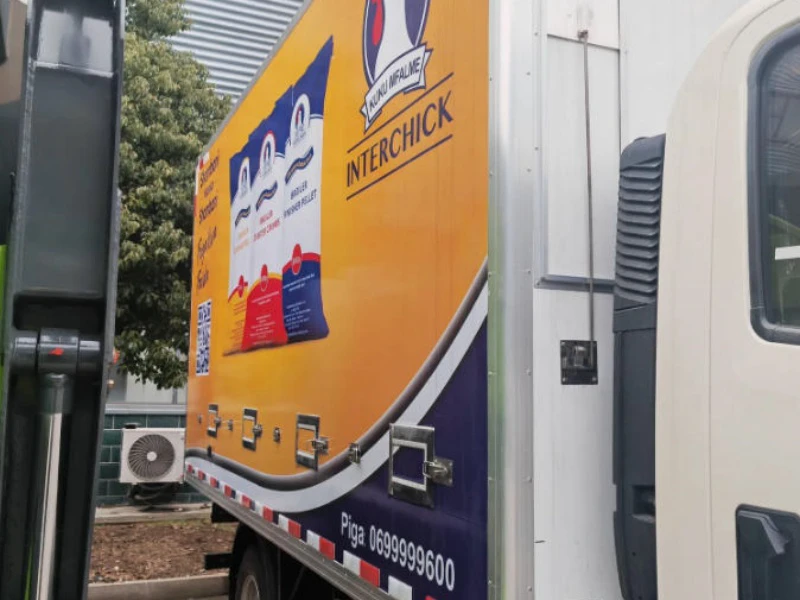

HOWO RHD Chick Transport Truck | Day-Old Poultry Delivery Solution

I. Product Introduction

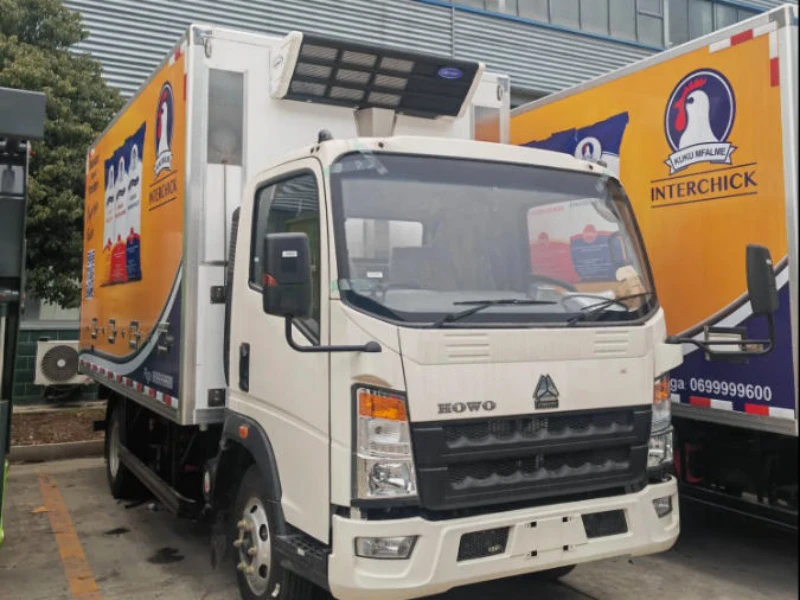

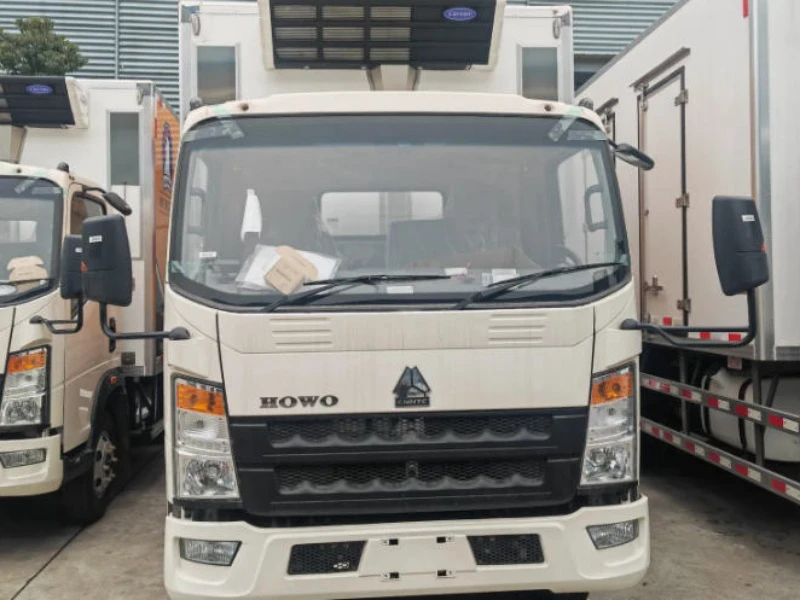

The HOWO RHD chick transport truck is a specialized temperature-controlled truck for poultry, engineered for the safe transit of day-old chicks. Newly hatched chicks are poikilothermic, unable to regulate their own body temperature during their first days of life, making them highly vulnerable to heat stress. This vehicle maintains a stable, incubator-like environment from hatchery to farm, directly impacting chick survival rate and overall flock performance. Built on the proven HOWO 4×2/4×4 chassis, this RHD model is an ideal choice for Southeast Asia, Africa, the Middle East, and other RHD markets.

II. Core Specifications

III. Box Construction & Design Philosophy

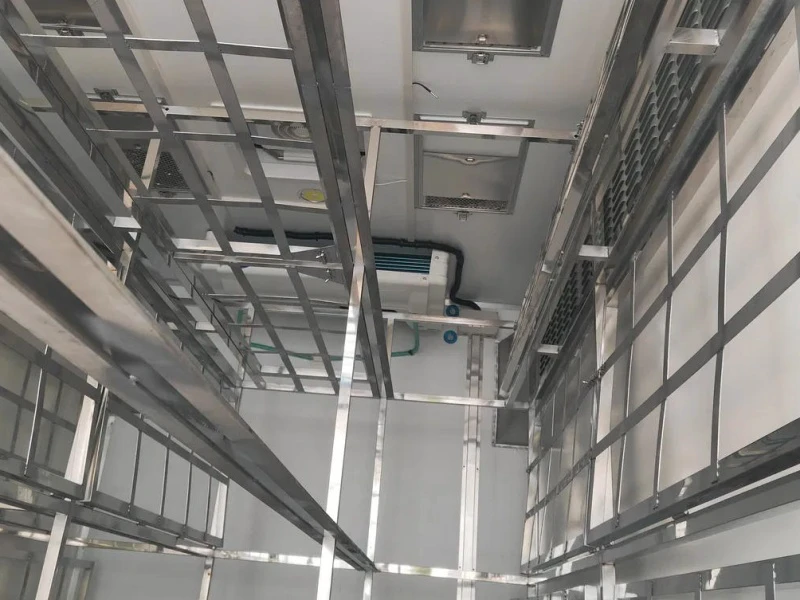

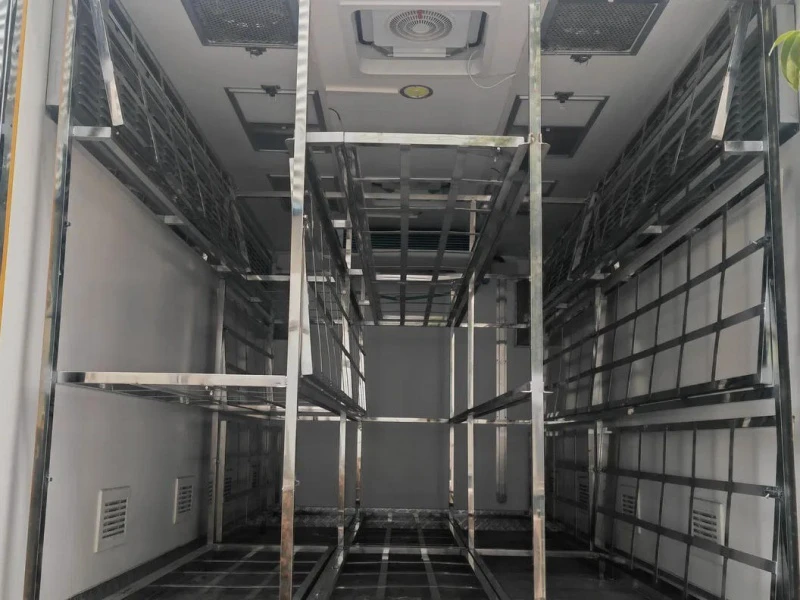

• Box Material: The cargo box features 80mm high-density polyurethane (PU) foam insulation sandwiched between FRP (Fiberglass Reinforced Plastic) panels, providing durability and excellent thermal performance. The interior lining is made of smooth stainless steel or fiberglass, enabling high-pressure washable interior to meet biosecurity requirements.

• Design Philosophy: The vehicle utilizes laminar airflow for even temperature, forcing fresh air through stacked chick boxes via floor-mounted air ducts rather than simply circulating around them. This design eliminates CO₂ hotspots and ensures uniform temperature distribution for birds in the center of the load, effectively preventing suffocation and heat stress.

IV. Three Life Support Systems

Unlike standard refrigerated trucks, this vehicle integrates three independent systems forming triple redundancy system (heating, cooling, ventilation):

1. Cooling System: Thermo King/Carrier refrigeration unit, specially modified to provide high-volume airflow, preventing cold spots and ensuring uniform temperature distribution throughout the cargo area.

2. Heating System: Diesel-powered independent heater, supplemented by engine coolant circulation as a backup heat source, providing reliable warmth during cold weather and nighttime transport.

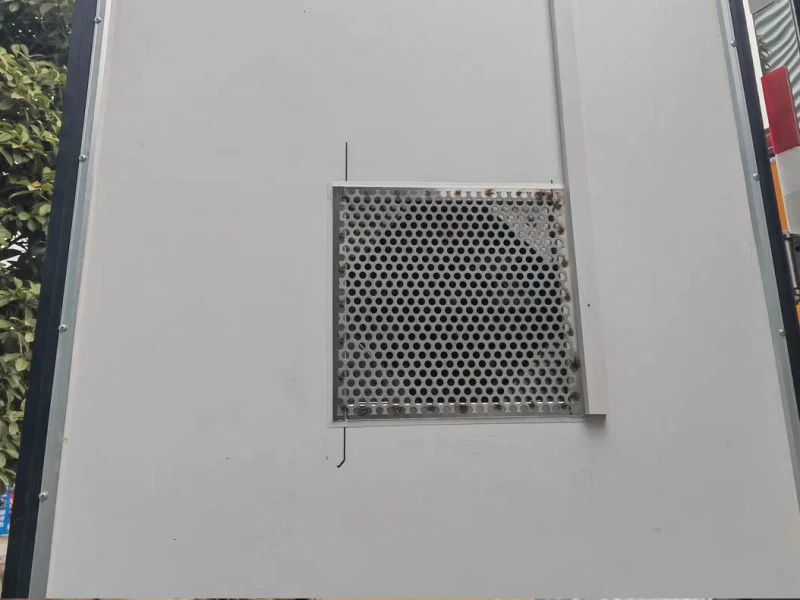

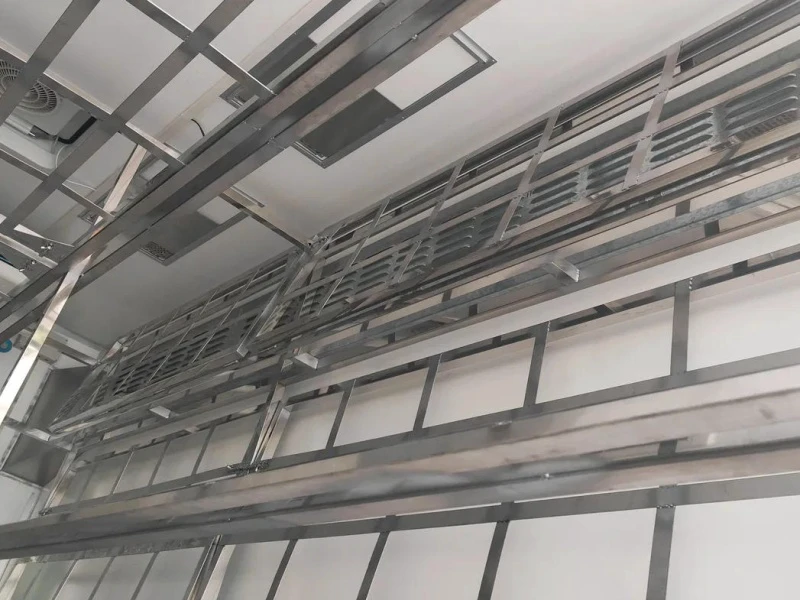

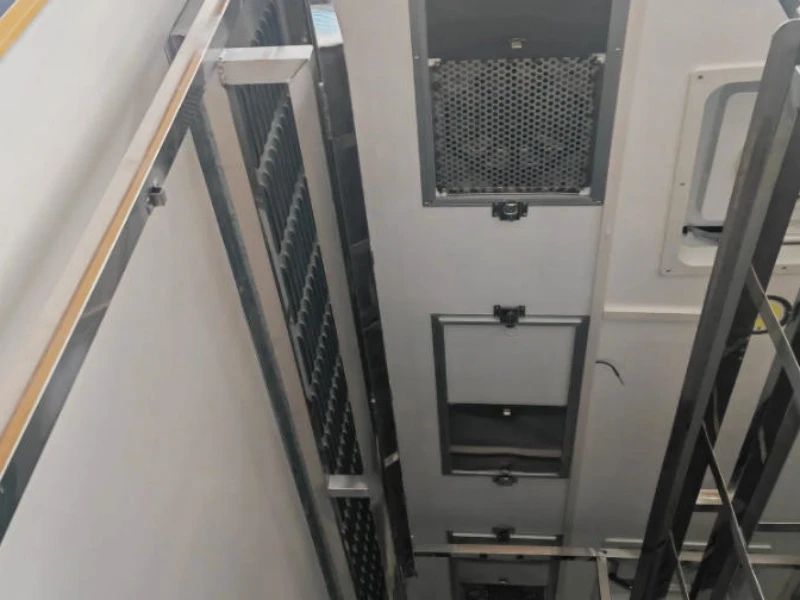

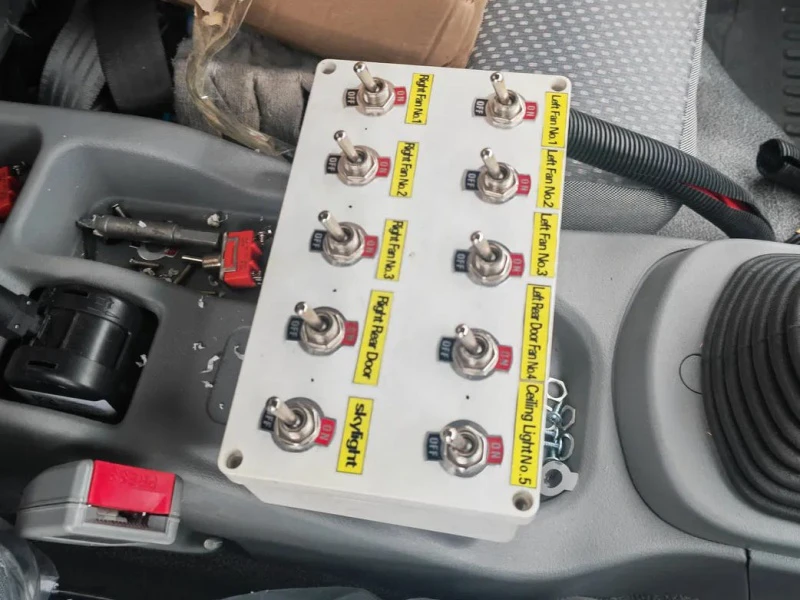

3. Ventilation System: Electric fans mounted on the roof and rear for forced air exchange; manual louvers on side panels allow natural ventilation if mechanical systems fail; floor-mounted air ducts ensure air reaches the bottom of chick boxes, eliminating dead zones.

V. Intelligent Environmental Monitoring

• Multi-Point Temperature Monitoring: Three temperature sensors (front, middle, and rear) continuously display data on a digital screen in the cab, maintaining temperature control within ±1°C.

• CO₂ Management: Drivers can monitor CO₂ levels from the cab. When levels exceed 500-600 ppm, the system automatically increases fresh air intake. An audible alarm activates if CO₂ concentration exceeds safe thresholds, or if temperature or humidity deviates from acceptable ranges.

VI. Chassis & Powertrain Advantages

This vehicle leverages the proven reliability of the HOWO chassis from CNHTC:

• Engine: EURO-compliant diesel engine with high torque output, ensuring stable power for the refrigeration unit.

• Transmission: Synchronized manual transmission or optional automatic transmission for smooth gear shifts.

• Rear Axle: Heavy-duty single-reduction rear axle designed to handle continuous loads.

• Suspension: Multi-leaf spring suspension provides excellent stability, reducing vibration impact on live cargo.

VII. Loading System & Biosecurity

• Hydraulic Tail Lift: Standard hydraulic liftgate for chick boxes enables safe loading and unloading, reducing manual handling and minimizing ground contact.

• Biosecurity: Smooth interior surfaces support high-pressure washing and chemical disinfection, preventing pathogen accumulation between shipments.

VIII. Applications & Target Markets

• Primary Applications: Hatchery to farm delivery, breeder farm logistics, contract grower distribution.

• Compatible Cargo: Day-old broiler chicks, layer chicks, turkey poults, ducklings, and other day-old poultry species.

• Target Markets: Southeast Asia, South Asia, Africa, the Middle East, Australia, New Zealand, and the Caribbean region (RHD markets).

IX. Dedicated Vehicle vs. Standard Reefer Truck

When comparing chick transport truck vs standard reefer, the key difference lies in the dedicated life support systems designed specifically for live poultry. Proper temperature management during transport directly impacts chick survival rate, final body weight, feed conversion ratio, and overall profitability for growers.

X. Optional Features & Customization

• Upgrade Options: GPS tracking, remote temperature/humidity monitoring, backup power system, 100mm reinforced insulation, automated loading system, multi-zone temperature control, internal camera system.

• Customization Options: Cargo box length (3.2-9.6 m), standard roof or high-roof configuration, rear swing doors/roller shutter door/split doors, removable partitions.

• Available Chassis Brands: ISUZU, FOTON, Dongfeng, JAC, FAW, Shacman, and others.

• Available Refrigeration Unit Brands: Thermo King, Carrier.

XI. Manufacturer Advantages – Chengli Group

As an ISO 9001:2015 certified manufacturer, Chengli Group offers:

• OEM/ODM Capabilities: Fully customizable box dimensions, refrigeration unit brands, and chassis brands.

• Global Support: Complete after-sales support, spare parts availability, and technical training for operators.

• Quality Assurance: Every vehicle undergoes temperature system calibration, ventilation performance testing, and road stability verification before delivery.

This HOWO RHD chick transport truck combines the proven reliability of the HOWO 4×2/4×4 chassis with specialized temperature-controlled truck for poultry technology. Integrating triple redundancy system (heating, cooling, ventilation) and intelligent environmental monitoring, it delivers exceptional performance in temperature control, ventilation efficiency, and biosecurity—making it the ideal poultry transport solution for hatchery-to-farm delivery in RHD markets worldwide.
