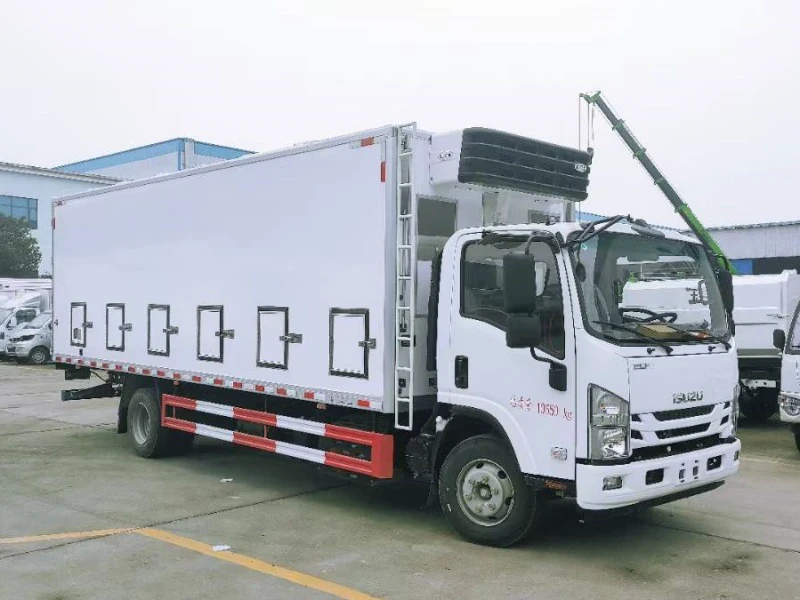

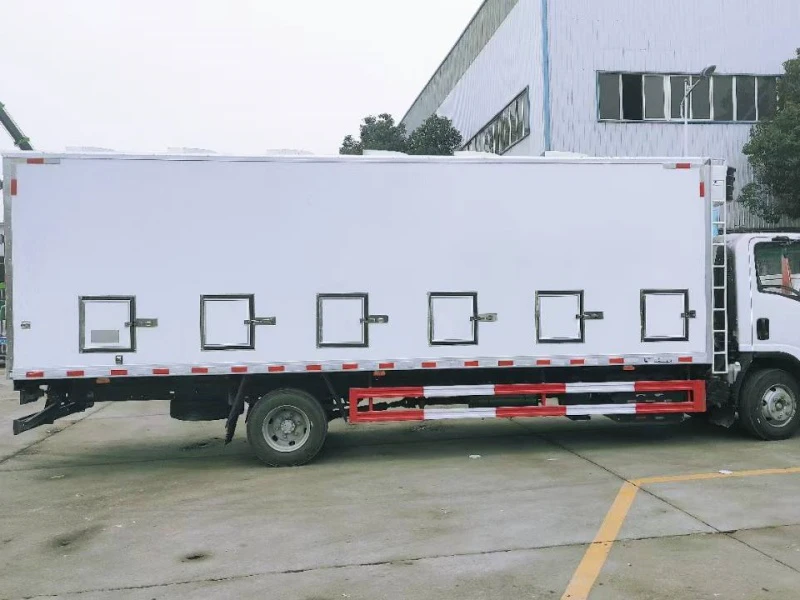

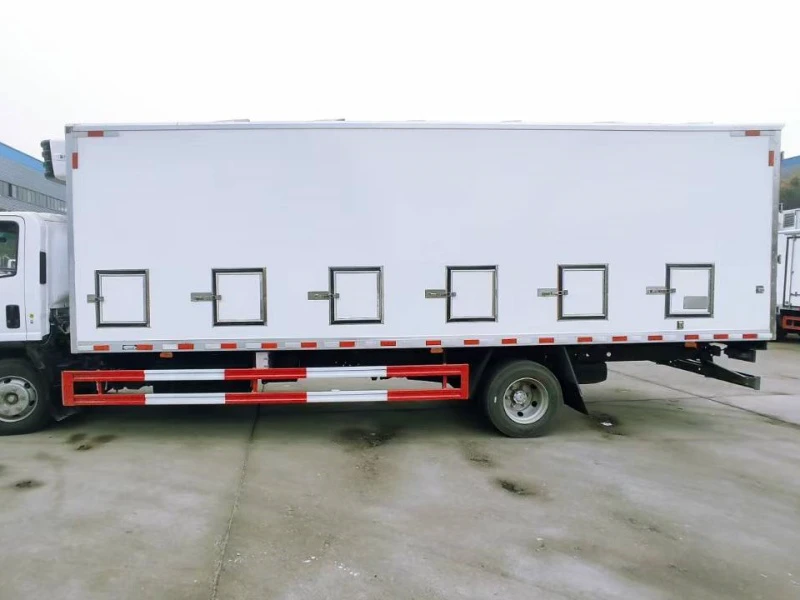

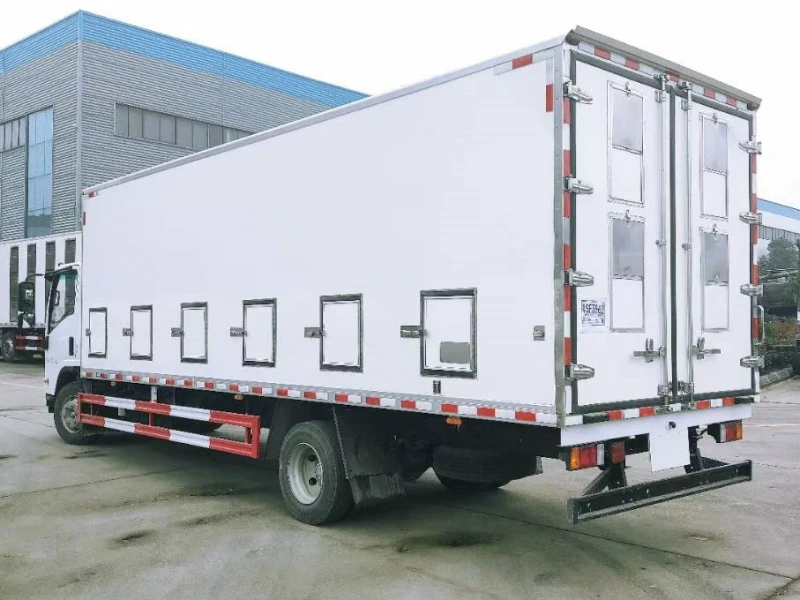

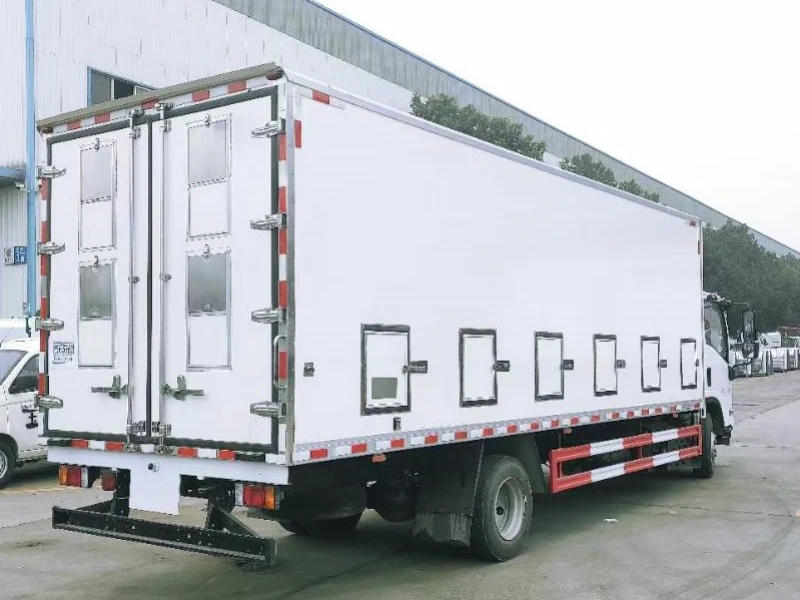

ISUZU 700P Chick Transport Truck -6.8m Chick Transport Truck Manufacturer

1. Product Introduction

As a leading China Poultry Truck Manufacturer, Chengli Group presents the ISUZU 700P Chick Transport Truck — a specialized Poultry Transport Vehicle engineered for the safe and humane transport of day-old chicks, poultry, and other temperature-sensitive livestock. This Climate-Controlled Poultry Vehicle combines a high-performance Insulated Poultry Truck body with an advanced ventilation and temperature management system. The 6.8m (22.3 ft) large-capacity cargo body is designed for large-scale livestock logistics operations, making it the ideal Live Poultry Transporter for commercial poultry farming.

2. Key Specifications

3. Exterior Dimensions, Cargo Body Size, Material & Design Philosophy

• Exterior Dimensions (L×W×H): 8970 mm × 2260 mm × 3310 mm (353.1 in × 89.0 in × 130.3 in)

• Cargo Body Dimensions (L×W×H): 6860 mm × 2100 mm × 2000 mm (270.1 in × 82.7 in × 78.7 in)

• Cargo Capacity: 28.8 m³ (approx. 7608 US gallons)

• Insulation Thickness: 80 mm (3.1 in)

• Material & Construction:

  • Wall Panels: Manufactured using vacuum adsorption and hydraulic molding technology, featuring a sandwich panel structure with high-quality GRP (Glass Reinforced Plastic) exterior and interior skins for durability, thermal efficiency, and oxidation resistance.

  • Insulation Core: XPS foam insulation board meeting national Class A standards.

  • Floor: Aluminum patterned plate with aluminum patterned ventilation ducts.

  • Sealing: Labyrinth-style rubber seals around doors to maintain temperature integrity.

• Design Philosophy: This Poultry Transport Truck is purpose-built for Livestock Transport Vehicle applications, with a 6.8m (22.3 ft) cargo body designed for large-scale transport operations. The cargo area integrates dedicated airflow management and precision climate control to ensure optimal conditions for Day-Old Chick Transport Truck, minimizing stress and maximizing survival during transit.

4. Structural Advantages

• 4.1 Engine: Powered by an ISUZU 190 hp engine with 5.2L displacement, delivering powerful and reliable performance for long-distance livestock hauling, meeting the demands of large-scale transport operations.

• 4.2 Transmission: Equipped with a 6-speed manual transmission, ensuring smooth gear shifts, precise control, and fuel efficiency under varying load conditions.

• 4.3 Axles & Braking: Features a heavy-duty rear axle with spring brake (parking brake) for enhanced stopping power and load stability, ensuring safety during fully loaded transport.

• 4.4 Chassis Features: The ISUZU Poultry Truck chassis includes power steering, air conditioning, power windows, and a durable frame designed for reliable commercial vehicle operation.

5. Product & Manufacturer Advantages

• 5.1 Product Features:

  • 5.1.1 Precision Climate Control: Equipped with a Kaili refrigeration unit with water heating capability, providing both cooling and heating functions to maintain stable temperatures suitable for Day-Old Chick Transport Truck.

  • 5.1.2 Intelligent Air Intake System: Features an electric louver intake on the front wall plus manual air inlets on both sides of the front wall, allowing precise regulation of fresh air entry — a critical feature for any Climate-Controlled Poultry Vehicle.

  • 5.1.3 Optimized Air Distribution: Upper side air channels along both side walls ensure uniform airflow throughout the cargo space, eliminating dead zones — essential for a Ventilated Livestock Trailer.

  • 5.1.4 Powerful Exhaust Ventilation: Equipped with 2 roof opening skylights, 4 roof exhaust fans, and 4 tail door exhaust fans — a total of 10 ventilation devices — to efficiently remove heat, moisture, and CO₂.

  • 5.1.5 Multiple Ventilation Windows: Features 12 externally accessible ventilation windows on both sides of the cargo body, allowing flexible natural ventilation adjustment based on transport needs.

  • 5.1.6 Removable Ventilated Floor: Aluminum patterned ventilation ducts allow for air circulation beneath cargo, preventing moisture buildup and ensuring complete airflow coverage.

  • 5.1.7 Flipping Cargo Racks: Manual flip-up cargo racks on both sides maximize loading efficiency and provide secure storage for chick boxes.

  • 5.1.8 Optional Water Curtain Cooling: Water curtain cooling system available as an option, which can be installed together with or separately from the refrigeration unit, providing additional cooling capacity in high-temperature environments.

  • 5.1.9 Optional Independent Power Supply: DC diesel generator available as an option to provide independent power for exhaust fans, ensuring reliable power supply during extended operations.

  • 5.1.10 Centralized Control System: A LCD touchscreen controller provides intuitive management of:

    • Temperature display

    • CO₂ concentration monitoring

    • Interior lighting control

    • Electric louver operation

    • Independent control of exhaust fans

  • 5.1.11 Environmental Monitoring: Integrated CO₂ sensor and temperature probes enable real-time environment tracking, ensuring optimal conditions for livestock welfare.

  • 5.1.12 Durable Construction: The non-corrosion GRP interior and exterior, along with aluminum alloy trims, stainless steel corners, locks, hinges, and frames, ensure long service life and easy sanitation.

• 5.2 Chengli Group Advantages:

  • 5.2.1 As a leading Poultry Truck Manufacturer in China, Chengli Group utilizes advanced integrated molding production lines to ensure consistent quality and reliable working performance for every Livestock Transport Vehicle we produce.

  • 5.2.2 Whether you are searching for an ISUZU Poultry Truck, a reliable Chick Truck Supplier, or a complete Refrigerated Poultry Truck solution, our expertise in custom cold chain logistics and livestock transportation solutions allows us to tailor each vehicle to specific operational requirements.

  • 5.2.3 For customers looking for a Poultry Transport Vehicle for Sale, Chengli Group offers comprehensive after-sales support with a focus on easy installation and maintenance, ensuring minimal downtime and maximum fleet efficiency.

  • 5.2.4 As a trusted China Poultry Truck Manufacturer, we are committed to delivering high-quality ISUZU Chick Transport Vehicle and other specialized units that meet the rigorous demands of modern livestock hauling.
