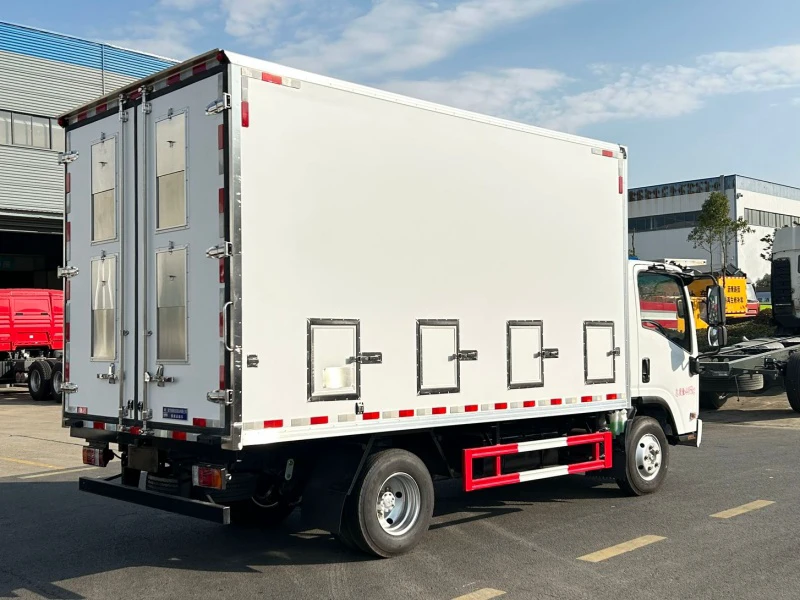

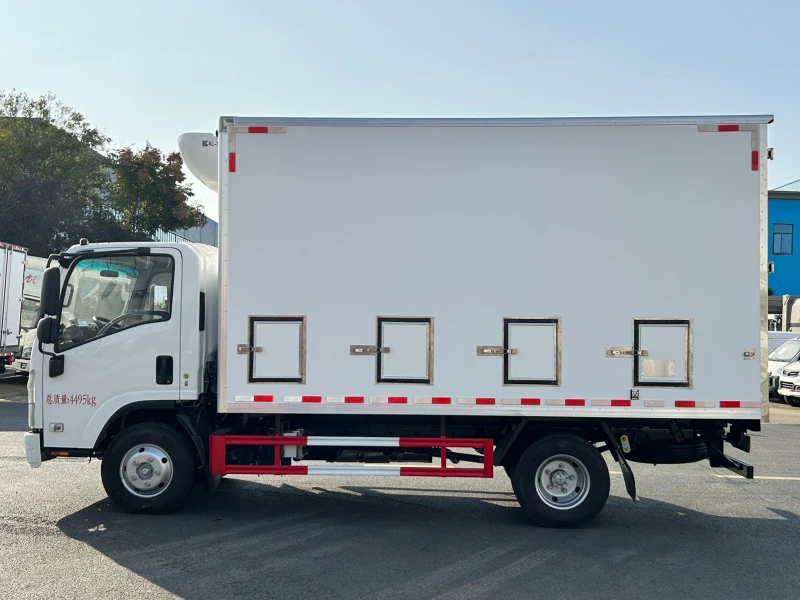

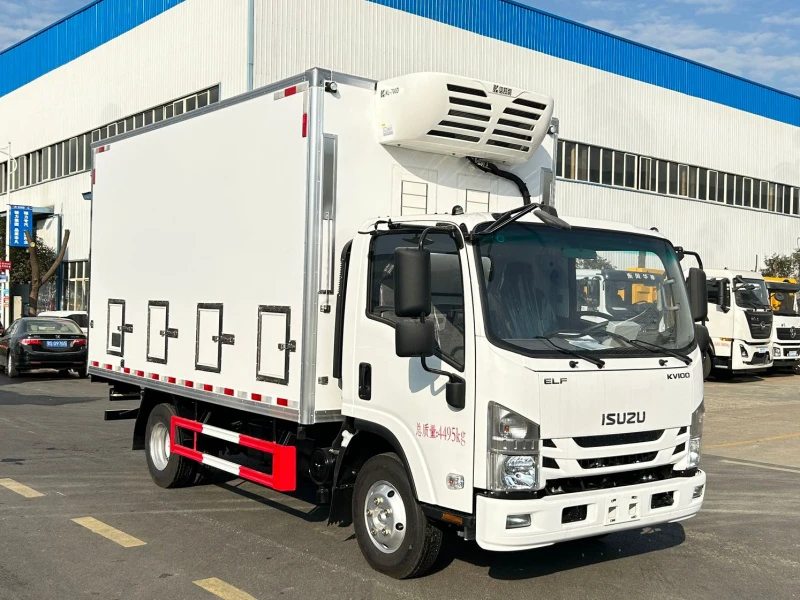

ISUZU KV100 Day-Old Chick Transport Truck – Isuzu Chick Transport Vehicle Manufacturer

1. Product Introduction

As a leading China Poultry Truck Manufacturer, Chengli Group presents the ISUZU KV100 Day-Old Chick Transport Truck — a specialized Poultry Transport Vehicle engineered for the safe and humane transport of day-old chicks, poultry, and other temperature-sensitive livestock. This Climate-Controlled Poultry Vehicle combines a high-performance Insulated Poultry Truck body with an advanced ventilation and temperature management system, making it the ideal Live Poultry Transporter for modern livestock logistics operations.

2. Key Specifications

3. Exterior Dimensions, Cargo Body Size, Material & Design Philosophy

• Exterior Dimensions (L×W×H): 5995 mm × 2270 mm × 3400 mm (236.0 in × 89.4 in × 133.9 in)

• Cargo Body Dimensions (L×W×H): 4125 mm × 2100 mm × 2200 mm (162.4 in × 82.7 in × 86.6 in)

• Cargo Capacity: 19.1 m³ (approx. 5046 US gallons)

• Insulation Thickness: 80 mm (3.1 in)

• Material & Construction:

  • Wall Panels: Manufactured using vacuum adsorption and hydraulic molding technology, featuring a sandwich panel structure with high-quality GRP (Glass Reinforced Plastic) exterior and interior skins for durability, thermal efficiency, and oxidation resistance.

  • Insulation Core: High-performance insulation board meeting national Class A standards.

  • Floor: One-piece molded GRP plate with removable aluminum ventilation ducts.

  • Sealing: Labyrinth-style rubber seals around doors to maintain temperature integrity.

• Design Philosophy: This Poultry Transport Truck is purpose-built for Livestock Transport Vehicle applications. The cargo area integrates dedicated airflow management and precision climate control to ensure optimal conditions for Day-Old Chick Transport Truck, minimizing stress and maximizing survival during transit.

4. Structural Advantages

• 4.1 Engine: Powered by a Qingling ISUZU 4KK1N6LB engine delivering 120 hp, providing reliable, fuel-efficient performance for long-distance livestock hauling with proven durability.

• 4.2 Transmission: Equipped with an ISUZU 5-speed manual transmission, ensuring smooth gear shifts, precise control, and optimal fuel economy under varying load conditions.

• 4.3 Axles & Braking: Features a robust rear axle with spring brake (parking brake) for enhanced stopping power and load stability, ensuring safety during fully loaded transport.

• 4.4 Chassis Features: The ISUZU KV100 chassis includes a single-row cab with power steering, air conditioning, power windows, ABS, and a durable frame designed for reliable commercial vehicle operation.

5. Product & Manufacturer Advantages

• 5.1 Product Features:

  • 5.1.1 Precision Climate Control: Equipped with a Xinkaili KL700 temperature control unit capable of both heating and cooling, ensuring stable temperatures suitable for Day-Old Chick Transport Truck.

  • 5.1.2 Intelligent Air Intake System: Features an electric louver intake on the front wall plus manual air inlets on both sides of the front wall, allowing precise regulation of fresh air entry — a critical feature for any Climate-Controlled Poultry Vehicle.

  • 5.1.3 Optimized Air Distribution: Perforated air channels along both side walls ensure uniform airflow throughout the cargo space, eliminating dead zones — essential for a Ventilated Livestock Trailer.

  • 5.1.4 Powerful Exhaust Ventilation: Equipped with 4 roof exhaust fans and 4 tail door exhaust fans to efficiently remove heat, moisture, and CO₂.

  • 5.1.5 Removable Ventilated Floor: Removable aluminum ventilation ducts on the floor allow for air circulation beneath cargo, preventing moisture buildup and ensuring complete airflow coverage.

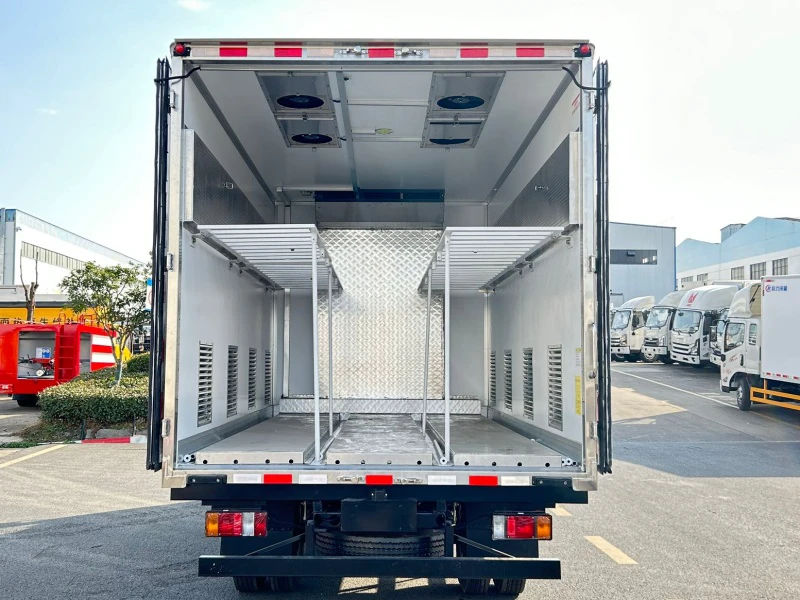

  • 5.1.6 Flipping Cargo Racks: Foldable and flip-up cargo racks on both sides maximize loading efficiency and provide secure storage for chick boxes.

  • 5.1.7 Centralized Control System: A LCD touchscreen controller provides intuitive management of:

    • Temperature display

    • CO₂ concentration monitoring

    • Interior lighting control

    • Electric louver operation

    • Independent control of exhaust fans

  • 5.1.8 Environmental Monitoring: Integrated CO₂ sensor and 2 temperature probes enable real-time environment tracking, ensuring optimal conditions for livestock welfare.

  • 5.1.9 Enhanced Power Supply: Equipped with an upgraded heavy-duty alternator on the chassis to ensure reliable power supply for all ventilation and control systems during extended operations.

  • 5.1.10 Durable Construction: The non-corrosion GRP interior and exterior, along with aluminum alloy trims, stainless steel corners, locks, hinges, and frames, ensure long service life and easy sanitation.

• 5.2 Chengli Group Advantages:

  • 5.2.1 As a leading Poultry Truck Manufacturer in China, Chengli Group utilizes advanced integrated molding production lines to ensure consistent quality and reliable working performance for every Livestock Transport Vehicle we produce.

  • 5.2.2 Whether you are searching for an ISUZU Poultry Truck, a reliable Chick Truck Supplier, or a complete Refrigerated Poultry Truck solution, our expertise in custom cold chain logistics and livestock transportation solutions allows us to tailor each vehicle to specific operational requirements.

  • 5.2.3 For customers looking for a Poultry Transport Vehicle for Sale, Chengli Group offers comprehensive after-sales support with a focus on easy installation and maintenance, ensuring minimal downtime and maximum fleet efficiency.

  • 5.2.4 As a trusted China Poultry Truck Manufacturer, we are committed to delivering high-quality ISUZU Chick Transport Vehicle and other specialized units that meet the rigorous demands of modern livestock hauling.
