Isuzu KV100 Day-Old Chick Transport Vehicle | Poultry Transport Truck for Hatchlings

1. Product Overview – Specialized Poultry Transporter
The Isuzu KV100 Day-Old Chick Transport Vehicle is a professional climate-controlled livestock transport solution engineered for the safe, long-distance delivery of day-old poultry chicks and hatchling transportation. Built on the reliable Isuzu commercial truck chassis and integrated with a high-performance insulated cargo body, it provides a stable, ventilated, and temperature-managed mobile brooding environment critical for maximizing chick viability and animal welfare during transit.

2. Core Specifications & Performance Data

• Vehicle Model: CLW5040XCQQ6 (Type-approved special transport vehicle)

• Overall Dimensions (LxWxH): 5995 × 2270 × 3400 mm

• Cargo Box Dimensions (LxWxH): 4125 × 2100 × 2200 mm (Optimized for poultry box stacking)

• Wheelbase: 3360 mm

• Engine Power: 88 KW / 120 HP ISUZU diesel engine

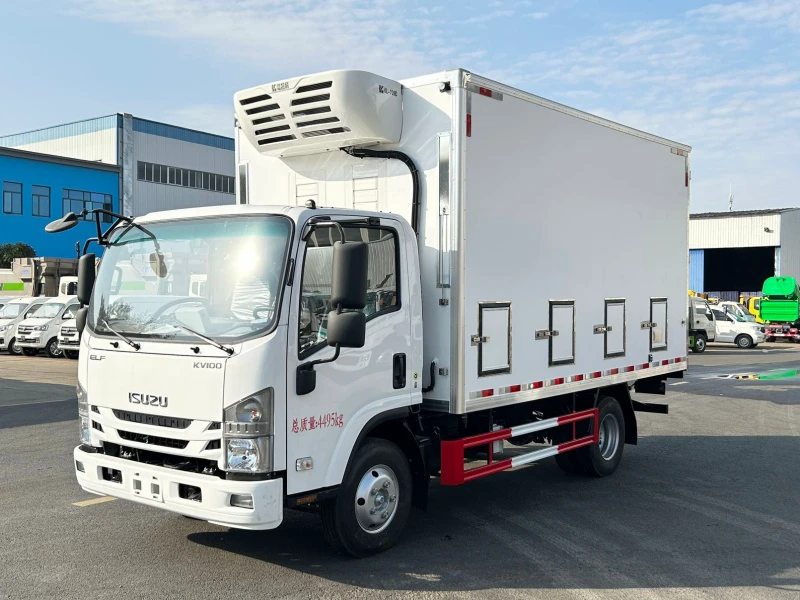

• Climate System: XINKaili KL700 Refrigeration & Heating Unit (Dedicated temperature control for poultry)

• Auxiliary Power: Upgraded High-Capacity DC Generator for standby operation

3. Body Design, Materials & Construction

• Design Philosophy: Focus on thermal efficiency, structural durability, and hygienic transport to ensure live bird safety. The design guarantees uniform air distribution and facilitates easy loading and cleaning for biosecurity in poultry transport.

• Body Construction: Manufactured using advanced vacuum composite lamination process, creating a seamless sandwich panel structure with national Class-A thermal insulation rating.

• Materials Used:

  • Walls: Premium fiberglass reinforced plastic (FRP) panels – non-absorbent, high-strength, and corrosion-resistant.

  • Insulation Core: High-density polyurethane foam for maximum thermal retention.

  • Floor: One-piece molded FRP panel for durability and sanitization.

• Sealing & Finish: Features labyrinth-style rubber door seals, aluminum alloy trim, and stainless steel hardware (locks, hinges) ensuring longevity and a professional finish.

4. Chassis & Drivetrain System Advantages

• Engine: Powered by the reliable ISUZU 4KK1N6LB 2.5L turbo-diesel engine, known for fuel efficiency and low maintenance costs in commercial fleet operations.

• Transmission: Equipped with a durable ISUZU 5-speed manual gearbox for reliable power delivery and driver control.

• Axles & Braking: Robust front and rear axles paired with air-over-hydraulic brakes and ABS, ensuring stable handling and safety for loaded vehicles. Features an air parking brake system.

• Cab & Driver Comfort: The KV100 single-row cabin includes power steering, air conditioning, and power windows, enhancing driver comfort on long agricultural logistics routes.

5. Key Features & Chengli Group Manufacturing Excellence

• Advanced Environmental Control System:

  • Precision Climate Management: The dedicated KL700 transport refrigeration unit provides both cooling and heating for all-weather poultry transport.

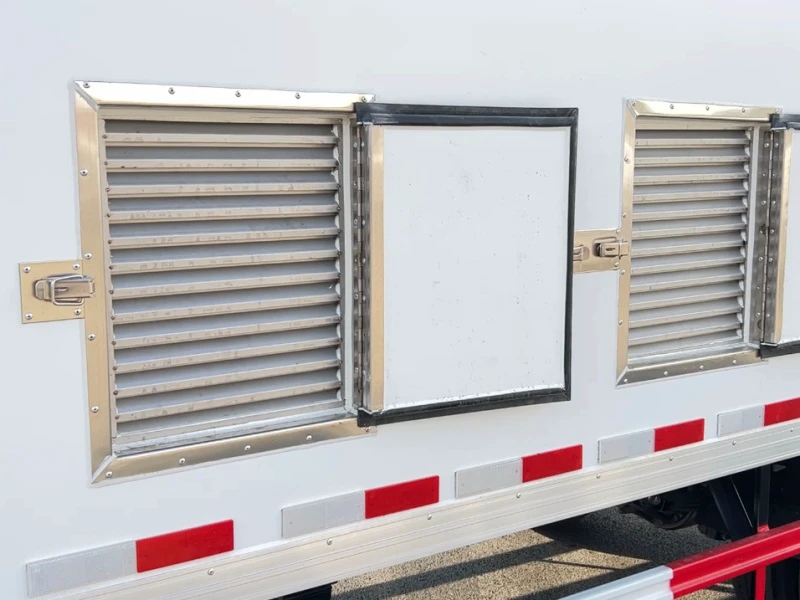

  • Intelligent Ventilation System: A multi-point system includes side vents, roof/rear exhaust fans, side air ducts, a front electric intake louvre, and a removable floor ventilation duct. This ensures complete air exchange, ammonia reduction, and minimal temperature gradients.

  • Real-time Cargo Monitoring: The central touchscreen control panel displays internal temperature and CO2 levels (via sensors), allowing control of lights, fans, and vents for optimal chick transport conditions.

• Operational Efficiency & Animal Welfare Design:

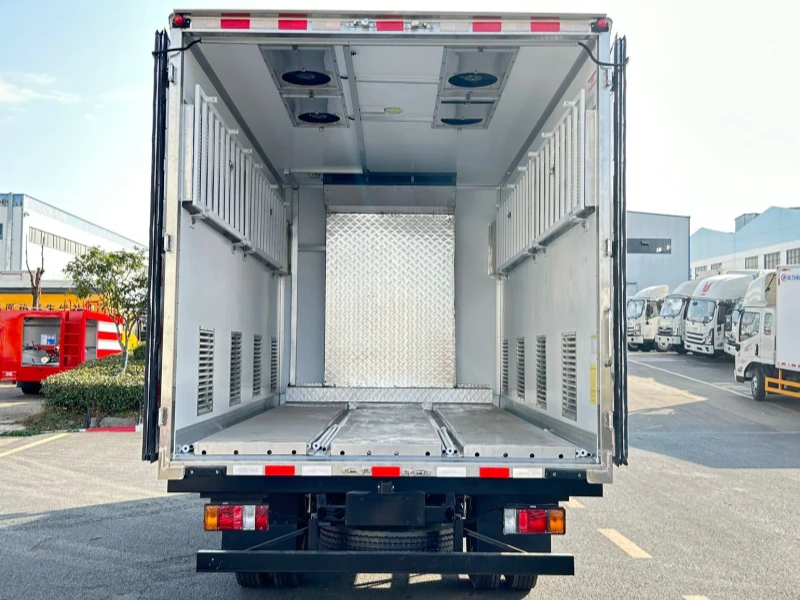

  • Folding Side Racks: Manual flip-down shelving maximizes cargo capacity and loading efficiency for standard chick boxes.

  • Hygienic & Cleanable Design: Smooth interiors and accessible ducts enable thorough cleaning and disinfection, meeting biosecurity protocols.

• Chengli Group – Specialty Vehicle Manufacturer Advantages:

  • Expert Integration: Seamless body-on-chassis integration ensures optimal vehicle balance and system reliability.

  • Compliance & Quality: Manufactured to meet transport vehicle regulations and animal welfare standards.

  • Full Support: Provides comprehensive technical support, spare parts supply, and aftersales service for the poultry farming and livestock logistics industry.
