Product Introduction: IVECO Ouba Thunder Shelter Ambulance (Chengli Brand Model CL5041XJH6AYS) | IVECO 4x4 Thunder Shelter Ambulance

I. Product Overview

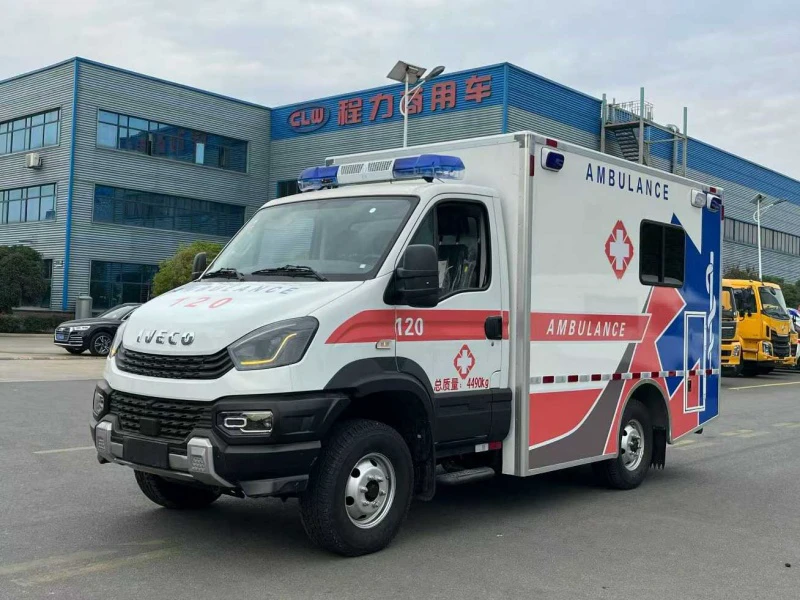

The IVECO Ouba Thunder Shelter Ambulance is a heavy-duty, cross-country emergency medical vehicle built on the legendary IVECO Ouba 4x4 chassis. Designed specifically for extreme environment response and disaster relief operations, this model features a spacious shelter-type box body that provides a stable, sterile, and fully equipped field hospital environment in the most inaccessible locations. With military-grade full-time four-wheel drive and exceptional off-road engineering, this rescue vehicle is engineered to reach patients in flood zones, mountain terrain, active battlefields, remote wilderness areas, and natural disaster sites where conventional EMS vehicles cannot operate. The vehicle meets stringent China VI emission standards and is fully certified for both national and Beijing environmental requirements, making it suitable for deployment across all jurisdictions and terrains. As a purpose-built mobile medical unit, it combines the durability of a military tactical vehicle with the life-saving functionality of a modern intensive care ambulance.

II. Core Specifications

• Chassis Manufacturer: IVECO (Nanjing IVECO)

• Chassis Model: IVECO Ouba Heavy-Duty 4x4 Chassis

• Engine Model: F1CE8481M Turbo Diesel Engine

• Engine Power Output: 132 kW (approx. 180 horsepower @ 3,500 rpm)

• Engine Torque: 430 Nm @ 1,400-2,800 rpm (High low-end torque for off-road crawling)

• Engine Displacement: 3.0L (2,998 cc) Turbocharged Diesel with Intercooler

• Transmission Options: 6-Speed Manual Transmission / 8-Speed Automatic Transmission Available

• Drive System: Military-Grade Full-Time Four-Wheel Drive (4x4 Permanent AWD)

• Transfer Case: 4-Position Electric Shift Transfer Case with 4HL, 4H, N, 4L Ranges

• Differential Lock: Electronically Controlled Central Differential Lock for maximum traction

• Wheelbase: 3,365 mm (11.0 ft) – Optimized for stability and maneuverability

• Rear Tire Configuration: Single Rear Wheel Configuration for reduced rolling resistance in soft terrain

• Tire Specification: LT265/75R16 10PR Heavy-Duty All-Terrain Tires with reinforced sidewalls

• Fuel Tank Capacity: 110 Liters (29.1 US Gallons) – Extended range for remote missions

• Air Conditioning System: 8 kW Front-Mounted Automatic Climate Control with defrost

• Braking & Stability Systems: ABS (Anti-lock Braking System) + EBD (Electronic Brakeforce Distribution) + ESP (Electronic Stability Program)

• Emission Compliance: China VI – Meeting strict environmental standards

• Comfort & Convenience Features: Driver's Suspension Seat (vibration-dampening), Dual Front Airbags (driver & passenger), Power Front Windows with auto up/down, Remote Keyless Entry with panic alarm, Reverse Parking Sensors

• Maximum Climbing Gradient: >60% (Approx. 31 degrees)

• Maximum Water Fording Depth: >1.0 Meter (Approx. 40 inches)

III. Exterior Dimensions, Materials & Design Philosophy

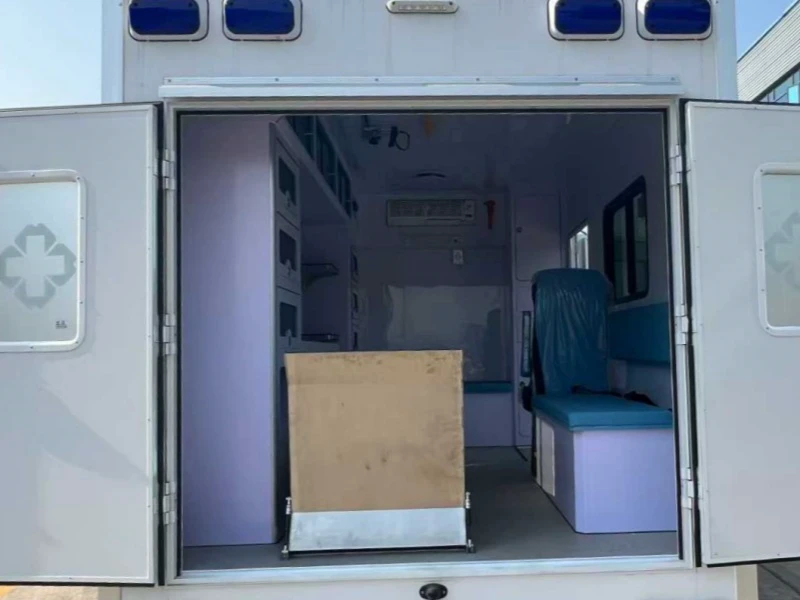

The Thunder Shelter features a robust shelter-type box body precision-mounted on the IVECO Ouba 4x4 chassis. This design philosophy emphasizes mission adaptability and environmental isolation, creating a self-contained medical operations center that can function independently in remote field conditions. The exterior dimensions are carefully optimized to balance off-road mobility with maximum interior workspace for medical procedures. The shelter construction utilizes high-strength, lightweight composite sandwich panels with reinforced corners and heavy-duty mounting points engineered to withstand the extreme torsional forces and continuous vibration of serious off-road travel. The body shell is treated with military-specification anti-corrosion coatings and features complete environmental sealing against dust ingress, water penetration, and temperature extremes. Critical design elements include large, low-threshold rear doors for rapid stretcher loading and side-entry crew doors with positive-pressure seals to maintain interior cleanliness during dust storms or heavy rain. The interior features a completely flat floor surface for easy sanitation and flexible equipment mounting, while the exterior is finished with high-visibility reflective markings and emergency identification graphics compliant with international standards for emergency scene safety.

IV. Structural Advantages

• Engine & Powertrain Performance: The 3.0L F1CE8481M turbo-diesel engine delivers 132 kW (180 hp) and an exceptional 430 Nm of torque, providing substantial power reserves for climbing steep grades and traversing soft, low-traction terrain while carrying a full medical payload. The engine calibration prioritizes low-end torque delivery, which is essential for technical off-road crawling, water crossing scenarios, and maintaining momentum on loose surfaces without wheel spin.

• Transmission & Drivetrain Configuration: Available in both 6-speed manual and automatic transmission configurations, the drivetrain is mated to a military-grade full-time four-wheel-drive transfer case with four operator-selectable ranges: 4HL (High Lock) for maximum traction at speed, 4H (High) for normal off-road driving, N (Neutral) for auxiliary equipment operation, and 4L (Low) for extreme crawling and maximum torque multiplication. The electronic shift control system allows drivers to seamlessly switch between drive modes while the vehicle is in motion, adapting instantly to changing terrain conditions without stopping. The central differential lock provides additional traction when wheels encounter slip conditions, ensuring continuous forward progress in deep mud, snow, sand, or rock fields.

• Axles & Suspension Engineering: The front axle features a heavy-duty design with sufficient articulation travel to maintain continuous tire contact on severely uneven ground profiles. The rear single-wheel configuration significantly reduces rolling resistance in soft terrain while providing adequate load capacity for the shelter module and onboard medical equipment. The suspension system is specifically calibrated to absorb severe impacts from rocks and ruts while protecting sensitive medical cargo and patient comfort during transport.

• Extreme Off-Road Performance Capabilities: This expedition vehicle is engineered for serious off-road work with verified performance specifications including a climbing gradient exceeding 60% (approximately 31 degrees) and a water fording depth greater than one meter (approximately 40 inches). These tactical capabilities allow the vehicle to cross flooded streams, ascend steep mountain tracks, navigate desert terrain, and traverse disaster-damaged roads where conventional ambulances would stall, high-center, or become trapped.

• Integrated Braking & Stability Systems: The comprehensive combination of ABS (Anti-lock Braking System), EBD (Electronic Brakeforce Distribution), and ESP (Electronic Stability Program) provides exceptional vehicle control on low-traction surfaces. These advanced safety systems work together to prevent dangerous skids, maintain directional control during emergency maneuvers, and dynamically optimize braking performance regardless of load distribution changes within the shelter module.

V. Product Features & Manufacturer Advantages (Chengli Group)

• Military-Grade Mobility & Tactical Capability: The full-time four-wheel-drive system with selectable ranges and central differential lock provides unparalleled off-road mobility that exceeds typical emergency vehicle capabilities. The verified 60%+ climb gradient and 1-meter water fording depth ensure this rescue vehicle can reliably reach patients in locations inaccessible to standard EMS vehicles, including flooded residential areas, active construction sites, remote mountain rescue scenes, wilderness search areas, and natural disaster zones with compromised infrastructure.

• Shelter-Type Medical Module Design: Unlike traditional ambulance box constructions, the shelter design offers superior thermal insulation properties, enhanced acoustic isolation for patient comfort, and exceptional structural rigidity. The spacious interior volume can be professionally configured as a mobile intensive care unit (ICU), field surgical suite, forward operating room, or mass casualty treatment area, with ample workspace for multiple medical attendants to perform procedures simultaneously around the patient litter.

• Enhanced Operator & Crew Comfort Systems: The driver benefits from a professionally engineered suspension seat that effectively absorbs off-road vibrations and impacts, significantly reducing operator fatigue during extended missions in rough terrain. Dual front airbags provide critical crash protection despite the vehicle's rugged military-grade nature. Power window convenience and remote keyless entry functionality add operational efficiency during rapid deployment scenarios where every second counts.

• Extended Mission Duration Capability: The 110-liter extra-large fuel tank significantly extends operational range, allowing the vehicle to reach remote locations deep in wilderness areas and return to base without refueling. This extended range capability is absolutely critical for wilderness search and rescue operations, remote mining camp medical support, oil exploration field clinics, and disaster relief operations where fuel resupply infrastructure may be completely unavailable.

• Chengli Group Advantage – Premier Off-Road Ambulance Manufacturer: As a leading specialty vehicle manufacturer in China with decades of engineering experience, Chengli Group specializes in creating customized emergency vehicles for the world's most demanding operational environments. Our strategic partnership with IVECO ensures that the Ouba chassis retains its full manufacturer warranty and military-grade structural integrity while being professionally transformed into a fully functional mobile medical facility. We offer both manual and automatic transmission options to accommodate different operator training backgrounds and mission-specific requirements. The Thunder Shelter model is fully certified for China VI emissions compliance and meets both national and Beijing environmental standards, ensuring deployment flexibility across all jurisdictions and regulatory environments. Chengli's dedicated engineering team specializes in integrating complex medical systems—including oxygen delivery networks, vacuum suction systems, stable electrical power distribution, and redundant climate control—into the shelter architecture in ways that withstand the severe vibration and continuous shock of serious off-road travel. Our factory-direct business model provides highly competitive wholesale pricing on these specialized tactical vehicles, while our comprehensive nationwide service network ensures parts availability and technical support are always accessible. Whether for military medical evacuation units, government disaster response agencies, international mining operations, petroleum exploration camps, or humanitarian aid organizations, the IVECO Ouba Thunder Shelter Ambulance represents the ultimate engineering achievement in combining extreme off-road mobility with advanced patient care capability in a single, reliable platform.
