Toyota HiACE (IMV 0) ICU Ambulance for Sale | Toyota HiACE ICU Ambulance

I. Product Introduction

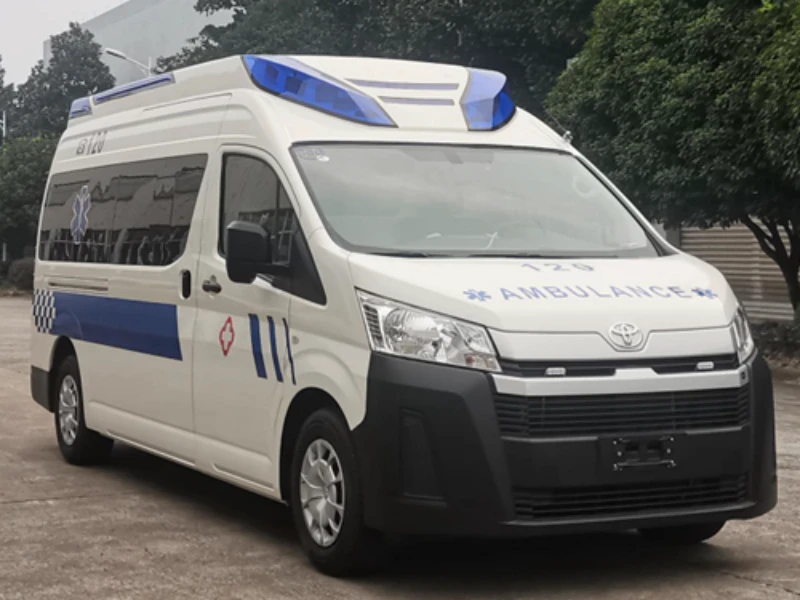

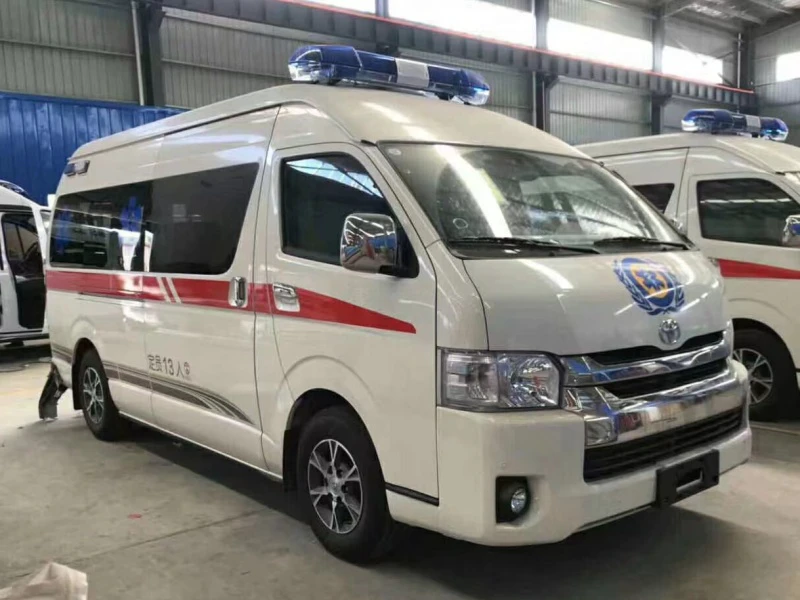

The Toyota HiACE ICU Ambulance represents the pinnacle of emergency medical mobility. Built on the legendary reliability of the Toyota HiACE platform, this vehicle is expertly modified by Chengli Group, a leading ambulance manufacturer, to serve as a mobile intensive care unit. As a high-quality Type II ambulance, it is meticulously designed to provide a stable, sterile, and technologically advanced environment, ensuring medical teams can deliver life-saving care during transit. Combining robust automotive engineering with specialized medical fitments, this emergency vehicle is the ideal solution for demanding patient transport and emergency medical services.

II. Core Specifications

• Engine: 3.5L V6 Petrol (7GR), 282 hp

• Transmission: 6-Speed Automatic

• Drive Type: Rear-Wheel Drive

• Emission Standard: GB14762-2008 (National IV)

• Fuel Tank Capacity: 80L

• Maximum Speed: 180 km/h

• Medical Bay Capacity: 5.9 m³ (Calculated: 3.25m x 1.82m x 1.73m)

III. Dimensions, Materials & Design Philosophy

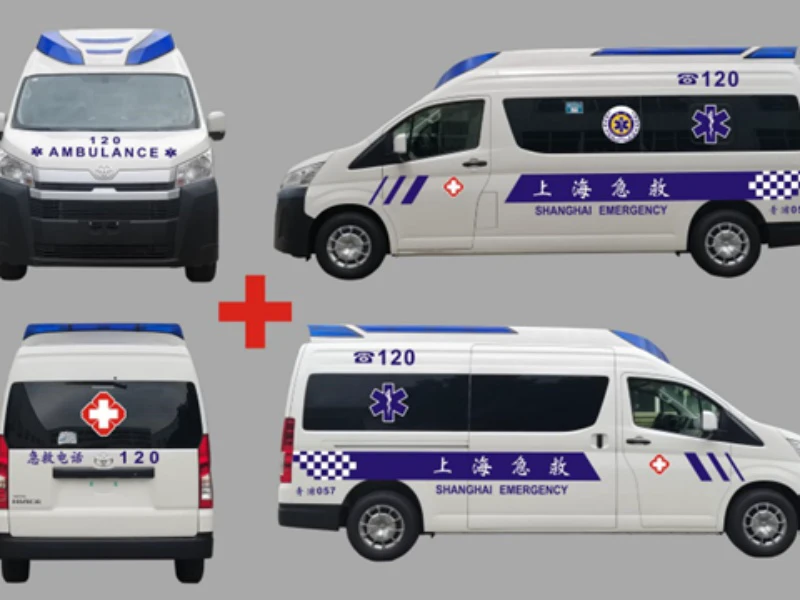

• External Dimensions: 5,928mm (L) x 1,948mm (W) x 2,450mm (H) (Configurable as a custom ambulance to fit specific needs)

• Internal (Medical Bay) Dimensions: 3,250mm (L) x 1,820mm (W) x 1,730mm (H)

• Wheelbase: 3,870mm

• Construction Material: The medical bay features fully molded, seamless ABS composite panels. This ambulance body material is chosen for its high strength-to-weight ratio, smooth surface for effective decontamination, and resistance to chemicals and corrosion, ensuring a durable ambulance interior.

• Design Philosophy: The design prioritizes a "patient-centric" workflow. The layout maximizes interior space to create an uncluttered environment, allowing paramedics to operate around the patient with ease and efficiency, reducing stress during critical interventions. This focus on ambulance functionality ensures optimal emergency response.

IV. Detailed Structural Advantages

• Engine & Performance: At its heart is a powerful 3.5-liter V6 engine with D-4S direct injection, delivering 282 horsepower and 351 Nm of torque. This robust Toyota ambulance engine ensures the vehicle has ample power for rapid response, even when fully laden with equipment and personnel, navigating both urban and highway conditions with confidence.

• Chassis & Drivetrain: The rear-wheel drive configuration, paired with a smooth 6-speed automatic transmission, provides excellent traction and stability, especially on uneven terrain. This robust drivetrain is engineered for high mileage and demanding operational cycles.

• Suspension & Braking: The suspension system combines a comfortable front MacPherson strut with durable rear leaf springs, tuned to handle heavy payloads while providing a stable ride for patients. Safety is paramount, with front and rear ventilated disc brakes ensuring reliable, fade-resistant stopping power in all conditions, representing a key ambulance safety feature.

• Electrical System: A sophisticated dual-battery management system is a key structural advantage. It intelligently isolates the starter battery from the auxiliary medical battery, guaranteeing the vehicle will always start. A pure sine wave inverter provides stable 220V power for sensitive life-support equipment, replicating the reliability of a hospital wall outlet and supporting all necessary ambulance medical equipment.

V. Key Features & Chengli Group Advantages

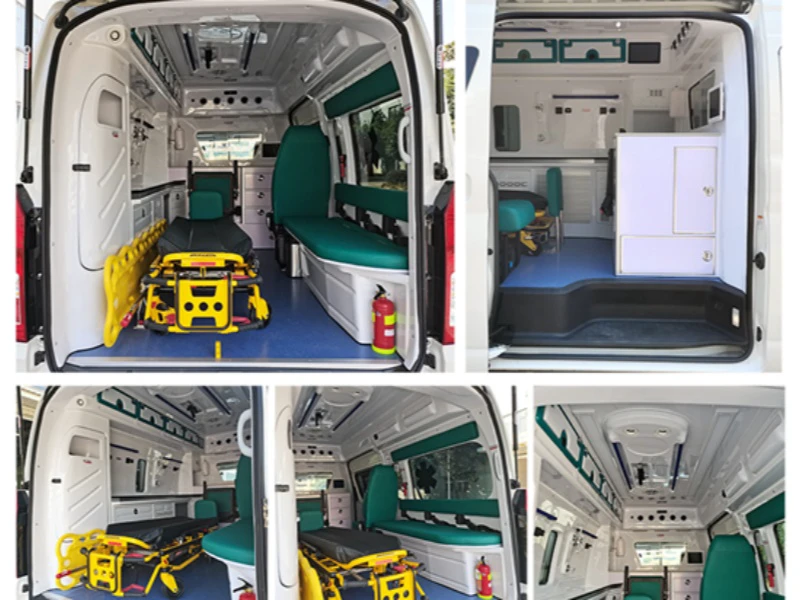

• Integrated Medical Systems:

  • Centralized Oxygen: A hidden pipeline system with quick-connect outlets and dual 10L oxygen cylinders ensures a continuous and secure oxygen supply, representing a professional ambulance oxygen system.

  • Modular Storage: Dedicated, lockable cabinets for emergency medicines and supplies keep the workspace organized and secure during rapid transit.

  • Hygienic Environment: The inclusion of a UV sterilization lamp and a high-efficiency ventilation system (20 air changes/hour) maintains a clean, infection-controlled atmosphere inside the cabin.

  • Ergonomic Seating: The forward-facing attendant seat and right-side cabinet seat are designed with medical foam and ergonomics to reduce fatigue during long shifts.

  • Advanced Carrier: Equipped to accommodate a standard ambulance stretcher and other patient handling equipment.

• Chengli Group Advantages:

  • Authorized & Certified: As a leading Chinese specialized vehicle manufacturer, Chengli Group ensures all modifications meet rigorous safety and quality standards, providing a legally compliant and road-safe vehicle. We are a reliable ambulance supplier you can trust.

  • Holistic Engineering: Our specialization means we don't just install equipment; we integrate it. The electrical load, weight distribution, and structural integrity are all calculated and engineered to work seamlessly with the base Toyota chassis.

  • Customization Expertise: Chengli understands that every EMS provider has unique needs. While this model is comprehensive, our manufacturing flexibility allows for tailored solutions, including the ability to function as a mobile clinic or meet specific regional or operational requirements.

  • Durability Assurance: Our modifications, from the ABS composite walls to the reinforced flooring, are built to withstand the intense, daily demands of emergency services, ensuring a lower total cost of ownership and maximum vehicle uptime. We focus on delivering the best ambulance quality in the industry.
