Changan Ruixing Pure Electric Ambulance | Changan Electric Patient Transport Ambulance

I. Product Introduction
The Changan Ruixing Pure Electric Ambulance represents a new generation of environmentally friendly emergency medical services vehicles. Built on a reliable commercial chassis and modified by Chengli Group, a leading ambulance manufacturer, this electric ambulance offers zero-emission operation, making it ideal for urban medical missions, community healthcare, and hospital transfer services. As a high-quality Type A ambulance, it combines a spacious interior with a comprehensive set of life-support equipment, ensuring efficient and safe patient transport while meeting modern green mobility standards. This EV ambulance is the perfect solution for eco-conscious medical fleets.

II. Core Specifications

• Motor Model: TZ180XS000 (Permanent Magnet Synchronous Motor)

• Rated Power: 60 kW

• Battery Type: Lithium-ion

• Battery Voltage: 332.8V

• Driving Range: 260 km per charge

• Maximum Speed: 100 km/h

• Gross Vehicle Weight (GVW): 2,350 kg

• Curb Weight: 1,900 kg

• Seating Capacity: 5-6 persons (including stretcher patients)

III. Dimensions, Materials & Design Philosophy

• External Dimensions: 4,805 mm – 4,950 mm (L) x 1,715 mm (W) x 2,060 mm (H)

• Internal (Medical Bay) Dimensions: 2,670 mm (L) x 1,540 mm (W) x 1,320 mm (H)

• Medical Bay Capacity: 5.4 m³ (Calculated: 2.67m x 1.54m x 1.32m)

• Wheelbase: 3,050 mm

• Construction Material: The vehicle body features a reinforced steel frame structure for maximum safety and durability. The ambulance interior is constructed from lightweight, eco-friendly composite materials that are waterproof, mold-proof, and antibacterial, ensuring a hygienic environment. This premium ambulance body material guarantees long-term reliability.

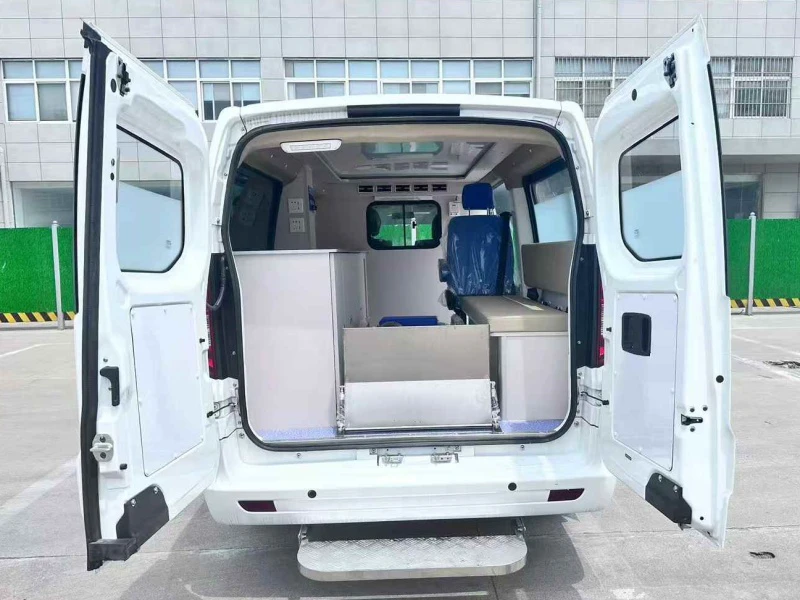

• Design Philosophy: The design focuses on "patient accessibility and operational efficiency." The large double rear doors and sliding side door are engineered for easy loading of stretchers, while the partitioned cabin ensures privacy and infection control, creating a dedicated mobile treatment space that enhances overall ambulance functionality.

IV. Detailed Structural Advantages

• Electric Powertrain: Driven by a permanent magnet synchronous motor (TZ180XS000) producing a rated 60kW, this emergency response vehicle delivers instant torque for smooth, quiet acceleration. The front-wheel-drive layout provides excellent traction on wet or slippery roads, enhancing driving stability. The advanced ambulance EV range ensures reliable performance throughout demanding shifts.

• Chassis & Load Capacity: With a gross weight capacity of 2,350 kg and heavy-duty 185R14LT tires, the chassis is robust enough to carry a full set of ambulance medical equipment plus multiple attendants without compromising performance.

• Battery & Range: Equipped with a high-voltage lithium battery pack (332.8V), this zero-emission ambulance offers a driving range of 260 kilometers on a single charge, sufficient for a full day of intra-city emergency response and transfer missions.

• Body Structure: The steel-reinforced frame not only protects occupants in the event of a collision but also provides a rigid platform for mounting heavy medical equipment and cabinetry, preventing structural flexing during transit. This represents a key ambulance safety feature that protects both patients and medical staff.

V. Key Features & Chengli Group Advantages

• Comprehensive Life Support Systems:

  • Dual Oxygen Supply: Equipped with two 10L steel oxygen cylinders (15MPA), each with a pressure reducer, humidifier bottle, and national standard outlets, allowing for dual-patient oxygen therapy or extended supply for a single critical patient. This professional ambulance oxygen system ensures continuous care.

  • Advanced Stretcher System: Features a lightweight, high-strength aluminum alloy automatic loading stretcher with a PVC waterproof mattress and adjustable backrest. The integrated loading platform ensures smooth, one-person operation, compatible with standard ambulance stretcher models.

  • Smart Power Management: A 500W pure sine wave inverter provides stable 220V power for defibrillators, monitors, or ventilators, with multi-function sockets supporting both AC and DC devices.

  • Hygiene & Comfort: An intelligent timed UV sterilization lamp ensures cabin disinfection, while an independent rear air conditioning system allows medical staff to control the patient environment separately from the driver's cabin.

  • Medical Storage: Dedicated cabinets and storage spaces keep emergency medicines and supplies organized and secure during transit.

• Chengli Group Advantages:

  • Green Innovation Leader: As a premier ambulance supplier, Chengli Group is at the forefront of new energy vehicle modification, ensuring that our electric ambulances meet the highest standards for safety and electrical system integration.

  • Customizable Layouts: We understand that different medical tasks require different configurations. Our custom ambulance solutions allow for flexible cabinet arrangements to accommodate specific local medical equipment or protocols, including options for a mobile clinic configuration.

  • Quality & Compliance: All modifications strictly adhere to automotive safety standards. From the reinforced flooring to the sealed electrical connections, every detail is engineered for reliability in the demanding world of emergency services. We are committed to the highest ambulance quality in the industry.

  • Low Operating Costs: By utilizing a pure electric platform, this emergency vehicle significantly reduces fuel and maintenance costs for hospitals and emergency centers, offering a sustainable and economical solution for patient transport.

  • Authorized Manufacturer: As a trusted name among Chinese ambulance manufacturers, Chengli Group provides full certification, warranty support, and after-sales service for complete peace of mind.
