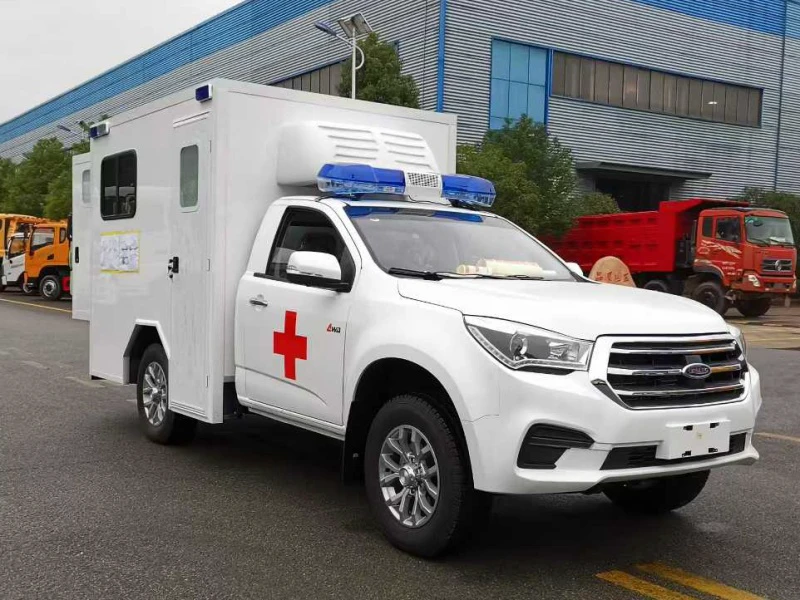

Isuzu 4x4 Pickup Ambulance – Export-Optimized Emergency Vehicle

I. Product Introduction

The Isuzu 4x4 Pickup Ambulance represents the pinnacle of off-road emergency medical vehicles, combining Japan-brand reliability with professional ambulance conversion technology. Designed specifically for export markets requiring rugged durability and all-terrain capability, this diesel-powered ambulance excels in challenging environments where conventional 2WD ambulances cannot operate.

Built on the legendary Isuzu pickup chassis, this 4WD medical response vehicle serves as a mobile intensive care unit (ICU) for remote areas, disaster zones, and infrastructure-challenged regions across Africa, Southeast Asia, the Middle East, and South America. The vehicle seamlessly integrates advanced life support (ALS) systems with off-road mobility, ensuring medical teams can reach patients regardless of terrain conditions.

As a special purpose vehicle manufactured by Chengli Special Automobile Co., Ltd., this field emergency ambulance complies with international standards while offering customization options for various pre-hospital care requirements. The combination of Isuzu mechanical reliability and professional medical interior conversion creates a cost-effective emergency response solution for governments, NGOs, and healthcare organizations worldwide.

II. Key Specifications

III. Dimensions, Construction Materials & Design Philosophy

Exterior Dimensions

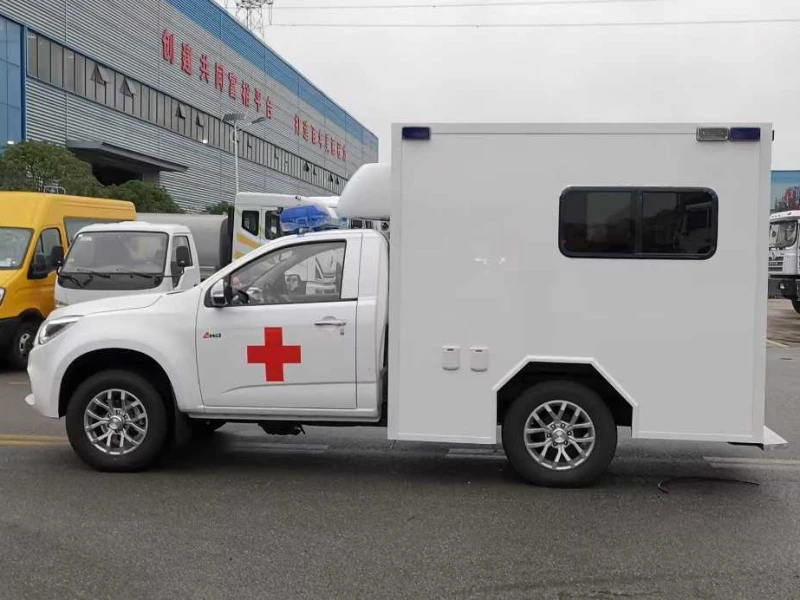

The Isuzu D-MAX based ambulance features a compact footprint ideal for navigating narrow urban streets and rural paths. At just 5.45 meters (17.9 feet) in length, it offers exceptional maneuverability while maintaining generous interior space. The height of 2676 mm (8.8 feet) allows access to standard parking facilities while providing sufficient headroom for medical procedures inside the cabin.

Medical Compartment Specifications

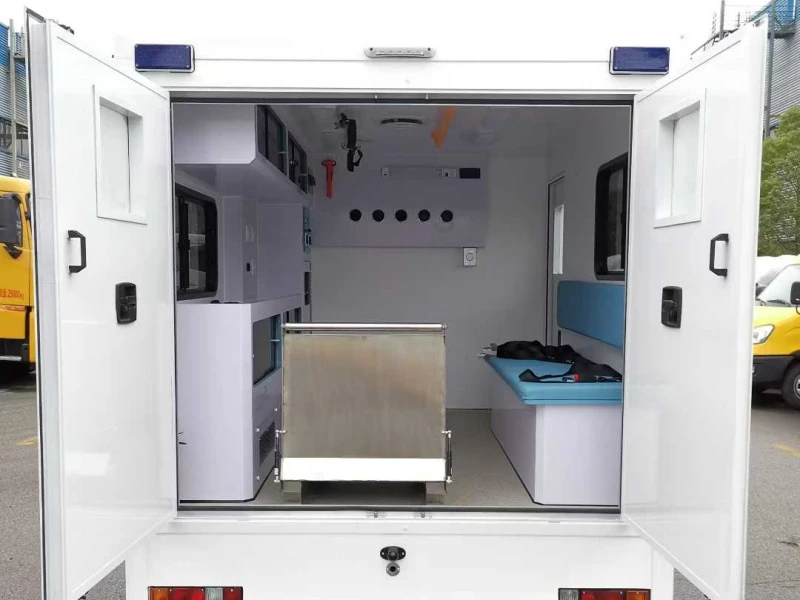

The patient compartment measures 2100 mm (82.7 inches) in length, 1750 mm (68.9 inches) in width, and 1600 mm (63.0 inches) in height, creating 5.88 cubic meters (208 cubic feet) of functional medical workspace. This volume accommodates stretcher systems, medical personnel, and essential equipment without compromising patient access.

Construction Materials

Design Philosophy

The off-road ambulance design follows three core principles:

1. Terrain Adaptability: Every design element prioritizes functionality in challenging environments. The compact dimensions, high ground clearance, and protected underbody components ensure the vehicle maintains mobility when roads end.

2. Ergonomic Medical Workflow: Despite the compact exterior, the interior follows human-centered design principles. Equipment placement follows logical emergency response sequences, allowing medical staff to access supplies within two movements while standing on the ground or a small step.

3. Modular Customization: The medical compartment accepts various configurations for basic life support (BLS), advanced life support (ALS) , or specialized roles such as mobile clinic or disaster response unit. This modular ambulance system adapts to client-specific requirements without lengthy redesign.

IV. Detailed Structure & Component Advantages

Chassis and Frame

The Isuzu 4x4 off-road chassis features a heavy-duty ladder frame with reinforced cross-members, providing exceptional torsional rigidity for demanding terrain. The frame undergoes electrostatic painting and anti-corrosion treatment, ensuring longevity in harsh climates including coastal areas with high salinity. The 3406 mm wheelbase strikes an optimal balance between stability at speed and break-over angle for off-road obstacles.

Engine Performance

The 4KH1CT6H1 diesel engine represents Isuzu's mature 3.0L technology with over a decade of field validation. Key advantages include:

• Common-rail direct injection for precise fuel delivery and cold-start capability to -25°C

• Turbocharged with intercooler maintaining power at high altitudes

• Maintenance-friendly design with spin-on filters and easily accessible service points

• Global parts availability through Isuzu dealer networks in over 100 countries

• Proven fuel efficiency consuming approximately 11-13 L/100km in mixed conditions

Transmission and Drivetrain

Two transmission options accommodate different operator preferences:

• MSB 5-speed manual: Preferred for maximum control in technical off-road situations, with low-gear crawling capability

• 6-speed automatic: Optimized for urban response and reduced driver fatigue during long transfers

The part-time 4WD system features:

• Electronically shift-on-the-fly capability between 2H and 4H up to 100 km/h

• Low-range transfer case (4L) for extreme terrain with 2.05:1 reduction

• Automatic locking front hubs for seamless engagement

• Rated to handle 320 N·m engine torque with safety margin

Front and Rear Axles

Suspension System

The heavy-duty suspension combines on-road comfort with off-road capability:

• Front: Independent double wishbone with torsion bars and stabilizer bar

• Rear: Semi-elliptical leaf springs with hydraulic double-acting telescopic shocks

• Spring capacity: Optimized for medical payload while maintaining ride quality

• Articulation: Designed to maintain tire contact in extreme cross-axle situations

Braking and Safety Systems

• Dual-circuit hydraulic brakes with vacuum assist

• ABS (Anti-lock Braking System) standard

• Electronic Brakeforce Distribution (EBD) for stable loaded braking

• Parking brake: Mechanical on rear wheels

• Engine exhaust brake optional for mountainous regions

Electrical Architecture

• 24V electrical system for reliable starting and auxiliary power

• Dual battery system standard (crank battery + auxiliary)

• 150A alternator with capacity for medical equipment

• Waterproof connectors throughout for river crossing capability

V. Product Features & Chengli Group Advantages

Medical Compartment Features

Patient Transport System

• Automatic loading stretcher with aluminum alloy frame, weight capacity 250 kg (550 lbs)

• Backrest adjustable from 0° to 70° for patient positioning

• Safety restraint system with quick-release buckles

• Scoop stretcher for confined-space extraction

Oxygen Supply System

• Dual 10L (2.6 gal) steel oxygen cylinders with pressure regulators

• Hidden oxygen lines with quick-connect terminals (2 outlets)

• Oxygen flowmeter and humidifier for patient administration

• Cylinder compartment with ventilation for safety

Electrical Power System

• 1000W pure sine wave inverter for medical device operation

• External power inlet with automatic switching

• 4× 220V AC outlets (various plug types available)

• 12V DC outlets for portable equipment

• Centralized control panel with status monitoring

Climate Control

• Independent rear air conditioning with adjustable vents

• Independent rear heating for cold-climate operation

• Roof-mounted ventilation fan with rain sensor

• Thermally insulated walls maintain interior temperature

Lighting Systems

• Patient compartment lighting: 4× LED ceiling lights with dimming option

• Procedure lighting: 2× adjustable LED spotlights for examination

• Night mode: Blue lighting preserving night vision

• Exterior scene lighting for night operations

Infection Control

• UV germicidal lamp with safety interlock

• Easy-clean interior surfaces with antimicrobial additives

• Seamless flooring with raised edges for washdown capability

• Negative pressure system optional for infectious disease transport

Emergency Warning Systems

Visual Warning

• LED warning light package with multiple flash patterns

• Front grill-mounted flashing lights

• Side strobes for intersection visibility

• Rear scene lighting with red/white options

• Reflective chevron patterns and ambulance markings

Audible Warning

• 100W electronic siren with multiple tone options (wail, yelp, phaser)

• PA (public address) function for scene communication

• Manual and automatic siren control

Exterior Equipment

• Front winch optional: K8000XF with 3629 kg (8000 lb) rated pull capacity for self-recovery

• Rear tow hitch with recovery points

• Underbody protection for fuel tank and transfer case

• Roof rack option for additional equipment storage

Customization Options

Chengli Group offers extensive OEM ambulance customization:

• Left-hand drive (LHD) or right-hand drive (RHD) configurations

• Compliance with target market regulations (GCC, EEC, ADR, etc.)

• Medical equipment integration from global brands

• Specialized configurations: mobile clinic, dental unit, blood donation vehicle

• Fleet graphics and livery application

Chengli Group Manufacturer Advantages

Industry Leadership

• 30+ years of specialized vehicle manufacturing experience

• Located in Suizhou, Hubei – China's "Special Vehicle Capital"

• ISO 9001:2015 certified production facility

• CCC, SGS, and BV audited manufacturer

• Dedicated ambulance production line with quality control stations

Export Expertise

• 10+ years of international export experience

• Shipped to over 80 countries across Africa, Middle East, Southeast Asia, CIS, and Americas

• FCL, LCL, RORO, and bulk vessel shipping options

• Experienced in CKD and SKD knockdown kit assembly programs

• Documentation support for customs clearance and registration

Quality Assurance

• Pre-delivery inspection (PDI) with 50-point checklist

• 12-month warranty on chassis and conversion work

• Comprehensive user manuals and documentation

• Video tutorials available for maintenance procedures

• Spare parts support with global logistics

After-Sales Support

• 24/7 technical support via phone, email, and WhatsApp

• Overseas technician dispatch available for large orders

• Training programs for driver and maintenance staff

• Remote diagnostics capability for electrical systems

• Parts catalog with exploded diagrams for easy ordering

Target Applications

This versatile 4WD ambulance excels in multiple scenarios:
