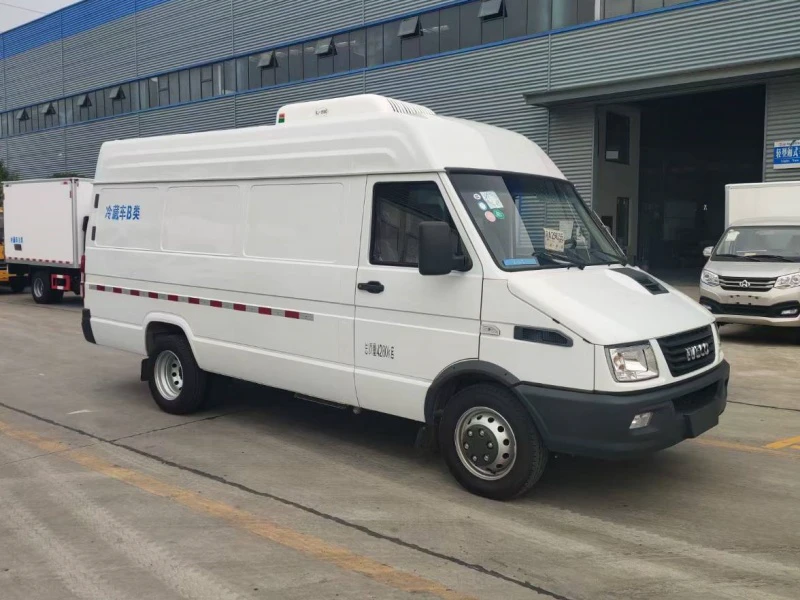

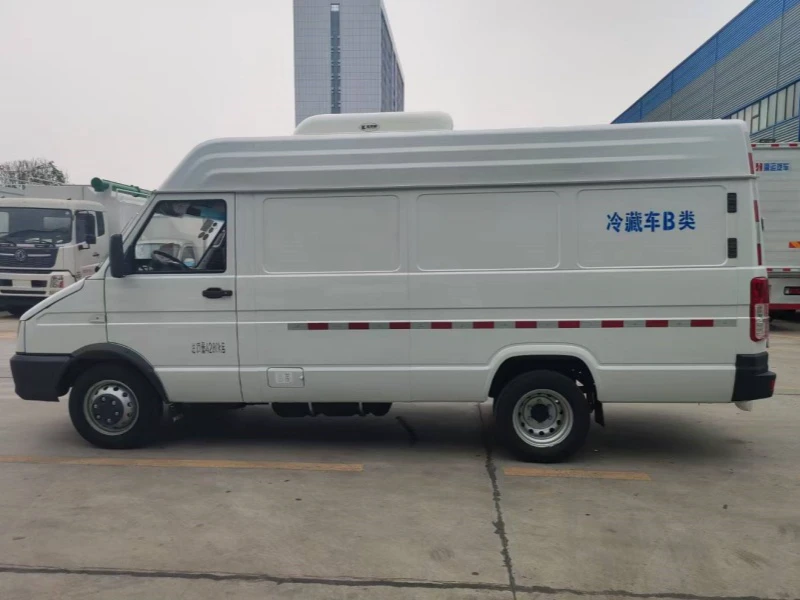

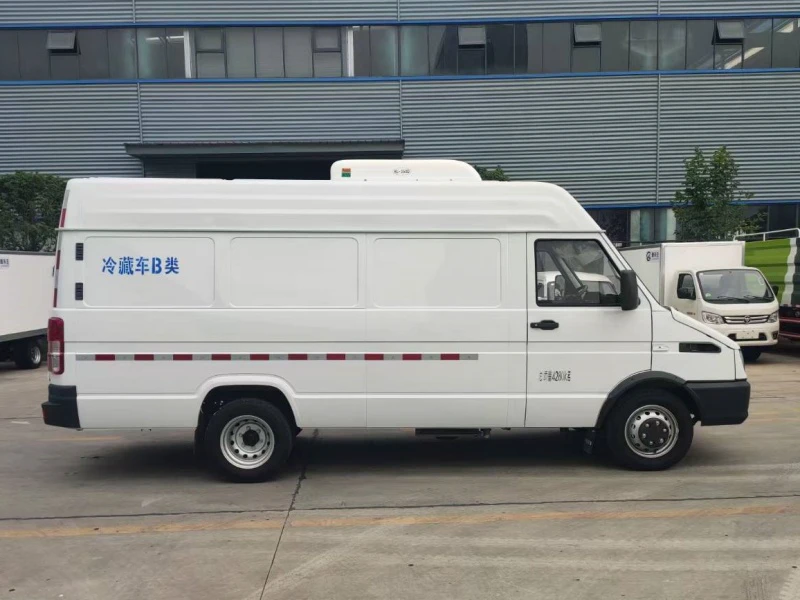

Nanjing Iveco Long Axle Refrigerated Truck | Iveco refrigerated van 3.3M cargo length 8.5m³ volume | Iveco V40 refrigerated van
I. Product Overview
This Nanjing Iveco refrigerated truck is a professional cold chain transport vehicle built on the V40 Iveco Daily Turbo Daily series long axle chassis. Designed for reliable temperature-controlled delivery of food, pharmaceuticals, and other perishable goods, this model combines Iveco's proven diesel technology with a high-performance insulated cargo compartment. Meeting China VI emission standards, it offers efficient operation for urban and intercity logistics.
II. Core Specifications
Complete Vehicle Model: CLW5041XLCNJ6
Chassis Series: Iveco V40 Daily Turbo Daily (Single Row Cab)
Engine Model: SOFIM8140.43S6
Engine Power: 95KW / 129 HP, 2798cc Displacement
Emission Standard: China VI (with Urea Injection System)
Transmission: Iveco 2826.5 Gearbox
Tire Configuration: 195/75R16LT (Rear Dual Tires)
Brake System: Front and Rear Disc Brakes with ABS
Comfort Features: Electric Windows, Remote Key, 5KW Cab Air Conditioning
Electrical System: 140A Alternator with Dual Compression Bracket
Fuel Tank Capacity: 70L
Wheelbase: 3310mm
III. Dimensions, Materials & Design Concept
Overall Dimensions (L×W×H): 5995×2000×2800 mm
Cargo Box Internal Dimensions (L×W×H): 3360×1640×1550 mm
Cargo Volume: Approximately 8.5 cubic meters

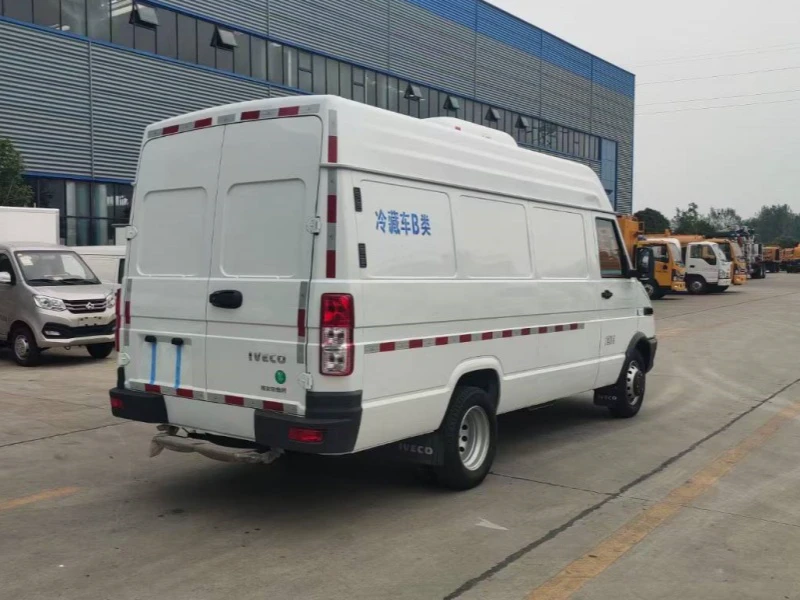

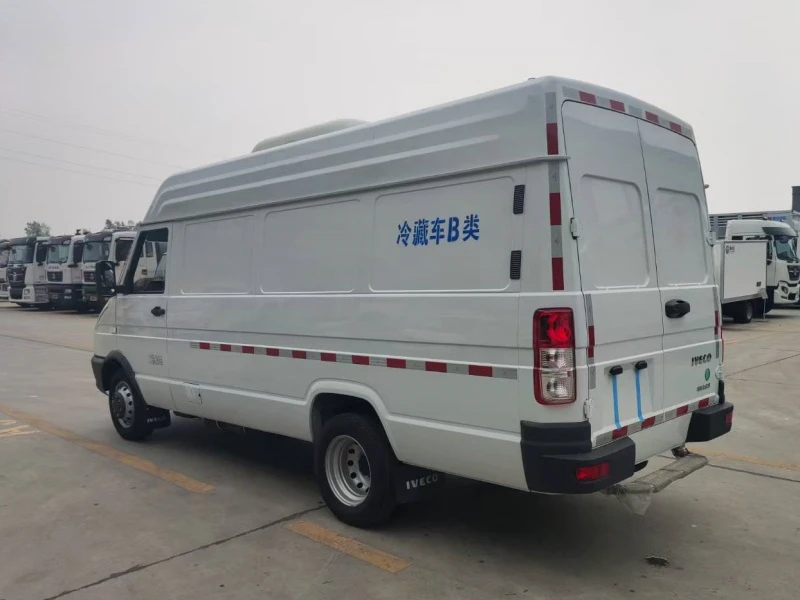

Cargo Access: Rear Double Doors for Easy Loading/Unloading
Window Configuration: Fully Enclosed Blind Windows for Maximum Insulation
Standard Materials: High-density thermal insulation panels with corrosion-resistant surface
Design Concept: Optimized 6-meter vehicle length for urban maneuverability combined with maximum cargo space. The fully enclosed blind window design minimizes heat gain, improving refrigeration efficiency.
IV. Detailed Structure & Component Advantages
Engine Performance: The SOFIM8140.43S6 diesel engine delivers reliable 129 horsepower with excellent torque characteristics for loaded transport. The urea injection system ensures clean operation meeting China VI standards while maintaining fuel efficiency.
Transmission System: The Iveco 2826.5 gearbox is specifically matched to the engine's power curve, providing smooth shifting and reliable power delivery under various load conditions.
Braking Safety: Front and rear disc brakes provide superior stopping power and heat dissipation compared to traditional drum brakes. The ABS system ensures controlled braking on slippery surfaces.
Cooling & Electrical: The 5KW air conditioner maintains comfortable cab temperatures during long routes. The heavy-duty 140A alternator provides ample power for both vehicle systems and the refrigeration unit.
Chassis Strength: The 3310mm wheelbase provides excellent stability, while the rear dual tires ensure enhanced load capacity for heavy cargo transport.
V. Product Features & Chengli Group Advantages
Cargo Protection: The fully enclosed blind windows eliminate heat penetration through glass, maintaining stable internal temperatures with minimal energy consumption.
Loading Convenience: The rear double-door design allows forklift and pallet loading, while the 3360mm length accommodates standard cargo sizes efficiently.
Manufacturing Quality: The insulated compartment features seamless construction preventing thermal leakage, with corrosion-resistant materials for extended service life.
Chengli Group Advantages:
Specialized Manufacturing: As a leading Chinese special vehicle manufacturer, Chengli applies strict quality control standards to every refrigerated truck produced.
Customization Available: We offer various interior options including floor ventilation channels, temperature monitoring systems, and meat rail configurations.
Volume Pricing: Competitive wholesale pricing available for fleet purchases, supporting logistics companies in business expansion.
After-Sales Support: Comprehensive service network providing technical support, spare parts, and maintenance nationwide.
