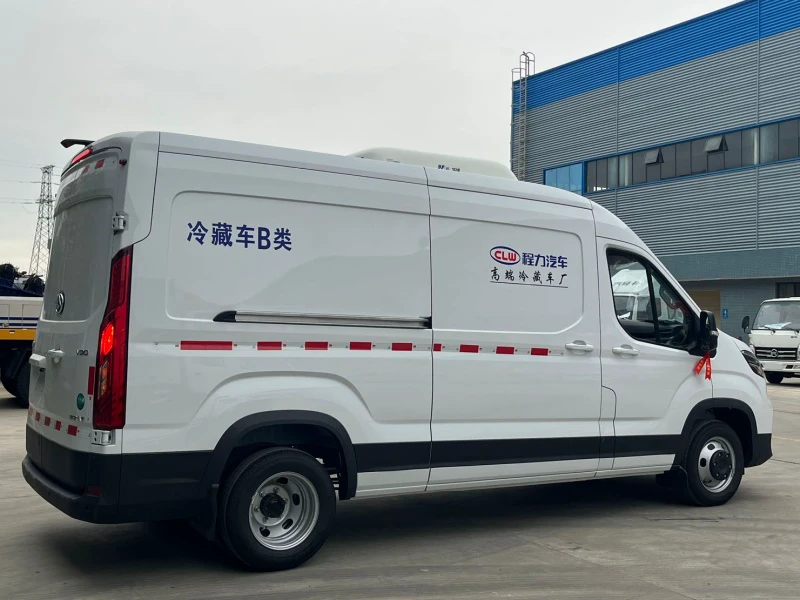

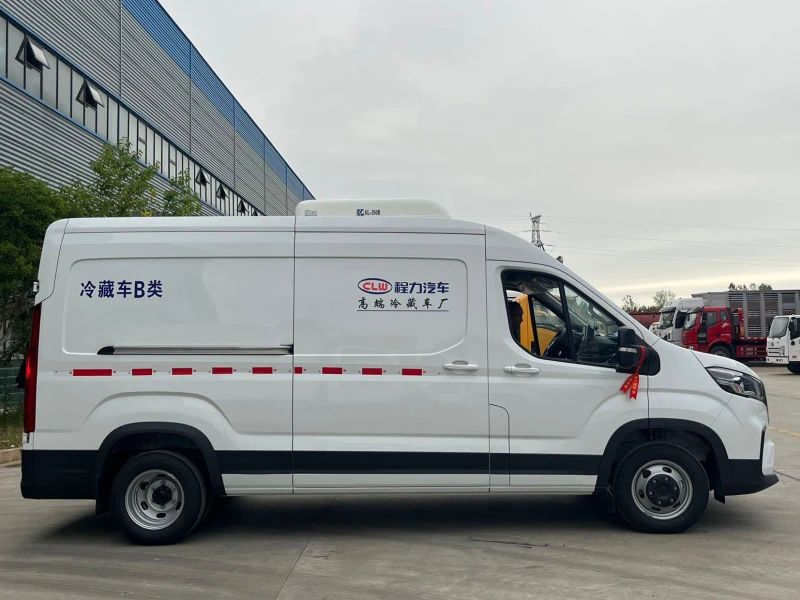

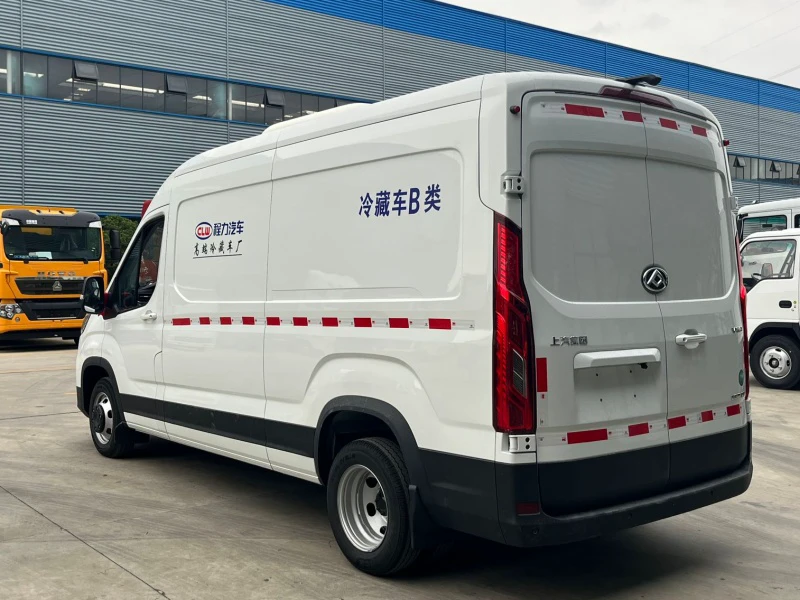

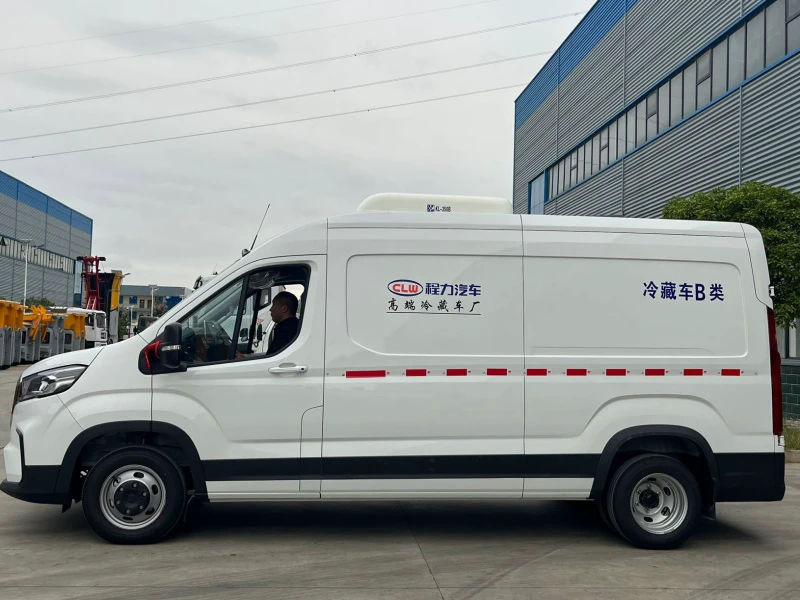

SAIC Maxus V90 Manual Transmission Refrigerated Van (Model: CLW5044XLCSH6) | Maxus V90 refrigerated van with 3M cargo length and 8 cubic meters volume

I. Product Overview
This SAIC Maxus V90 refrigerated van is a specialized cold chain transport vehicle built on the long-axle high-roof chassis. Designed for reliable temperature-controlled delivery, it combines advanced diesel engine technology with a high-insulation cargo body. Ideal for food distribution, pharmaceutical transport, and fresh product logistics, this model meets China VI emission standards while offering excellent fuel efficiency and operational reliability.

II. Core Specifications

• Complete Vehicle Model: CLW5044XLCSH6

• Chassis Configuration: SAIC Maxus V90 (Long Axle, High Roof)

• Engine Model: SC20M150Q6

• Engine Power: SAIC 150 HP Diesel Engine, 2.0L Displacement

• Emission Standard: China VI

• Transmission: Manual 6-Speed Gearbox

• Tire Specification: 195/75R16LT (Rear Dual Tires)

• Braking System: Spring Brake (Dual-circuit air brake with parking function)

• Safety Features: ABS, Driver Airbag with Pretensioner, 3-Point Seat Belts, Reverse Radar

• Comfort Features: Factory-Installed A/C, Power Steering, Power Windows, Central Door Lock, Remote Key

• Suspension System: Front MacPherson Independent / Rear Non-Independent 2-Leaf Spring

III. Dimensions, Materials & Design Concept

• Overall Dimensions (L×W×H): 5940×2110×2745 mm

• Cargo Box Internal Dimensions (L×W×H): 2960×1620×1580 mm / 2960×1620×1800 mm

• Cargo Volume: 7.5 m³ / 8.6 m³

• Insulation Thickness: 80 mm

• Interior Design: Rounded corner interior for easy cleaning and improved air circulation

• Standard Materials: Refrigerated truck grade FRP (Fiberglass Reinforced Plastic) with sunlight reflection and fire-retardant properties

• Optional Materials: Stainless steel, aluminum alloy, color steel plate for exterior surfaces

• Hardware: Stainless steel locks, corner protectors, door frames; includes interior ceiling light and impact guards

• Design Advantages: Lightweight construction, excellent thermal insulation, impact resistance, leak-proof structure, corrosion resistance, and anti-aging properties against various environmental conditions

IV. Detailed Structure & Component Advantages

• Engine Technology: The SC20M150Q6 engine features 16-valve architecture with dual EGR system, dual-balance shaft system, dual independent cooling circuits, variable displacement oil pump, and variable swirl ratio TCDI technology. These innovations ensure complete combustion, reduced vibration, lower fuel consumption, and extended engine service life.

• Transmission System: The 6-speed manual gearbox provides smooth and precise shifting, optimized torque delivery, and reliable performance under various load conditions.

• Chassis & Axles: Front MacPherson independent suspension offers superior handling and ride comfort, while the rear non-independent suspension with dual rear tires ensures excellent stability and load-bearing capacity for heavy cargo transport.

• Safety Structure: Driver airbag with pretensioner, ABS anti-lock braking system, and reverse radar provide comprehensive protection during operation.

V. Product Features & Chengli Group Advantages

• Refrigeration Performance: The insulated body maintains stable internal temperatures with minimal thermal loss, suitable for both fresh-keep and frozen applications down to -15°C.

• Customizable Interior: Optional floor ventilation channels for improved air circulation, temperature and humidity recorders for cargo monitoring, and meat rail systems for hanging meat transport.

• Refrigeration Unit Options:

  • Domestic Units: Fresh-keep (-5°C) / Freezer (-15°C)

  • Imported Units: High-performance imported refrigeration units available

• Chengli Group Advantages:

  • Professional Manufacturing: As a leading specialized vehicle manufacturer, Chengli implements strict quality control throughout the production process, ensuring each refrigerated van meets international standards.

  • Customization Capability: We offer tailored solutions including various panel materials, internal layouts, and refrigeration configurations to meet specific customer requirements.



  • Material Versatility: Multiple surface material options (FRP, stainless steel, aluminum, color steel) allow customers to choose based on durability needs and budget considerations.

  • Comprehensive After-Sales Support: Extensive service network providing technical support, spare parts availability, and maintenance services nationwide.

  • Competitive Wholesale Options: Favorable pricing for bulk orders, supporting logistics companies in fleet expansion.
