Jiangling Fushun C-Type Light Guest RV

Product Overview

The Jiangling Fushun C-Type Light Guest RV is a professionally manufactured recreational vehicle built on the reliable Jiangling Fushun light bus chassis. Engineered for family travel and outdoor adventures, this specially modified RV features a versatile bunk bed layout providing comfortable sleeping accommodation for three people. As a fully equipped luxury RV with immediate availability, it comes complete with a full set of home appliances, large-capacity lithium batteries, and standard roof-mounted solar panels. Whether planning a Spring Festival getaway or a weekend camping trip, this mobile home offers the perfect blend of comfort, convenience, and freedom—with test drives available throughout the holiday season.

Core Specifications

Exterior Dimensions, Layout, Materials and Design Concept

Exterior Dimensions: 5,495 mm length × 2,080 mm width × 2,700 mm height (C-type configuration)

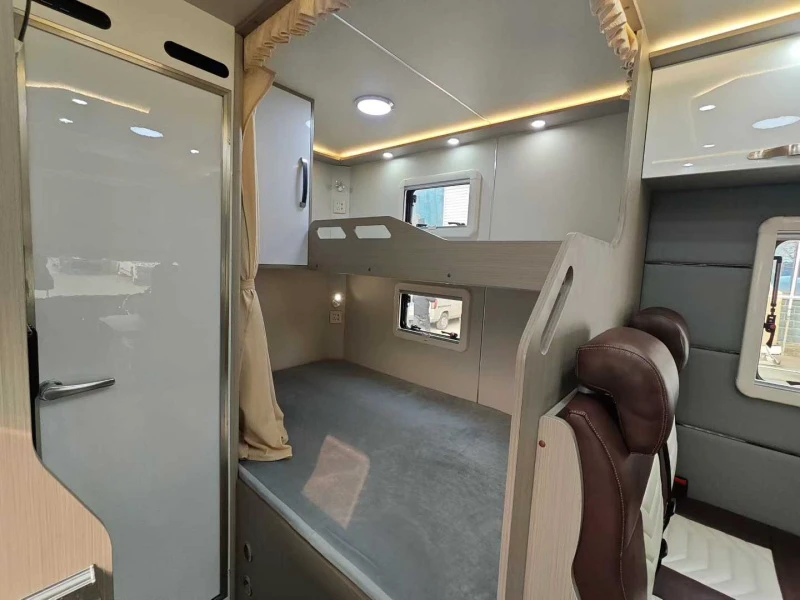

Interior Layout: The vehicle features a thoughtfully designed interior with a bunk bed configuration—typically a fixed rear double bed measuring approximately 1,850 mm by 1,300 mm plus an additional bed formed by converting the front seating area or a foldable upper bunk. This layout comfortably accommodates three people for family travel adventures.

Materials: Constructed with lightweight RV-specialized composite panels that are waterproof and mold-resistant. Interior features maple wood grain panels paired with light-colored furnishings creating a warm and comfortable atmosphere throughout. Reinforced flooring with anti-slip coating in wet areas while thermal and sound insulation materials line the entire cabin.

Design Concept: The vehicle embodies a mobile home for family adventures philosophy maximizing interior space efficiency while maintaining driving comfort. The C-type design provides enhanced living space compared to standard vans featuring a full walk-through cabin with dedicated zones for sleeping dining and cooking. The modular interior allows for comfortable extended travel while remaining accessible to drivers with standard C1/C2 licenses.

Detailed Structure and Chassis Advantages

Engine: The Ford Puma technology 2.0L turbo-diesel engine delivers exceptional low-end torque with 355 N·m available from 1,400 rpm ensuring reliable power output even when fully loaded with passengers and camping equipment. The high-pressure common rail fuel injection system optimizes combustion efficiency reducing fuel consumption and emissions while meeting China VI standards.

Transmission: The 8-speed automatic transmission provides smooth seamless shifting and maintains optimal engine RPM across all driving conditions. The wide gear ratio range improves acceleration response and fuel economy during highway transit reducing driver fatigue on long journeys.

Suspension and Axles: The robust suspension system is engineered for comfort and stability under varying loads. The chassis features a stable rear-wheel drive layout with a long wheelbase of 3,750 mm on extended models ensuring excellent highway stability. Heavy-duty construction accommodates the additional weight of living quarters and camping equipment.

Frame: The integrated ladder-type chassis frame constructed from high-tensile steel provides a rigid foundation for the C-type body modification ensuring long-term durability and safety in field conditions. The chassis features a pure flat floor design for maximum space utilization and easy modification.

Body Design: The C-type body features composite insulated glass fiber reinforced plastic construction with excellent thermal insulation properties. The wide side sliding door and rear double-door opening capability of up to 180 degrees create an open airy feel and facilitate easy loading. The roof structure is reinforced to support the standard solar panel installation.

Product Features and Chengli Manufacturer Advantages

Versatile Sleeping Configuration: The bunk bed layout maximizes sleeping capacity while maintaining daytime living space. The rear double bed measuring 1850 by 1300 mm provides comfortable sleeping for two while the additional bed from seat conversion or upper bunk accommodates a third person making it perfect for small families.

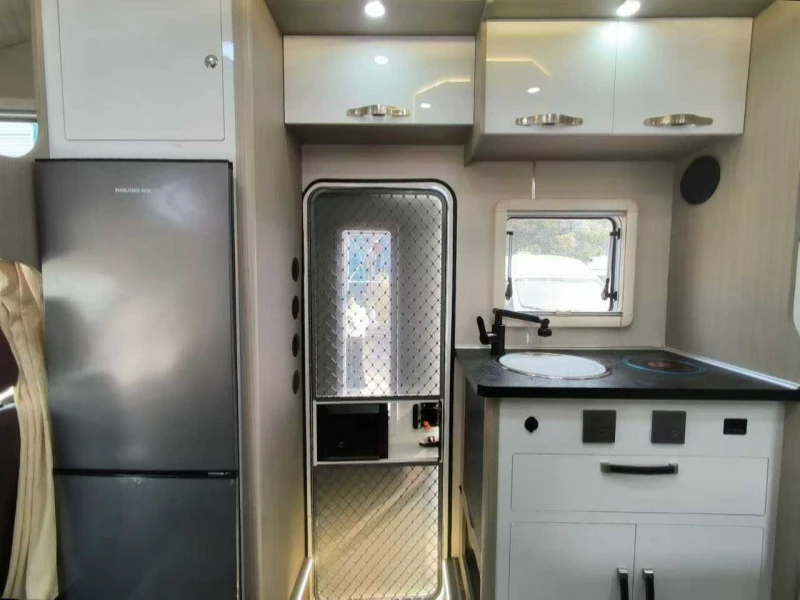

Complete Home Appliance Package: Every vehicle comes fully equipped with essential home appliances including a parking air conditioner diesel heating system refrigerator ranging from 70L to 148L induction cooktop stainless steel sink and water heater. Optional microwave and washing machine are available on premium configurations.

High-Capacity Electrical System: The vehicle features a substantial lithium battery bank of 800Ah or 10 kWh providing ample power for all appliances. The standard roof-mounted solar panels rated between 300W and 600W continuously recharge the batteries during daylight hours significantly extending off-grid capability. A 3000W inverter powers all 220V appliances.

Immediate Availability: As fully finished luxury RVs these vehicles are available for immediate delivery with no waiting for custom builds. Each unit comes fully inspected and ready for your next adventure.

Holiday Test Drive: We welcome you to experience the Jiangling Fushun C-Type Light Guest RV firsthand. Our showroom remains open throughout the Spring Festival holiday with test drives available at your convenience.

Chengli Group Advantages:

Over 20 years of specialized vehicle manufacturing experience with ISO9001 CCC and environmental management system certifications.

Full customization capability with a range of interior layouts and equipment packages to suit different travel styles and budgets.

Factory-direct supply chain ensures competitive pricing with models starting from approximately 160,000 to 218,000 RMB and strict quality control at every production stage.

Nationwide after-sales service network with 24/7 spare parts availability and on-site maintenance support.

Proven expertise in RV manufacturing with hundreds of satisfied customers enjoying the freedom of the open road.
