SINOTRUK 24-Person Mobile Barracks | Large-Scale Mobile Camp & Emergency Accommodation Vehicle

1. Product Overview | Large Mobile Barracks & Emergency Support Solution

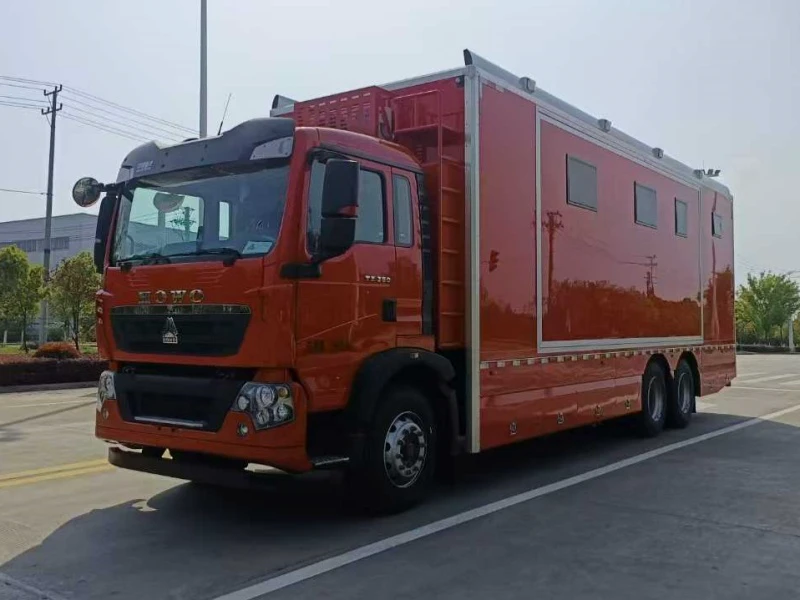

The SINOTRUK 24-person mobile barracks is a large-scale mobile camp and professional-grade emergency accommodation vehicle based on the SINOTRUK heavy-duty truck chassis. Designed to meet the centralized accommodation and comprehensive living support needs of field engineering teams, disaster relief teams, large-scale event support services, and military training camps, this multi-functional support vehicle integrates group accommodation, independent bathrooms, audiovisual entertainment, full-climate temperature control, and self-sufficient field power supply. It represents a comprehensive upgrade from a heavy transport vehicle to a "mobile integrated living base," serving as the ultimate camp accommodation solution for remote area construction, emergency post-disaster resettlement, and long-term field deployment.

2. Core Specifications | Technical Parameters & Performance Indicators

• Vehicle Type: Large Mobile Barracks / Heavy-Duty Accommodation Truck

• Drive Configuration: 6×4 Rear-Drive Cargo Chassis

• Powertrain: SINOTRUK MC07.34-60 Diesel Engine

  • Displacement: 6.87L

  • Maximum Power: 258kW

  • Emission Standard: China VI

• Dimensions:

  • Length × Width × Height: 9500 × 2550 × 3990 mm

  • Expandable Living Area: ~30 m²

• Weight Parameters:

  • Maximum Gross Weight: 25,000 kg

  • Axle Load Distribution: 6500 kg (Front) / 11500 kg (Rear)

• Off-Road Capability:

  • Minimum Ground Clearance: 230 mm

  • Approach / Departure Angles: 16° / 10–12°

• Performance:

  • Maximum Speed: 90 km/h

• Core Functions:

  • Seating Capacity: 2–3 (Driver + Passengers)

  • Sleeping Capacity: 24 persons

  • Self-Sufficient Field Power Supply

  • Full-Vehicle Temperature Control System

3. Design & Structure | Expandable Mobile Barracks & Durability Engineering
Body Structure & Materials:

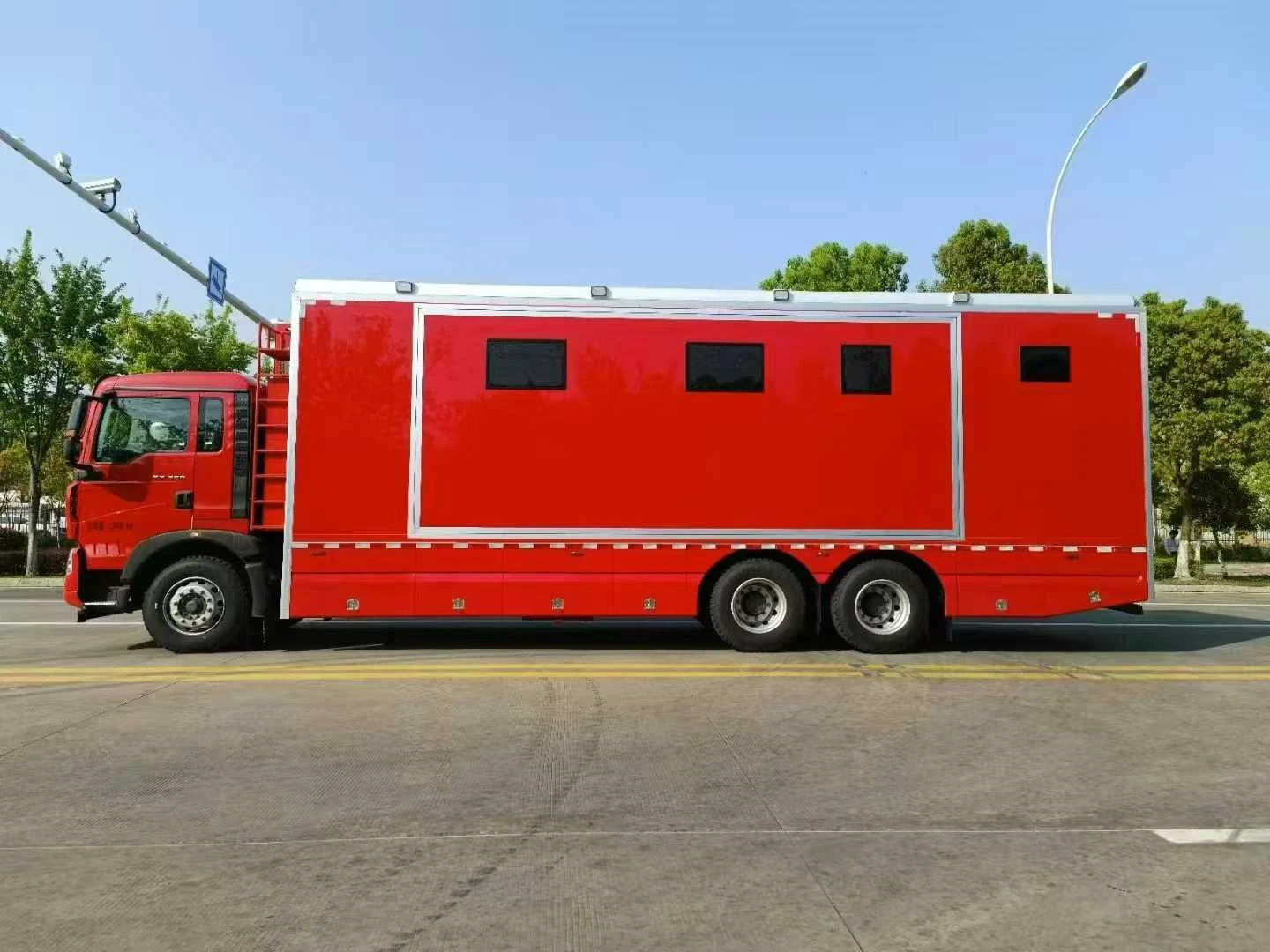

Constructed with a high-strength aluminum alloy frame and large-format aviation-grade aluminum panels, offering excellent structural strength, corrosion resistance, and lightweight advantages. Ensures long-term durability and adaptability to harsh environments.

Space Expansion Technology:

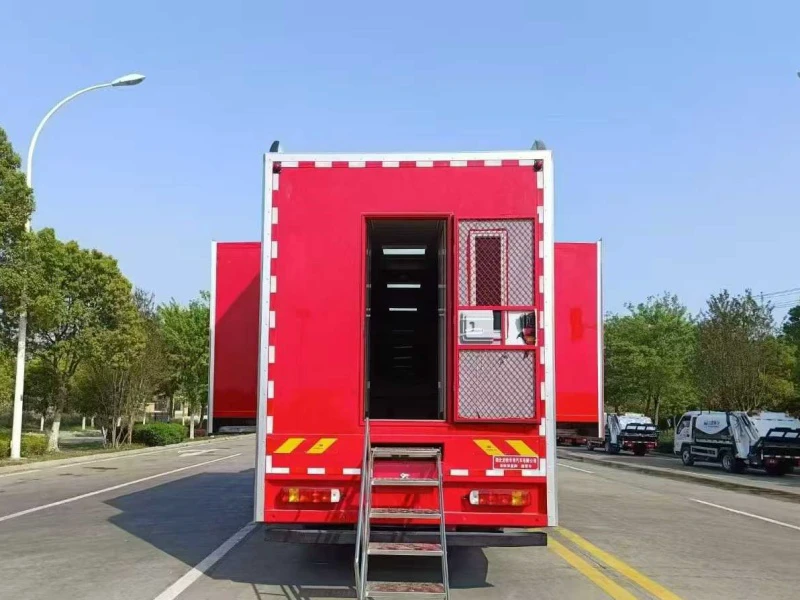

Equipped with an intelligent remote-controlled hydraulic expansion system. With one-touch operation, interior space is significantly expanded, maximizing usable area. The expansion mechanism is smooth, reliable, and features multiple safety interlocks.

Interior Layout Design:

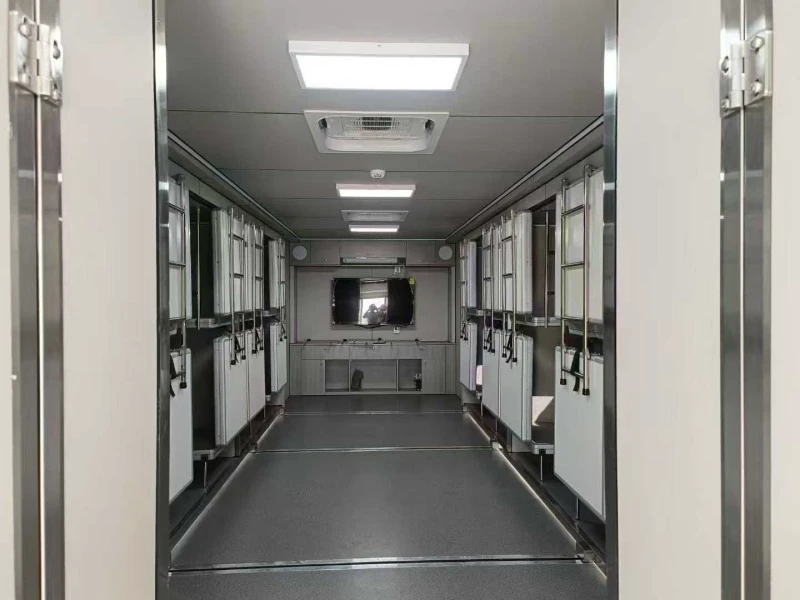

Designed with a user-oriented layout, scientifically divided into group dormitory areas, independent wet-and-dry bathrooms, and a multi-functional living area. Features foldable luxury beds for flexible space utilization.

Environmental Control System:
Integrates high-capacity air conditioning, an independent fuel-fired heating boiler, and enhanced insulation to form a full-climate interior environment control system. Maintains indoor comfort across a wide temperature range from –30°C to 45°C.

4. Chassis Performance | Heavy-Duty Truck Load-Bearing & Off-Road Advantages
SINOTRUK Chassis Platform:
Built on a mature heavy-duty commercial vehicle platform with a reinforced high-tensile steel frame, high-load axles, and a robust suspension system. Provides an unparalleled load-bearing foundation and long-distance reliability for the superstructure.

High-Displacement Diesel Powertrain:
The MC07 series inline-six engine is known for its large displacement and high torque. Paired with a FAST multi-gear transmission, it delivers ample power reserves and excellent off-road capability, especially suited for unpaved road conditions.

Load-Bearing & Braking Safety:
High-load axles (6.5T front, 11.5T rear) ensure stability when fully loaded with 24 occupants and equipment. Equipped with ABS, exhaust brakes, and heavy-duty-standard braking systems to ensure safety under full load.

Field Adaptability:
With 230 mm ground clearance and optimized approach/departure angles, it offers superior off-road terrain capability compared to ordinary buses, meeting the access requirements of construction sites, mining areas, and emergency response locations.

5. Key Features & Manufacturer Advantages | Integrated Support Vehicle Solution
Comprehensive Living Support Features:

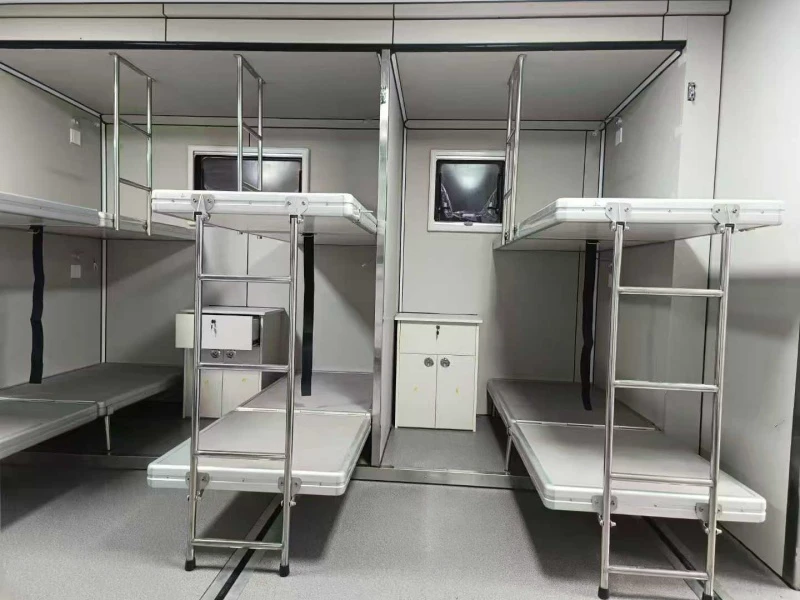

• Centralized Accommodation Solution: Provides sleeping arrangements for 24 persons, complete with private storage and individual lighting, creating a military-style or team dormitory environment.

• Complete Field Survival System: Includes independent clean/grey/black water tank systems, ultra-quiet diesel generator sets (optional high-power), satellite TV reception, and full interior/exterior LED lighting for complete off-grid capability.

• Safety & Intelligent Monitoring: Standard features include a rearview camera, driving recorder monitoring, hydraulic support legs, and firefighting equipment. A centralized control system manages water and electricity, enhancing overall operational safety.

•

Professional Manufacturer Advantages (Represented by Chengli Group):

• Special Vehicle Production Qualifications: Holds national certification for specialized vehicle production, with complete mobile barracks vehicle certifications for legal registration.

• Expertise in Heavy-Duty Vehicle Modification: Extensive experience in modifying heavy-duty truck chassis, with specialized skills in large superstructure lifting and hydraulic expansion.

• System Integration & Quality Control: Capable of integrated mechanical, electrical, and hydraulic system engineering. Implements strict QC management systems to ensure vehicle reliability.

• Full-Lifecycle Service Support: Offers customized design solutions, professional driver training, a nationwide service network, and rapid spare parts supply, providing full lifecycle management from purchase to retirement.
