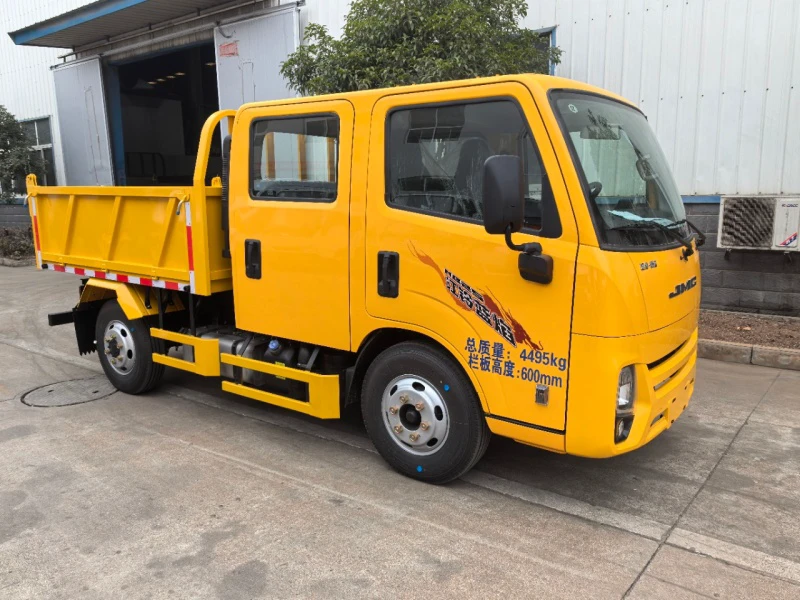

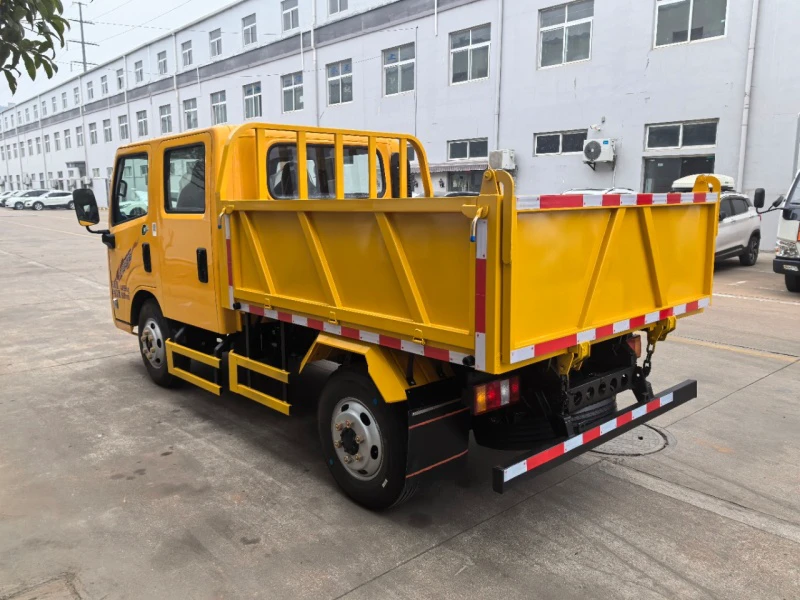

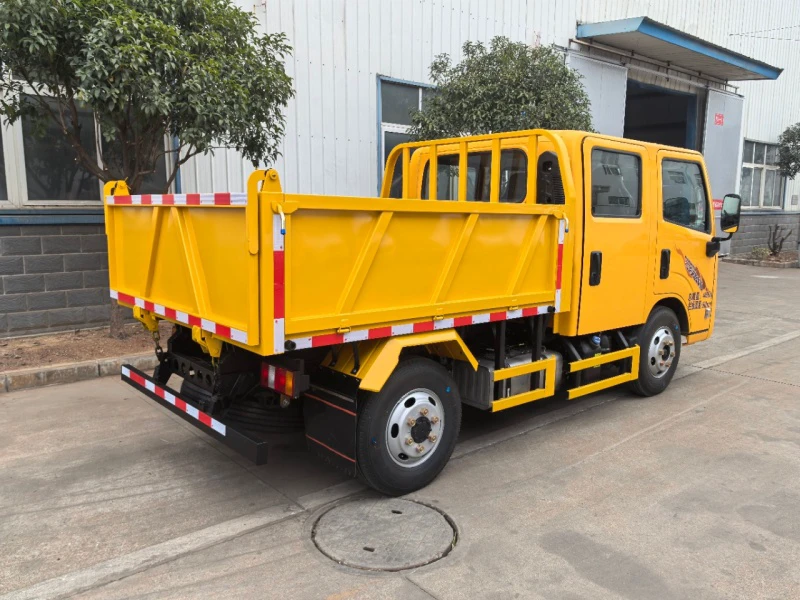

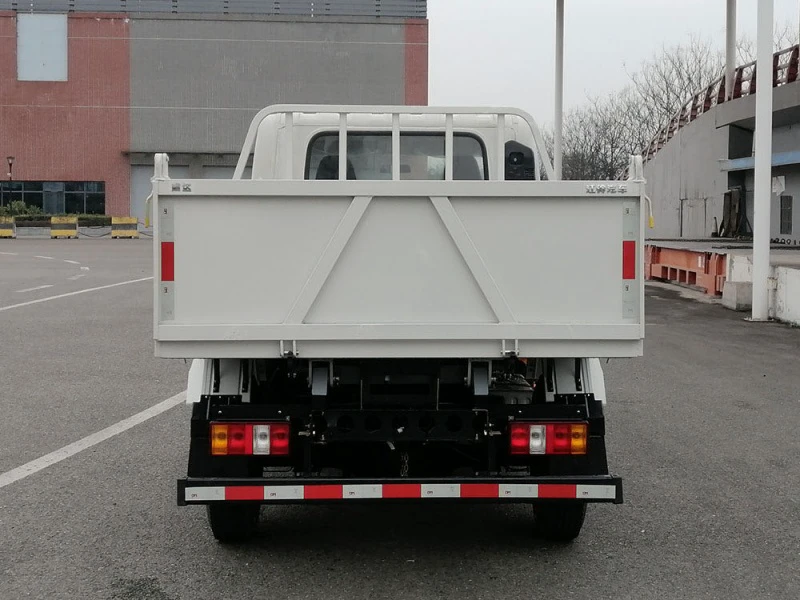

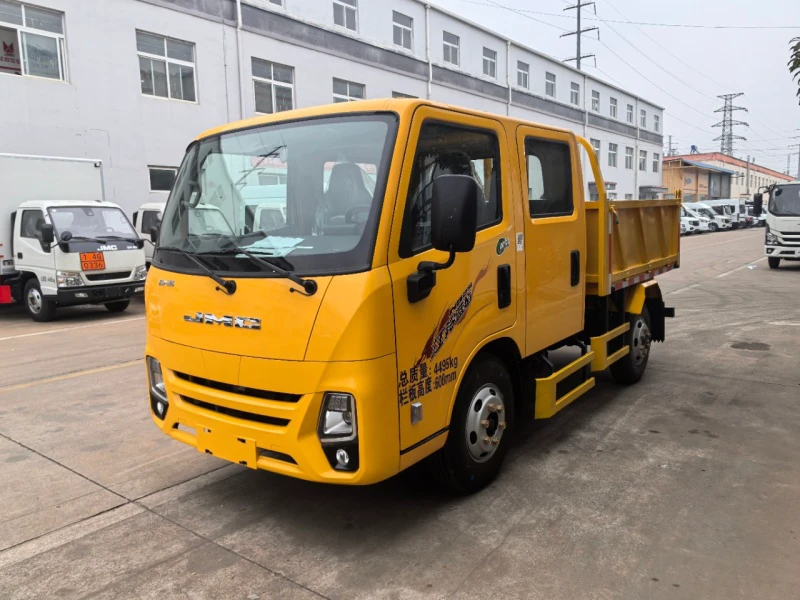

JMC Double Cab Tipper Truck - Product Introduction

I. Product Overview
The JMC Double Cab Tipper Truck is a professionally engineered light-duty transport vehicle designed for efficiency and versatility. It is ideal for urban construction, municipal services, and material distribution, offering reliable performance with enhanced crew capacity in its dual-row cabin configuration. This model complies with the stringent China VI (National VI) emission standards.

II. Core Parameters

• Vehicle Model: JX3041TSCM6

• Chassis Model: JX1041TSCM6

• Engine: JMC Blue Flame Engine, 136 HP

• Transmission: Getrag 5-Speed Manual Gearbox

• Wheelbase: 2800 mm

• Tyres: 7.00 Steel-Belted Radial Tires

• Braking System: Hydraulic Brakes with ABS

• Cab Features: Central Locking System

• Gross Vehicle Mass: 4495 kg

III. Dimensions, Body & Design

• Overall Dimensions (LxWxH): 4990 x 1895 x 2090 mm

• Cargo Box Dimensions (LxWxH): 2190 x 1800 x 400/600 mm (Note: The height is adjustable/configured as 400mm or 600mm)

• Body Material & Construction: The cargo box is fabricated using high-strength Wuhan Steel, with a robust "Side-2 Bottom-3" structure (indicating layered steel plates for durability).

• Lifting Mechanism: Equipped with a reliable dual hydraulic cylinder tipping system.

• Design Philosophy: Focuses on a compact footprint for urban maneuverability, combined with a sturdy body build for demanding workloads. The double cab design prioritizes practicality and crew comfort.

• Color Options: Available in standard Engineering Yellow or White.

IV. Detailed Structural Advantages

• Engine: The JMC Blue Flame engine provides an optimal balance of power (136 HP) and fuel efficiency, meeting China VI standards for lower emissions and reliable performance.

• Transmission: The Getrag 5-speed manual gearbox is known for its smooth shifting, durability, and excellent power transfer efficiency, contributing to overall drivetrain reliability.

• Chassis & Axles: The 2800mm wheelbase offers a stable platform and balanced weight distribution. The chassis is designed for strength and load-bearing capacity. The front and rear axles are matched to the vehicle's duty cycle, ensuring dependable load handling.

• Suspension & Braking: The suspension system is tuned for both laden and unladen driving. The hydraulic braking system, augmented by ABS (Anti-lock Braking System), enhances safety by preventing wheel lock-up during braking, especially under varied load conditions.

• Cargo Body & Hydraulics: The reinforced steel body withstands heavy and abrasive materials. The dual hydraulic lift provides stable and powerful tipping action for efficient unloading.

V. Key Features & Manufacturer (Chengli Group) Strengths

• Product Features:

  • Dual-Purpose Cabin: The double cab increases practicality, allowing transport of both crew and tools/materials securely.

  • Compliance & Efficiency: China VI engine ensures regulatory compliance and cleaner operation.

  • Safety Focus: Standard ABS and robust hydraulic brakes improve active safety.

  • Durability: High-strength steel body construction and proven powertrain components ensure a long service life.

  • Operational Flexibility: The adjustable/selectable cargo box height (400/600mm) caters to different material types and volume requirements.

• Chengli Group Advantages:

  • Integration Expertise: As a specialized bodybuilder, Chengli Group expertly integrates the superstructure (tipper body) with the proven JMC chassis, ensuring optimal compatibility and performance.

  • Quality Manufacturing: Adheres to strict quality control standards in the production of the vehicle body and its hydraulic systems.

  • Customization Capability: Offers standard configurations (like color choice) and can often accommodate specific customer requirements for body modifications.

  • Reliable Support: Provides comprehensive after-sales service, technical support, and parts supply for the complete vehicle.
