Product Introduction: Dongfeng 10-Ton Truck-Mounted Crane (Tri-Axle) | Dongfeng 6x2 10-Ton Truck-Mounted Crane with 10-Ton XCMG Crane

I. Product Overview

The Dongfeng 10-ton truck-mounted crane is a versatile and robust material handling solution built on a specialized Dongfeng Teshang tri-axle chassis (also known as front-four rear-four configuration). Engineered for medium to heavy-duty lifting tasks in construction, logistics, and infrastructure projects, this unit combines a reliable Dongfeng chassis with a high-performance crane. Featuring a reinforced frame, powerful drivetrain, and advanced crane technology, it is an ideal choice for operators requiring dependable heavy equipment for efficient material handling and lifting operations. This crane truck is widely used in bridge construction, warehouse loading, and industrial lifting applications.

II. Core Specifications

III. Dimensions, Material & Design Concept

• Cargo Box Dimensions: 8,500 × 2,400 × 800 mm (27.9 × 7.9 × 2.6 feet) with checker plate construction. The floor plate is 5 mm (0.2 inches) thick carbon steel. This durable flatbed or cargo bed offers multiple configuration options:

  • Manual telescopic cargo box or hydraulic telescopic cargo box with customizable extension lengths

  • Removable side panels available

  • When configured as a flatbed with ramp, sides can extend to 3,000 mm (9.8 feet)

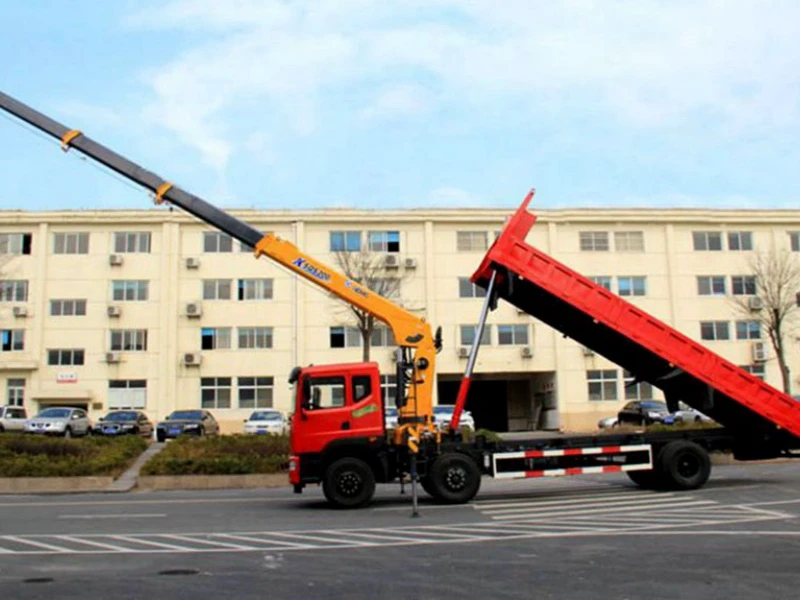

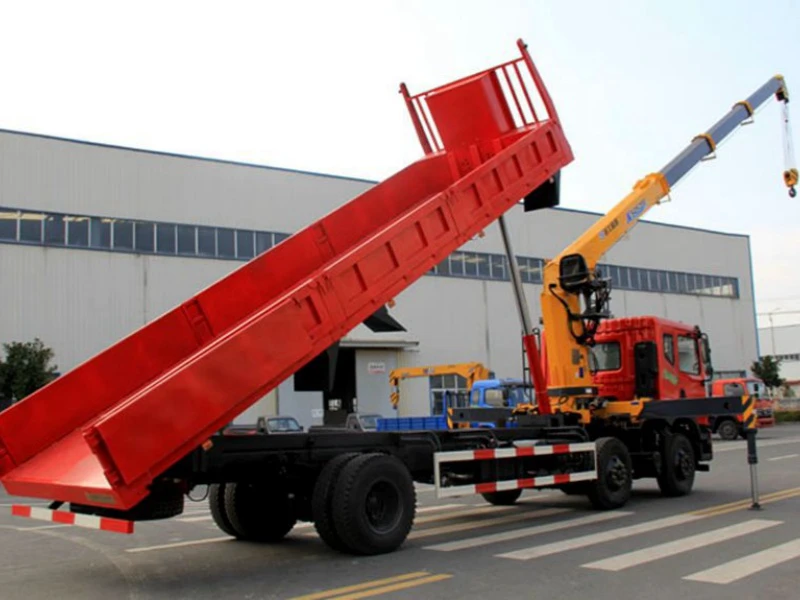

  • When configured as a dump truck, optional front single-cylinder or mid dual-cylinder hydraulic lifting mechanism available

  • Additional attachments including work platforms, ladders, and other devices can be installed based on operational requirements

• Chassis Frame: 300 mm (11.8 inches) double-layer with partial three-layer reinforced high-strength steel channel, straight-through design. The frame is engineered for extreme loads, providing exceptional load-bearing capacity and preventing deformation during maximum capacity lifting operations. This heavy-duty frame design ensures long-term structural integrity under repeated stress.

• Design Philosophy: "Versatility Through Innovation." The vehicle is built around a philosophy of adaptable functionality and operational efficiency. The cab options (D913, T702, or T701) provide flexibility for different operator preferences. The T701 cab features modern aesthetics with electric seat adjustment and semi-floating suspension. The design incorporates user-friendly features including intuitive control labeling and ergonomic access systems. The crane utilizes hexagonal boom technology with high-strength manganese steel construction for superior performance.

• Primary Material: High-strength alloy steel throughout critical load-bearing components. The crane boom features manganese steel construction with hexagonal section design for maximum strength-to-weight ratio. The cargo box utilizes 5 mm carbon steel construction with checker plate flooring for durability and slip resistance.

IV. Detailed Component Advantages

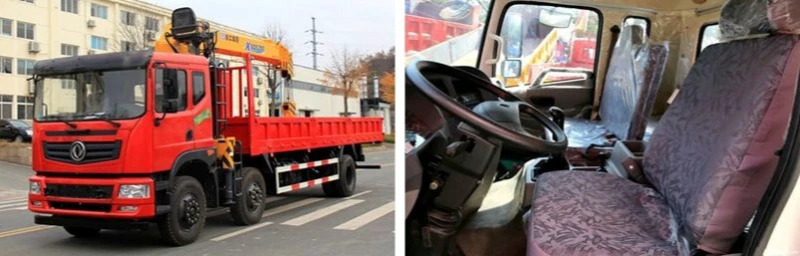

• Superior Chassis & Cab: The Dongfeng Teshang tri-axle chassis is specifically engineered for crane applications. The T701 cab features:

  • Premium design with modern aesthetics

  • Electric seat adjustment for operator comfort

  • Semi-floating suspension system for reduced vibration

  • Wrap-around instrument panel with intuitive controls within easy reach

  • Sleeper berth for long-haul comfort

  • Spacious interior with excellent ergonomics

  • Ergonomic design with accessible controls

• Powerful & Efficient Drivetrain: The Yuchai diesel engine delivers reliable power:

  • 220 HP configuration for standard applications (6,870 ml displacement)

  • Optional 240 HP configuration for enhanced power requirements
    These engines provide excellent torque characteristics for challenging terrain, with the 8-speed Fast transmission offering High/Low range capability specifically suited for mountain road climbing. The drivetrain ensures precise power delivery for both highway transport and demanding crane operations. The flange-output power take-off (PTO) is factory-installed with remote throttle control for seamless hydraulic system integration.

• Durable Running Gear: The heavy-duty front axle (5.5T capacity) and rear axle (11.5T capacity) provide exceptional load support for tri-axle configuration. The braking system features dual-circuit air brakes with spring brake for fail-safe parking, supplemented by Anti-lock Braking System (ABS) for enhanced safety. The vehicle includes directional power assist for effortless steering and an eight-string beam tow hook for additional utility.

• Advanced Crane Technology: The crane features multiple advanced technologies:

  • Hexagonal boom design with manganese steel construction for superior strength

  • Upgraded extended boom option available, providing 1.5 m (4.9 feet) additional length over standard boom

  • Dual-pump hydraulic system for increased flow rate and simultaneous operation of multiple functions

  • Integral hoisting mechanism for extended hydraulic system service life

  • User-friendly control valves with clear one-to-one labeling for easy identification

  • Simple operating procedures with intuitive steps

  • Ergonomic ladder design for safe and convenient access

  • Throttle linkage system enabling lever and chassis throttle linkage for easy manual operation

  • Dual-hand operation capability for simultaneous control of multiple functions

  • Low fuel consumption and low noise operation

  • Outrigger-assisted lifting for enhanced stability

  • Simple structure design for reduced failure rate

V. Crane Specifications & Performance

The Dongfeng 10-ton truck-mounted crane can be equipped with various crane configurations. Below are detailed specifications for compatible crane models based on the provided parameter charts:

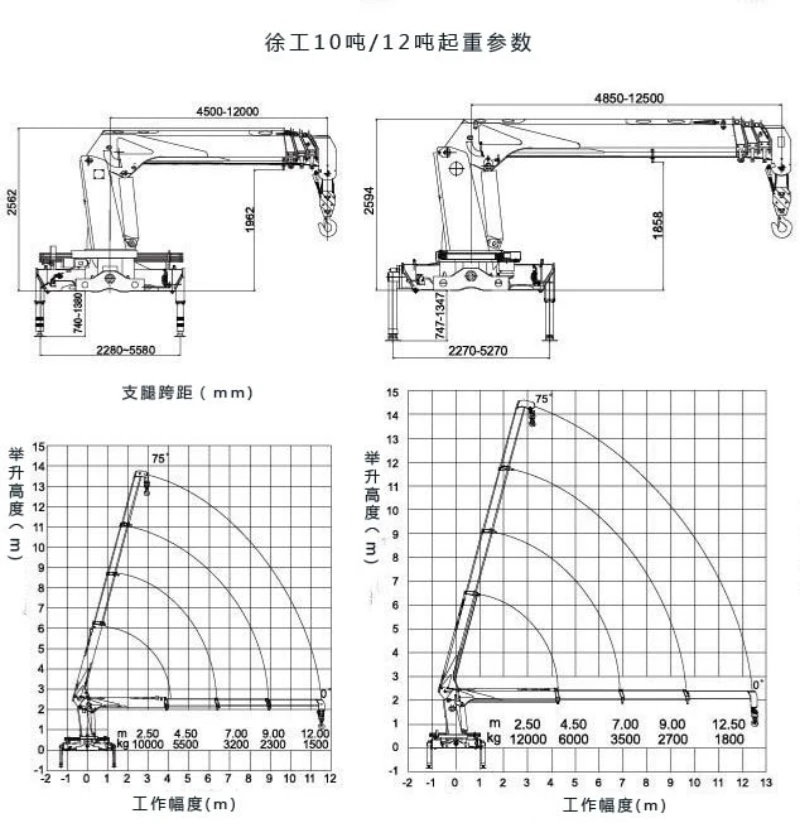

XCMG 10-Ton 4-Section Boom Detailed Performance (Standard):

• Retracted Boom Length: 4.5 m (14.8 feet)

• Fully Extended Boom Length: 12 m (39.4 feet)

• Lifting Height: 14 m (45.9 feet)

• Lifting Capacities:

  • 1,500 kg (3,307 lbs) at 12 m (39.4 feet) extension

  • 3,200 kg (7,055 lbs) at 7 m (23.0 feet) extension

  • 10,000 kg (22,046 lbs) at 2.5 m (8.2 feet) extension

XCMG 12-Ton 4-Section Boom Detailed Performance:

• Retracted Boom Length: 4.85 m (15.9 feet)

• Fully Extended Boom Length: 12.5 m (41.0 feet)

• Lifting Height: 14.5 m (47.6 feet)

• Lifting Capacities:

  • 1,800 kg (3,968 lbs) at 12.5 m (41.0 feet) extension

  • 3,500 kg (7,716 lbs) at 7 m (23.0 feet) extension

  • 12,000 kg (26,455 lbs) at 2.5 m (8.2 feet) extension

Optional Extended Boom Configuration:

• Available with dual-pump system and extended boom (1.5 m / 4.9 feet longer than standard)

• Working Radius: 13.5 m (44.3 feet)

• Lifting Height: 15.5 m (50.9 feet)

Alternative Crane Options:

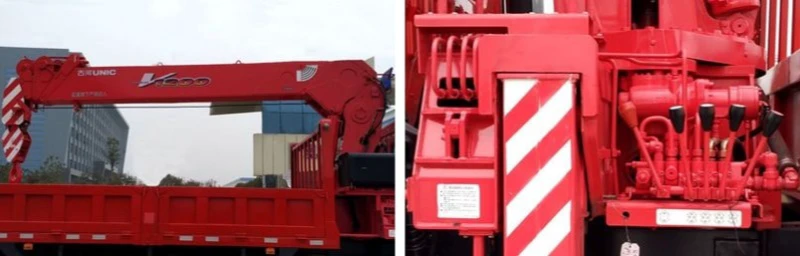

• The vehicle can also be equipped with Furu kawa (UNIC) cranes, featuring:

  • One of the earliest straight-boom crane designs worldwide

  • Unique hexagonal boom construction

  • Automatic rotation locking device when not in operation to prevent sway during travel

  • Automatic hook storage mechanism for quick and convenient hook deployment

  • Overload warning system with automatic shutdown on overload

  • Enhanced lifting safety features

Note: Actual lifting capacity varies with boom angle, configuration, and load chart parameters. Different crane brands and models will produce varying working radii, lifting heights, and load capacities.

VI. Key Features & Chengli Group Advantages

• Superior Versatility: The Dongfeng 10-ton truck-mounted crane offers exceptional configuration flexibility:

  • Compatible with 8-ton, 10-ton, and 12-ton cranes from multiple brands

  • Choice of crane brands including XCMG, SANY, Shimei, Zoomlion, and Furu kawa

  • Optional dual-pump system for enhanced hydraulic performance

  • Optional single or dual-chamber hydraulic rear outriggers

  • Optional elevated operator seat for improved visibility

  • Manual or hydraulic telescopic cargo box options

  • Removable side panels for flexible loading

  • Dump truck configuration available with hydraulic lifting

  • Work platform and ladder attachments available

  • 300 mm straight-through triple-layer frame for maximum durability

• Enhanced Operator Experience: The crane incorporates numerous features for operator comfort and efficiency:

  • Clear one-to-one control valve labeling for easy identification

  • Simple, intuitive operating procedures

  • Ergonomic ladder design for safe access

  • Throttle linkage system for easy manual operation

  • Dual-hand operation capability for simultaneous function control

  • Low fuel consumption and low noise operation

  • Electric seat adjustment in T701 cab option

  • Semi-floating suspension for reduced vibration

  • Wrap-around instrument panel with accessible controls

  • Spacious interior with sleeper berth

• Structural & Quality Advantages:

  • Hexagonal boom technology with manganese steel construction for maximum strength

  • 300 mm triple-layer straight-through frame for exceptional durability

  • Integral hoisting mechanism for extended hydraulic system life

  • Upgraded extended boom option for increased working radius

  • Dual-pump system for simultaneous multi-function operation

  • Factory-installed PTO with remote throttle control

  • Eight-string beam tow hook for additional utility

  • Manganese steel boom construction for superior strength-to-weight ratio

  • Checker plate floor for enhanced durability and slip resistance

• Specialized Furu kawa (UNIC) Crane Features:

  • One of the earliest straight-boom designs globally

  • Unique hexagonal boom construction

  • Automatic rotation locking during non-operation prevents travel sway

  • Automatic hook storage for quick deployment

  • Overload warning with automatic shutdown

  • Enhanced lifting safety systems

  • Simple outrigger-assisted lifting design

  • Reduced failure rate through simplified structure

• Chengli Group Manufacturing Excellence: As a premier special vehicle manufacturer, Chengli Group offers comprehensive customization and integration expertise. We provide extensive options including:

  • Multiple crane configurations (8T, 10T, 12T options)

  • Choice of crane brands (XCMG, SANY, Shimei, Zoomlion, Furu kawa)

  • Cab options (D913, T702, T701)

  • Engine options (Yuchai 220 HP, 240 HP)

  • Telescopic cargo boxes (manual or hydraulic operation)

  • Dump truck configuration with hydraulic lifting

  • Flatbed with ramp configurations

  • Single or dual-chamber hydraulic rear outriggers

  • Elevated operator seats

  • Dual-pump hydraulic systems

  • Extended boom configurations

  • Work platform and ladder attachments

  • Custom configurations for specific applications

Our commitment to quality, genuine parts availability, and comprehensive after-sales support including 24/7 service hotline and mobile service units ensures your truck equipment delivers long-term value and reliable service in the special purpose vehicle market. Each unit undergoes rigorous testing before delivery, including load testing, road testing, and inspection ensuring compliance with international standards and customer satisfaction. We serve fleet operators, construction companies, infrastructure contractors, and logistics providers worldwide with custom-engineered solutions tailored to specific operational requirements. Our global parts network ensures minimal downtime, and our training programs ensure operators achieve maximum productivity and safety.
