Product Introduction: Dongfeng Tianlong 8x4 16-Ton Truck-Mounted Crane | Dongfeng 8x4 16-Ton Truck-Mounted Crane with 16-Ton XCMG Crane

I. Product Overview

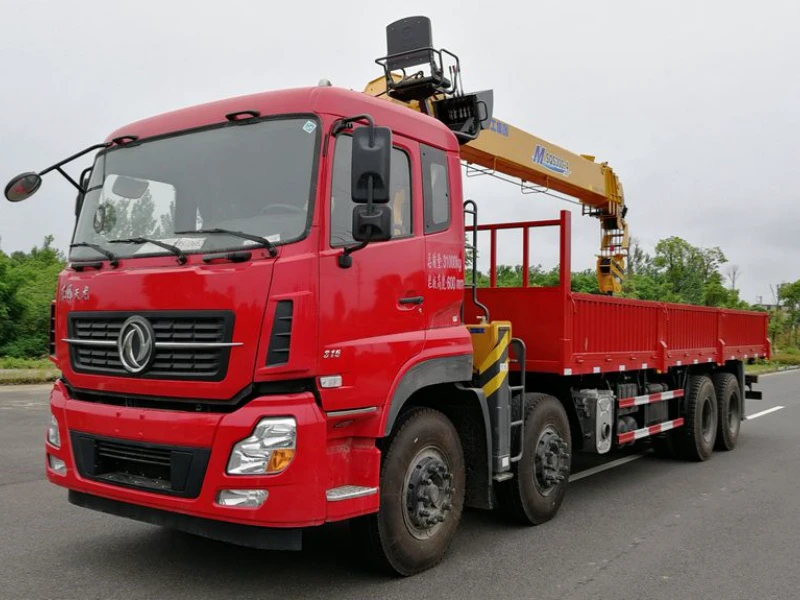

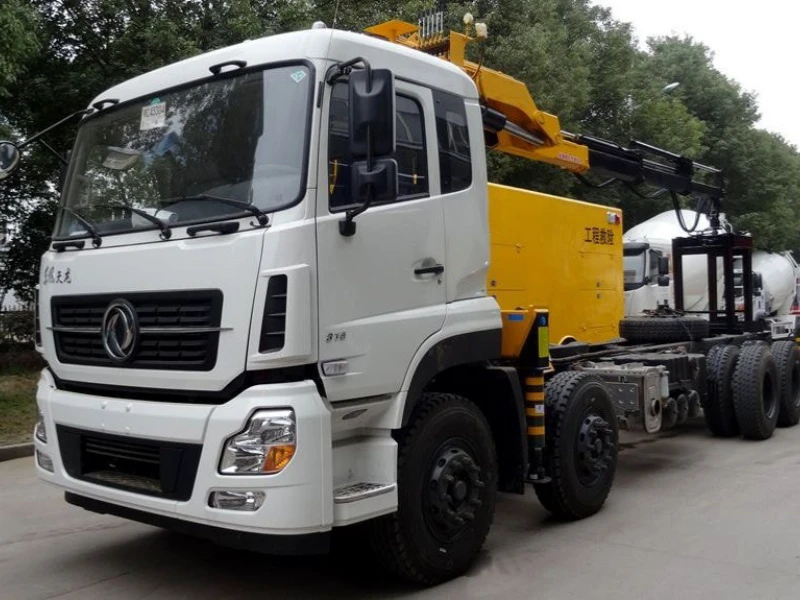

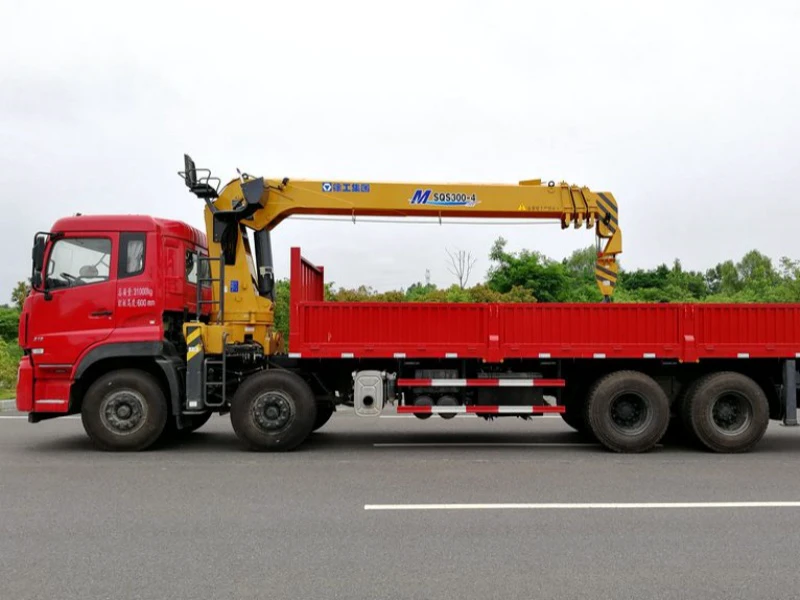

The Dongfeng Tianlong 8x4 16-ton truck-mounted crane is a premium heavy-duty material handling solution built on a specialized Dongfeng commercial vehicle chassis and equipped with a high-performance XCMG crane. As a flagship product in the Dongfeng series, this unit represents the pinnacle of Sino-Japanese cooperation, with the cab jointly developed by Dongfeng and Nissan. Engineered for large-scale construction, infrastructure projects, and heavy logistics operations, this heavy-duty truck delivers exceptional lifting capacity, operational stability, and long-term reliability. As a versatile construction vehicle, it excels at demanding material handling and lifting operations in the most challenging environments. This crane truck is widely used in bridge construction, port operations, and industrial lifting applications where heavy equipment performance is critical.

II. Core Specifications

III. Dimensions, Material & Design Concept

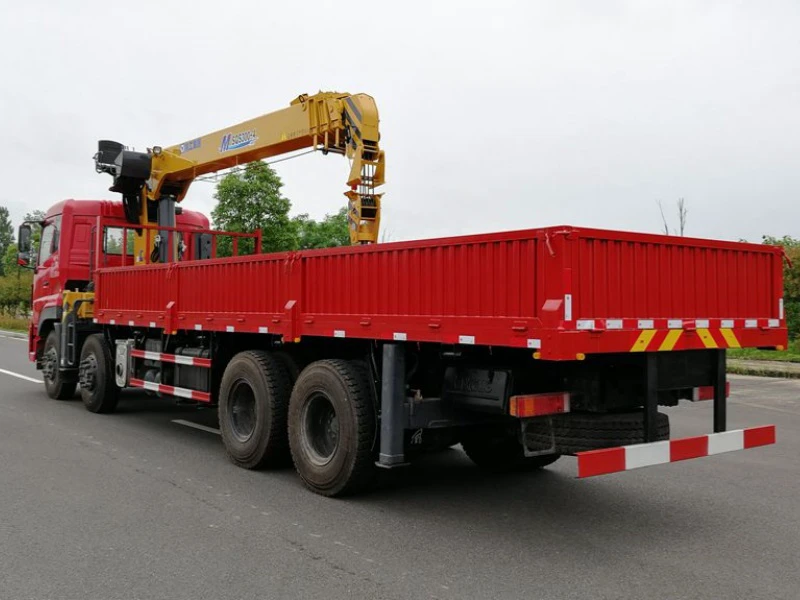

• Cargo Box Dimensions: Length up to 8,600 mm (28.2 feet) with width of 2,300 mm (7.5 feet) and height of 550 mm (1.8 feet). The floor plate thickness is 5 mm (0.2 inches). This durable flatbed or cargo bed can be configured as a manual telescopic cargo box, hydraulic telescopic cargo box, or as a flatbed with ramp for equipment loading, providing flexible cargo handling solutions for diverse applications including construction material transport and heavy equipment hauling.

• Chassis Frame: 300 mm (11.8 inches) high-strength steel channel with specialized reinforcement for crane mounting. The frame is engineered for extreme loads, ensuring structural integrity during maximum capacity lifting operations.

• Design Philosophy: "Premium Quality, Distinguished Experience." The vehicle embodies the successful technology transfer between China and Japan, with the cab jointly developed by Dongfeng and Nissan. The design prioritizes lightweight construction through advanced engineering, maximizing payload capacity while maintaining structural integrity. The crane utilizes hexagonal boom technology with high-strength manganese steel construction, fully meeting XCMG's "Leading Technology, Indestructible Quality" standard.

• Primary Material: High-strength alloy steel throughout critical load-bearing components. The crane boom features manganese steel construction with hexagonal section design for maximum strength-to-weight ratio. The chassis incorporates lightweight design principles to reduce overall vehicle weight without compromising durability.

IV. Detailed Component Advantages

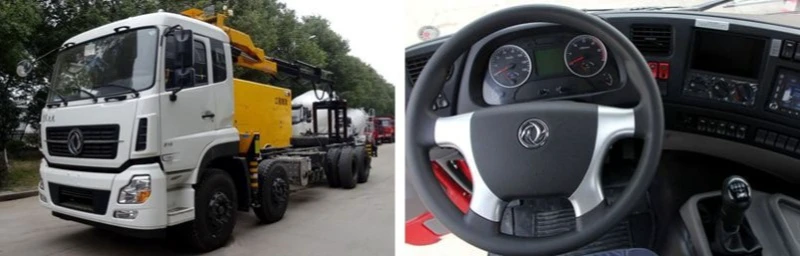

• Superior Chassis & Cab: The Dongfeng Tianlong chassis represents the flagship product of Dongfeng Commercial Vehicle, with the cab jointly developed by Dongfeng and Nissan. The luxury cab features:

  • Wrap-around instrument panel for intuitive monitoring

  • Adjustable steering wheel (front/back, up/down) for driver comfort

  • Air suspension seat with气囊 damping for reduced operator fatigue

  • Electric windows for convenience

  • Factory-installed air conditioning

  • Driving recorder standard

  • Extra-wide sleeper berth for long-haul comfort

  • Excellent vibration and noise insulation

  • Ergonomic design with climate control for enhanced operator comfort

  • Passive safety features including door impact beams and reinforced door frames

  • Large front windshield and panoramic rearview mirrors for excellent visibility

  • Airbag compatible design for enhanced occupant protection

• Powerful & Efficient Drivetrain: The Cummins diesel engine delivers exceptional power with multiple options:

  • 270 HP configuration for balanced performance

  • 315 HP configuration for medium-duty applications

  • 340 HP configuration for maximum power requirements
    These engines are renowned for durability, with overhaul intervals exceeding 1.5 million kilometers (932,000 miles). Paired with Fast (Shaanxi Gear) 9-speed or 12-speed transmission with High/Low range, the drivetrain ensures precise power delivery for both highway transport and heavy lifting operations. The engine braking system enhances safety on downhill grades, while the fuel injection system optimizes combustion efficiency.

• Superior Safety Systems: The Dongfeng Tianlong is recognized as one of the safest heavy trucks in China, incorporating both active and passive safety technologies:

  Active Safety:

  • ABS anti-lock braking system for enhanced control in emergency situations

  • ASR traction control system to prevent wheel spin on slippery surfaces

  • Load sensing valve that automatically adjusts braking force based on load

  • Optimized braking performance for maximum safety

  Passive Safety:

  • Impact beams in both left and right doors

  • Reinforced door frames for enhanced side impact protection

  • Large front windshield for excellent forward visibility

  • Panoramic rearview mirrors eliminating blind spots

  • Airbag compatible design for additional occupant protection

• Durable Running Gear: The heavy-duty front axle (5.5T capacity) and rear axle options provide exceptional load support:

  • Standard 11.5-ton rear axle for most applications

  • Optional 13-ton rear axle for heavier loads
    The braking system features dual-circuit air brakes with spring brake for fail-safe parking, supplemented by comprehensive electronic safety systems. The vehicle also includes a driving recorder for fleet management and operational monitoring.

• Advanced Crane Technology: The XCMG 16-ton crane represents the latest in lifting technology:

  • Five-section hexagonal boom design with manganese steel construction

  • Manufactured on intelligent production lines with 18 integrated processes

  • Automated guided vehicles (AGV) automatically对接 with welding stations

  • Positioning accuracy of 0.01 degrees for precision manufacturing

  • Superior bending resistance and load-bearing capacity

  • Imported hydraulic components including high-quality seals

  • High-precision cold-drawn tubes completely eliminating oil leakage

  • Extended hydraulic system service life

  • 360-degree continuous rotation with self-developed slewing mechanism

  • Dual-pump hydraulic system enabling simultaneous operation of two functions

V. Crane Specifications & Performance

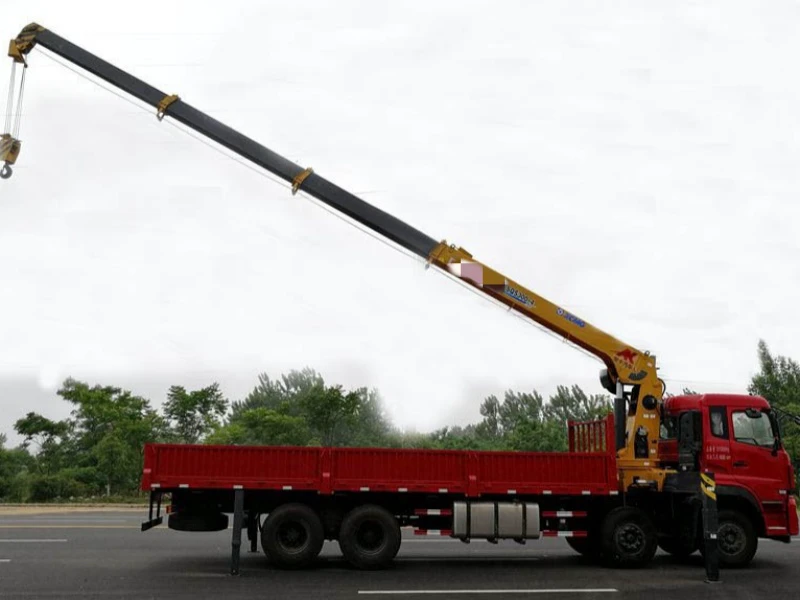

The Dongfeng Tianlong 16-ton truck-mounted crane features a five-section boom with exceptional reach and lifting capacity:

Detailed Lifting Capacities:

• 16,000 kg (35,274 lbs) at 2.7 m (8.9 feet) boom extension - Ideal for close-in heavy lifts

• 7,000 kg (15,432 lbs) at 5.6 m (18.4 feet) boom extension - Suitable for medium-radius applications

• 3,200 kg (7,055 lbs) at 11.5 m (37.7 feet) boom extension - For extended reach requirements

• 1,000 kg (2,205 lbs) at 18.5 m (60.7 feet) boom extension - Perfect for high-rise construction

Note: Actual lifting capacity varies with boom angle, configuration, and load chart parameters. Different crane brands and models will produce varying working radii, lifting heights, and load capacities.

VI. Key Features & Chengli Group Advantages

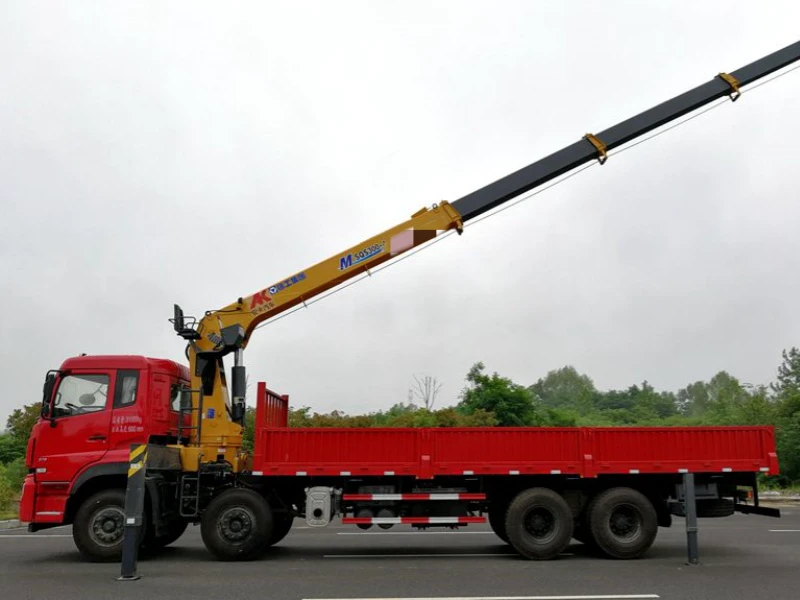

• Superior Stability System: The crane features four standard hydraulic outriggers with advanced rear outrigger design:

  • Four hydraulic outriggers standard with independent controls

  • Rear outriggers feature dual-chamber hydraulic design for enhanced stability

  • Each outrigger has independent outrigger box for maximum ground contact

  • Maximum outrigger span reaches 7,023 mm (23.0 feet) providing exceptional stability envelope

  • Optional single or dual-chamber hydraulic rear outriggers available

  • This wide stance ensures exceptional overturning resistance and stability during maximum capacity lifts

  • Outrigger pads recommended for soft ground conditions

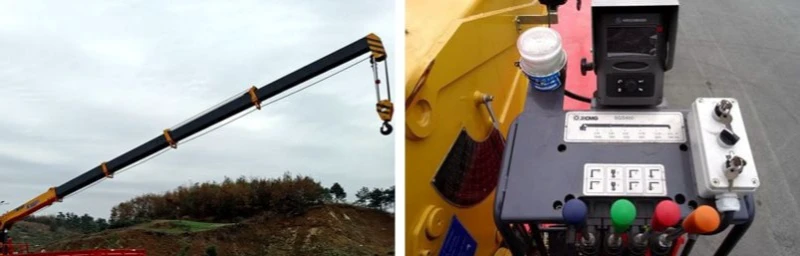

• Enhanced Operator Features: The crane incorporates numerous features for operator efficiency and safety:

  • Optional elevated operator seat with panoramic visibility eliminating blind spots

  • Ground-level operation available on both sides

  • Remote throttle standard on elevated control station for precise engine speed control

  • Electronic display实时 recording lifting weight to prevent overload conditions

  • Load indicator gauge for continuous monitoring

  • Boom angle indicator marked directly on the boom for easy reference

  • Air suspension seat with excellent vibration damping for all-day comfort

  • Wrap-around instrument panel with intuitive controls

  • Driving recorder for operational monitoring

• Lightweight Design Advantage: The Dongfeng Tianlong chassis incorporates extensive lightweight design principles:

  • Engineered weight reduction without compromising strength

  • Lower curb weight allows for greater payload capacity

  • Aluminum alloy fuel tank reduces weight while providing corrosion resistance

  • Optimized frame design reduces unnecessary mass

  • Maximum payload capability within gross vehicle weight limits

  • Worry-free registration compliance

• Structural & Quality Advantages:

  • Hexagonal boom technology with manganese steel construction for maximum strength

  • Five-section boom design for exceptional reach and versatility

  • Dual-pump hydraulic system enables simultaneous operations for improved productivity

  • Fully enclosed lifting hook with safety features

  • Intelligent production line with 18 integrated processes

  • Automated guided vehicles for precision manufacturing

  • 0.01-degree positioning accuracy for weld station

  • Imported hydraulic seals eliminating leakage issues

  • High-precision cold-drawn tubes for extended service life

• Chengli Group Manufacturing Excellence: As a premier special vehicle manufacturer, Chengli Group offers comprehensive customization and integration expertise. We provide extensive options including:

  • Multiple crane configurations (14T, 16T options)

  • Choice of crane brands (XCMG, SANY, Shimei, Zoomlion)

  • Engine options (Cummins 270 HP, 315 HP, 340 HP)

  • Transmission options (Fast 9-speed, 12-speed)

  • Rear axle options (11.5T, 13T)

  • Telescopic cargo boxes (manual or hydraulic operation)

  • Flatbed with ramp configurations for equipment loading

  • Single or dual-chamber hydraulic rear outriggers

  • Elevated operator seats with enhanced visibility

  • Custom paint and branding options available

Our commitment to quality, genuine parts availability, and comprehensive after-sales support ensures your truck equipment delivers long-term value and reliable service in the special purpose vehicle market. Each unit undergoes rigorous testing before delivery, ensuring compliance with international standards and customer satisfaction. We serve fleet operators, construction companies, infrastructure contractors, and logistics providers worldwide with custom-engineered solutions tailored to specific operational requirements.
