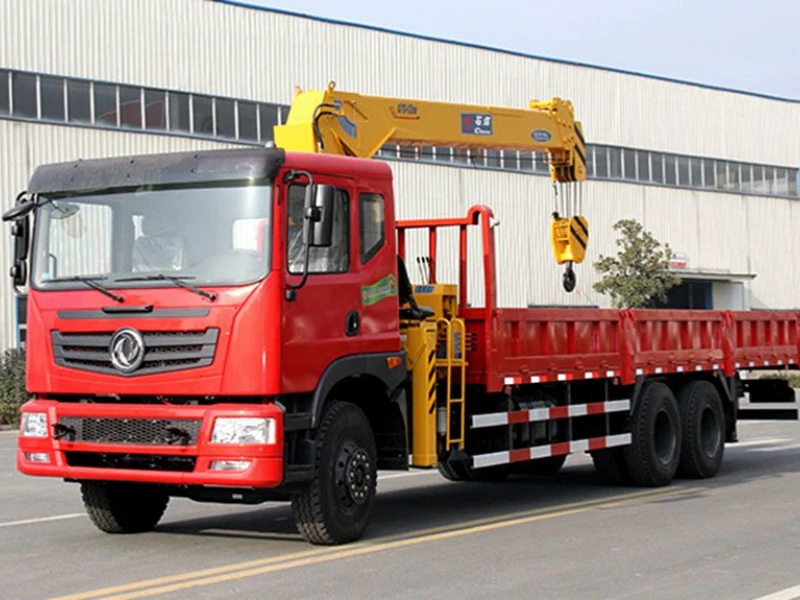

Product Introduction: Dongfeng Shimei 12-Ton Truck-Mounted Crane (Rear Dual Axle) | Dongfeng 6x2 12-Ton Truck-Mounted Crane

I. Product Overview

The Dongfeng Shimei 12-ton truck-mounted crane is a heavy-duty material handling solution built on a specialized Dongfeng Teshang rear dual-axle chassis and equipped with a high-performance Shimei crane. Engineered for demanding construction, infrastructure, and logistics projects, this unit combines a robust Dongfeng chassis with advanced crane technology. Featuring a triple-layer reinforced frame, powerful engine options, and precision-engineered crane systems, it is an ideal choice for operators requiring reliable heavy equipment for efficient material handling and lifting operations. This crane truck is widely used in bridge construction, port operations, and industrial lifting applications where heavy-duty lifting performance is critical.

II. Core Specifications

III. Dimensions, Material & Design Concept

• Cargo Box Dimensions: 8,500 × 2,290 × 550 mm (27.9 × 7.5 × 1.8 feet). This durable flatbed or cargo bed is constructed with high-strength materials for long-lasting performance. The design accommodates various cargo handling requirements for diverse applications including construction material transport and heavy equipment hauling.

• Chassis Frame: 300 mm (11.8 inches) triple-layer straight-through high-strength steel channel. The frame features full three-layer reinforcement throughout, providing exceptional load-bearing capacity and structural rigidity for demanding crane operations. This heavy-duty frame design ensures long-term structural integrity under repeated stress and prevents deformation during maximum capacity lifting.

• Design Philosophy: "Strength Through Innovation." The vehicle is built around a philosophy of robust engineering and operational efficiency. The cab options (D913 or T702) provide flexibility for different operator preferences, with the T701 luxury cab featuring modern aesthetics and premium comfort features. The design incorporates advanced technologies including single-cylinder cable synchronous telescoping for improved efficiency and multi-section boom geometry for optimal strength. The crane utilizes pentagonal or hexagonal boom technology for superior performance.

• Primary Material: High-strength alloy steel throughout critical load-bearing components. The crane boom features advanced geometry design with pentagonal or hexagonal section for maximum strength-to-weight ratio. The chassis utilizes triple-layer reinforcement construction for exceptional durability.

IV. Detailed Component Advantages

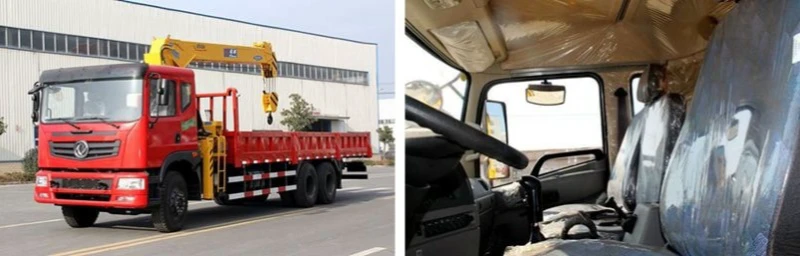

• Superior Chassis & Cab: The Dongfeng Teshang chassis is specifically engineered for crane applications with a triple-layer frame that requires no additional modification. The T701 luxury cab features:

  • Modern design with red exterior as standard

  • Wrap-around instrument panel with intuitive controls within easy reach

  • Electric front seat adjustment for operator comfort

  • Storage compartments on both driver and passenger sides

  • Spacious interior with sleeper berth

  • 3-person seating capacity

  • Premium comfort for long-haul operations

  • Optional straight-through subframe available

• Powerful & Efficient Drivetrain: Multiple engine options provide application-specific power:

  • Yuchai 240 HP - Excellent torque characteristics for climbing

  • Weichai 245 HP - Superior fuel efficiency with wider economic speed range

  • Weichai 270 HP - Maximum power for demanding applications
    The Weichai engines feature:

  • Lowest specific fuel consumption in its class

  • Wider economic speed range compared to competitors

  • Superior low-end torque for excellent starting and acceleration performance

  • Self-produced cylinder block and cylinder head for consistent quality

  • Electronically controlled multiple injection technology

  • Significantly reduced vibration and noise levels
    Paired with the Fast 9-speed transmission, the drivetrain ensures precise power delivery for both highway transport and demanding crane operations. The flange-output power take-off (PTO) is factory-installed with remote throttle control for seamless hydraulic system integration.

• Durable Running Gear: The heavy-duty front axle (5.5T capacity) and rear axle (11.5T capacity) provide exceptional load support. The braking system features dual-circuit air brakes with spring brake for fail-safe parking, supplemented by Anti-lock Braking System (ABS) for enhanced safety. The vehicle includes directional power assist for effortless steering, a driving recorder for fleet management, and an eight-string beam tow hook for additional utility.

• Advanced Crane Technology: The crane features multiple advanced technologies:

  • Single-cylinder cable synchronous telescoping technology for superior work efficiency

  • Pentagonal or hexagonal boom design with excellent centering properties

  • Superior bending resistance through optimized cross-section geometry

  • Self-developed slewing mechanism with strong driving force for various working conditions

  • Anti-swing device standard to protect vehicle safety during travel

  • Standard overload alarm for enhanced operational safety

  • Dual-pump system optional for faster operation speeds

  • High work efficiency with lifting speeds

V. Crane Specifications & Performance

The Dongfeng Shimei 12-ton truck-mounted crane can be equipped with various crane configurations. Below are detailed specifications for compatible crane models:

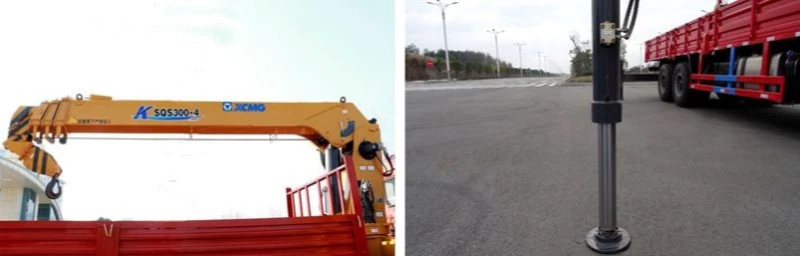

XCMG 12-Ton 4-Section Boom:

• Working Radius: 12.5 m (41.0 feet)

• Lifting Height: 14.5 m (47.6 feet)

• Crane Weight: 4,316 kg (9,515 lbs)

• Far-end Lifting Capacity: 1,800 kg (3,968 lbs) at full extension

• Optional 12-ton extended boom available:

  • Working Radius: 14.1 m (46.3 feet)

  • Lifting Height: 16 m (52.5 feet)

Shimei 14-Ton 5-Section Boom:

• Retracted Boom Length: 5.05 m (16.6 feet)

• Fully Extended Boom Length: 15.8 m (51.8 feet)

• Lifting Height: 17.8 m (58.4 feet)

• Lifting Capacities:

  • 1,200 kg (2,646 lbs) at 15.8 m (51.8 feet) extension

  • 2,300 kg (5,071 lbs) at 11 m (36.1 feet) extension

  • 6,000 kg (13,228 lbs) at 5 m (16.4 feet) extension

  • 14,000 kg (30,865 lbs) at 2.5 m (8.2 feet) extension

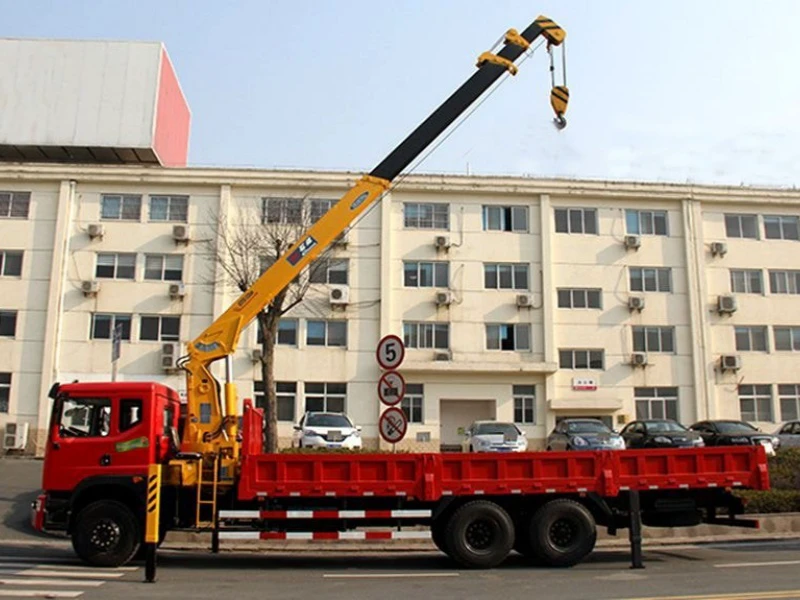

Hydraulic Outrigger System:

• Standard four hydraulic outriggers for stability

• Outrigger span: 2,270 - 5,270 mm (7.4 - 17.3 feet)

• Rear outrigger options:

  • Fixed rear outriggers (vertical extension only, smaller span)

  • Single-chamber hydraulic rear outriggers

  • Dual-chamber hydraulic rear outriggers (horizontal and vertical extension, maximum span)

  • Hydraulic outriggers provide greater span and operational stability

Note: Actual lifting capacity varies with boom angle, configuration, and load chart parameters. Different crane brands and models will produce varying working radii, lifting heights, and load capacities.

VI. Key Features & Chengli Group Advantages

• Superior Frame Construction: The Dongfeng Shimei 12-ton crane features exceptional frame design:

  • 300 mm triple-layer straight-through frame requiring no chassis modifications

  • Factory-installed PTO and remote throttle

  • Lower protection and eight-string beam tow hook standard

  • Optional straight-through subframe available

  • Exceptional load-bearing capacity for maximum crane configurations up to 14 tons

• Advanced Engine Technology: The Weichai engine options provide significant advantages:

  • Lowest specific fuel consumption in its class

  • Wider economic speed range for optimal fuel efficiency

  • Superior low-end torque for excellent starting and acceleration

  • Self-produced cylinder block and cylinder head for consistent quality

  • Electronically controlled multiple injection for reduced vibration and noise

  • Ideal for climbing and mountain road operations

• Superior Crane Technology:

  • Single-cylinder cable synchronous telescoping for superior efficiency

  • Pentagonal or hexagonal boom design with excellent centering properties

  • Superior bending resistance through optimized cross-section geometry

  • Standard overload alarm for enhanced safety

  • Self-developed slewing mechanism with strong driving force

  • Anti-swing device protecting vehicle during travel

  • Optional dual-pump system for faster operation speeds

• Enhanced Operator Experience: The crane incorporates numerous features for operator comfort:

  • T701 luxury cab with electric seats

  • Wrap-around instrument panel with intuitive controls

  • Spacious interior with sleeper berth

  • Storage compartments on both sides

  • Premium comfort for reduced fatigue

  • Red exterior as standard color option

• Stability & Safety Features:

  • Four standard hydraulic outriggers

  • Outrigger span up to 5,270 mm (17.3 feet)

  • Multiple rear outrigger options for enhanced stability

  • Dual-chamber hydraulic outriggers provide maximum span

  • Hydraulic outriggers enable both vertical and horizontal extension

  • Greater outrigger span ensures exceptional overturning resistance

  • ABS anti-lock braking system for enhanced control

  • Driving recorder for operational monitoring

  • Spring brake system for fail-safe parking

  • Overload alarm prevents unsafe lifting conditions

• Chengli Group Manufacturing Excellence: As a premier special vehicle manufacturer, Chengli Group offers comprehensive customization and integration expertise. We provide extensive options including:

  • Multiple crane configurations (10T, 12T, 14T options)

  • Choice of crane brands (XCMG, SANY, Shimei, Zoomlion)

  • Engine options (Yuchai 240 HP, Weichai 245 HP, Weichai 270 HP)

  • Cab options (D913, T702 with T701 luxury interior)

  • Dual-pump hydraulic systems for faster operation

  • Extended boom configurations (12-ton extended boom available)

  • Multiple rear outrigger options (fixed, single-chamber, dual-chamber)

  • Elevated operator seats

  • Custom configurations for specific applications

Our commitment to quality, genuine parts availability, and comprehensive after-sales support including 24/7 service hotline and mobile service units ensures your truck equipment delivers long-term value and reliable service in the special purpose vehicle market. Each unit undergoes rigorous testing before delivery, including load testing, road testing, and inspection ensuring compliance with international standards and customer satisfaction. We serve fleet operators, construction companies, infrastructure contractors, and logistics providers worldwide with custom-engineered solutions tailored to specific operational requirements.
