roduct Introduction: Isuzu XCMG 2-Ton Truck-Mounted Crane | Isuzu 2-Ton Truck-Mounted Crane with XCMG 2-Ton Crane

I. Product Overview

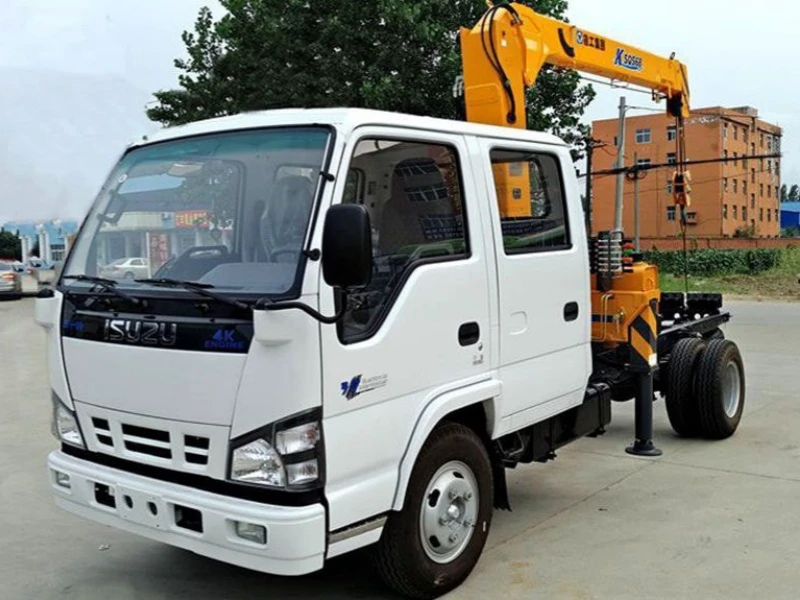

The Isuzu XCMG 2-ton truck-mounted crane is a compact and versatile material handling solution built on a specialized Isuzu double-row cab chassis. Developed through Sino-Japanese joint venture technology, this unit combines the renowned reliability of the Isuzu 600P light truck series with a high-performance XCMG crane. Engineered for light-duty lifting tasks in urban construction, municipal maintenance, and logistics, it delivers exceptional maneuverability and operational efficiency. This light-duty crane is ideal for operators requiring dependable compact equipment for material handling and lifting operations in confined spaces. The vehicle's versatile design allows for multi-purpose use, including the installation of suction tanks or water spray tanks, making it a valuable asset for municipal vehicles and urban maintenance fleets.

II. Core Specifications

III. Dimensions, Material & Design Concept

• Cargo Box Dimensions: 3,300 × 1,890 × 380 mm (10.8 × 6.2 × 1.2 feet). This compact flatbed or cargo bed is designed for light-duty transport while maintaining excellent maneuverability. The design accommodates various cargo handling requirements and can be customized for multi-purpose use, including the installation of suction tanks for sewer cleaning or water spray tanks for dust suppression, providing exceptional versatility for municipal vehicles.

• Chassis Frame: 180 mm (7.1 inches) high-strength steel channel specifically engineered for crane applications. This heavy-duty frame provides optimal load-bearing capacity while maintaining lightweight construction for improved fuel efficiency and maneuverability.

• Design Philosophy: "Japanese Precision, Versatile Performance." The vehicle embodies the mature technology of the Isuzu 600P light truck series, developed through Sino-Japanese joint venture engineering. The double-row cab design accommodates up to 5 personnel, making it ideal for work crews. The design philosophy emphasizes multi-functionality—the same chassis can be configured for lifting operations while also supporting auxiliary equipment such as suction tanks or water spray tanks, maximizing utility for municipal and urban maintenance applications. The crane features both straight and folding boom options with multiple section configurations.

• Primary Material: High-strength alloy steel throughout critical load-bearing components. The chassis utilizes Isuzu's proven frame technology with 180 mm reinforced construction. The crane boom features optimized geometry for maximum strength-to-weight ratio with manganese steel construction.

IV. Detailed Component Advantages

• Superior Chassis & Cab: The Isuzu chassis represents mature joint-venture technology with exceptional reliability:

  • Developed through Sino-Japanese collaboration

  • Based on the proven Isuzu 600P light truck series

  • Double-row cab accommodating 2+3 personnel (5 total)

  • White and yellow color options standard

  • Manual windows with factory air conditioning

  • Power steering for effortless maneuvering

  • Low failure rate design

  • Proven technology with extensive field validation

• Reliable Drivetrain: The Isuzu diesel engine delivers proven performance:

  • 120 HP configuration (standard) with 2,999 ml displacement

  • 130 HP optional configuration for enhanced power

  • Euro V emission compliance

  • Joint venture manufacturing with mature technology

  • Low failure rate and high reliability

  • Cost-effective maintenance
    Paired with the MSB 5-speed manual transmission, the drivetrain ensures efficient power delivery for both highway transport and crane operations. The engine provides optimal torque characteristics for urban driving and light-duty lifting applications.

• Durable Running Gear: The heavy-duty front axle (2.5T capacity) and rear axle (4.8T capacity) provide appropriate load support for the vehicle's 6.81-ton gross weight rating. The braking system features dual-circuit hydraulic brakes with ABS for enhanced safety. The 7.00R16 steel cord tires provide reliable traction and load capacity. The vehicle achieves a top speed of 100 km/h (62 mph) for efficient highway transport.

• Advanced Crane Technology: The XCMG crane offers multiple configuration options:

  • Available in 2-ton and 3.2-ton capacities

  • Choice of 2-section or 3-section booms

  • Choice of straight or folding boom configurations

  • 360-degree continuous rotation for all models

  • Standard front hydraulic outriggers

  • Optional fixed or hydraulic rear outriggers

  • Versatile auxiliary attachments available:

    • Operator baskets for aerial work

    • Grapples for material handling

    • Drills for construction applications

    • Various other implements for specialized tasks

V. Crane Specifications & Performance

The Isuzu XCMG 2-ton truck-mounted crane can be equipped with various crane configurations. Below are detailed specifications for compatible crane models based on the provided parameter charts:

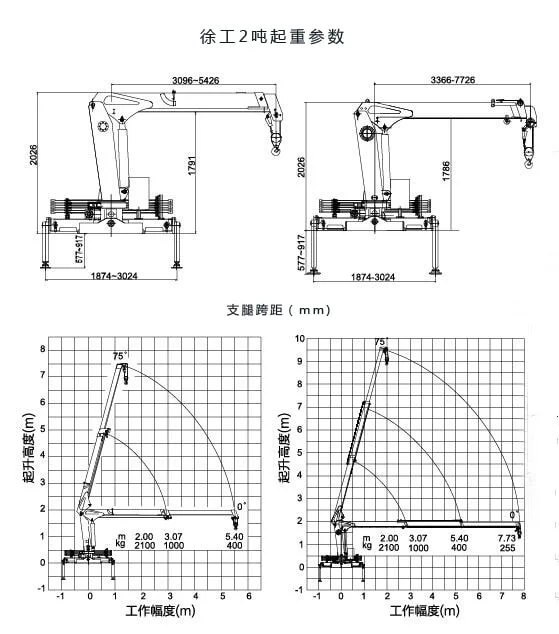

XCMG 2-Ton 2-Section Boom Detailed Performance:

• Working Radius: 5.4 m (17.7 feet)

• Lifting Height: 7.5 m (24.6 feet)

• Lifting Capacities:

  • 400 kg (882 lbs) at 5.4 m (17.7 feet) extension

  • 1,000 kg (2,205 lbs) at 3.07 m (10.1 feet) extension

  • 2,100 kg (4,630 lbs) at 2 m (6.6 feet) extension

XCMG 2-Ton 3-Section Boom Detailed Performance:

• Working Radius: 7.7 m (25.3 feet)

• Lifting Height: 9 m (29.5 feet)

• Lifting Capacities:

  • 250 kg (551 lbs) at 7.7 m (25.3 feet) extension

  • 400 kg (882 lbs) at 5.4 m (17.7 feet) extension

  • 1,000 kg (2,205 lbs) at 3.07 m (10.1 feet) extension

  • 2,100 kg (4,630 lbs) at 2 m (6.6 feet) extension

XCMG 3.2-Ton 2-Section Straight Boom:

• Working Radius: 5.35 m (17.6 feet)

• Lifting Height: 6.6 m (21.7 feet)

• 360° continuous rotation

• During transport, boom can be rotated to front of cab

XCMG 3.2-Ton 2-Section Folding Boom:

• Working Radius: 5.7 m (18.7 feet)

• Lifting Height: 8.5 m (27.9 feet)

• Ideal for confined spaces

XCMG 3.2-Ton 3-Section Boom:

• Working Radius: 7.5 m (24.6 feet)

• Lifting Height: 9.5 m (31.2 feet)

• Lifting Capacities:

  • 500 kg (1,102 lbs) at 7.5 m (24.6 feet) extension

Note: Actual lifting capacity varies with boom angle, configuration, and load chart parameters. The boom angle indicator marked on the boom allows operators to monitor lifting status in real-time. Different crane brands and models will produce varying working radii, lifting heights, and load capacities.

VI. Key Features & Chengli Group Advantages

• Superior Maneuverability & Compact Design: The Isuzu XCMG 2-ton crane features exceptional urban mobility:

  • Compact 6.75 m (22.1 feet) overall length

  • Narrow 2.05 m (6.7 feet) width for tight urban streets

  • 5,815 mm (19.1 feet) wheelbase for stable operation

  • Ideal for municipal maintenance and urban construction

  • Excellent maneuverability in confined city environments

• Multi-Purpose Versatility: The vehicle offers exceptional configuration flexibility:

  • Cargo box can be customized for multiple functions

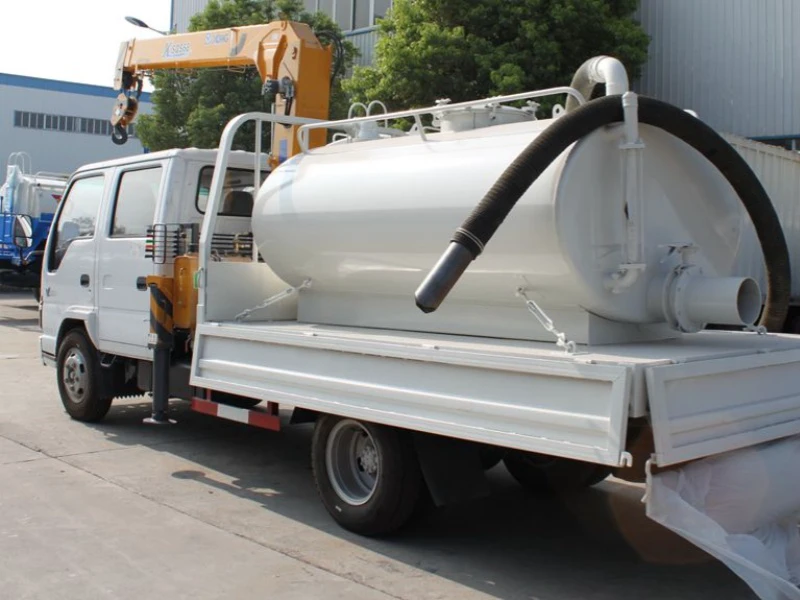

  • Ability to install suction tanks for sewer cleaning and waste management

  • Ability to install water spray tanks for dust suppression and road maintenance

  • True "one truck, multiple uses" capability

  • Maximizes fleet utility and return on investment

  • Ideal for municipal vehicles and government fleets

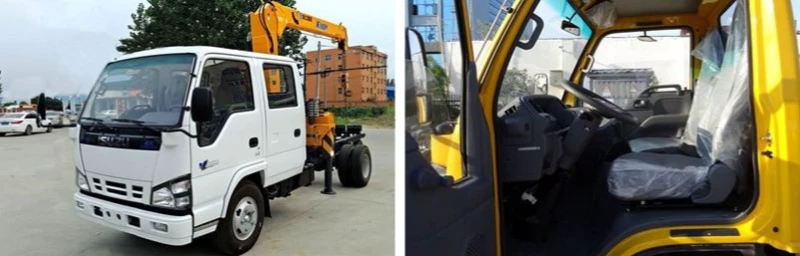

• Double-Row Cab Advantages:

  • Accommodates 2+3 personnel (5 total)

  • Ideal for work crews requiring transportation

  • Factory air conditioning for operator comfort

  • Power steering for easy maneuvering

  • Manual windows with durable construction

  • White and yellow color options standard

  • Comfortable seating for extended operations

• Advanced Crane Features:

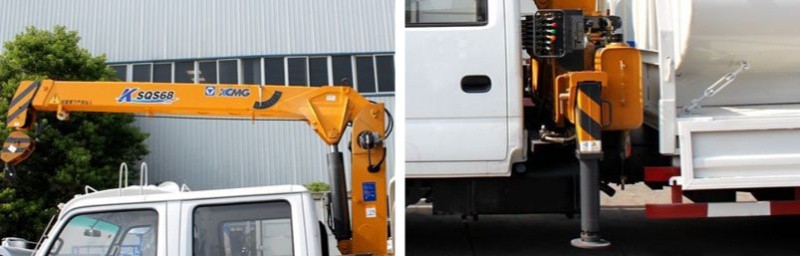

  • Standard front hydraulic outriggers mounted on right side of control valve

  • Large outrigger span for stability (up to 3,329 mm / 10.9 feet)

  • Adjustable outrigger span based on road width conditions

  • Locking pins secure outrigger position for safe operation

  • Boom angle indicator for real-time load monitoring

  • Transport capability with boom rotated forward

  • Multiple auxiliary attachment options:

    • Operator baskets for aerial work platforms

    • Grapples for material handling

    • Drills for construction applications

    • Custom implements for specialized tasks

• Stability & Safety Features:

  • Outrigger span adjustable from 1,874-3,329 mm (6.1-10.9 feet) depending on model

  • Wide stance ensures exceptional overturning resistance

  • Locking pins secure outriggers after span adjustment

  • ABS anti-lock braking system for enhanced control

  • Dual-circuit hydraulic brakes for reliable stopping power

  • Power steering for precise control

  • Boom angle indicator for safe lifting operations

• Chengli Group Manufacturing Excellence: As a premier special vehicle manufacturer, Chengli Group offers comprehensive customization and integration expertise. We provide extensive options including:

  • Multiple crane configurations (2T, 3.2T options)

  • Choice of crane brands (XCMG, SANY, Furu kawa)

  • Choice of boom types (straight or folding)

  • Multiple boom sections (2-section or 3-section)

  • Fixed or hydraulic rear outrigger options

  • Auxiliary attachments (baskets, grapples, drills)

  • Suction tank integration for sewer cleaning

  • Water spray tank integration for dust suppression

  • Custom configurations for municipal applications

Our commitment to quality, genuine parts availability, and comprehensive after-sales support ensures your truck equipment delivers long-term value and reliable service in the special purpose vehicle market. Each unit undergoes rigorous testing before delivery, ensuring compliance with international standards and customer satisfaction. We serve municipal fleets, construction companies, utility contractors, and logistics providers worldwide with custom-engineered solutions tailored to specific operational requirements.
