Product Introduction: Foton Auman SANY 14-Ton Truck-Mounted Crane | Foton 14-ton truck-mounted crane with 14-ton Sany crane

I. Product Overview

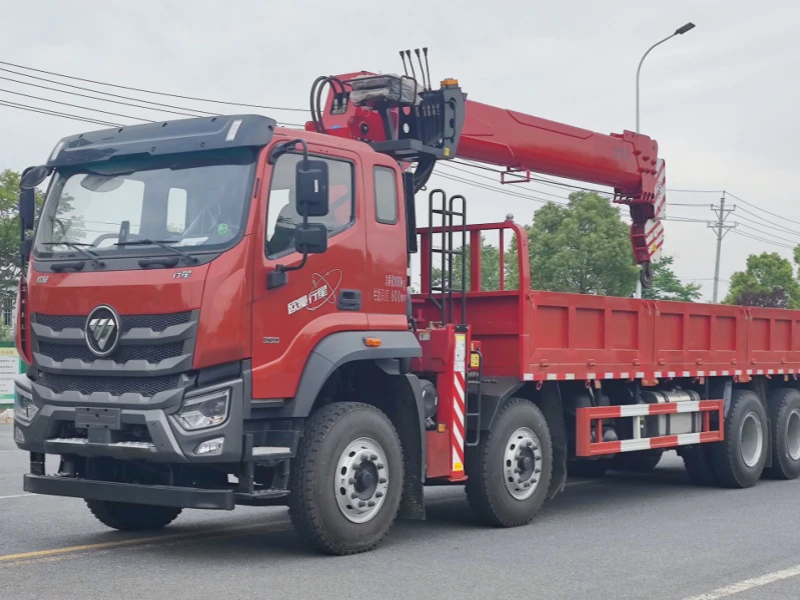

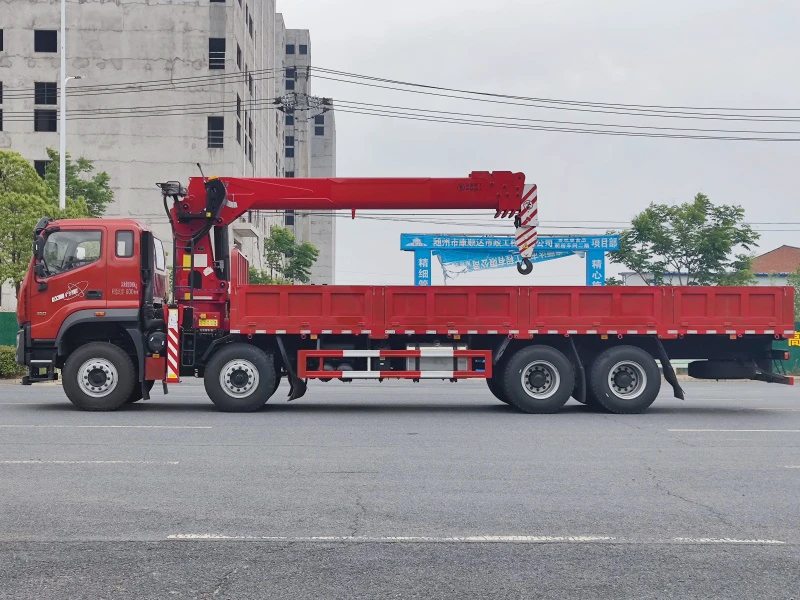

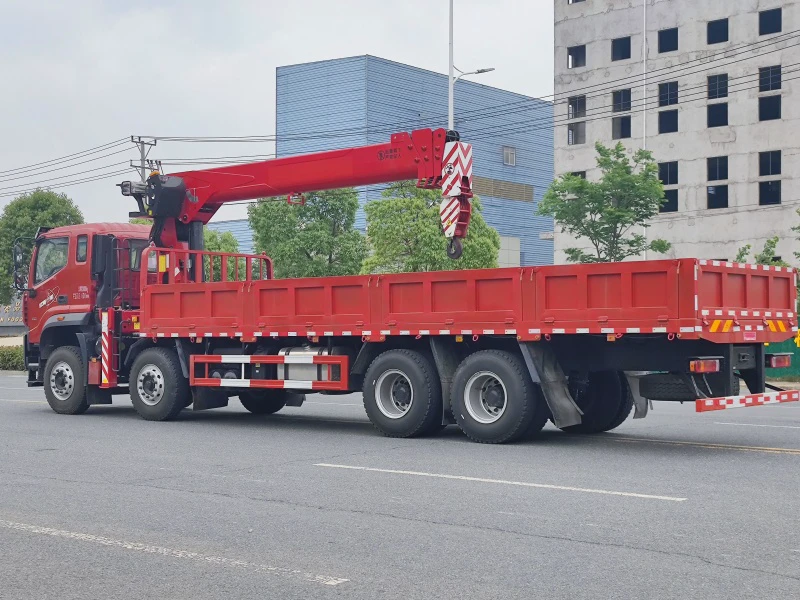

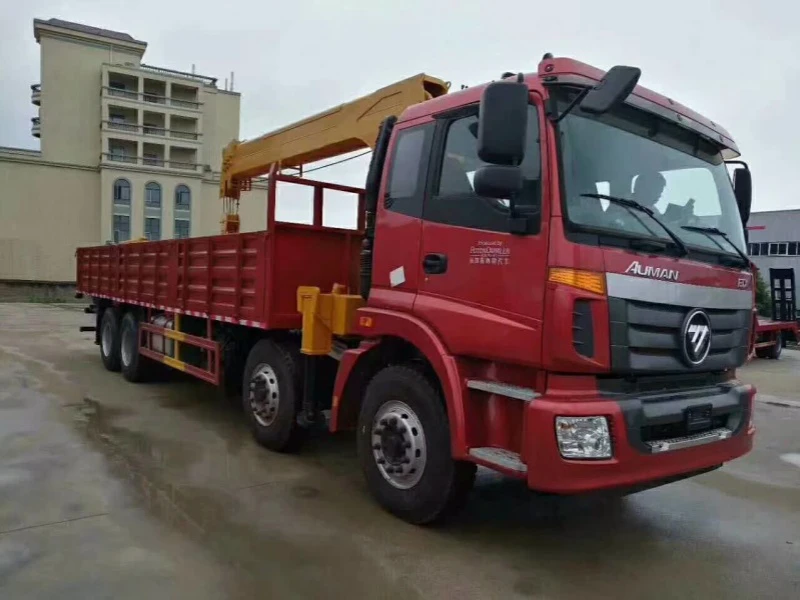

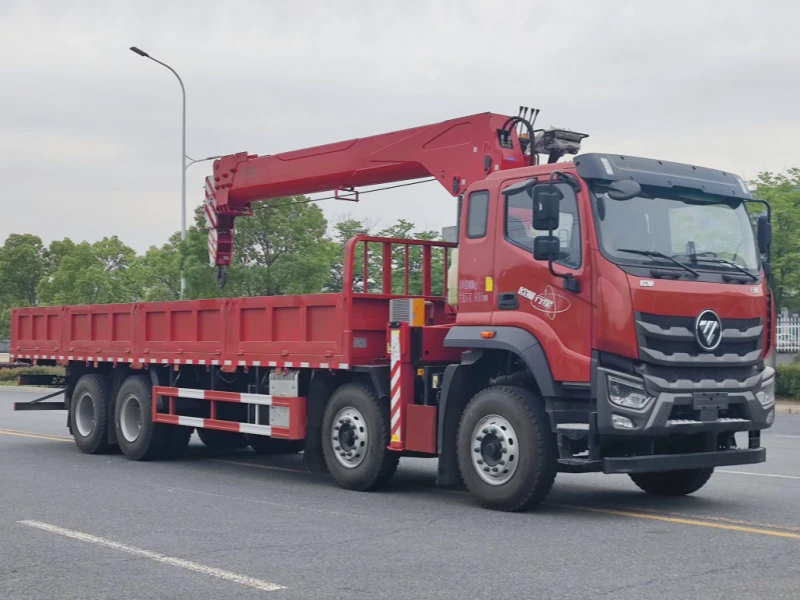

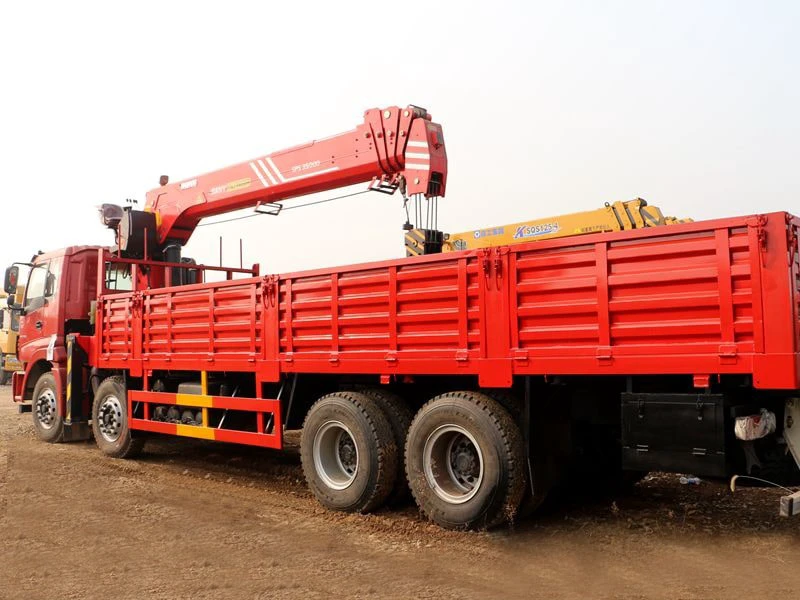

The Foton Auman SANY 14-ton truck-mounted crane is a premium heavy-duty material handling solution built on a specialized Foton Auman front-four rear-eight chassis. Developed through the Daimler-Benz joint venture, this unit combines German Mercedes-Benz technology and manufacturing processes with American Cummins power and Chinese SANY crane expertise. Engineered for large-scale construction, infrastructure projects, and heavy logistics operations, it delivers exceptional lifting capacity, operational efficiency, and long-term reliability. This heavy-duty crane is widely recognized as a star product in the truck-mounted crane segment, used extensively in bridge construction, port operations, heavy equipment transport, and industrial lifting applications where high-capacity lifting performance is critical.

II. Core Specifications

III. Dimensions, Material & Design Concept

• Cargo Box Dimensions: 8,500 × 2,400 × 800 mm (27.9 × 7.9 × 2.6 feet). Compared to competing models like Dongfeng Tianlong and FAW J6, the Foton Auman offers larger cargo box dimensions for greater loading capacity. This durable flatbed or cargo bed accommodates various cargo handling requirements for diverse applications including construction material transport and heavy equipment hauling.

• Chassis Frame: 300 mm (11.8 inches) straight-through double-layer with partial three-layer reinforced high-strength steel channel. This heavy-duty frame provides exceptional load-bearing capacity and structural rigidity for demanding crane operations. The three-layer reinforced frame design ensures long-term structural integrity under repeated stress.

• Design Philosophy: "German Engineering, American Power, Chinese Excellence." The vehicle embodies the successful Daimler-Benz joint venture technology, with Mercedes-Benz matching and manufacturing processes domestic industry standards. The ETX 2420mm cab provides spacious comfort with air suspension seating. The design prioritizes heavy-load stability with optimized frame stress distribution. The crane system features SANY's boom technology with imported hydraulic components for extended service life. The integrated design delivers superior performance across all operating conditions.

• Primary Material: High-strength alloy steel throughout critical load-bearing components. The chassis utilizes three-layer reinforced frame construction with optimized metallurgy. The crane boom features high-tensile steel construction with超长 reach capability. The cargo box offers larger dimensions than competing models for maximum loading capacity.

IV. Detailed Component Advantages

• Superior Chassis & Cab - German Mercedes-Benz Technology:

  • Daimler-Benz joint venture brand with Mercedes-Benz technology

  • Mercedes-Benz matching and Mercedes-Benz manufacturing processes
    -domestic industry standards

  • ETX 2420mm flat top double row cab with spacious interior

  • Factory air conditioning standard

  • Air suspension seat for enhanced comfort

  • Electric windows for convenience

  • Driving recorder for fleet management

  • Power steering for effortless maneuvering

  • Rich configuration typically found only in models

  • Significantly enhanced driving comfort

• Powerful & Efficient Drivetrain - American Cummins Power:

  • Foton Cummins 300 HP diesel engine

  • 10.5-liter large displacement for exceptional power

  • Ideal for high-speed heavy-load applications

  • Fuel efficient with low noise operation

  • Savings of 0.4 RMB per kilometer compared to competitors

  • 10,000 km oil change interval - saves money and maintenance

  • Proven reliability for demanding applications
    Paired with the Fast (Shaanxi Gear) 9-speed transmission with factory PTO, the drivetrain ensures optimal power delivery for both highway transport and demanding crane operations. The transmission and PTO are perfectly matched with after-sales support.

• Durable Running Gear - Heavy-Duty Capacity:

  • 13-ton 457 series rear axle for exceptional load capacity

  • Long service life design

  • 300mm three-layer reinforced frame with exceptional load-bearing capacity

  • 11.00R20 steel cord tires standard (premium)

  • Spring brake system with automatic slack adjusters meeting Euro V standards

  • ABS anti-lock braking system for enhanced control

  • Adjustable headlights for different lighting conditions

  • Anti-spray mud flaps for clean operation

• Advanced SANY Crane Technology:

  • SANY 14-ton crane - industry leader in crane manufacturing

  • Multiple boom configurations available:

    • Five-section straight boom (super-long reach)

    • Four-section straight boom (higher far-end capacity)

  • Imported hydraulic system for extended service life

  • Combination action capability for higher work efficiency

  • Reduced labor costs through faster operation

  • 360-degree continuous rotation

  • Large outrigger span for enhanced stability:

    • Rear outriggers fully extended span: 6,000 mm (19.7 feet)

    • Superior stability for safe lifting operations

  • Compared to same-tonnage competitors, SANY offers the longest boom with farthest reach

V. Crane Specifications & Performance

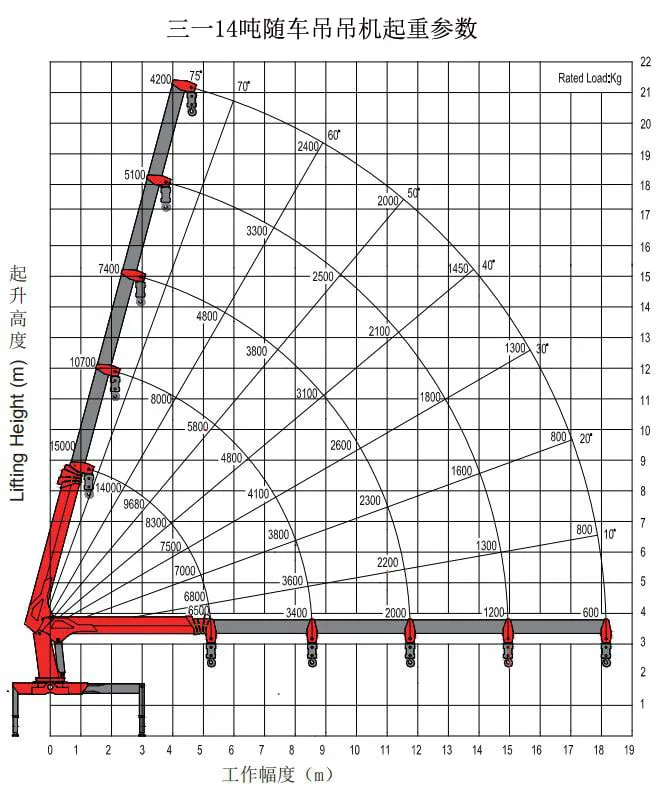

The Foton Auman SANY 14-ton truck-mounted crane can be equipped with various crane configurations based on the provided parameter charts:

SANY 14-Ton 5-Section Straight Boom Detailed Performance:

• Retracted Boom Length: 5.6 m (18.4 feet)

• Fully Extended Boom Length: 18.5 m (60.7 feet)

• Lifting Height: 20.5 m (67.3 feet)

• Far-end Lifting Capacity: 800 kg (1,764 lbs) at full extension

• Industry-leading boom length for same tonnage class

• Widest working range in its class

SANY 14-Ton 4-Section Straight Boom Detailed Performance:

• Retracted Boom Length: 5.5 m (18.0 feet)

• Fully Extended Boom Length: 15.4 m (50.5 feet)

• Lifting Height: 17.4 m (57.1 feet)

• Far-end Lifting Capacity: 1,600 kg (3,527 lbs) at full extension

• Higher far-end capacity for applications requiring heavier loads at medium reach

SANY 12-Ton 4-Section Straight Boom Detailed Performance:

• Working Radius: 14.8 m (48.6 feet)

• Lifting Height: 16.8 m (55.1 feet)

• Far-end Lifting Capacity: 1,700 kg (3,748 lbs) at full extension

Outrigger System:

• Four hydraulic outriggers standard

• Rear outriggers fully extended span: 6,000 mm (19.7 feet) across all models

• Large outrigger span for superior overturning resistance

• Excellent stability for safe lifting operations

• Critical for maximum capacity lifts

Note: Actual lifting capacity varies with boom angle, configuration, and load chart parameters. Different crane brands and models will produce varying working radii, lifting heights, and load capacities.

VI. Key Features & Chengli Group Advantages

• Triple Advantage - German, American, Chinese Excellence:

  • German: Daimler-Benz joint venture technology, Mercedes-Benz matching and manufacturing processes

  • American: Cummins engine with superior fuel efficiency and 10,000 km oil change intervals

  • Chinese: SANY crane with industry-leading boom length and imported hydraulics
    -领先 domestic industry standards across all major components

• Superior Fuel Economy:

  • Cummins engine saves 0.4 RMB per kilometer compared to competitors

  • 10,000 km oil change interval reduces maintenance costs

  • Low noise operation

  • 10.5-liter displacement for optimal power delivery

  • Significant long-term operational savings

• Industry-Leading Boom Length:

  • 18.5 m working radius with 5-section boom - longest in its class

  • 20.5 m lifting height for tall structure applications

  • Wider working range than same-tonnage competitors

  • Greater job site versatility

  • Extended reach for challenging applications

• Superior Stability System:

  • 6 m (19.7 ft) outrigger span on rear outriggers across all models

  • Large outrigger span for exceptional overturning resistance

  • Stable platform for maximum capacity lifts

  • Enhanced safety during heavy lifting operations

  • Critical for rollover prevention

• Largest Cargo Box in Class:

  • 8.5 m length - larger than Dongfeng Tianlong and FAW J6

  • 2.4 m width for bulky loads

  • 0.8 m height side panels

  • Greater loading capacity than competing models

  • Maximizes transport efficiency

• Premium Standard Features:

  • Factory air conditioning

  • Air suspension seat

  • Electric windows

  • Driving recorder

  • Power steering

  • ABS anti-lock braking

  • Automatic brake adjusters

  • Adjustable headlights

  • Anti-spray mud flaps

  • Features typically found only in高端 models, all standard on Foton Auman

• Enhanced Safety Systems:

  • ABS anti-lock braking system for emergency control

  • Automatic brake adjusters maintaining consistent braking

  • Adjustable headlights for night driving safety

  • Anti-spray mud flaps protecting pedestrians and vehicles

  • Spring brake system for fail-safe parking

  • Large outrigger span for lift stability

  • Imported hydraulic system for reliable crane operation

• Proven Reliability:

  • Cummins engine with extended service intervals

  • SANY crane with imported components and fewer issues

  • 13-ton 457 rear axle for long service life

  • Three-layer reinforced frame for exceptional durability

  • German manufacturing processes ensuring quality

• Chengli Group Manufacturing Excellence: As a premier special vehicle manufacturer, Chengli Group offers comprehensive customization and integration expertise. We provide extensive options including:

  • Multiple crane configurations (12T, 14T options with 4-section or 5-section boom)

  • Choice of crane brands (SANY, XCMG, Shimei, Furu kawa)

  • Choice of boom types (straight or folding)

  • Custom cargo box configurations

  • Multiple color options

  • Fixed or hydraulic rear outrigger options

  • Elevated operator platforms

  • Work lights and accessories

  • Custom configurations for specific applications

Our commitment to quality, genuine parts availability, and comprehensive after-sales support ensures your truck equipment delivers long-term value and reliable service in the special purpose vehicle market. Each unit undergoes rigorous testing before delivery, ensuring compliance with international standards and customer satisfaction. We serve heavy construction contractors, infrastructure developers, mining operations, port operators, and logistics companies worldwide with custom-engineered solutions tailored to specific operational requirements.
