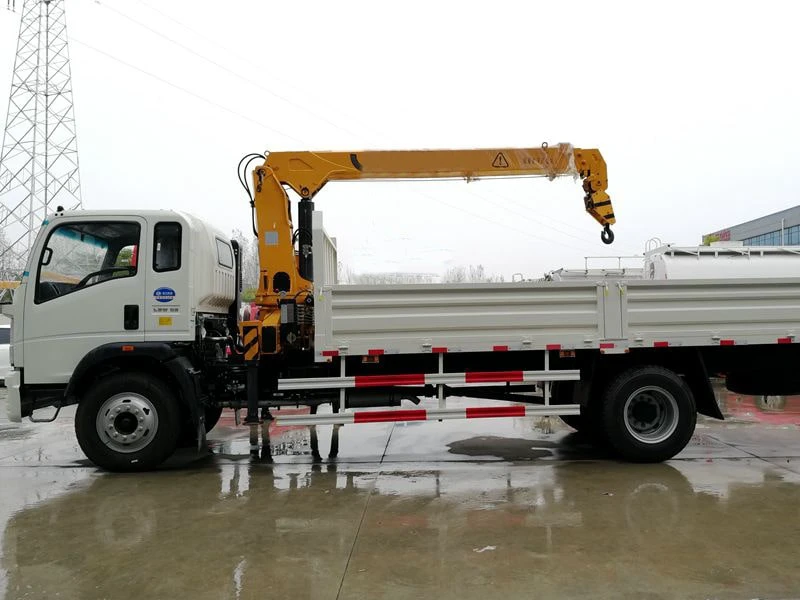

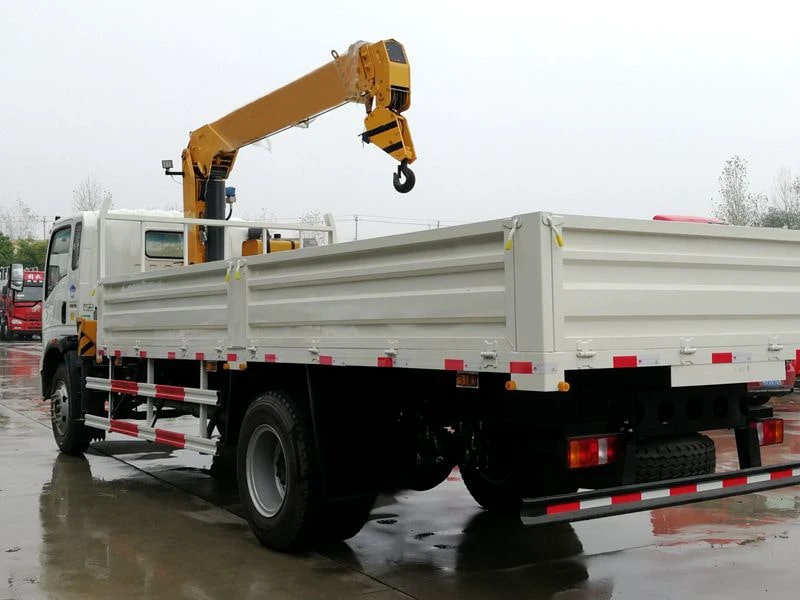

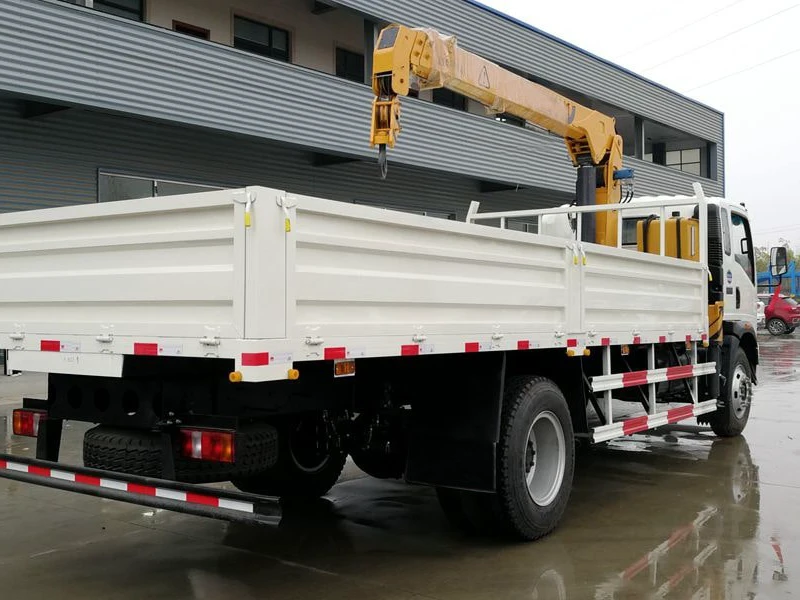

Product Introduction: Sinotruk Howo 5-Ton Truck-Mounted Crane | Sinotruk 5-ton truck-mounted crane with XCMG 5-ton lifting mechanism

I. Product Overview

The Sinotruk Howo 5-ton truck-mounted crane is a versatile medium-duty material handling solution built on a specialized Sinotruk Howo light truck chassis. Positioned between small and medium-sized cranes, this unit combines the robust Sinotruk chassis with a high-performance XCMG crane. Engineered for urban construction, logistics, and infrastructure projects, it delivers exceptional power, fuel efficiency, and operational flexibility. This medium-duty crane is widely used in urban construction, logistics transport, road maintenance, and industrial lifting applications where fuel-efficient performance and maneuverability in conditions are essential.

II. Core Specifications

III. Dimensions, Material & Design Concept

• Cargo Box Dimensions: 5,070 × 2,400 × 600 mm (16.6 × 7.9 × 2.0 feet) with transverse corrugated pattern for enhanced durability and aesthetics. The design features:

  • Floor plate: 5 mm (0.2 inches) thick national standard steel with checker plate pattern for increased friction

  • Side panels: 2 mm (0.08 inches) thick national standard steel

  • Longitudinal beams: Square tubing material at connection points with XCMG factory subframe

  • Enhanced load-bearing capacity through optimized substructure

  • Transverse corrugated side panels reduce cargo impact force during transport

  • Aesthetic design meeting national standards

• Chassis Frame: 250 mm (9.8 inches) high-strength steel channel specifically engineered for crane applications. This heavy-duty frame provides optimal load-bearing capacity while maintaining structural integrity for demanding operations.

• Design Philosophy: "Heavy-Duty Heritage, Light Truck Agility." The vehicle embodies Sinotruk's heavy-duty truck heritage adapted to the HOWO light truck platform. The cab features the same interior quality as Sinotruk's heavy trucks, with factory air conditioning and central locking standard. The 4.5 m (14.8 ft) wheelbase paired with 5 m (16.6 ft) cargo box provides excellent maneuverability on roads. The design prioritizes fuel efficiency through the Cummins engine while maintaining robust construction for reliable performance.

• Primary Material: High-strength alloy steel throughout critical load-bearing components. The chassis features 250 mm reinforced construction. The cargo box utilizes 5 mm floor plate with checker plate pattern and square tube substructure for maximum durability.

IV. Detailed Component Advantages

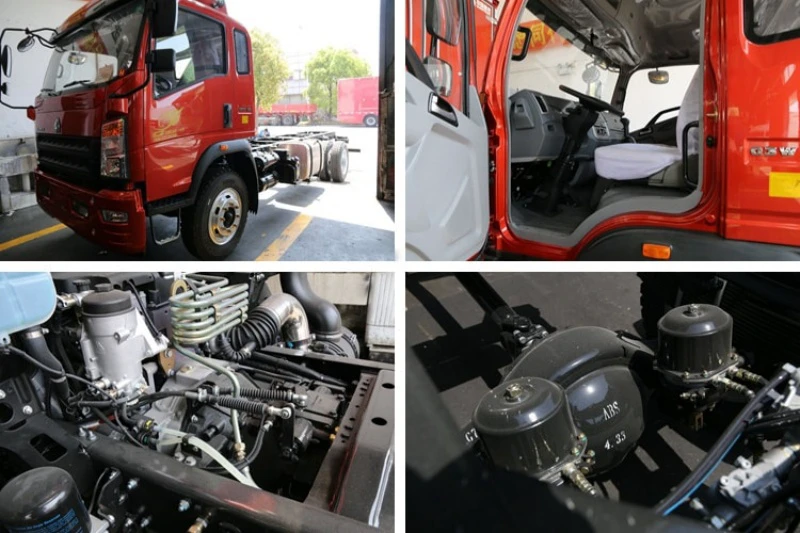

• Superior Chassis & Cab - Sinotruk Heavy-Duty Heritage:

  • Sinotruk Howo chassis manufactured by Shandong Sinotruk Group

  • HOWO light truck cab with configuration

  • Same interior quality as Sinotruk heavy trucks

  • Factory air conditioning standard

  • Central locking standard

  • Electric windows standard

  • Power steering for effortless maneuvering

  • Robust and solid chassis construction

  • Tall and厚重 exterior design

  • Powerful practical functionality

• Fuel-Efficient Drivetrain - Cummins Power:

  • Cummins 168 HP diesel engine

  • 3.8L displacement inline 4-cylinder

  • 2,600 RPM maximum speed

  • Powerful performance with compact structure

  • High efficiency and fuel economy

  • Advantageous for long-distance transport

  • Meets Euro V and Euro VI standards with easy upgrade capability

  • Structure compacte for efficient packaging
    Paired with the Zhejiang Wanliyang 6-speed transmission featuring:

  • Full synchronization in forward gears

  • Clear gear selection

  • Smooth and easy shifting

  • Optimized for light truck applications

• Durable Running Gear - Optimized Capacity:

  • Front axle: 2.7 tons (5,952 lbs) capacity

  • Rear axle: 7.2 tons (15,873 lbs) capacity

  • 250 mm (9.8 inch) reinforced frame

  • Fully meets loaded cargo box weight standards

  • 9.00R20 steel cord tires standard

  • Spring brake system with automatic slack adjusters meeting Euro V standards

  • ABS anti-lock braking system for enhanced control

  • Adjustable headlights for different lighting conditions

  • Anti-spray mud flaps for clean operation

  • Standard equipment includes:

    • Wheel chocks

    • Reflective vests

    • Essential tools

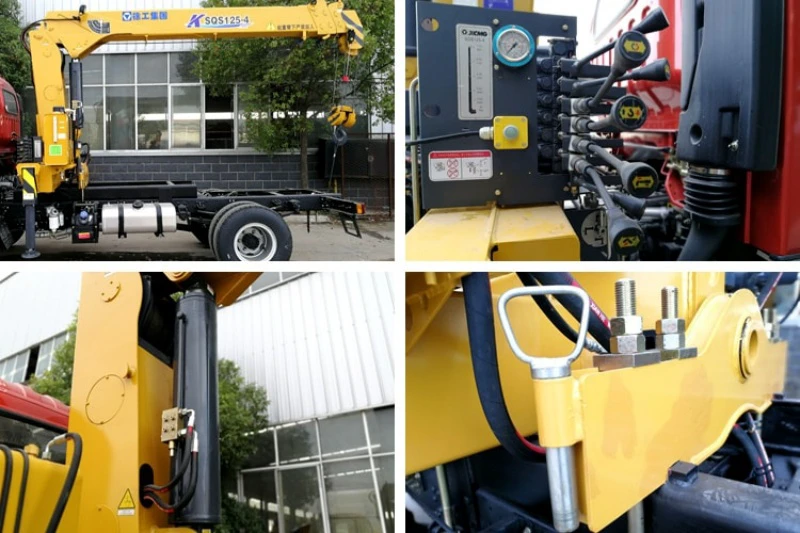

• Advanced XCMG Crane Technology:

  • Factory self-developed hydraulic system

  • Integrated design with rear outriggers

  • All crane components一体化设计 for precision manufacturing

  • Refined assembly processes

  • Multiple configuration options:

    • 5-ton or 6.3-ton capacity

    • 3-section or 4-section boom

    • Straight or folding boom types

  • XCMG factory front hydraulic circular outriggers standard

  • Outrigger span up to 5.1 m (16.7 ft)

  • XCMG factory single-chamber hydraulic rear outriggers

  • Rear outrigger span: 3.55 m (11.6 ft) for enhanced safety

  • Boom angle range: 0° to 75°

  • 360-degree continuous rotation (except where noted)

V. Crane Specifications & Performance

The Sinotruk Howo 5-ton truck-mounted crane can be equipped with various crane configurations based on the provided parameter charts:

XCMG 5-Ton 4-Section Straight Boom Detailed Performance:

• Retracted Boom Length: 3.62 m (11.9 feet)

• Fully Extended Boom Length: 11 m (36.1 feet)

• Lifting Capacities:

  • 400 kg (882 lbs) at 11 m (36.1 ft) extension

  • 1,100 kg (2,425 lbs) at 8.5 m (27.9 ft) extension

  • 1,500 kg (3,307 lbs) at 6.05 m (19.8 ft) extension

  • 2,800 kg (6,173 lbs) at 3.62 m (11.9 ft) extension

XCMG 6.3-Ton 4-Section Straight Boom Detailed Performance:

• Retracted Boom Length: 4.14 m (13.6 feet)

• Fully Extended Boom Length: 11 m (36.1 feet) - same reach as 5T model with higher capacity

• Lifting Capacities:

  • 600 kg (1,323 lbs) at 11 m (36.1 ft) extension

  • 1,000 kg (2,205 lbs) at 10 m (32.8 ft) extension

  • 1,600 kg (3,527 lbs) at 7.19 m (23.6 ft) extension

  • 2,600 kg (5,732 lbs) at 4.37 m (14.3 ft) extension

XCMG 5-Ton 3-Section Boom:

• Working Radius: 8.6 m (28.2 ft)

• Lifting Height: 9.8 m (32.2 ft)

• Far-end Capacity: 1,050 kg (2,315 lbs)

XCMG 6.3-Ton 3-Section Boom:

• Working Radius: 8.8 m (28.9 ft)

• Lifting Height: 9.8 m (32.2 ft)

• Far-end Capacity: 1,200 kg (2,646 lbs)

Outrigger System:

• Standard front XCMG hydraulic circular outriggers

• Outrigger span: 2,280-5,100 mm (7.5-16.7 ft) adjustable based on road width

• Standard rear XCMG single-chamber hydraulic outriggers

• Rear outrigger span: 3,550 mm (11.6 ft) fully extended

• Large outrigger span ensures overturning resistance and safe lifting operations

Note: Actual lifting capacity varies with boom angle, configuration, and load chart parameters. Boom angle range: 0° to 75°. The 6.3T 4-section model features 360° semi-continuous rotation.

VI. Key Features & Chengli Group Advantages

• Optimal Size for Maneuverability:

  • 4.5 m (14.8 ft) wheelbase paired with 5.07 m (16.6 ft) cargo box

  • Ideal for transport applications

  • Excellent maneuverability

  • Easy turning on narrow roads

  • Perfect balance between cargo capacity and agility

• Cummins Fuel Efficiency Advantage:
  - light diesel engine technology

  • 168 HP with 3.8L displacement

  • Powerful performance with compact structure

  • High efficiency and fuel economy

  • Advantageous for long-distance

  • Euro V and Euro VI compliant with easy upgrade

  • 2,600 RPM for optimal power delivery

• Sinotruk Heavy-Duty Interior Quality:

  • Same interior quality as Sinotruk heavy trucks

  • Factory air conditioning standard

  • Central locking standard

  • Electric windows standard

  • Power steering

  • Tall and exterior design

  • Premium light truck interior experience

• XCMG Integrated Crane Design:

  • Factory self-developed hydraulic system

  • Integrated design with rear outriggers

  • All components一体化 for precision assembly

  • Refined manufacturing processes

  • XCMG factory front hydraulic circular outriggers

  • XCMG factory single-chamber hydraulic rear outriggers

  • Complete crane system integration

• Superior Stability:

  • Front outrigger span up to 5.1 m (16.7 ft)

  • Rear outrigger span 3.55 m (11.6 ft)

  • Wide stance for exceptional overturning resistance

  • Safe lifting operations

  • 360° continuous rotation (except 6.3T 4-section semi-continuous)

• Durable Cargo Box Construction:

  • 5 mm (0.2 in) floor plate with checker pattern for increased friction

  • 2 mm (0.08 in) side panels with transverse corrugation

  • Square tube longitudinal beams at subframe connections

  • Enhanced load-bearing capacity

  • Deformation-resistant design

  • Aesthetic appearance meeting national standards

  • Reduced cargo impact force during transport

• Comprehensive Safety Equipment:

  • ABS anti-lock braking system

  • Automatic brake adjusters (Euro V)

  • Adjustable headlights

  • Anti-spray mud flaps

  • Wheel chocks standard

  • Reflective vests standard

  • Essential tool kit included

• Proven Reliability:

  • Sinotruk Howo chassis from Shandong Sinotruk Group

  • Robust and solid construction

  • Cummins engine with proven fuel efficiency

  • Wanliyang 6-speed transmission with smooth shifting

  • XCMG crane with integrated design

• Chengli Group Manufacturing Excellence: As a premier special vehicle manufacturer, Chengli Group offers comprehensive customization and integration expertise. We provide extensive options including:

  • Multiple crane configurations (5T, 6.3T with 3-section or 4-section boom)

  • Choice of crane brands (XCMG, SANY, Shimei, Furu kawa)

  • Choice of boom types (straight or folding)

  • Custom cargo box configurations

  • Multiple color options

  • Fixed or hydraulic rear outrigger options

  • Elevated operator platforms

  • Work lights and accessories

  • Custom configurations for specific applications

Our commitment to quality, genuine parts availability, and comprehensive after-sales support ensures your truck equipment delivers long-term value and reliable service in the special purpose vehicle market. Each unit undergoes rigorous testing before delivery, ensuring compliance with international standards and customer satisfaction. We serve , construction contractors, logistics companies, and infrastructure developers worldwide with custom-engineered solutions tailored to specific operational requirements.
