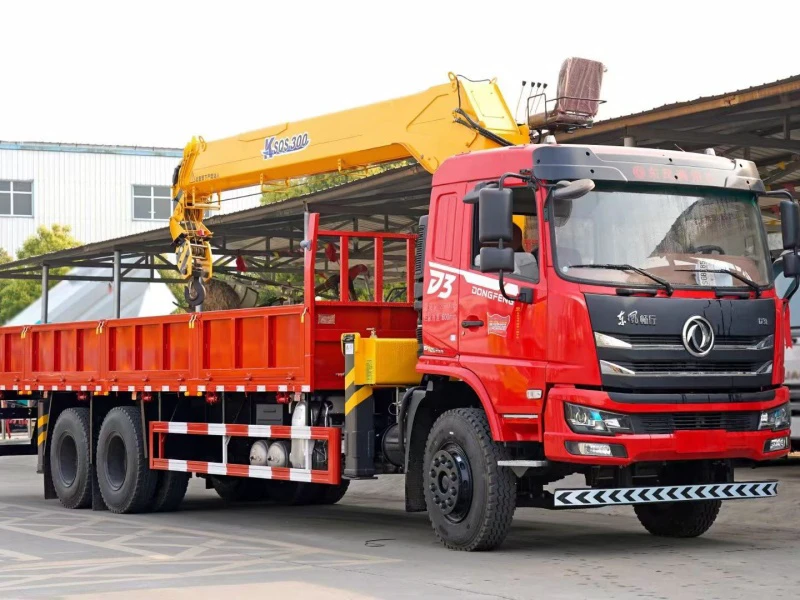

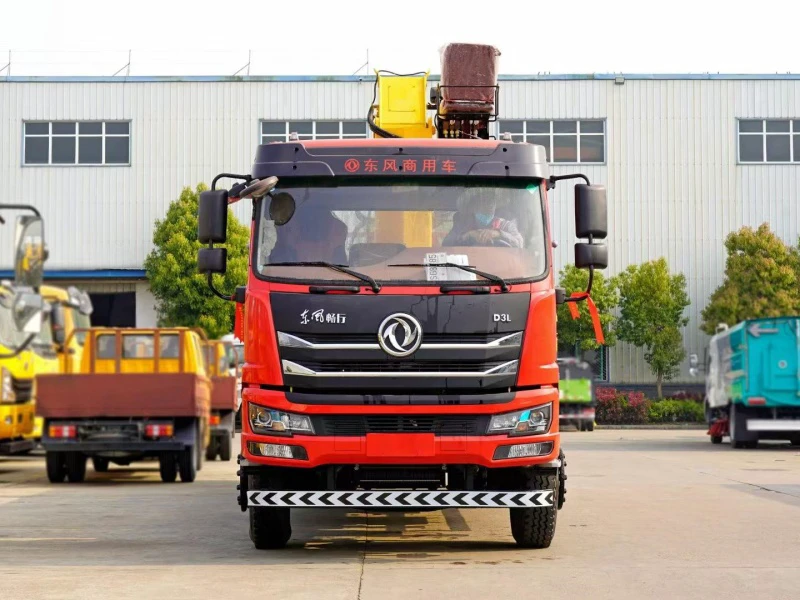

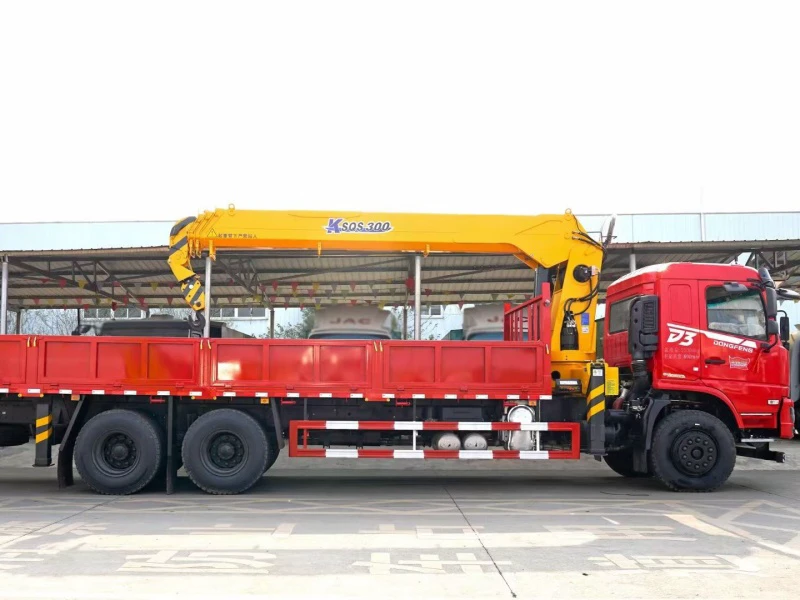

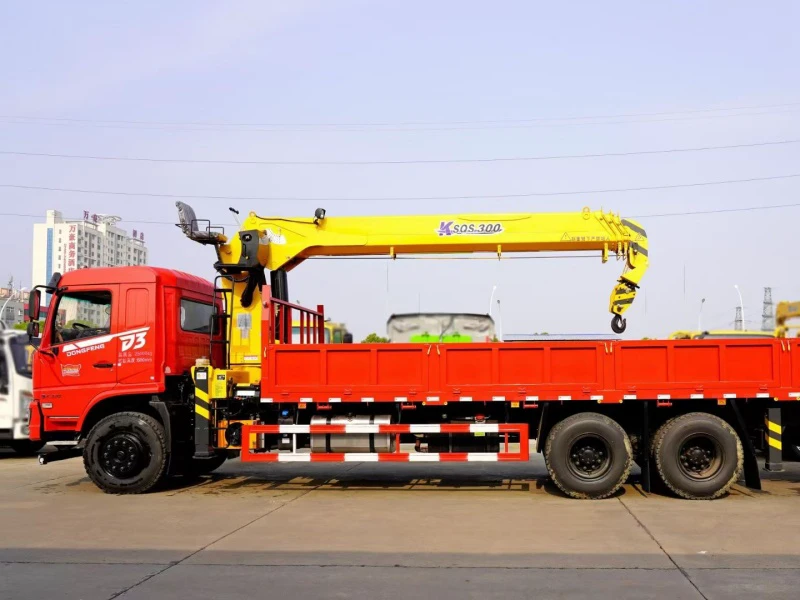

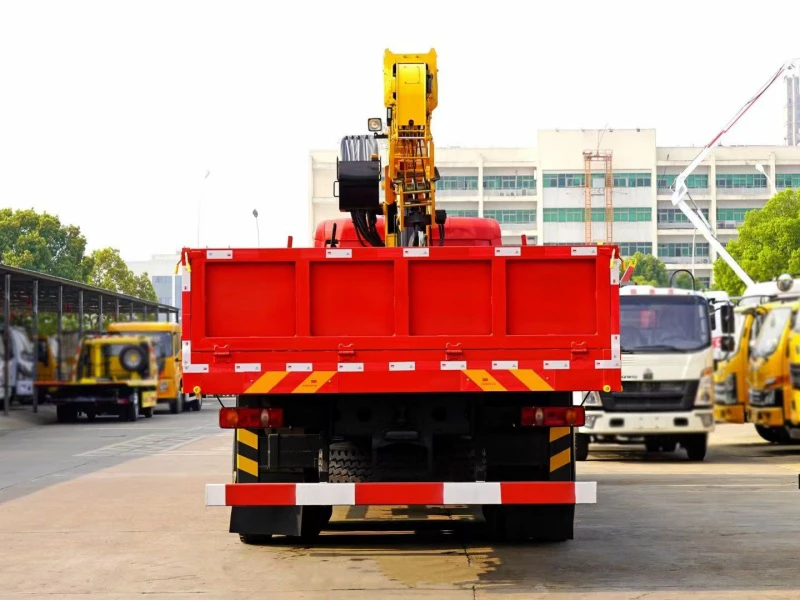

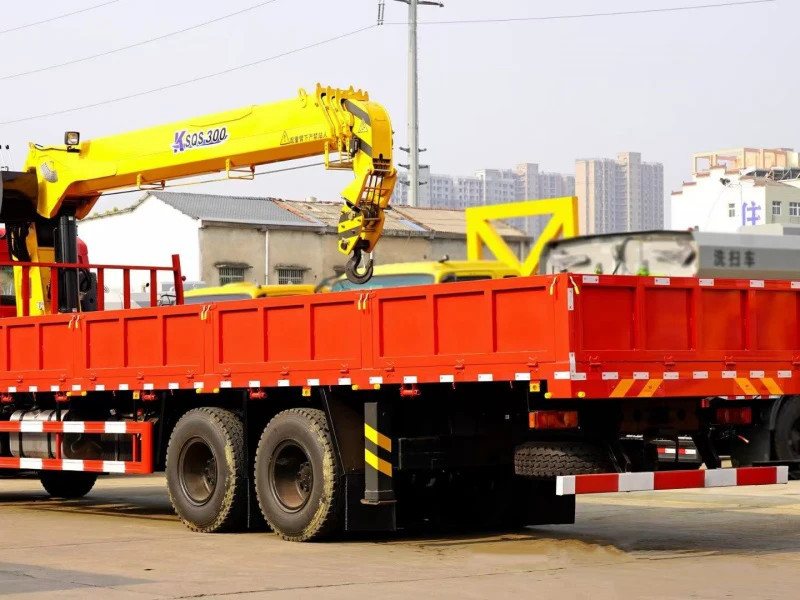

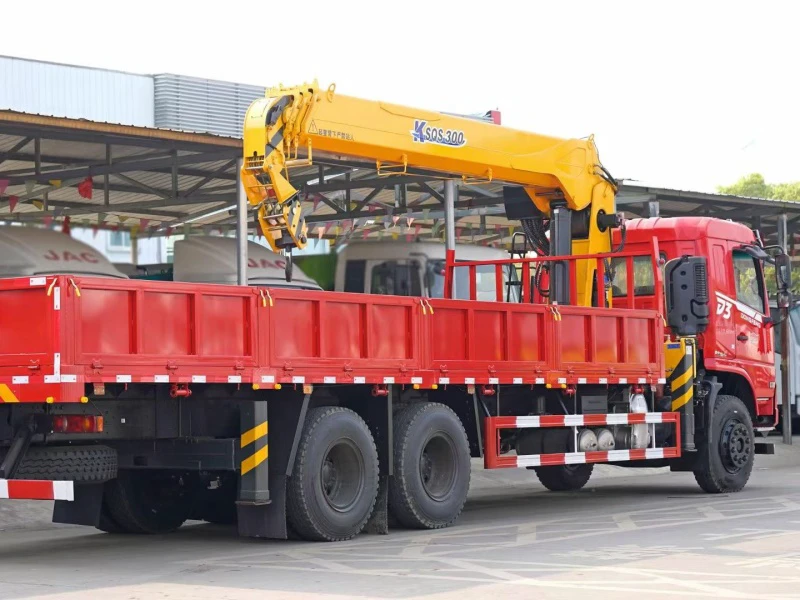

DFAC 6×4 14-ton crane truck

Dongfeng D3 Luxury Rear-Dual-Axle 14-Ton 5-Section G-Boom Crane Truck

I. Product Introduction

The Dongfeng D3 Luxury Rear-Dual-Axle 14-Ton 5-Section G-Boom Crane Truck is a heavy-duty lifting and transport vehicle designed for construction sites, logistics yards, equipment installation, and material handling. Built on the robust Dongfeng D3 rear-dual-axle chassis, this crane truck is powered by a China VI Yuchai 270 HP engine paired with a Fast 9-speed synchronized transmission. Featuring a 14-ton crane truck with a 5-section G-boom, this 6×4 crane truck delivers exceptional reach and lifting capacity. As a trusted crane truck manufacturer, CLW Group combines rugged engineering with practical design to produce reliable heavy-duty lifting and transport vehicles for global markets. The 8.2-meter cargo body provides ample space for transporting materials, making it an ideal all-in-one solution. If you are looking for competitive crane truck price, this model delivers outstanding value without compromising on quality. Optional XCMG 14-ton crane is also available.

II. Core Parameters

III. Exterior Dimensions, Cargo Box Specifications & Design Philosophy

• Overall Dimensions: 11,990 mm × 2,550 mm × 3,850 mm – designed for maximum stability and load capacity while remaining within road transport regulations.

• Cargo Box Dimensions: 8,200 mm × 2,450 mm × 550 mm – a spacious platform for transporting building materials, steel structures, pipes, machinery, and other heavy cargo.

• Cargo Box Construction: Heavy-duty steel platform with reinforced floor and side walls to withstand heavy loads and rough handling.

• Design Philosophy: "Lift and carry in one vehicle" – This crane truck combines a high-capacity cargo box with a powerful 14-ton crane truck, eliminating the need for separate lifting and transport vehicles. As a leading heavy-duty lifting and transport vehicle, the triple-layer frame and rear-dual-axle configuration provide exceptional stability during both crane operations and highway travel.

IV. Structural Advantages – Engine, Transmission, Axles & Crane System

Chassis & Powertrain

• Engine (Yuchai 270 HP China VI): Delivers strong low-end torque for heavy loads and crane PTO operation while meeting China VI emission standards. Proven reliability and fuel efficiency for demanding work cycles.

• Transmission (Fast 9-speed with synchronizer): The 9-speed manual gearbox features synchronizers for smooth, effortless shifting. A wide gear ratio range ensures smooth starts under full load and efficient cruising on highways.

• Front Axle (5.5T): Heavy-duty construction for stable steering and load distribution.

• Rear Axle (11.5T dual): The rear dual-axle configuration with 11.5T capacity provides exceptional load-carrying ability and stability, especially when the crane is operating at maximum radius.

• Frame (300 mm triple-layer): The 300mm triple-layer frame is one of the strongest in its class, offering exceptional torsional rigidity – critical for 6×4 crane truck operations and heavy hauling.

Crane System – 14-Ton 5-Section G-Boom

• Crane Capacity: 14-ton crane truck – suitable for lifting heavy equipment, prefabricated concrete elements, steel beams, and industrial machinery.

• 5-Section G-Boom: The G-boom design (optimized cross-section) provides superior strength-to-weight ratio, allowing longer reach with less deflection. Optional XCMG 14-ton crane available for customers preferring the XCMG brand.

• Max Working Radius: 18.3 meters – reach over obstacles or across wide work areas.

• Max Lifting Height: 20.3 meters – high enough for multi-story construction projects.

• 360° Full Hydraulic Full Rotation: Continuous rotation allows precise positioning without repositioning the truck.

• Upper Position Operation: The operator controls the crane from the upper station for optimal visibility of the load and work area.

• Dual Hydraulic Pump: Provides faster boom extension/retraction and smoother simultaneous movements.

• High-Power Hydraulic Cooler: Prevents overheating during intensive crane operations, ensuring consistent performance and longer component life.

• Single-Chamber Hydraulic Rear Outriggers: Provide a stable lifting platform, reducing chassis twist and improving safety.

V. Product Features & CLW Group Manufacturer Advantages

Product Features

• 14-Ton 5-Section G-Boom Crane: The 14-ton crane truck with a 5-section G-boom offers an exceptional combination of lifting capacity, reach (18.3 m radius), and height (20.3 m). Available with Dalian crane or XCMG 14-ton crane upon request. Ideal for construction, infrastructure, and industrial projects.

• 300mm Triple-Layer Frame: The ultra-strong triple-layer frame provides unmatched torsional rigidity, ensuring the chassis remains stable even when the crane operates at full extension. This is a hallmark of quality heavy-duty lifting and transport vehicle design.

• Rear-Dual-Axle Stability: The 6×4 crane truck configuration with dual rear axles distributes crane and cargo loads evenly, preventing tipping and reducing tire wear.

• Spacious 8.2-Meter Cargo Box: The 8,200 mm long cargo box can carry long materials such as steel pipes, beams, and rebar, or multiple pallets of construction supplies.

• China VI Compliance: The Yuchai 270 HP engine meets China VI emission standards, making this crane truck suitable for markets with strict environmental regulations.

• Operator Comfort: The Dongfeng D3 luxury cab features power windows, central key entry, original air conditioning, and an air suspension seat – reducing fatigue during long workdays.

• All-in-One Efficiency: Combines a heavy-duty cargo truck and a high-capacity crane in a single heavy-duty lifting and transport vehicle, saving fleet costs and reducing job site congestion.

CLW Group Manufacturer Advantages

CLW Group is a leading crane truck manufacturer in China's special-purpose vehicle industry, bringing decades of expertise to every crane truck and heavy-duty lifting and transport vehicle. Key advantages include:

• Large-Scale Production: Modern facilities with high annual capacity ensure short delivery lead times and consistent quality.

• Competitive Crane Truck Price: Economies of scale allow CLW Group to offer factory-direct crane truck pricing without compromising on quality.

• Comprehensive Quality Control: From frame welding to crane calibration, every crane truck undergoes strict pre-delivery inspection.

• Technical R&D Strength: In-house engineering team continuously optimizes crane-chassis integration and frame design for maximum stability.

• Complete Compliance Certification: All vehicles are certified under national standards with full documentation for smooth registration.

• Global Service Network: Export-ready with after-sales support and spare parts availability worldwide.

• Brand Options: Choose from Dalian, XCMG 14-ton crane, or other leading crane brands to suit your specific lifting requirements.

• Customization Capability: Options for crane brand, cargo box length, outrigger configuration, and additional hydraulic functions.
