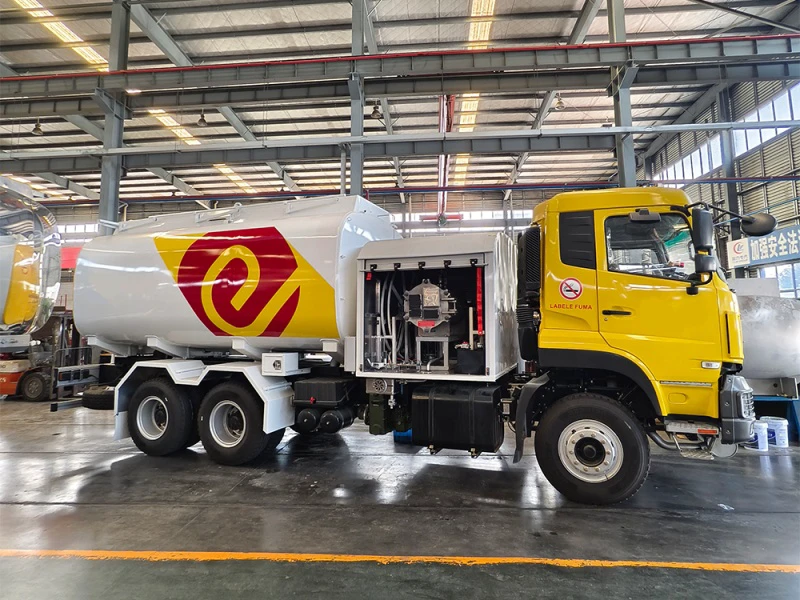

Dongfeng 6×4 20,000L Aviation Refueling Truck – Aircraft Refueling Equipment

I. Product Introduction

The Dongfeng 6×4 20,000L Aviation Refueling Truck is a professional, compact yet powerful aircraft refueling equipment designed for efficient and safe aviation fuel delivery to aircraft at airports, heliports, and military airbases. Built on a robust Dongfeng 6×4 chassis, this aviation refueling truck is powered by a 310 HP diesel engine meeting Euro 3 or Euro 6 emission standards. Featuring a 20,000 liter (20 m³) aviation fuel tank, a rapid refueling system, and comprehensive safety features, this aircraft refueling unit delivers exceptional performance for ground support operations. With a total vehicle weight of 12,220 kg and compact dimensions, this aviation fuel tanker offers excellent maneuverability around aircraft while providing substantial fuel capacity for multiple refueling operations.

II. Core Parameters

III. Exterior Dimensions, Tank Specifications, Material & Design Philosophy

• Overall Dimensions (L×W×H): 9,400 × 2,500 × 3,250 mm – compact size for safe maneuvering around aircraft parking positions. Shipping dimensions: 9,620 × 2,550 × 3,380 mm.

• Vehicle Wheelbase: 3,175 + 1,400 mm – optimized for stability and maneuverability on airport aprons.

• Total Vehicle Weight: 12,220 kg; Shipping gross weight: 15,000 kg.

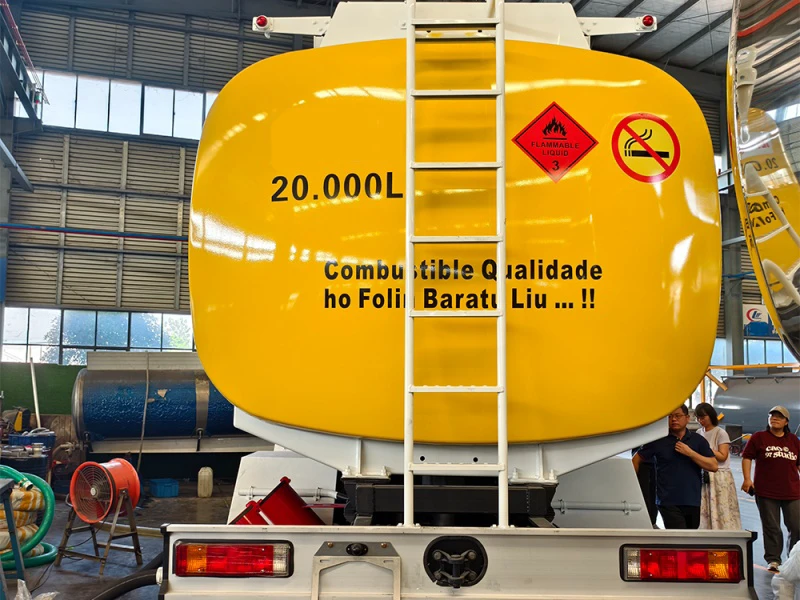

• Tank Volume: 20,000 liters (20 m³) – sufficient for multiple aircraft refueling operations per shift.

• Tank Material: High-quality carbon steel with anti-corrosion internal coating – compatible with Jet A, Jet A-1, and AVGAS aviation fuels.

• Tank Design: Multi-compartment design allows for transport of different fuel grades or separate storage of contaminated fuel. Internal baffles reduce liquid surge during transit.

• Design Philosophy: "Safety first + operational efficiency" – Every component from the 6×4 drive configuration to the aviation-grade refueling system is engineered for maximum safety during aircraft fueling. The compact dimensions allow access to tight parking positions while the rapid refueling system minimizes aircraft turnaround time.

IV. Structural Advantages – Engine, Transmission, Axles & Chassis

• Engine (310 HP Diesel – Euro 3 / Euro 6): Delivers strong low-end torque for heavy loads on airport aprons and service roads. The selectable Euro 3 or Euro 6 emission standards ensure compliance with diverse global environmental regulations, making this aviation refueling vehicle suitable for markets worldwide.

• Transmission (12-Speed Manual): Wide gear ratio range for smooth starts under full load and precise maneuvering in confined airport environments. The 12 forward gears provide optimal power delivery for both apron travel and highway transit.

• Drive Configuration (6×4): Three axles with dual rear axles provide exceptional stability for heavy aviation fuel loads. The 6×4 configuration ensures excellent weight distribution and traction on airport surfaces.

• Front & Rear Axles: Heavy-duty construction with a wheelbase of 3,175 + 1,400 mm – optimized for the 20,000 L tank capacity while maintaining a tight turning radius for aircraft parking areas.

• Chassis Frame: Reinforced ladder-type frame with crossmembers specifically engineered to support the aviation fuel tank and refueling equipment. The chassis is designed to withstand the torsional stress of airport apron operations.

• Suspension & Brakes: Heavy-duty leaf spring suspension with air brake system – provides reliable stopping power even when fully loaded with 20,000 liters of aviation fuel.

V. Product Features & CLW Group Manufacturer Advantages

Product Features

• 20,000L Large Capacity: Substantial tank volume (20,000 liters / 20 m³) reduces refueling frequency, improving operational efficiency for airport ground support operations.

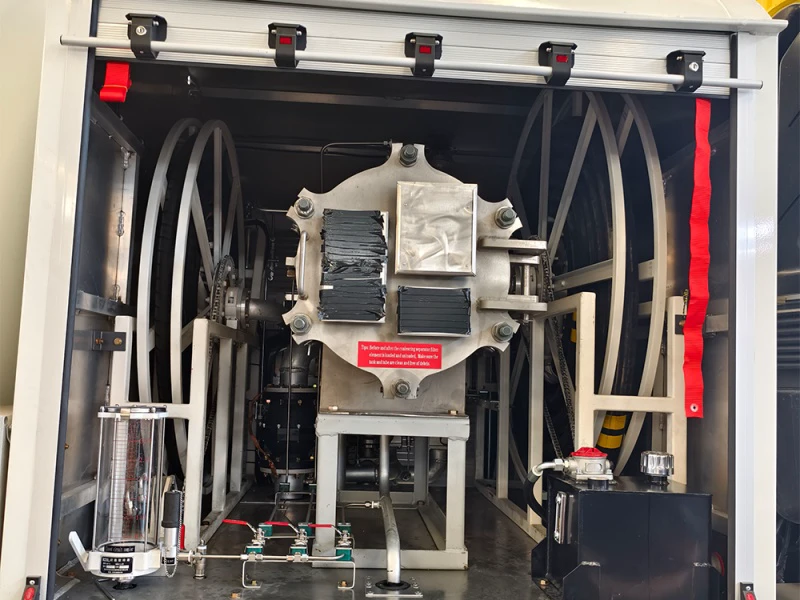

• Rapid Refueling System: High-flow rate pumps and aviation-grade components minimize aircraft turnaround time – critical for commercial and military aviation operations.

• Aviation-Grade Filtration: Multi-stage filtration system removes contaminants and water from aviation fuel, ensuring clean, safe fuel delivery to aircraft.

• Static Grounding System: Advanced static dissipation system prevents sparking during refueling operations – an essential safety feature for aircraft refueling equipment.

• Overfill Protection: Automatic shut-off system prevents tank overfill and fuel spillage, protecting aircraft and ground crew.

• Multi-Compartment Tank: Allows transport of different fuel grades (Jet A, Jet A-1, AVGAS) in a single trip or separate storage of contaminated fuel.

• Compact Dimensions (9,400 × 2,500 mm): Maneuvers safely around aircraft parking positions while maintaining substantial fuel capacity.

• 12-Speed Manual Transmission: Precise control for apron maneuvering and smooth highway cruising.

• Left-Hand Drive (RHD Optional): Suitable for airport operations worldwide, with steering configuration adaptable to local requirements.

• Euro 3 / Euro 6 Compliance: Selectable emission standards ensure compliance with diverse environmental regulations across global markets.

CLW Group Manufacturer Advantages

CLW Group (CLW Special Purpose Vehicle Co., Ltd.) , located in Hubei, China, is a leading manufacturer of special vehicles, with over 21 years of expertise in production, design, R&D, and manufacturing.

Specialized Capabilities for Aviation Refueling Equipment

• Dedicated Aviation Refueling Production Line: CLW Group operates a specialized production workshop for aviation refueling trucks, equipped with professional facilities for aviation-grade tank welding, pipeline testing, and static grounding system assembly.

• Extensive Delivery Experience: CLW Group has delivered over 500 aviation fuel refueling vehicles to airports and airbases across more than 30 countries and regions worldwide.

• Certified Component Suppliers: Core components such as fuel pumps, flow meters, filters, and refueling nozzles are sourced from internationally certified aviation equipment suppliers.

After-Sales Service Support

• Remote Technical Support: Installation guidance, operation training, and troubleshooting available through video calls.

• Spare Parts Supply: Dedicated spare parts for aviation refueling trucks (nozzle seals, filter cartridges, flow meters, etc.) are stocked year-round for rapid shipment.

• On-Site Service: Technical personnel can be dispatched to customer sites for equipment installation, commissioning, and operation training.

• One-Year Warranty: Full vehicle warranty for one year, with extended warranty options for core components (tank body, pipeline system).
