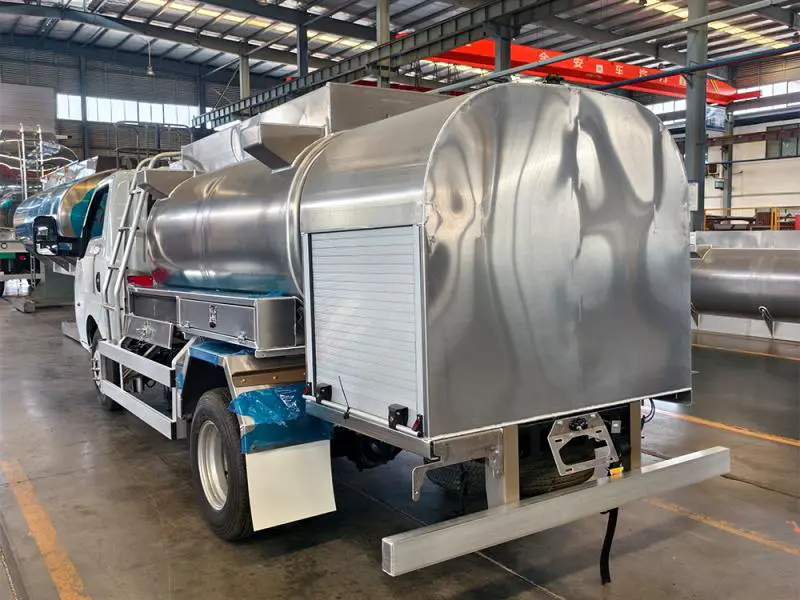

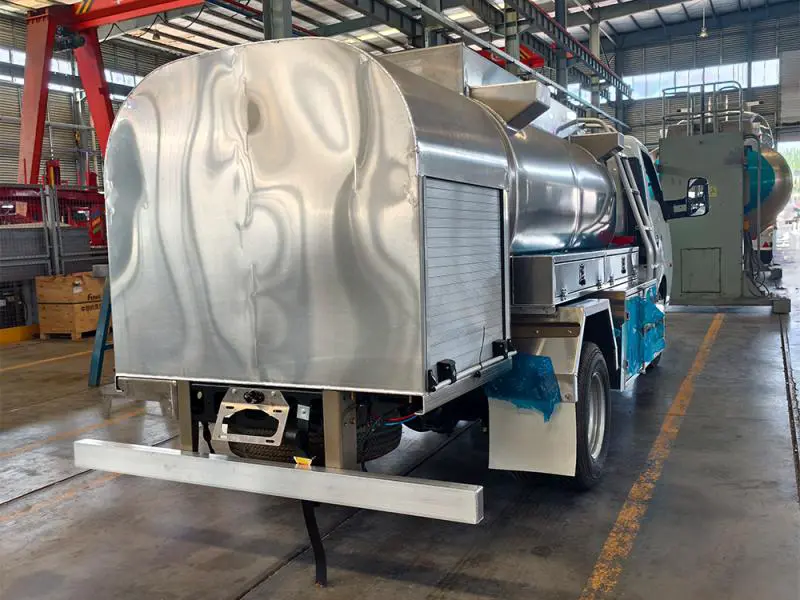

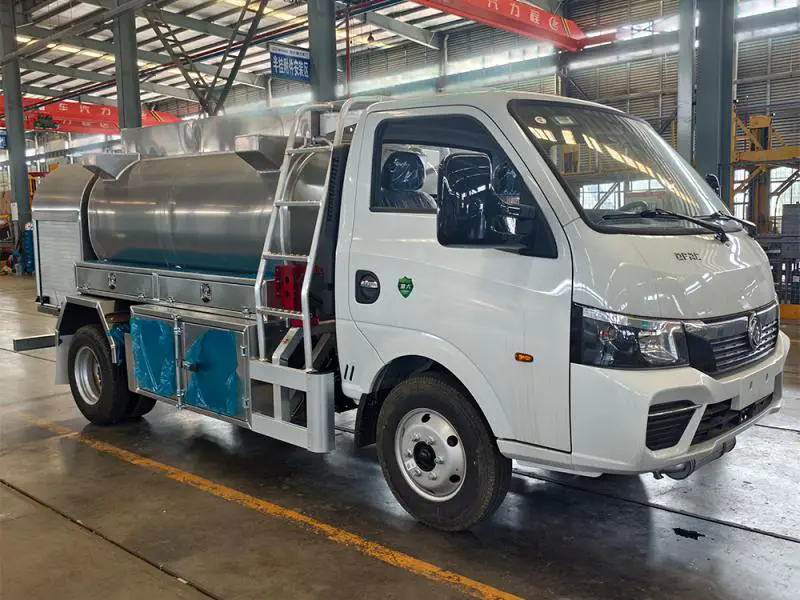

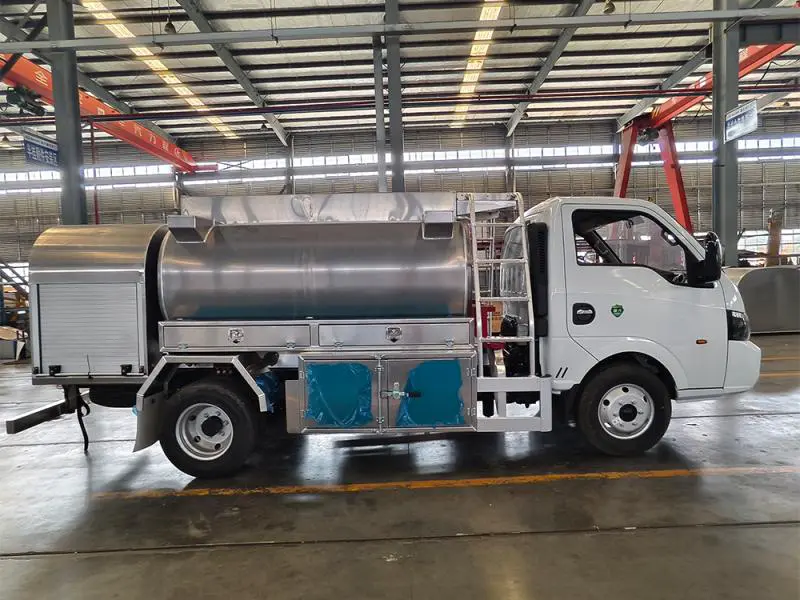

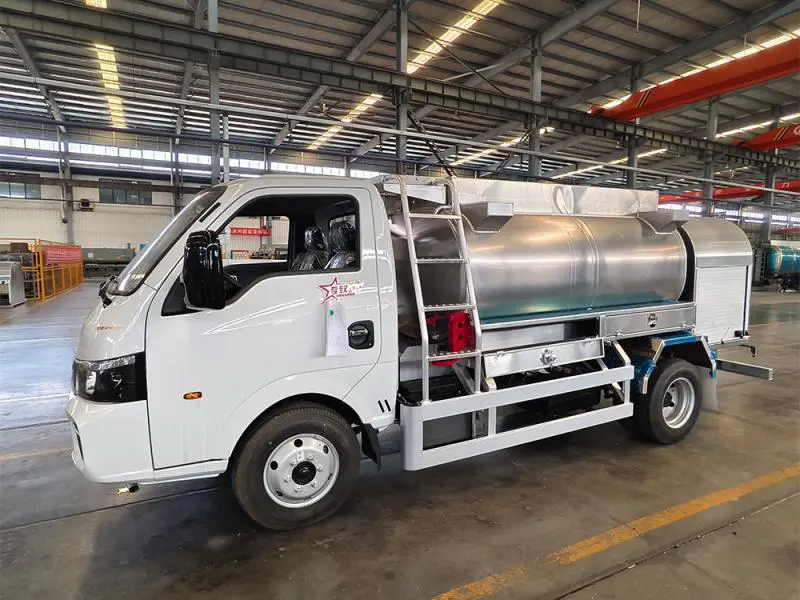

Dongfeng 4×2 Aviation Refueling Truck – Small Aircraft Refueling Vehicle

I. Product Introduction

The Dongfeng 4×2 Aviation Refueling Truck is a compact, lightweight, yet powerful small aircraft refueling vehicle designed for efficient and safe aviation fuel delivery to small aircraft, helicopters, and general aviation operations. Built on a reliable Dongfeng 4×2 chassis, this aviation refueling truck is powered by a 142 HP diesel engine meeting Euro 3 or Euro 6 emission standards. Featuring a 2.8 m³ (2,800 liter) aviation fuel tank, a rapid refueling system, and comprehensive safety features, this small aircraft refueling vehicle delivers exceptional performance for FBOs (Fixed Base Operators), heliports, small airports, and military aviation support. With a total vehicle weight of 2,450 kg and compact dimensions of 5,500 × 2,000 × 2,450 mm, this aviation fuel tanker offers excellent maneuverability in confined spaces while providing sufficient fuel capacity for multiple refueling operations.

II. Core Parameters

III. Exterior Dimensions, Tank Specifications, Material & Design Philosophy

• Overall Dimensions (L×W×H): 5,500 × 2,000 × 2,450 mm – ultra-compact size for safe maneuvering in tight aircraft parking positions, helipads, and small airport aprons.

• Vehicle Wheelbase: 2,750 mm – optimized for stability and maneuverability in confined spaces.

• Total Vehicle Weight: 2,450 kg – lightweight design for easy transport and operation.

• Tank Volume: 2.8 m³ (2,800 liters) – sufficient for multiple small aircraft or helicopter refueling operations per shift.

• Tank Material: High-quality carbon steel with anti-corrosion internal coating – compatible with Jet A, Jet A-1, and AVGAS aviation fuels.

• Tank Design: Single or multi-compartment design available – allows transport of different fuel grades or separate storage of contaminated fuel. Internal baffles reduce liquid surge during transit.

• Design Philosophy: "Compact footprint + rapid refueling" – Every component from the 4×2 drive configuration to the aviation-grade refueling system is engineered for maximum safety and efficiency in space-constrained aviation environments. The ultra-compact dimensions allow access to tight parking positions while the rapid refueling system minimizes aircraft turnaround time.

IV. Structural Advantages – Engine, Transmission, Axles & Chassis

• Engine (142 HP Diesel – Euro 3 / Euro 6): Delivers reliable power for airport aprons and service roads. The selectable Euro 3 or Euro 6 emission standards ensure compliance with diverse global environmental regulations, making this aviation refueling vehicle suitable for markets worldwide.

• Transmission (6-Speed Manual): Wide gear ratio range for smooth starts under load and precise maneuvering in confined airport environments. The 6 forward gears provide optimal power delivery for both apron travel and highway transit.

• Drive Configuration (4×2): Two-axle configuration provides excellent maneuverability in tight spaces while maintaining stability for aviation fuel loads.

• Front & Rear Axles: Lightweight yet durable construction with a wheelbase of 2,750 mm – optimized for the 2.8 m³ tank capacity while maintaining a tight turning radius for small airport operations.

• Chassis Frame: Reinforced ladder-type frame engineered to support the aviation fuel tank and refueling equipment while keeping the overall vehicle weight under 2,500 kg.

• Suspension & Brakes: Reliable suspension with hydraulic brake system – provides safe stopping power even when fully loaded with 2,800 liters of aviation fuel.

V. Product Features & CLW Group Manufacturer Advantages

Product Features

• 2.8 m³ (2,800 L) Compact Capacity: Sufficient for multiple small aircraft or helicopter refueling operations while maintaining ultra-compact dimensions for space-constrained environments.

• Rapid Refueling System: High-flow rate pumps and aviation-grade components minimize aircraft turnaround time – critical for FBOs and general aviation operations.

• Aviation-Grade Filtration: Multi-stage filtration system removes contaminants and water from aviation fuel, ensuring clean, safe fuel delivery to aircraft.

• Static Grounding System: Advanced static dissipation system prevents sparking during refueling operations – an essential safety feature for aircraft refueling equipment.

• Overfill Protection: Automatic shut-off system prevents tank overfill and fuel spillage, protecting aircraft and ground crew.

• Ultra-Compact Dimensions (5,500 × 2,000 mm): Maneuvers safely in tight aircraft parking positions, helipads, and small airport aprons.

• 6-Speed Manual Transmission: Precise control for apron maneuvering and smooth highway cruising.

• Lightweight Design (2,450 kg): Easy to transport and operate, reducing operational costs.

• Left-Hand Drive (RHD Optional): Suitable for global airport operations, with steering configuration adaptable to local requirements.

• Euro 3 / Euro 6 Compliance: Selectable emission standards ensure compliance with diverse environmental regulations across global markets.

CLW Group Manufacturer Advantages

CLW Group (CLW Special Purpose Vehicle Co., Ltd.) , located in Hubei, China, is a leading manufacturer of special vehicles, with over 21 years of expertise in production, design, R&D, and manufacturing.

Specialized Capabilities for Small Aviation Refueling Vehicles

• Dedicated Small Refueling Production Line: CLW Group operates specialized production facilities for small aircraft refueling vehicles, equipped with professional equipment for small-scale tank welding, pipeline testing, and static grounding system assembly.

• Extensive Delivery Experience: CLW Group has delivered aviation fuel refueling vehicles to FBOs, heliports, and small airports across more than 30 countries and regions worldwide.

• Certified Component Suppliers: Core components such as fuel pumps, flow meters, filters, and refueling nozzles are sourced from internationally certified aviation equipment suppliers.

After-Sales Service Support

• Remote Technical Support: Installation guidance, operation training, and troubleshooting available through video calls.

• Spare Parts Supply: Dedicated spare parts for aviation refueling trucks (nozzle seals, filter cartridges, flow meters, etc.) are stocked year-round for rapid shipment.

• On-Site Service: Technical personnel can be dispatched to customer sites for equipment installation, commissioning, and operation training.

• One-Year Warranty: Full vehicle warranty for one year, with extended warranty options for core components (tank body, pipeline system).
