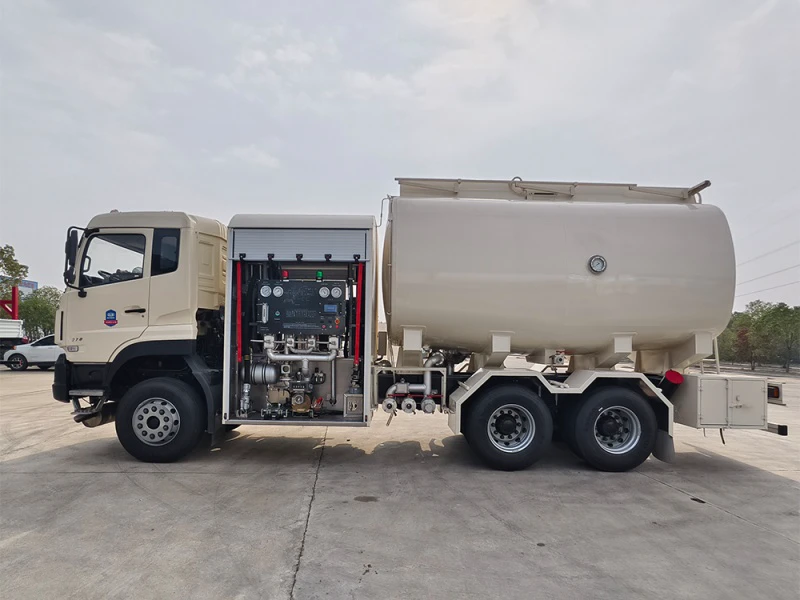

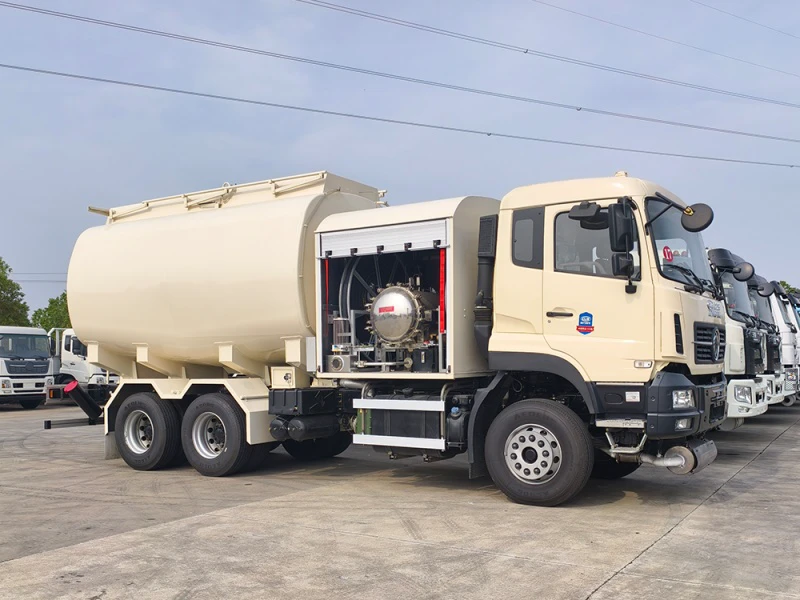

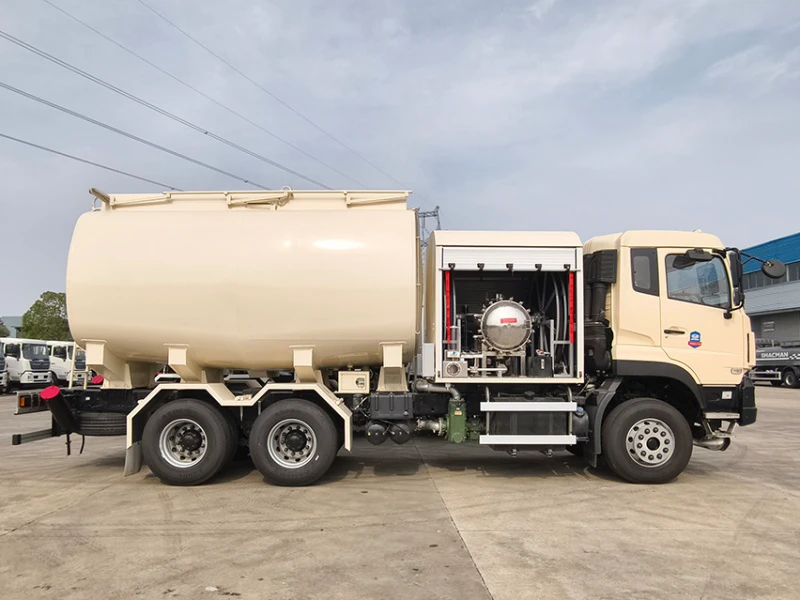

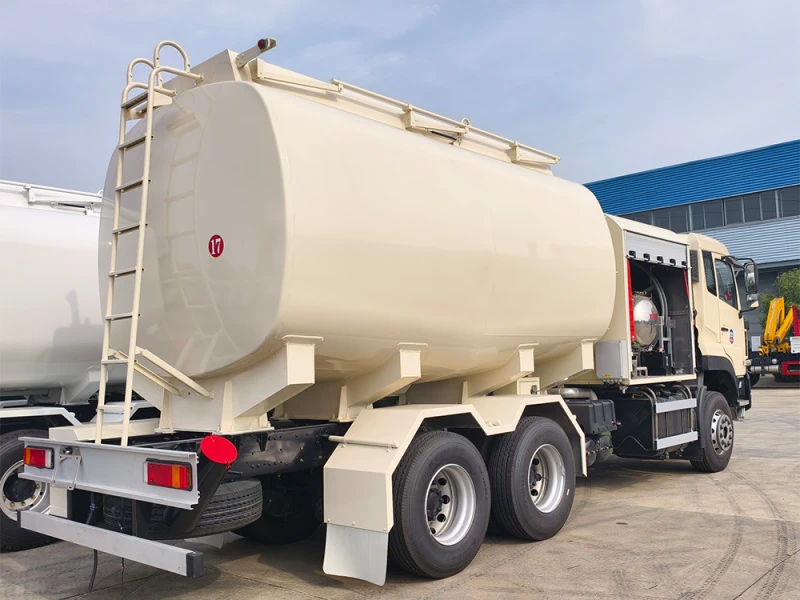

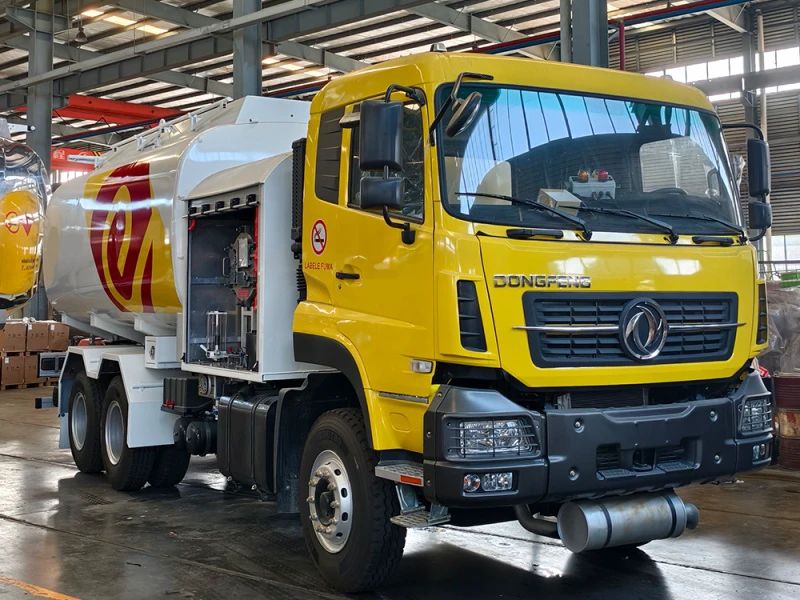

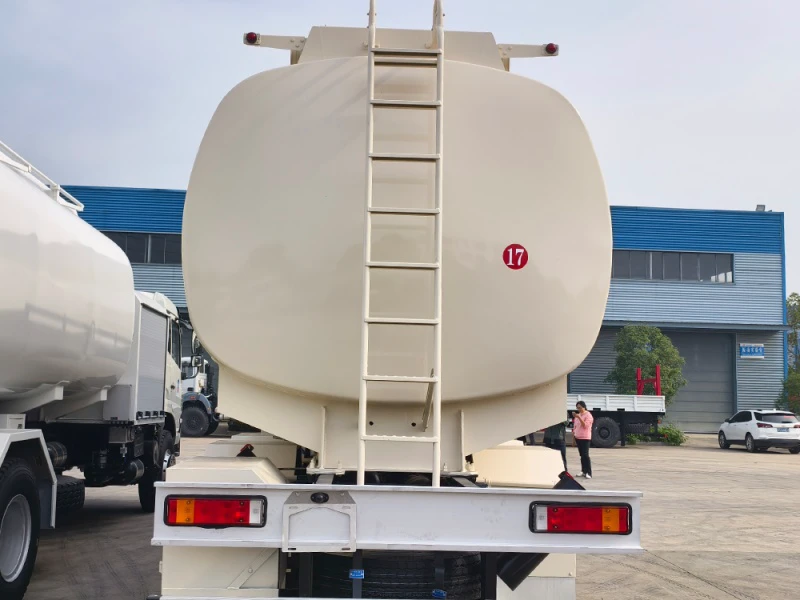

DFAC 6×4 Aviation Refueling Truck – Compact Aircraft Refueling Unit

I. Product Introduction

The DFAC 6×4 Aviation Refueling Truck is a specialized, compact yet powerful aircraft refueling unit designed for efficient and safe aviation fuel delivery to aircraft at airports, heliports, and military airbases. Built on a robust DFAC 6×4 chassis, this aviation refueling truck is powered by a 310 HP diesel engine meeting Euro 3 or Euro 6 emission standards. Featuring a 19.8 m³ (19,800 liters) aviation fuel tank, a rapid refueling system, and comprehensive safety features, this aircraft refueling unit delivers exceptional performance for ground support operations. With a gross vehicle weight of 12,220 kg and a compact overall length of 9,400 mm, this vehicle offers excellent maneuverability around aircraft while providing substantial fuel capacity for multiple refueling operations.

II. Key Specifications

III. Rapid Refueling System

The DFAC 6×4 aviation refueling truck is equipped with a high-performance rapid refueling system designed for efficient ground operations.

• High Flow Rate: Engineered for rapid fuel transfer to minimize aircraft turnaround time.

• Aviation-Grade Components: All pumps, hoses, and nozzles are certified for aviation fuel use.

• Filtration System: Multi-stage filtration removes contaminants and water from aviation fuel.

• Static Grounding: Advanced static dissipation system prevents sparking during refueling operations.

• Overfill Protection: Automatic shut-off system prevents tank overfill and fuel spillage.

IV. Chassis & Powertrain

The DFAC 6×4 aviation refueling truck is built on a reliable DFAC 6×4 chassis with proven performance.

• 6×4 Drive Configuration: Three axles with dual rear axles provide exceptional stability for heavy aviation fuel loads.

• 310 HP Diesel Engine: Delivers strong power for fully loaded transport on airport aprons and service roads. Selectable Euro 3 or Euro 6 emission standards for global market compliance.

• 12-Speed Manual Transmission: Wide gear ratio range for smooth starts under full load and precise maneuvering in confined airport environments.

• Wheelbase (3,175 + 1,400 mm): Optimized for stability and maneuverability around aircraft parking positions.

• Compact Dimensions (9,400 × 2,500 × 3,250 mm): Allows safe operation in tight aircraft parking areas while maintaining substantial fuel capacity.

V. Aviation Fuel Tank

The aircraft refueling unit features a specialized tank designed for aviation fuel storage and delivery.

• Tank Volume: 19.8 m³ (19,800 liters / 5,230 US gallons) – sufficient for multiple aircraft refueling operations per shift.

• Tank Material: High-quality carbon steel with anti-corrosion internal coating – compatible with Jet A, Jet A-1, and AVGAS aviation fuels.

• Tank Design: Multi-compartment design allows for transport of different fuel grades or separate storage of contaminated fuel.

• Safety Features: Equipped with emergency shut-off valves, pressure relief valves, and spill containment systems.

• Level Monitoring: Electronic tank level indicators for precise inventory management.

VI. Aircraft Refueling Equipment

The DFAC 6×4 aviation refueling truck is equipped with professional aircraft refueling components.

VII. Applications

The DFAC 6×4 aviation refueling truck is specifically designed for:

• Commercial Airports: Refueling passenger aircraft at gates and remote parking positions.

• Heliports & Helipads: Supporting helicopter operations with compact refueling capabilities.

• Military Airbases: Aviation fuel delivery for military aircraft operations.

• General Aviation: FBO (Fixed Base Operator) refueling services for private and business aircraft.

• Cargo Airports: Refueling freight aircraft at cargo terminals and aprons.

• Remote Airstrips: Mobile refueling support for aircraft operating from remote locations.

VIII. Product Features Summary

IX. CLW Group Manufacturer Advantages

CLW Group (CLW Special Purpose Vehicle Co., Ltd.) , located in Hubei, China, is a leading manufacturer of special vehicles, with over 21 years of expertise in production, design, R&D, and manufacturing.

Specialized Capabilities for Aviation Refueling Trucks

• Dedicated Aviation Refueling Truck Production Line: CLW Group operates a specialized production workshop for aviation refueling trucks, equipped with professional facilities for aviation-grade tank welding, pipeline testing, and static grounding system assembly.

• Aviation Fuel System Integration Experience: CLW Group has delivered over 500 aviation refueling trucks to airports and airbases across more than 30 countries and regions worldwide.

• Certified Component Suppliers: Core components such as fuel pumps, flow meters, filters, and refueling nozzles are sourced from internationally certified aviation equipment suppliers.

After-Sales Service Support

• Remote Technical Support: Installation guidance, operation training, and troubleshooting available through video calls.

• Spare Parts Supply: Dedicated spare parts for aviation refueling trucks (nozzle seals, filter cartridges, flow meters, etc.) are stocked year-round for rapid shipment.

• On-Site Service: Technical personnel can be dispatched to customer sites for equipment installation, commissioning, and operation training.

• One-Year Warranty: Full vehicle warranty for one year, with extended warranty options for core components (tank body, pipeline system).

Why Choose CLW Group?
