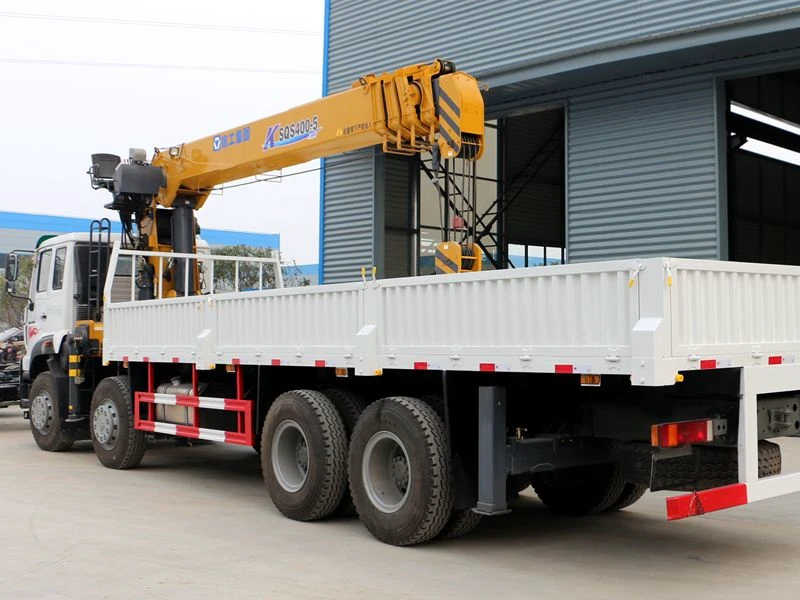

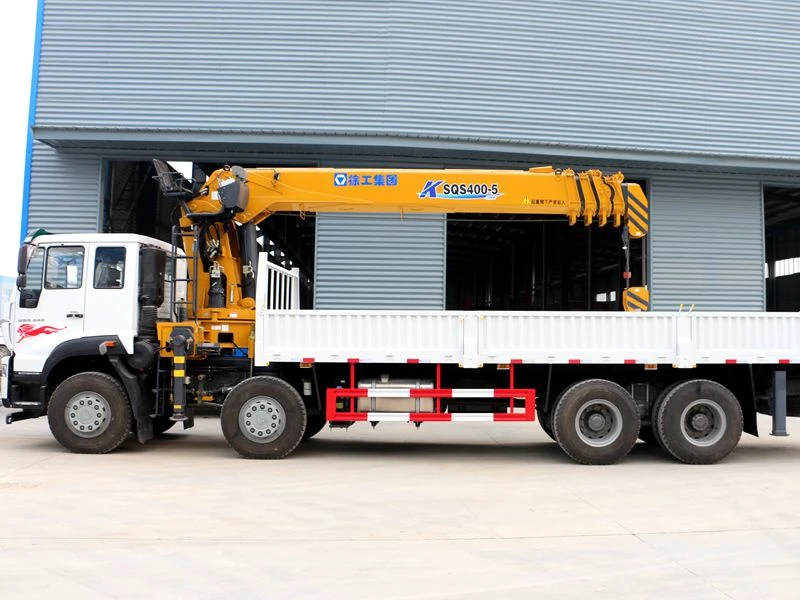

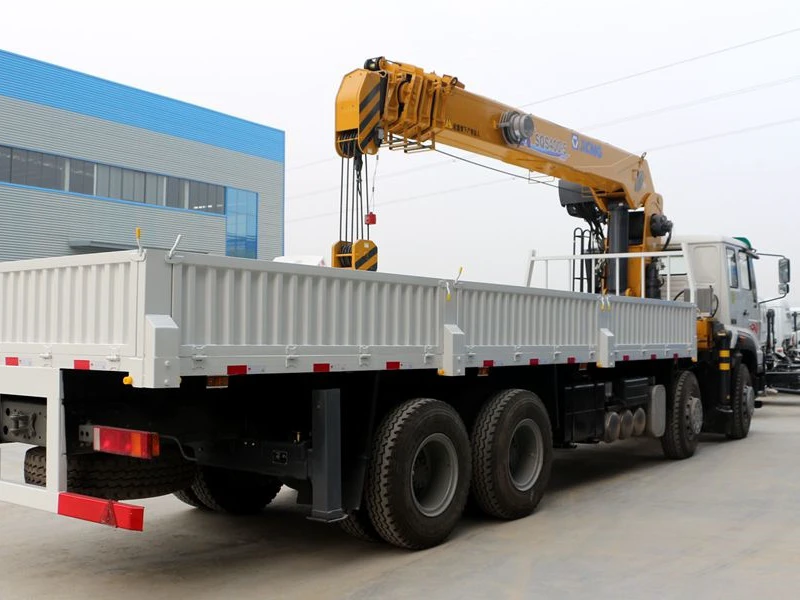

Product Introduction: Sinotruk Steyr 16-Ton Dual-Pump Truck-Mounted Crane | Sinotruk 8×4 16-ton truck-mounted crane with 16-ton XCMG crane

I. Product Overview

The Sinotruk Steyr 16-ton dual-pump truck-mounted crane is a heavy-duty material handling solution built on a specialized Sinotruk Steyr front-four rear-eight chassis. Engineered for large-scale construction, infrastructure projects, and heavy logistics operations, this unit combines the robust Sinotruk chassis with a high-performance XCMG dual-pump crane. Featuring German MAN technology across its major components and a spacious M5G cab, it delivers exceptional lifting capacity, operational efficiency, and long-term reliability. This heavy-duty crane is widely used in bridge construction, port operations, heavy equipment transport, and industrial lifting applications where high-capacity lifting performance is critical.

II. Core Specifications

III. Dimensions, Material & Design Concept

• Cargo Box Dimensions: 8,350 × 2,350 × 600 mm (27.4 × 7.7 × 2.0 feet) manufactured to national standards. The floor plate is 5 mm (0.2 inches) thick. Options include:

  • Transverse or longitudinal pattern side panels with 2 mm (0.08 inches) thickness

  • Ramp configuration available for transporting excavators and construction machinery

  • With ramp configuration: floor plate thickness increased to 8-10 mm (0.3-0.4 inches)

  • Longitudinal beams under cargo box use square tubing for enhanced load capacity

  • Cross beams spaced approximately 300 mm (11.8 inches) apart

  • Connection to XCMG factory subframe at crane mounting position for maximum load-bearing capacity

  • Multiple color options available per standards

• Chassis Frame: 300 mm (11.8 inches) straight-through double-layer with partial three-layer reinforced high-strength steel channel. This German MAN technology frame features:

  • Optimized stress distribution

  • Lightweight design with exceptional load-bearing capacity

  • Stable and safe heavy-load transport

  • Designed for demanding crane applications

• Design Philosophy: "German Engineering, Heavy-Duty Excellence." The vehicle embodies German MAN technology across its three major components (engine, transmission, frame). The M5G cab is based on the German MAN L2000 cab body, providing exceptional spaciousness and comfort. The design prioritizes heavy-load stability with optimized frame stress distribution. The crane system features XCMG's synchronous telescoping technology with dual-pump hydraulic system delivering 20% faster operation. The integrated design includes factory-matched components for precision对接.

• Primary Material: High-strength alloy steel throughout critical load-bearing components. The chassis utilizes German MAN technology frame with optimized metallurgy. The crane boom features high-tensile steel construction with synchronized telescoping mechanism. The cargo box uses national standard steel plate with reinforced square tube substructure.

IV. Detailed Component Advantages

• Superior Chassis & Cab: The Sinotruk Steyr chassis features German MAN technology throughout:

  • M5G cab based on German MAN L2000 cab body

  • Cab width: 2.2 m (7.2 feet)

  • Cab height: 1.8 m (5.9 feet)

  • Exceptionally spacious interior with high ride comfort

  • Factory air conditioning standard

  • Power steering for effortless maneuvering

  • 3-person seating capacity

  • Modern design with excellent visibility

• German MAN Technology Drivetrain:

  • Engine: Sinotruk 310 HP with German MAN technology

    • High-pressure common rail system for optimized combustion

    • Lower fuel consumption

    • Superior power delivery

    • 6,870 ml displacement

  • Transmission: Sinotruk 10-speed manual

    • Superior handling and control

    • Smooth gear changes

    • Optimized for heavy-load applications

  • Frame: German MAN technology 300 mm frame

    • Straight-through double-layer with partial three-layer reinforcement

    • Lightweight design with exceptional strength

    • Optimized stress distribution

    • Stable and safe heavy-load transport

• Advanced Braking & Safety Systems:

  • Spring brake system for fail-safe parking

  • ABS anti-lock braking system for enhanced control

  • Automatic brake adjusters meeting Euro V standards

    • Automatically adjusts brake disc clearance

    • Ensures consistent braking performance

    • Enhanced brake safety

  • OBD headlight adjustment:

    • Adjustable headlight distance based on conditions

    • Enhanced night driving safety



  • Anti-spray mud flaps:

    • Prevents mud and debris from spraying pedestrians and vehicles

    • Cleaner operation

    • Regulatory compliance

• Advanced Dual-Pump Crane Technology: The XCMG 16-ton dual-pump crane features:

  • Synchronous telescoping technology for high work efficiency

  • Dual-pump system (K Series KSQS400-5 model):

    • Two pumps supplying oil simultaneously

    • Hydraulic system flow rate: 80 L/min (21.1 US gallons/min)

    • Larger oil supply for faster lifting speeds

    • 20% faster lifting speed compared to single-pump systems

  • 360-degree continuous rotation

  • Five-section boom with synchronized extension

  • Factory XCMG hydraulic outriggers:

    • Four hydraulic outriggers standard

    • Rear outriggers: dual-chamber hydraulic type

    • Independent outrigger boxes for each outrigger

    • Large outrigger span for superior stability

  • Elevated operator platform with:

    • Electronic display for real-time load monitoring

    • Load recording capability

    • Overload electronic alarm protects boom from damage

    • Remote throttle control

    • Work lights for night operation

  • Load chart marked directly on boom for reference

  • Boom angle indicator for safe operation

V. Crane Specifications & Performance

The Sinotruk Steyr 16-ton truck-mounted crane can be equipped with various crane configurations. Below are detailed specifications for compatible crane models based on the provided parameter charts:

XCMG 16-Ton 5-Section Straight Boom Detailed Performance:

• Retracted Boom Length: 5.6 m (18.4 feet)

• Fully Extended Boom Length: 18.5 m (60.7 feet)

• Lifting Height: 20 m (65.6 feet)

• Lifting Capacities:

  • 1,000 kg (2,205 lbs) at 18.5 m (60.7 feet) extension

  • 2,200 kg (4,850 lbs) at 14.5 m (47.6 feet) extension

  • 3,200 kg (7,055 lbs) at 11.5 m (37.7 feet) extension

  • 4,200 kg (9,259 lbs) at 8.5 m (27.9 feet) extension

  • 7,000 kg (15,432 lbs) at 5.6 m (18.4 feet) extension

  • 16,000 kg (35,274 lbs) at 2.7 m (8.9 feet) extension

Dual-Pump Advantage:

• Dual pumps supply oil simultaneously

• Flow rate: 80 L/min (21.1 US gallons/min)

• 20% faster lifting speed compared to single-pump systems

• Higher work efficiency

• Standard on XCMG 16-ton configuration

Outrigger System:

• Four XCMG factory hydraulic outriggers standard

• Rear outriggers: dual-chamber hydraulic type

• Independent outrigger boxes for maximum stability

• Fully extended rear outrigger span: up to 4.75 m (15.6 feet) on 16-ton model

• Dual-chamber outriggers provide 1.1 m (3.6 feet) additional span compared to single-chamber types

• Critical role in lift safety and rollover prevention

Note: Actual lifting capacity varies with boom angle, configuration, and load chart parameters. The electronic display provides real-time load monitoring, and overload alarms protect the boom from damage.

VI. Key Features & Chengli Group Advantages

• German MAN Technology Leadership: The Sinotruk Steyr 16-ton crane features German MAN technology across three major components:

  • Engine: German MAN technology with high-pressure common rail

  • Transmission: Sinotruk 10-speed with superior handling

  • Frame: German MAN technology 300 mm frame with optimized stress distribution

  • Cab: Based on German MAN L2000 cab body

  • Technology in heavy-duty truck segment

• Dual-Pump Speed Advantage:

  • 20% faster lifting speed compared to single-pump systems

  • Dual pumps (80 L/min total flow) for larger oil supply

  • Faster cycle times for improved productivity

  • Higher work efficiency on job sites

  • Standard on XCMG 16-ton configuration

• Superior Stability System:

  • Four XCMG factory hydraulic outriggers

  • Dual-chamber hydraulic rear outriggers with independent outrigger boxes

  • Fully extended rear outrigger span: up to 4.75 m (15.6 feet)

  • 1.1 m (3.6 ft) additional span over single-chamber designs

  • Critical for overturning resistance and lift safety

  • Wide stance ensures exceptional stability during maximum capacity lifts

• Advanced Safety & Monitoring:

  • Electronic display on elevated platform:

    • Real-time load monitoring

    • Load recording capability

    • Overload electronic alarm prevents boom damage

  • Boom angle indicator marked on boom

  • Load chart for reference

  • ABS anti-lock braking system

  • Automatic brake adjusters meeting Euro V standards

  • OBD headlight adjustment for night safety

  • Anti-spray mud flaps for clean operation

  • Work lights for night operation

• Heavy-Duty Cargo Box Construction:

  • National standard dimensions: 8.35 × 2.35 × 0.6 m

  • Floor thickness: 5 mm standard, 8-10 mm with ramp configuration

  • Side panels: 2 mm with transverse or longitudinal pattern options

  • Square tube longitudinal beams for enhanced load capacity

  • Cross beams spaced at 300 mm intervals

  • Connection to XCMG factory subframe at crane mounting

  • Maximum load-bearing capacity

  • Ramp option for excavator and machinery transport

• Enhanced Operator Environment:

  • Spacious M5G cab based on German MAN L2000

  • Cab width: 2.2 m (7.2 ft), height: 1.8 m (5.9 ft)

  • Factory air conditioning standard

  • Power steering

  • 3-person capacity

  • High ride comfort

  • Elevated operator platform with electronic display

  • Remote throttle control

  • Work lights for night visibility

• Integrated XCMG-Sinotruk Engineering:

  • Hydraulic system and components by XCMG

  • One-to-one matching for precision

  • Factory-matched subframe at crane mounting

  • Optimized system performance

• Chengli Group Manufacturing Excellence: As a premier special vehicle manufacturer, Chengli Group offers comprehensive customization and integration expertise. We provide extensive options including:

  • Multiple crane configurations (12T, 14T, 16T options)

  • Choice of crane brands (XCMG, SANY)

  • Choice of boom types (straight or folding)

  • Dual-pump or standard hydraulic systems

  • Ramp configurations for machinery transport

  • Custom cargo box configurations

  • Multiple color options per standards

  • Fixed or hydraulic rear outrigger options

  • Elevated operator platforms

  • Work lights and accessories

  • Custom configurations for specific applications

Our commitment to quality, genuine parts availability, and comprehensive after-sales support ensures your truck equipment delivers long-term value and reliable service in the special purpose vehicle market. Each unit undergoes rigorous testing before delivery, including load testing, road testing, and inspection ensuring compliance with international standards and customer satisfaction. We serve heavy construction contractors, infrastructure developers, mining operations, port operators, and logistics companies worldwide with custom-engineered solutions tailored to specific operational requirements.
