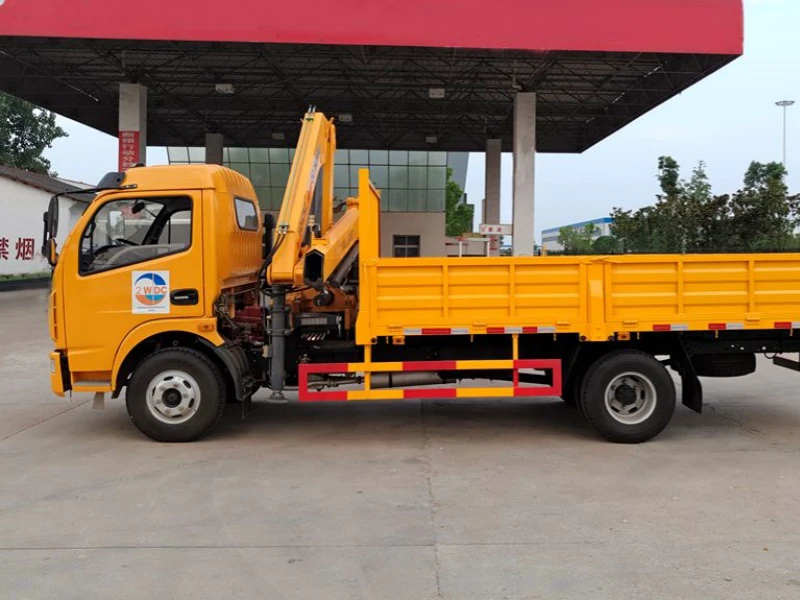

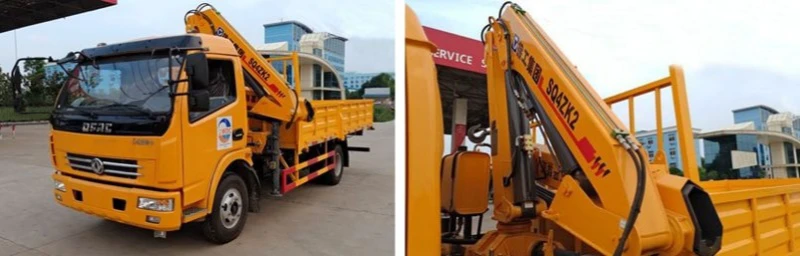

Product Introduction: Dongfeng 5-Ton Truck-Mounted Crane | Dongfeng 5-Ton Truck-Mounted Crane with XCMG 5-Ton Folding Boom Crane | Dongfeng 5-Ton Folding Boom Truck-Mounted Crane

I. Product Overview

The Dongfeng 5-ton truck-mounted crane is a compact and agile material handling solution built on a specialized Dongfeng chassis. Engineered for light to medium-duty lifting tasks in construction, warehousing, and logistics, this unit combines a reliable Dongfeng chassis with a high-performance crane. Featuring a short wheelbase design for excellent maneuverability, it is an ideal choice for operators requiring dependable light-duty crane capabilities for efficient material handling and lifting operations in confined spaces. This crane truck is widely used in warehouse loading, urban construction, and industrial maintenance applications where compact equipment performance is essential.

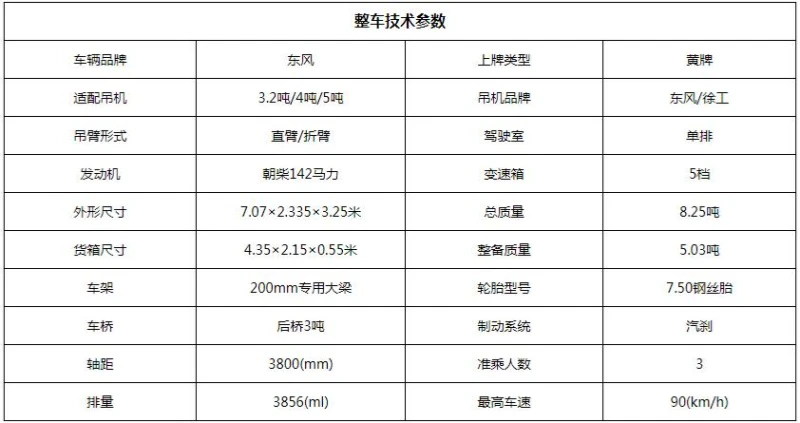

II. Core Specifications

III. Dimensions, Material & Design Concept

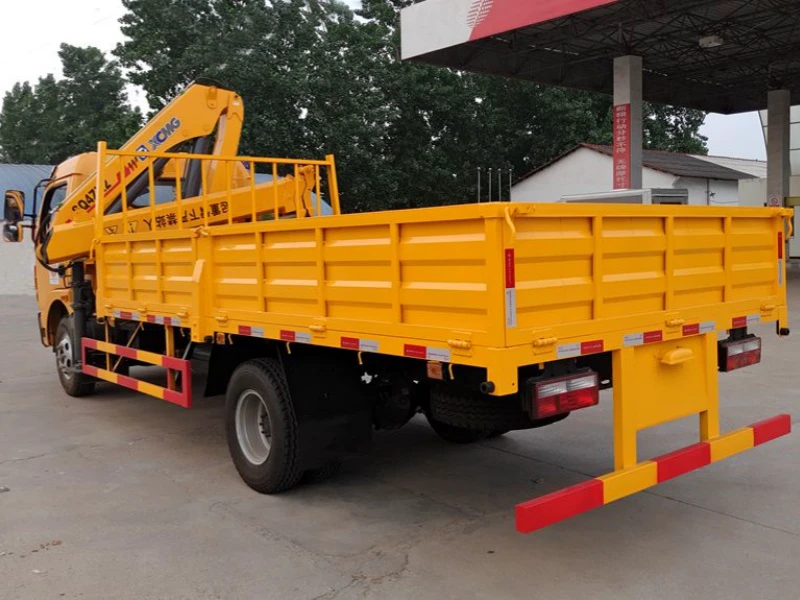

• Cargo Box Dimensions: 4,350 × 2,150 × 550 mm (14.3 × 7.1 × 1.8 feet). This durable flatbed or cargo bed is constructed with high-strength materials for long-lasting performance. The design accommodates various cargo handling requirements for diverse applications including light construction material transport and equipment hauling.

• Chassis Frame: 200 mm (7.9 inches) high-strength steel channel specifically designed for crane applications. The frame provides optimal load-bearing capacity while maintaining lightweight construction for improved fuel efficiency.

• Design Philosophy: "Agility Through Intelligent Design." The vehicle is built around a philosophy of compact efficiency and operational versatility. The short wheelbase design (3,800 mm) provides exceptional maneuverability for mountain roads and confined spaces. The design offers both straight and folding boom options to suit different operational environments—straight booms for open areas requiring maximum reach, and folding booms for tight spaces requiring flexibility. The crane technology incorporates advanced features including four-link mechanisms and flange-type telescopic boom connection.

• Primary Material: High-strength alloy steel throughout critical load-bearing components. The crane boom features optimized geometry for maximum strength-to-weight ratio. The chassis utilizes reinforced construction for durability while maintaining lightweight characteristics.

IV. Detailed Component Advantages

• Superior Chassis Design: The Dongfeng chassis is specifically engineered for small crane applications with a short wheelbase (3,800 mm / 12.5 feet) providing:

  • Excellent turning radius for mountain road navigation

  • Superior maneuverability in confined spaces

  • Stable platform for crane operations

  • Ideal for small-scale construction equipment applications

• Reliable Drivetrain: The Chaochai 142 HP diesel engine delivers proven performance with:

  • Mature technology with extensive field validation

  • Cost-effective maintenance and parts availability

  • Reliable power output for light to medium-duty applications

  • 3,856 ml displacement providing optimal torque characteristics
    Paired with the 5-speed manual transmission, the drivetrain ensures efficient power delivery for both highway transport and crane operations.

• Durable Running Gear: The heavy-duty front axle (1.5T capacity) and rear axle (3T capacity) provide appropriate load support for the vehicle's 8.25-ton gross weight rating. The braking system features air brakes with ABS for enhanced safety. Additional features include power steering for effortless maneuverability, central locking for security, and electric windows for operator convenience.

• Versatile Crane Technology: The crane offers both straight and folding boom configurations:

  • Straight boom cranes: Larger working radius ideal for open environments like construction sites and open fields

  • Folding boom cranes: Compact design with flexible joint operation ideal for confined spaces like warehouses and factories
    The folding boom features:

  • Four-link mechanism for enhanced lifting capacity

  • Flange-type telescopic boom connection technology

  • Self-developed slewing mechanism with strong driving force for various working conditions

  • Rack-and-pinion rotation for smaller cranes (full rotation for 4T and above)

  • Three hydraulic cylinders for faster operation and higher efficiency

V. Crane Specifications & Performance

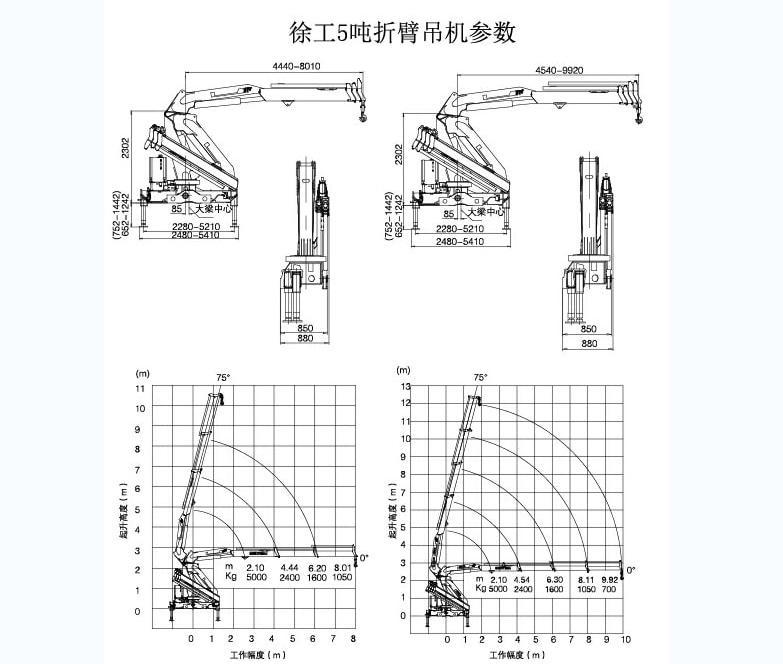

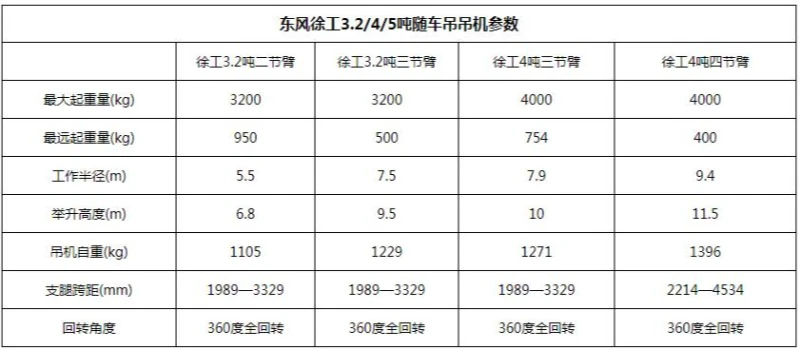

The Dongfeng 5-ton truck-mounted crane can be equipped with various crane configurations. Below are detailed specifications for compatible crane models based on the provided parameter charts:

XCMG 5-Ton 4-Section Boom Performance (Reference from text):

• Retracted Boom Length: 3.6 m (11.8 feet)

• Fully Extended Boom Length: 11 m (36.1 feet)

• Lifting Height: 12.5 m (41.0 feet)

• Lifting Capacities:

  • 400 kg (882 lbs) at 11 m (36.1 feet) extension

  • 1,500 kg (3,307 lbs) at 6.05 m (19.8 feet) extension

  • 5,000 kg (11,023 lbs) at 2.5 m (8.2 feet) extension

XCMG 4-Ton 3-Section Folding Boom Performance (Reference from text):

• Working Radius: 7.3 m (24.0 feet)

• Lifting Height: 10.2 m (33.5 feet)

• Rotation: Rack-and-pinion type (full 360° rotation for 4T and above)

• Composed of 3 hydraulic cylinders for faster operation

• Ideal for confined spaces like warehouses

Note: Actual lifting capacity varies with boom angle, configuration, and load chart parameters. Different crane brands and models will produce varying working radii, lifting heights, and load capacities.

VI. Key Features & Chengli Group Advantages

• Superior Maneuverability: The Dongfeng 5-ton crane features exceptional mobility characteristics:

  • Short 3,800 mm (12.5 feet) wheelbase for tight turning radius

  • Ideal for mountain road navigation and confined job sites

  • One of the most advantageous small crane options in its class

  • Excellent maneuverability in urban environments

• Versatile Boom Configurations: The vehicle offers both straight and folding boom options:

  • Straight boom: Larger working radius (up to 11 m / 36.1 feet) ideal for open environments like construction sites and fields

  • Folding boom: Compact with flexible joints ideal for confined spaces like warehouses and factories

  • Folding boom mounted behind cab allows transport of oversized cargo without interference

  • Unique advantage over straight boom designs that must rotate to cab-forward position for transport

• Folding Boom Advantages:

  • Four-link mechanism for enhanced lifting capacity

  • Flange-type telescopic boom connection technology

  • Self-developed slewing mechanism with strong driving force

  • Three hydraulic cylinders for faster operation cycles

  • Higher efficiency in confined spaces

  • Control valves located beneath boom, right side of outriggers

  • Dual-side operation capability (left and right)

  • Remote throttle mounted on right side of control valve for easy operation

  • Simple, convenient, and flexible controls

• Enhanced Operator Features: The crane incorporates numerous features for operator comfort:

  • Power steering for effortless maneuvering

  • Central locking for security

  • Electric windows for convenience

  • Single row cab with 3-person capacity

  • ABS for enhanced braking safety

  • Air brake system for reliable stopping power

• Maintenance Considerations:

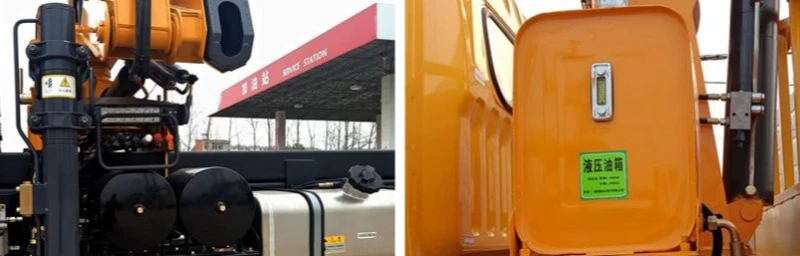

  • Hydraulic oil must match specific model requirements

  • Mixing different hydraulic oil types not recommended

  • Strict seasonal differentiation required (winter vs. summer grades)

  • Follow maintenance manual specifications for oil changes

  • Proper maintenance extends hydraulic system service life

  • Ensures normal operating condition

• Chengli Group Manufacturing Excellence: As a premier special vehicle manufacturer, Chengli Group offers comprehensive customization and integration expertise. We provide extensive options including:

  • Multiple crane configurations (3.2T, 4T, 5T options)

  • Choice of crane brands (XCMG, Dongfeng, SANY, Shimei, Zoomlion)

  • Choice of boom types (straight or folding)

  • Fixed or hydraulic rear outrigger options

  • Custom configurations for specific applications

Our commitment to quality, genuine parts availability, and comprehensive after-sales support ensures your truck equipment delivers long-term value and reliable service in the special purpose vehicle market. Each unit undergoes rigorous testing before delivery, ensuring compliance with international standards and customer satisfaction. We serve fleet operators, construction companies, warehouse operators, and logistics providers worldwide with custom-engineered solutions tailored to specific operational requirements.
