JMC Electric Refrigerated Truck – 3.7-Meter Cargo Box for Zero-Emission Cold Chain Delivery

I. Product Introduction

The JMC Electric Refrigerated Truck is a zero-emission cold chain vehicle designed for urban and suburban frozen and chilled cargo transport. Built on the reliable JMC E-Shunda electric chassis, this vehicle is powered by a 64 kWh CATL battery delivering 123 HP (90 kW) and 240 N·m of torque.

With a 3.7-meter insulated cargo box and a CLTC range of 300 km, this 3.7-Meter Electric Refrigerated Truck is ideal for last-mile delivery of meat, seafood, dairy products, fruits, vegetables, and pharmaceuticals.

Featuring fast charging (30% to 80% in 30 minutes), intelligent features including remote start, smart battery top-up, kinetic energy recovery, and OTA updates, this electric refrigerated van offers exceptional efficiency for urban logistics.

II. Core Parameters

III. Exterior Dimensions, Box Specifications & Design Philosophy

The zero-emission cold chain vehicle operates without tailpipe emissions, making it ideal for cities with low-emission zones and strict environmental regulations.

With a compact footprint of 5,595 × 2,020 × 2,845 mm, this vehicle is optimized for urban delivery routes, narrow streets, and underground parking garages.

The cargo box measures 3,700 × 1,860 × 1,850 mm, providing approximately 12.7 cubic meters of insulated storage capacity for palletized goods or bulk products.

The 3,100 mm wheelbase provides excellent stability for urban delivery routes while maintaining a tight turning radius for city driving.

IV. Structural Advantages – Battery, Powertrain, Chassis & Cargo Box

Battery & Charging System

The vehicle is powered by a 64 kWh CATL battery, a globally trusted brand for electric vehicle batteries ensuring reliability, safety, and long cycle life.

Fast charging is standard, allowing the battery to charge from 30% to 80% in just 30 minutes, minimizing downtime during the workday.

The onboard charger supports 6.6 kW charging power, which is significantly faster than competitors that offer no slow charging or less than 3 kW.

Powertrain & Performance

The electric motor delivers 123 HP and 240 N·m of torque, providing ample power for fully loaded refrigerated transport on urban and suburban routes.

CLTC energy consumption is just 18.5 kWh/100 km, reducing operating costs compared to diesel-powered refrigerated trucks.

The urban electric truck is designed specifically for city delivery operations, with a CLTC range of 300 km sufficient for full-day routes.

Kinetic energy recovery captures energy during braking and deceleration, extending range and reducing brake wear.

Smart Features

Remote start allows the driver to start the vehicle remotely for cabin preconditioning, especially useful for pre-cooling the refrigerated cargo area.

Smart battery top-up maintains optimal battery state of charge, protecting battery health over the long term.

OTA updates ensure the vehicle's software remains current without dealer visits, reducing maintenance downtime.

The floating combination display provides clear, easy-to-read vehicle data at a glance, enhancing driver awareness.

Electric air conditioning maintains cabin comfort without consuming significant battery range, even during hot summer days.

The column shifter is mounted on the steering column, freeing up cabin space and providing ergonomic operation.

Chassis & Braking

The 3,100 mm wheelbase provides excellent stability and a smooth ride for refrigerated cargo.

The 185/R14 tires are durable and suitable for daily urban delivery routes.

The hydraulic brake system (oil brake) provides reliable stopping power with ABS compatibility for safe operation under all load conditions.

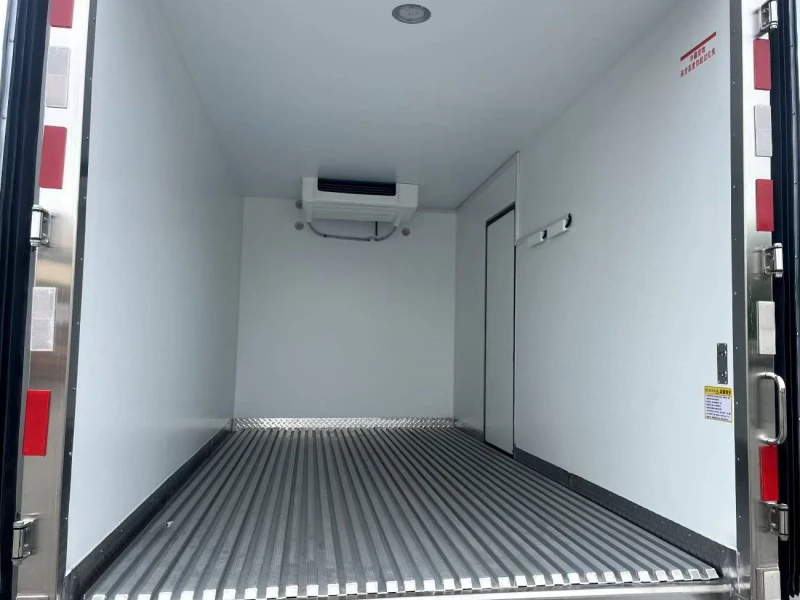

Cargo Box & Refrigeration

The cargo box measures 3,700 × 1,860 × 1,850 mm, providing approximately 12.7 m³ of insulated storage capacity.

High-density foam insulation with durable panel construction ensures temperature stability for chilled and frozen cargo.

The vehicle is pre-engineered for installation of a refrigeration unit, compatible with leading brands such as Carrier and Thermo King.

V. Product Features

This JMC Electric Refrigerated Truck delivers zero-emission operation with no tailpipe emissions, making it ideal for low-emission zones.

The 3.7-meter cargo box provides approximately 12.7 m³ of insulated storage capacity for frozen and chilled products.

Frozen food transport is a primary application, with the insulated cargo box maintaining stable temperatures for meat, seafood, and ice cream.

The pharmaceutical cold chain is another key application, with precise temperature control ensuring the integrity of temperature-sensitive medicines and vaccines.

The 300 km CLTC range is sufficient for full-day urban delivery operations, reducing range anxiety for fleet operators.

Thirty-minute fast charging (30% to 80%) minimizes downtime during the workday, allowing drivers to charge between routes.

The 6.6 kW OBC provides faster slow charging than competitors, charging from 20% to 100% in just 8.5 hours.

Low energy consumption (18.5 kWh/100 km) reduces operating costs compared to diesel refrigerated trucks.

Kinetic energy recovery extends range and reduces brake wear by capturing energy during deceleration.

Remote start, smart battery top-up, and OTA updates enhance operational convenience and vehicle longevity.

The column shifter provides ergonomic operation and frees up cabin space for a more comfortable work environment.

The floating combination display provides clear, easy-to-read vehicle data at a glance.

Electric air conditioning maintains cabin comfort without significant range penalty.

Four-way adjustable seats and steering wheel allow drivers to customize their driving position, reducing fatigue on multi-stop routes.

Bluetooth connectivity enables hands-free calling for safe communication during deliveries.

VI. JMC Manufacturer Advantages

Jiangling Motors Corporation (JMC) is a leading manufacturer of light-duty commercial vehicles and electric trucks in China, with extensive experience in developing and manufacturing electric commercial vehicles.

The factory-integrated CATL battery system, supplied by the world's largest EV battery manufacturer, ensures safety, reliability, and long cycle life.

JMC has years of experience in manufacturing refrigerated trucks and cold chain vehicles for global markets, ensuring expertise in insulation and refrigeration integration.

Remote start, OTA updates, and smart battery management systems are standard features, not optional extras, providing superior value.

The 6.6 kW OBC provides faster slow charging than competitors, reducing downtime and improving operational efficiency.

JMC's extensive after-sales network provides parts and service availability worldwide, ensuring long-term support for fleet operators.

Competitive pricing combined with low operating costs makes this electric refrigerated truck an excellent investment for urban cold chain operators.

VII. CLW Group Manufacturer Advantages

CLW Group (CLW Special Purpose Vehicle Co., Ltd.) is a leading manufacturer of special-purpose vehicles in China, bringing decades of expertise to every vehicle project.

As a trusted partner for electric refrigerated truck conversions, CLW Group provides professional customization and upfitting services for JMC electric chassis.

CLW Group operates modern production facilities with industry-leading annual capacity, ensuring short delivery lead times and stable supply for refrigerated truck bodies.

A strict quality management system is implemented from raw material procurement to final assembly, ensuring every refrigerated box meets rigorous standards.

The professional R&D team continuously optimizes insulation materials, box structure, and refrigeration integration for diverse market requirements.

CLW Group maintains a comprehensive after-sales service network for exported vehicles, providing technical support and parts supply worldwide.

Flexible manufacturing processes allow for customization of box dimensions, refrigeration unit brands, temperature ranges, and interior fittings to meet specific customer needs.

CLW Group offers competitive pricing without compromising on quality, making it a trusted choice for cold chain transport operators globally.
