Maxus V1 Electric Ambulance – Zero-Emission Medical Transport & Mobile ICU Vehicle

I. Product Overview
The Maxus V1 Electric Ambulance is a new-energy medical rescue and patient transport vehicle professionally converted from the SAIC Maxus V1 pure electric platform. Offering both Mobile Intensive Care Unit (MICU) and Non-Emergency Patient Transport configurations, this zero-emission ambulance achieves silent, eco-friendly operation. It is specifically engineered for urban emergency medical services (EMS), hospital patient transfers, and various medical support missions. Integrating a complete medical cabin system, advanced electric powertrain, and comprehensive safety features, it represents a modern, sustainable mobile medical unit.

II. Key Specifications

• Vehicle Model: EHY5030XJHBEVSQT

• Chassis Model: SH6520U1BEV-Z62 (SAIC Maxus V1 BEV platform)

• Dimensions (LxWxH): 5440/5250 × 1870 × 2250/2320/2420 mm

• Gross Vehicle Weight (GVW): 3495 kg

• Seating Capacity: 5-9 persons

• Powertrain Type: Battery Electric Vehicle (BEV)

• Motor Model/Power: TZ180XSSQC / Rated 60kW, Peak 120kW (~163 hp)

• Battery System: SAIC "Spider" Lithium Iron Phosphate (LFP) Battery, 62 kWh

• Driving Range: 385 km (WLTP combined cycle)

• Max Speed: 130 km/h

• Wheelbase: 3450 mm

• Tire Specification: 195/70R15LT

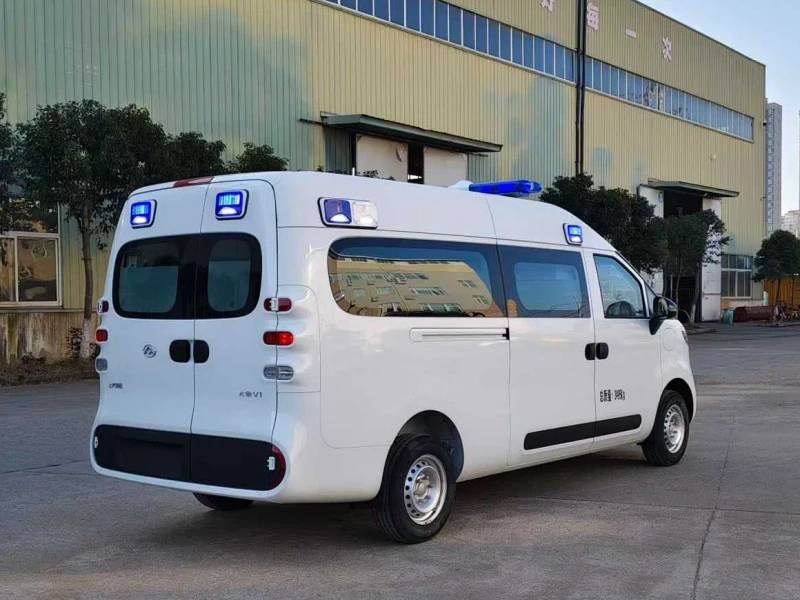

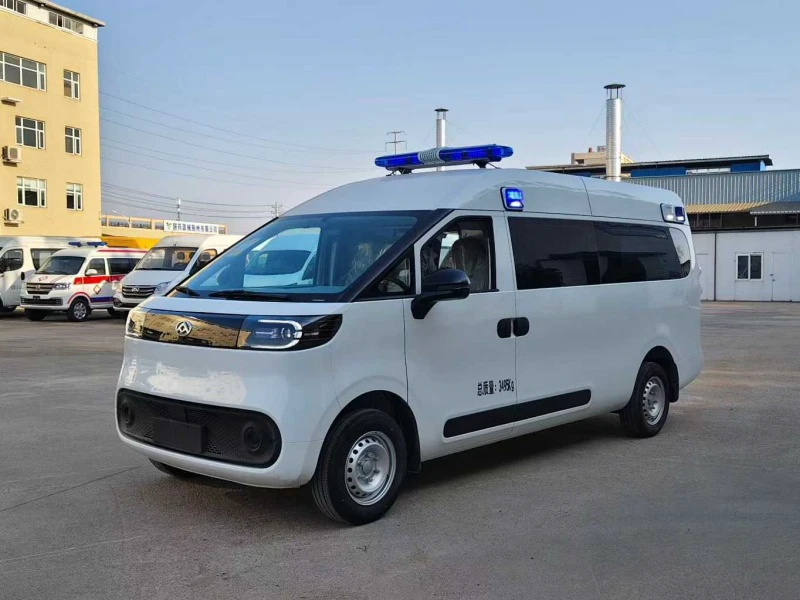

III. Exterior & Medical Cabin Design

• Vehicle Dimensions: Over 5.2m length provides ample medical compartment space; 1.87m width balances road maneuverability and interior roominess.

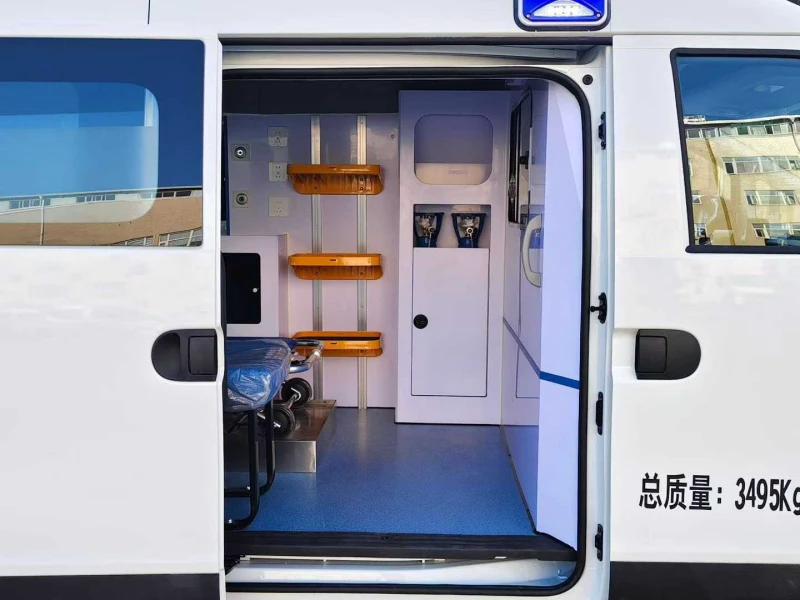

• Cabin Layout: Features differentiated interior layouts and equipment configurations for critical care transport and routine patient transfer, maximizing space efficiency and workflow.

• Materials & Build: Medical cabin interior utilizes medical-grade PVC panels, moisture-resistant flooring, and anti-bacterial surfaces for easy cleaning/disinfection, complying with hygiene standards.

• Design Philosophy: Centered on "Safety, Sustainability, Efficiency, and Ergonomics," the pure electric platform ensures quiet, smooth transport while the cabin layout is optimized for clinical workflows and patient comfort.

IV. Structural & Technical Advantages

1. Electric Powertrain: Equipped with a 62 kWh SAIC LFP battery featuring liquid cooling/heating thermal management, ensuring long battery life and durability. The 120kW peak power motor delivers responsive acceleration. Battery warranty: 8 years or 400,000 km.

2. Chassis & Safety Systems: A 3450mm wheelbase ensures stable handling. Standard safety features include ABS with EBD, driver airbag, automatic crash disconnect system, providing robust active and passive safety.

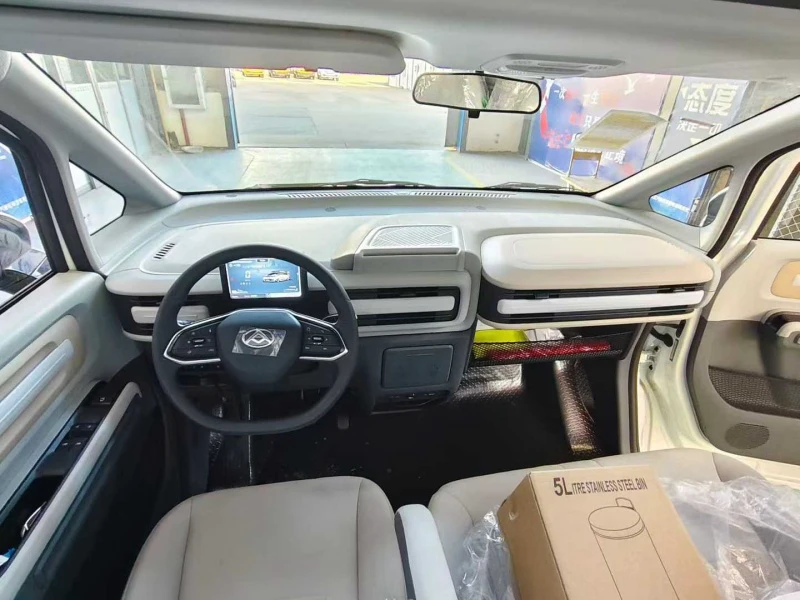

3. Driving & Control: 195/70R15LT tires offer a comfortable ride. Column-mounted gear shifter and a multi-function steering wheel simplify operation. Rear parking sensors and a rearview camera enhance safety during maneuvers.

4. Dedicated Medical Upfit:

   • Power System: The ICU configuration includes a 1000W pure sine wave inverter; the transport configuration includes a 500W version, providing stable 220V/12V power for sensitive medical equipment.

   • Environmental Control: Independent high-capacity AC/heating and a dual-flow ventilation fan maintain a comfortable, controlled cabin climate.

   • Medical Systems: Standard equipment includes 10L oxygen cylinders with outlets, an automatic loading stretcher, a slideable IV pole, and medical storage cabinets, supporting essential life support and monitoring.

   • Communication & Warning: Fitted with a light bar, LED warning lights, a 100W siren, and an intercom system for clear communication and effective emergency response.

V. Key Features & Manufacturer Advantages

• Product Features:

  • Eco-Friendly Operation: Zero tailpipe emissions and low noise make it ideal for hospital zones and residential areas.

  • Extended Range: 385 km range meets daily and short-to-medium medical transport needs, supports DC fast charging.

  • Professional Configuration: Two specialized setups with comprehensive medical devices and scientific cabin layouts.

  • Multi-Layer Safety: Comprehensive protection covering vehicle safety, medical power supply, and oxygen system safety.

  • Superior Comfort: The smooth, quiet EV drivetrain combined with an independent cabin climate system enhances the experience for patients and EMS personnel.

• CLW (Chengli) Group Advantages:

  • Medical Vehicle Specialist: Decades of experience in ambulance conversion, with refined craftsmanship meeting national medical vehicle standards.

  • Strong NEV Integration Capability: Proven expertise in seamlessly integrating mature EV platforms with complex medical upfit systems.

  • Flexible Customization: Offers deep customization in exterior, interior, and equipment options based on healthcare facility requirements.

  • End-to-End Service: Provides full-chain support from design consultation, vehicle modification, licensing assistance, to after-sales training.
