Mercedes-Benz National VI Standard Ambulance – Medical Compartment Monitoring Configuration

I. Product Introduction
The Mercedes-Benz National VI Standard Ambulance is a professionally designed medical rescue vehicle, built on a reliable Mercedes-Benz chassis and equipped with a fully functional, well-configured medical compartment. It meets the latest emission standards and is suitable for emergency medical services, patient transport, and on-site medical care.

II. Core Specifications
Engine: M274, 1991 c.c., turbocharged, electronic fuel injection
Emission Standard: National VI (China 6)
Max Power: 155 kW @ 6000 rpm
Max Torque: 350 Nm @ 4000 rpm
Transmission: 9-speed automatic
Fuel Type: Unleaded gasoline
Drive System: Front-engine, front-wheel drive
Braking System: ABS with EBD, front ventilated disc / rear solid disc
Suspension: Front MacPherson strut / rear trailing arm
Fuel Tank Capacity: 70 liters
Tires: 235/55R17

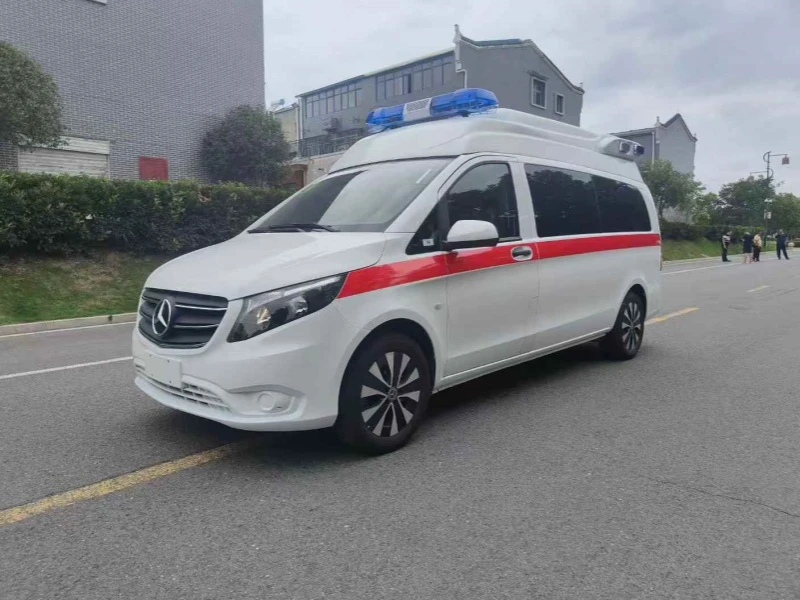

III. Exterior & Medical Compartment Design
Overall Vehicle Dimensions: 5370 mm (L) × 1928 mm (W) × 2280 mm (H)
Medical Compartment Dimensions: 2700 mm (L) × 1650 mm (W) × 1680 mm (H)
Materials: High-strength PVC panels, polymer partition wall, washable medical-grade flooring, aluminum alloy safety mounts
Design Concept: Ergonomic layout, optimized space utilization, easy-to-clean surfaces, and enhanced safety through integrated mounting points and impact-resistant interiors.

IV. Structural & Mechanical Advantages
Engine & Powertrain: The M274 turbocharged engine provides strong acceleration and reliable performance, paired with a smooth 9-speed automatic transmission for comfortable and efficient driving.
Chassis & Suspension: The 3430 mm wheelbase ensures stability, while the front independent and rear trailing arm suspension offer a balanced ride for both driver and patient.
Braking & Safety: ABS with EBD ensures controlled braking under various conditions, supported by front and rear disc brakes for reliable stopping power.
Electrical System: Integrated circuit protection, 1000W inverter, 16A external charging, and multiple 220V/12V outlets support medical equipment operation.

V. Product Features & Manufacturer Strengths

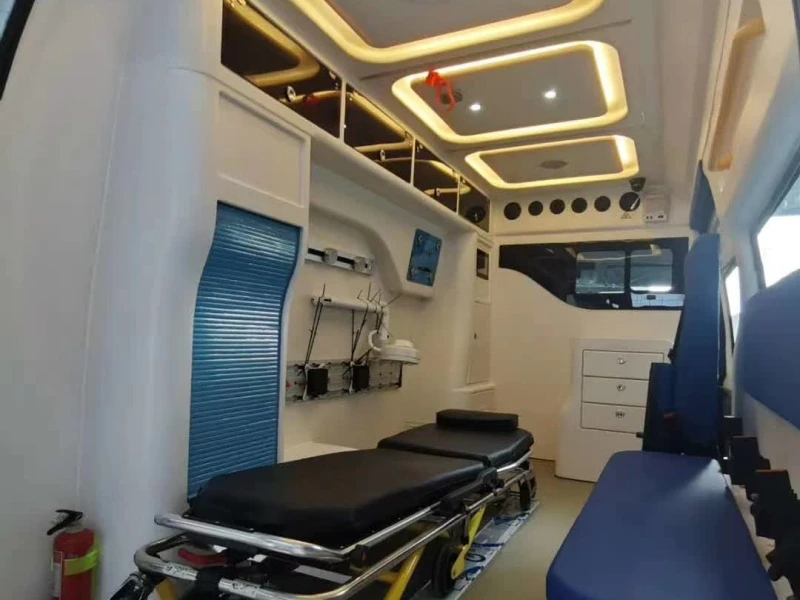

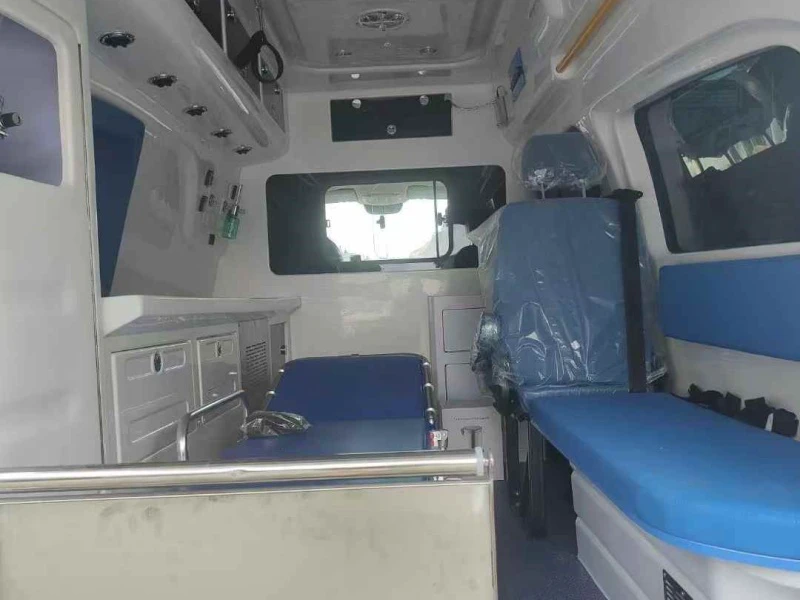

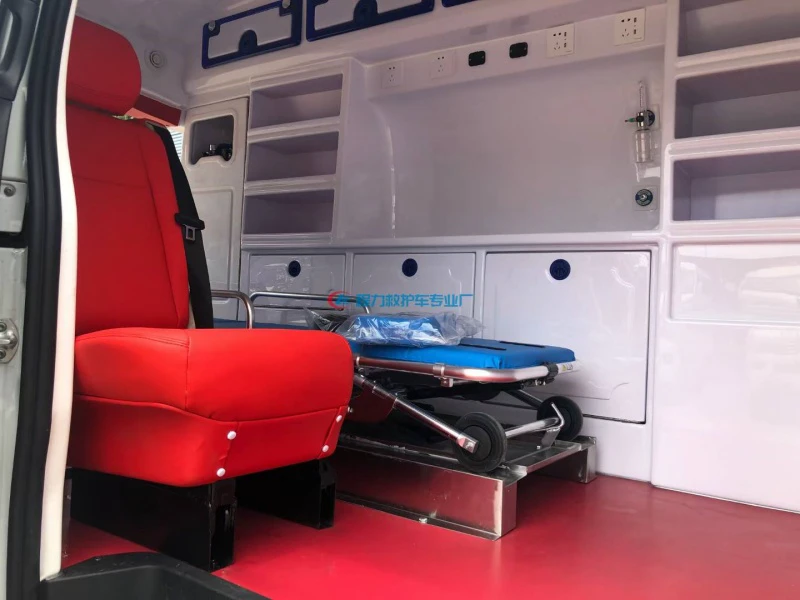

Medical Compartment Features:
Dedicated oxygen system with 2×10L cylinders, hidden pipelines, and oxygen outlets
Medical-grade lighting, UV disinfection lamp, ventilation fan, and IV lamp
PVC cabinets, instrument racks, and foldable seating with seat belts
Air conditioning system with independent front and rear controls

Safety & Visibility:
Front long-bar LED lightbar, 100W siren, handheld microphone
Side and rear strobe lights, fog lights, rearview mirrors
Driver airbags, adjustable steering wheel, central locking

Manufacturer Advantages (Chengli Group):
Professional medical vehicle customization experience
Compliance with national medical and vehicle standards
High-quality interior fittings and reliable electrical integration
Strong after-sales support and service network
