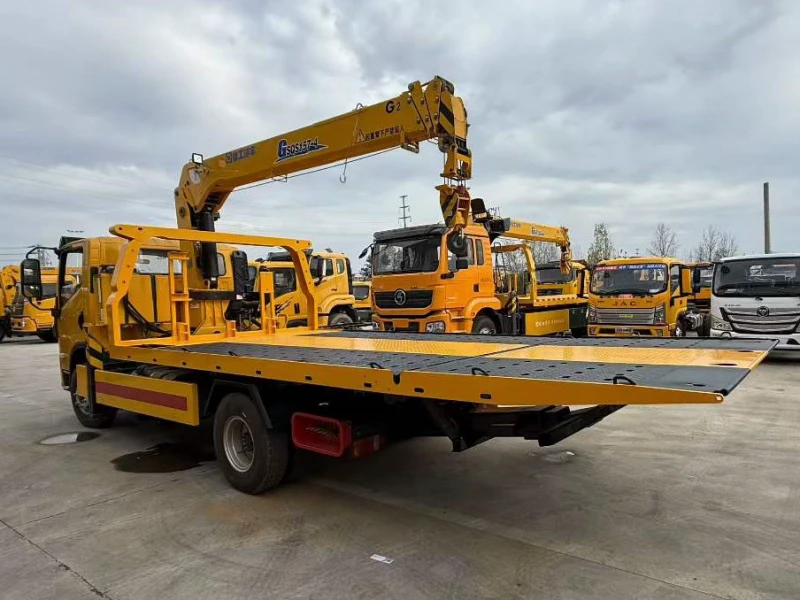

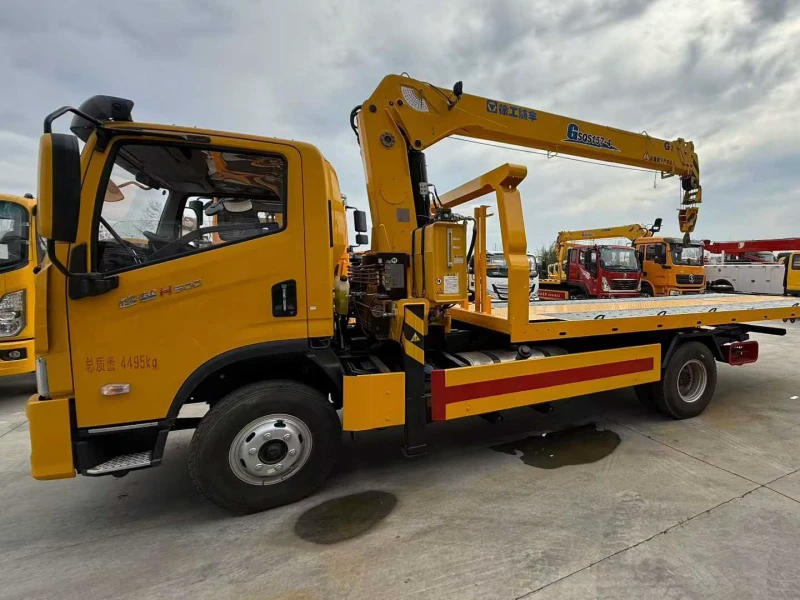

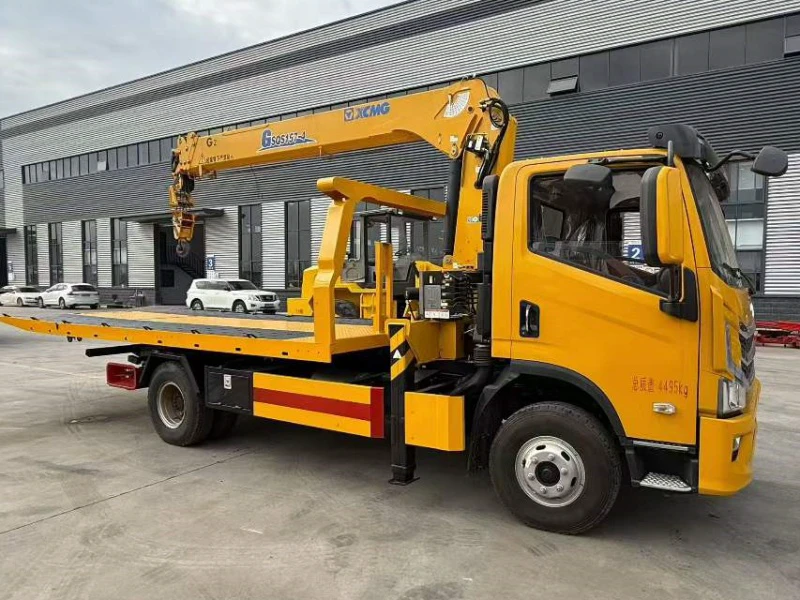

SAIC Yuejin Blue Plate Wrecker with Crane – One-Tow-Two Recovery Vehicle

I. Product Introduction

The SAIC Yuejin Blue Plate Wrecker with Crane is a compact yet powerful recovery vehicle designed for roadside assistance, vehicle towing, and light-duty lifting operations. Combining a one-tow-two flatbed system with an integrated XCMG crane, this blue plate wrecker offers exceptional versatility for towing companies, municipal fleets, and construction support teams. Built on a SAIC Yuejin chassis with a 3800 mm wheelbase and powered by a Weichai 180 HP engine, it delivers reliable performance for urban and suburban recovery missions. With a C1 driver license requirement and factory registration support, this vehicle is both accessible and practical for operators seeking a multi-purpose recovery solution.

II. Core Parameters

III. Exterior Dimensions, Body Specifications & Design Philosophy

• Overall Dimensions: Designed with a 3800 mm wheelbase and compact overall length, the vehicle offers excellent maneuverability for urban streets, underground garages, and narrow recovery scenes.

• Flatbed Dimensions: The flatbed measures 5.8 meters in length and 2.5 meters in width, providing ample space for loading disabled vehicles or equipment.

• Material & Construction: The flatbed is constructed from high-strength steel with a reinforced structure to withstand heavy loads. The triple-layer straight-through frame ensures exceptional torsional rigidity.

• Design Philosophy: This vehicle embodies the concept of “small body, big capability” – combining a compact blue plate chassis with a powerful 5-ton XCMG crane and a full-size recovery flatbed. The integrated one-tow-two design allows simultaneous towing and transport, maximizing operational efficiency while remaining accessible to C1 license holders.

IV. Structural Advantages – Engine, Transmission, Axles & Chassis

• Engine (Weichai 180 HP): Delivers strong low-end torque for heavy pulling and crane operations, with proven reliability and fuel efficiency for urban recovery routes.

• Transmission (Fast 8-speed with High-Low Range & Synchronizer): The 8-speed manual gearbox features a high-low range for optimal torque multiplication during heavy recovery, plus synchronizers for smooth, effortless shifting.

• Rear Axle (8-ton Reinforced): Engineered to handle repeated heavy loads and shock from towing, this axle provides long-term durability and stability.

• Chassis Frame (Triple-Layer Straight-Through Frame): The triple-layer frame is a standout feature, offering exceptional load-bearing capacity and resistance to torsion – essential for supporting both the flatbed and the crane during lifting operations.

• Tires: Factory 825R16 steel cord tires provide excellent load capacity, puncture resistance, and stability for demanding recovery work.

V. Product Features & Chengli Group Manufacturer Advantages

Product Features

• One-Tow-Two Capability: The combination of a 5.8 m flatbed and a hydraulic rear tow arm allows the vehicle to tow one vehicle while carrying another, maximizing efficiency per trip.

• XCMG 5-Ton 4-Section Boom Crane: The integrated XCMG crane features a full hydraulic full rotation system, a boom length of 11.2 meters, and a lifting height of 12.8 meters, enabling versatile lifting, loading, and recovery operations.

• Blue Plate Accessibility: With C1 license compliance and factory-assisted registration, this blue plate wrecker lowers the barrier for entry into the towing business while maintaining full legal roadworthiness.

• Dual-Section Hydraulic Rear Tow Arm: The rear tow arm is hydraulically operated with two sections, providing extended reach and flexibility for different vehicle sizes and recovery angles.

• Compact Yet Powerful: Despite its small footprint, the vehicle packs a 180 HP engine, 8-ton axle, and triple-layer frame – delivering heavy-duty performance in a maneuverable package.

• Multi-Purpose Utility: Suitable for vehicle recovery, equipment transport, crane lifting, and construction site support.

Chengli Group Manufacturer Advantages

Chengli Group, a leading manufacturer in China’s special-purpose vehicle industry, brings decades of expertise to every wrecker with crane. Key advantages include:

• Large-Scale Production: Modern facilities with high annual capacity ensure short delivery lead times and consistent supply.

• Comprehensive Quality Control: From frame welding to hydraulic system testing, strict quality management ensures every vehicle meets rigorous safety and performance standards.

• Technical R&D Strength: A dedicated engineering team continuously optimizes frame design, crane integration, and flatbed durability.

• Factory Registration Support: Chengli provides full documentation and registration assistance, helping customers get their blue plate wrecker on the road quickly.

• Global Service Network: Products are exported worldwide, supported by responsive after-sales service and parts availability.

• Customization Capability: Flexible manufacturing allows for tailored configurations, including crane options, flatbed dimensions, and tool storage.
