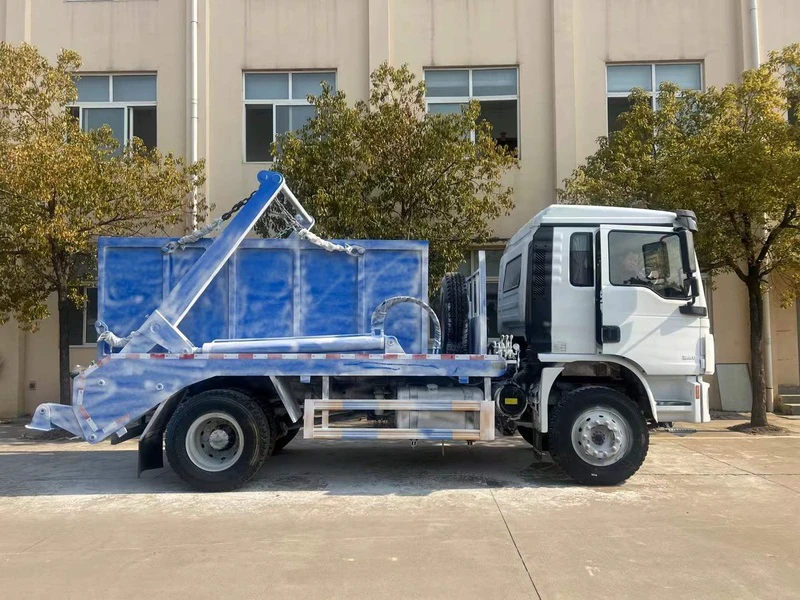

Shacman 4×2 Swing Arm Garbage Truck / Detachable Container Waste Vehicle

I. Product Overview

The Shacman 4×2 swing arm garbage truck is a high-performance heavy duty municipal sanitation vehicle built on the Shacman Delong series chassis, equipped with a hydraulic swing arm mechanism that enables detachable container operation. This vehicle is widely used for bagged waste collection, bulk household garbage transport, industrial waste, steel slag, and scrap material handling in urban residential areas, industrial parks, steel mills, cold rolling plants, hot rolling plants, and ironworks. The core advantage lies in its one truck multiple containers operational model, allowing a single vehicle to service numerous waste collection points through cyclic container exchange, significantly improving transport efficiency and reducing operating costs. The 4×2 drive configuration provides excellent maneuverability, making it suitable for operation on narrow urban streets and industrial facility access roads.

II. Core Specifications

III. Dimensions, Materials, and Design Concept

Overall Dimensions: 7,000-7,800 × 2,500 × 3,200-3,700 mm, compact design for urban street and industrial facility maneuverability

Container Volume: 8-12 cubic meters (compatible with trapezoidal bins, rectangular bins, and sealed containers)

Container Material: Q235 high strength carbon steel with 3-4 mm side plates, 4-5 mm bottom plates, and corrosion resistant coating

Design Concept:

The design philosophy centers on operational flexibility, structural durability, and cost efficiency. The Shacman cab features a semi-reclining design with excellent visibility and ergonomic controls. The hydraulic swing arm mechanism enables smooth container handling. The one truck multiple containers model enables a single vehicle to service numerous collection points through cyclic container exchange, significantly reducing fleet requirements and capital investment. The dual hydraulic rear stabilizers ensure vehicle stability during unloading operations, while optional sealed container covers provide odor control and prevent windblown litter, making the vehicle suitable for diverse waste streams including household waste, industrial waste, and steel slag.

IV. Detailed Structure and Component Advantages

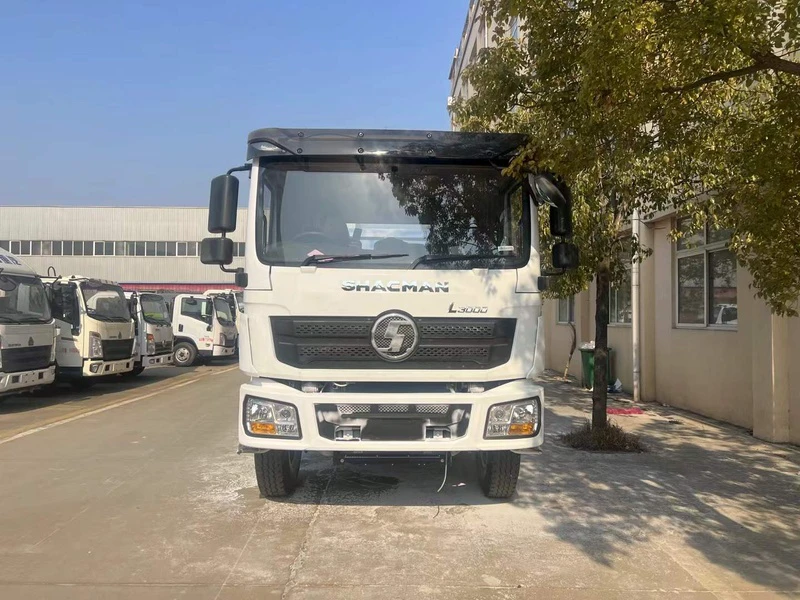

Chassis Platform:

The Shacman 4×2 chassis provides a reliable foundation with an 870×250 mm double-layer frame and 8.7-10 ton rear axle, ensuring rated load capacity of 9.5-11 tons. The 3,950-4,500 mm wheelbase balances turning flexibility with loading stability, adapting to various urban road and industrial facility conditions.

Power Train:

Available with Yuchai / Weichai / Cummins 180-220 HP engines delivering reliable power with excellent fuel economy and Euro VI emission compliance. The Fast Gear 8-speed manual gearbox provides smooth shifting and ample low-end torque for frequent start-stop operations at collection points. The factory-installed power take-off (PTO) draws power from the transmission to drive the hydraulic pump, enabling independent hydraulic system operation.

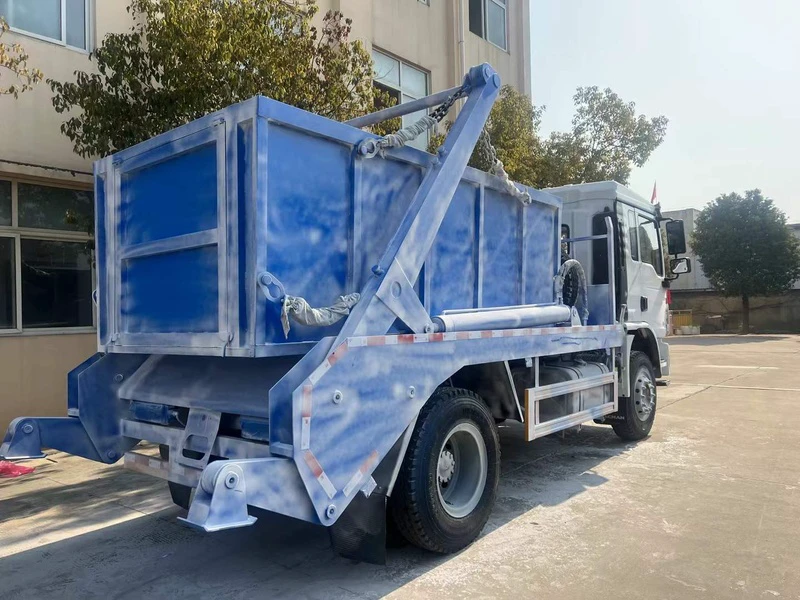

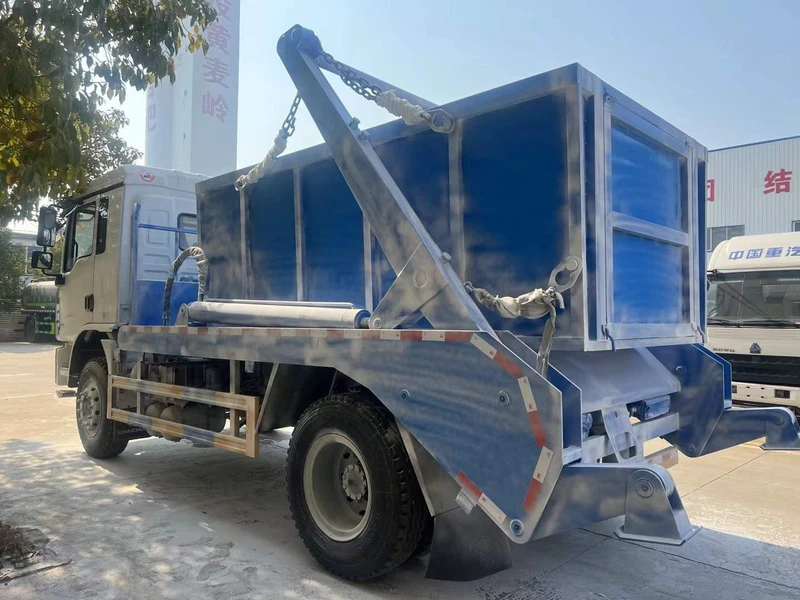

Hydraulic Swing Arm Mechanism:

The hydraulic system consists of a PTO, hydraulic tank, high-pressure gear pump, multi-way valve, balance valve, and hydraulic lock. The system pressure reaches 26 MPa with container loading time of approximately 45 seconds. The system features safety relief valves to prevent overload and dual safety valves for smooth cylinder operation. The multi-way valve is a premium large-port pneumatic control valve with integrated safety valves for reliable operation.

Key Structural Components:

• Swing Arm Main Structure: Reinforced alloy steel construction with maximum 90-degree tilting angle for complete dumping

• Rear Stabilizers: Equipped with reinforced hydraulic rear stabilizers that automatically deploy during unloading to ensure vehicle stability

• Latching System: Reinforced transverse hydraulic container lock for secure transport

• Control System: Hand-electric integrated operation (manual control + remote control) with single cycle time ≤ 60 seconds

• Hydraulic Components: Wanyuan or Hefei Changyuan high-pressure gear pumps, premium domestic multi-way valves, and steel-reinforced hydraulic hoses for durability

Container Design:

The container is fabricated from Q235 high strength carbon steel with corrosion resistant coating. Various container types are available including trapezoidal bins, rectangular bins, and sealed containers with capacity of 8-12 cubic meters. Pit-type or ground-level configurations can be selected based on specific collection site requirements. Optional sealed covers prevent waste spillage and odor diffusion during transport.

V. Product Features and Manufacturer Advantages

Product Features

One Truck Multiple Containers, Cyclic Transport: A single vehicle can be equipped with multiple containers distributed across various collection points. The vehicle performs cyclic transport, significantly improving vehicle utilization and reducing equipment acquisition costs. This one truck multiple container operation greatly enhances operational efficiency.

Simple Operation, High Efficiency: The operator can complete container loading and unloading entirely using hand-electric integrated operation (manual control + remote control) with single cycle time not exceeding 60 seconds, significantly improving operational efficiency.

Safety and Stability: Reinforced hydraulic rear stabilizers automatically deploy to ensure vehicle stability during unloading. The hydraulic system is equipped with safety relief valves to prevent overload. ABS anti-lock braking system ensures driving safety. The reinforced transverse hydraulic container lock secures the container reliably during transport.

Environmental Protection: Optional sealed container covers prevent waste spillage and odor diffusion. The durable container construction eliminates leachate leakage, effectively preventing secondary pollution. Euro VI emission compliance ensures reduced environmental impact from vehicle operation.

Wide Applicability: Container volume options of 8-12 cubic meters and container types including trapezoidal bins, rectangular bins, and sealed containers make the vehicle suitable for diverse applications including urban communities, industrial parks, steel mills, cold rolling plants, hot rolling plants, and ironworks for household waste, industrial waste, and steel slag collection.

Comfort and Convenience: The Shacman cab features factory air conditioning, power windows, central door lock (with remote), air suspension seat, single sleeper berth, and tachograph, providing a comfortable work environment for operators.

Chengli Group Manufacturer Advantages

As a leading Chinese special vehicle manufacturer, Chengli Special Automobile Co., Ltd. delivers comprehensive quality across all production aspects:

• Complete Vehicle Announcements: Products are included in the national vehicle announcement directory, ensuring legal registration nationwide

• Reliable Quality: Utilizes original chassis with Q235 carbon steel for superstructure; hydraulic components from leading domestic brands ensure mature, stable manufacturing processes

• Strong Customization Capability: Provides container design options including trapezoidal bins, rectangular bins, and sealed containers, with pit-type or ground-level choices based on specific collection site requirements

• Factory Direct Sales: Direct factory sales model eliminates intermediaries, offering competitive pricing and comprehensive pre-sales and after-sales service

• Nationwide After-Sales Support: Chassis service provided by Sinotruk service network and superstructure support provided by Chengli technical support and parts supply

This Shacman 4×2 swing arm garbage truck combines operational flexibility, structural durability, and cost efficiency, making it an ideal choice for municipal sanitation departments, industrial parks, steel enterprises, and property management companies in their household waste and industrial waste collection and transport operations.
