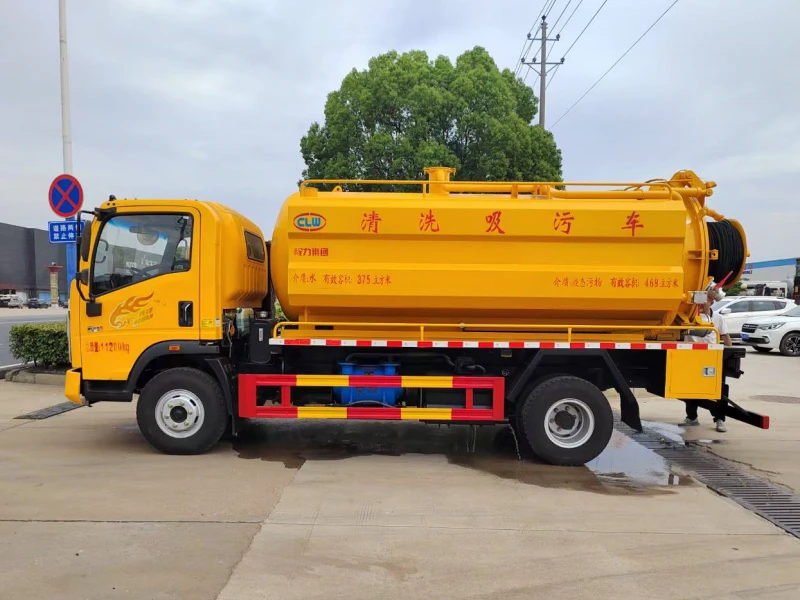

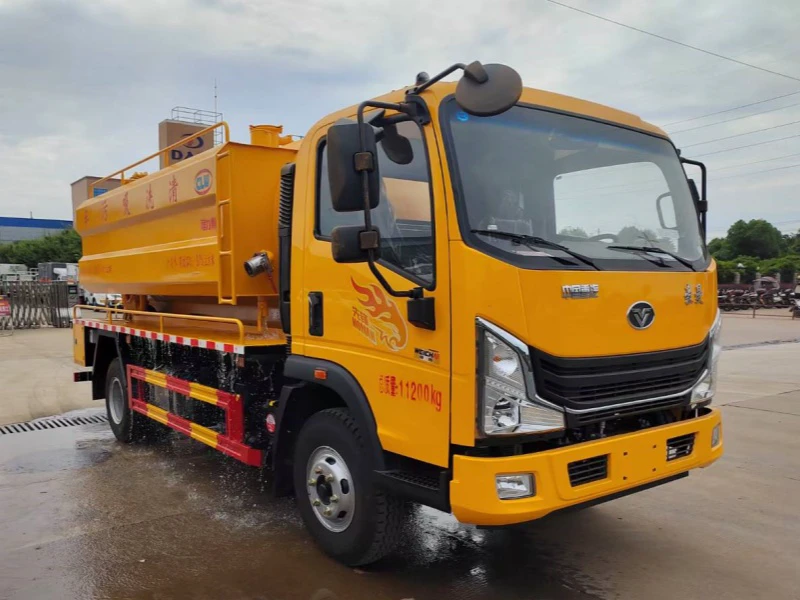

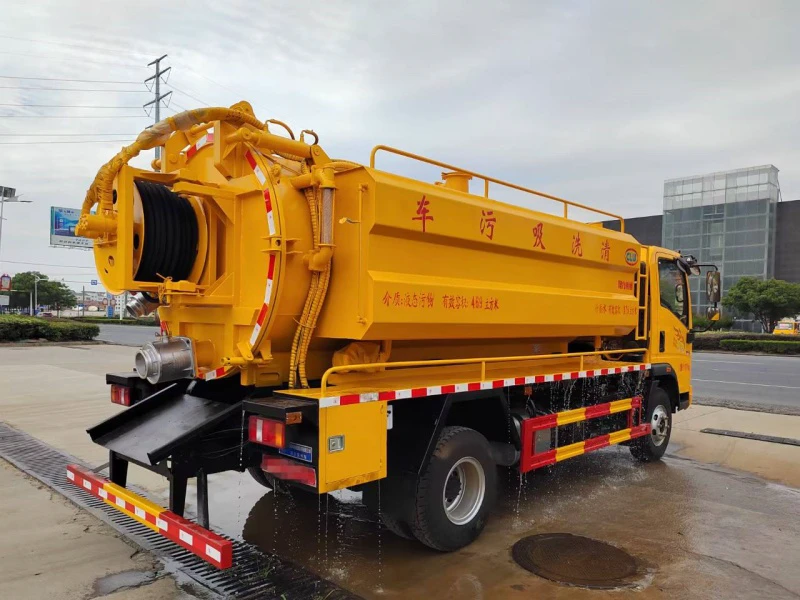

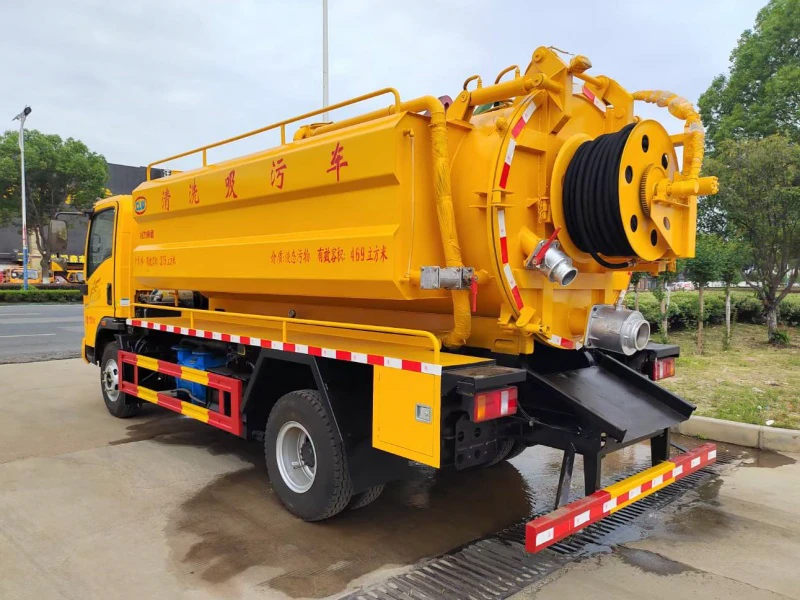

Sinotruk Homan 10m³ Sewage Suction and Cleaning Truck | Sinotruk Sewage Suction and Cleaning Truck: 7m³ Sewage Tank and 3m³ Water Tank

I. Product Introduction

The Sinotruk Homan 10m³ Sewage Suction and Cleaning Truck is a highly efficient and versatile municipal vacuum truck, combining the functions of high-pressure sewer jetting and septic tank emptying into one unit. It is specifically designed for drainage maintenance, industrial waste collection, and sanitation vehicle operations. This dual-purpose design offers a cost-effective municipal solution, eliminating the need for two separate vehicles.

II. Core Specifications

• Total Tank Volume: 10 m³ (Approx. 2,641 Gallons)

• Sewage Tank Capacity: 7 m³ (Approx. 1,849 Gallons)

• Clean Water Tank Capacity: 3 m³ (Approx. 792 Gallons)

• Engine: Weichai Power, 160 HP (Euro VI emission standard, diesel engine)

• Transmission: Fast Gear 8-speed manual gearbox (with high/low range)

• Drive Type: 4x2

• Vacuum Pump: SK-12 water ring vacuum pump (Shandong Zibo), capable of high suction power.

• High-Pressure Pump: 215 L/min flow rate, 22 MPa pressure, ideal for pipe cleaning.

• Chassis Model: ZZ1148G17FB0

III. Dimensions, Materials & Design Philosophy

• Overall Dimensions (L×W×H): Approx. 6,995 mm × 2,350 mm × 2,900 mm.

• Wheelbase: 3,650 mm, designed for excellent urban maneuverability and navigating residential streets.

• Tank Material: Constructed from high-quality Wuhan Steel (heavy-duty steel construction).

  • Sewage Tank Wall Thickness: 6 mm (approx. 0.24 inches) for corrosion resistance.

  • Water Tank Wall Thickness: 4 mm (approx. 0.16 inches).

• Design Philosophy: The vehicle emphasizes durability in harsh environments and operator safety. The tank features anti-surge baffles for stable driving. The design prioritizes a driver-centric cab with easy-to-reach controls and high ground clearance to navigate rough terrain.

IV. Structural Advantages (Chassis & Drivetrain)

• Chassis & Cab: Features a new 2.1-meter wide, single-row crew cab with a fully trimmed interior and leather seats for long-haul comfort. The heavy-duty chassis includes a reinforced double-layer frame for enhanced load-bearing capacity.

• Powertrain: Powered by a reliable Weichai 160 HP engine mated to a Fast Gear 8-speed gearbox. This combination provides strong torque and fuel efficiency, essential for both highway transit and heavy-duty on-site vacuum pumping operations.

• Axles & Braking: Equipped with a 7-ton rear axle and 8.25R20 steel cord tires for off-road capability. The braking system features spring brakes and ABS for safe parking and reliable stopping power under load. Hydraulic power steering ensures effortless handling.

• Suspension & Chassis: The leaf spring suspension is calibrated to handle the shifting weight of liquid loads, ensuring vehicle stability during transit.

V. Product Features & Chengli Manufacturer Advantages

• Integrated Tank System: The split tank design (7m³ sewage and 3m³ water) allows for on-site water recycling and continuous sewer cleaning. The sewage tank features a reinforced "turtle-back" pressure head for added durability.

• Advanced Pumping Systems:

  • High-Pressure Jetting: The German-tech Pinnuo 215L/min pump delivers water at 22 MPa to clear stubborn blockages effectively. It includes large-diameter stainless steel filters to protect the pump from debris.

  • Powerful Suction: The SK-12 water ring vacuum pump provides deep vacuum suction. The system includes an anti-overflow valve and dual stainless steel filters to prevent debris from entering the pump, ensuring low maintenance costs.

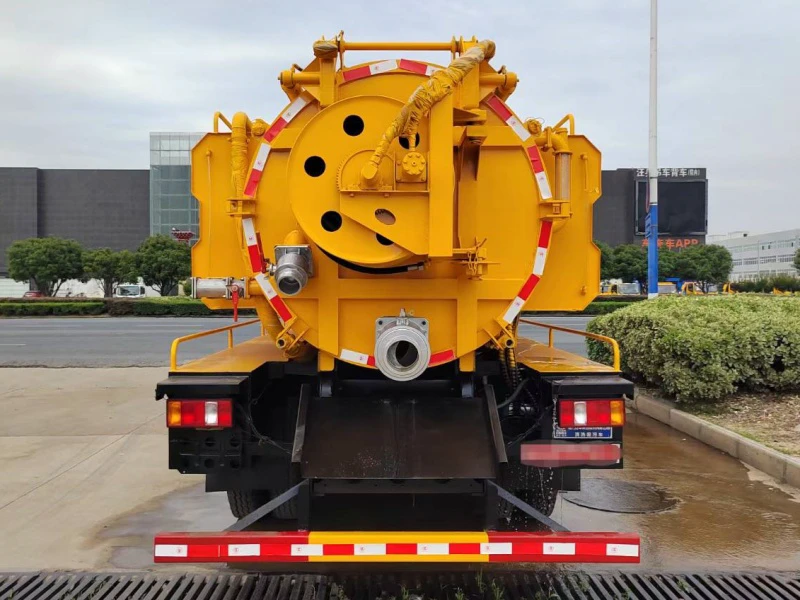

• Efficient Discharge: The tank features a hydraulic tilting function for self-unloading sludge. The rear door is hydraulically operated and secured with four locks, allowing for rapid waste disposal.

• All-Weather Operation: Equipped with an "air blow" function, the system can purge residual water from the pipes and pump in freezing temperatures, enabling winterized operation.

• Chengli Group Advantages:

  • Industry Leadership: As a leading Chinese truck manufacturer designated by the government, Chengli utilizes large-scale production and advanced testing equipment to ensure consistent OEM quality.

  • Comprehensive Service: Chengli offers a robust after-sales network, typically providing a one-year warranty on the specialized vehicle and ensuring rapid technical support and replacement parts availability.

  • Compliance: The vehicle meets "Exemption" and "Environmental Protection" standards, simplifying the vehicle registration process for buyers. It complies with the latest GB17691-2018 Euro VI emission standards.
