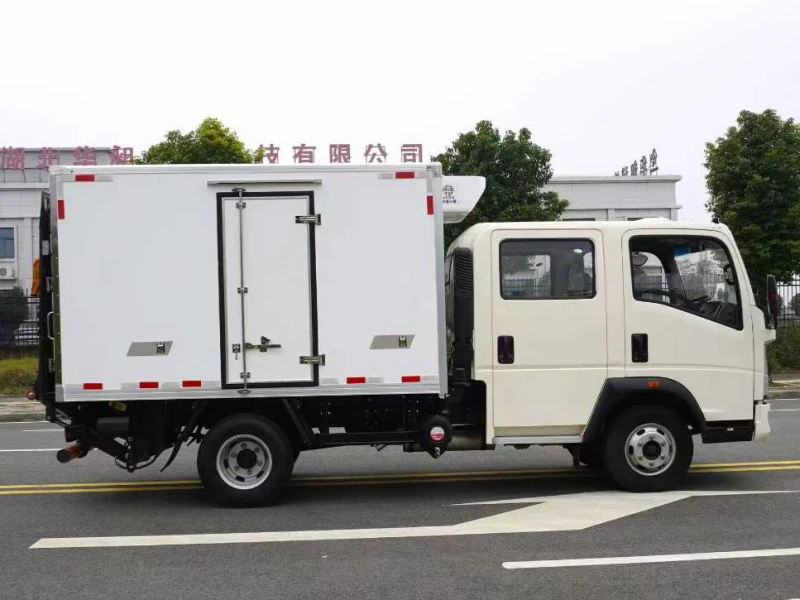

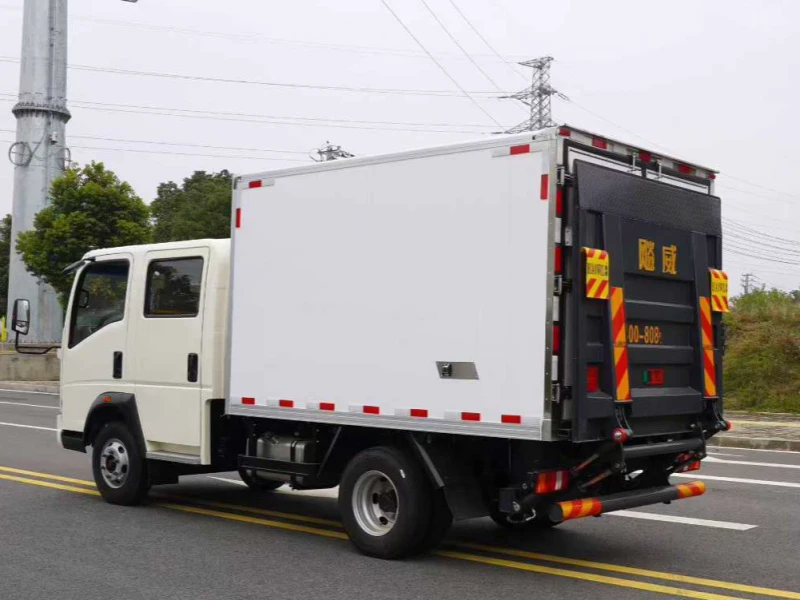

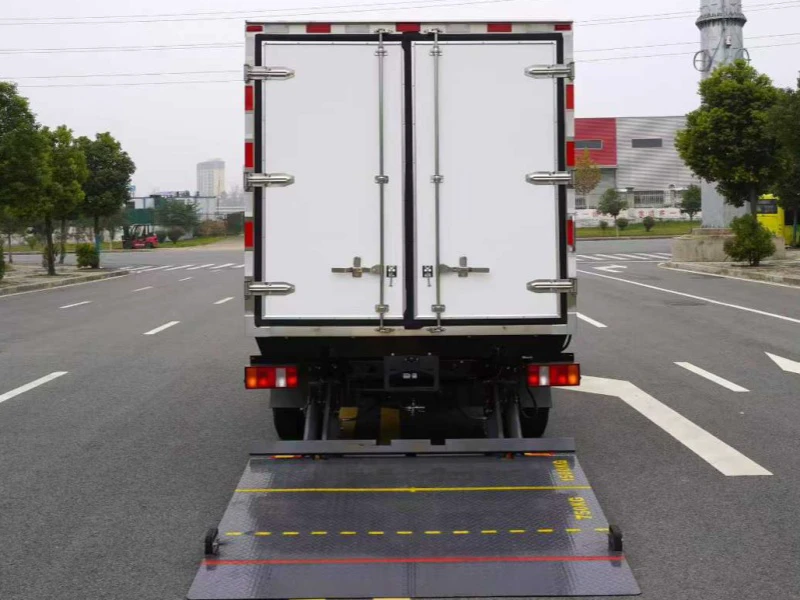

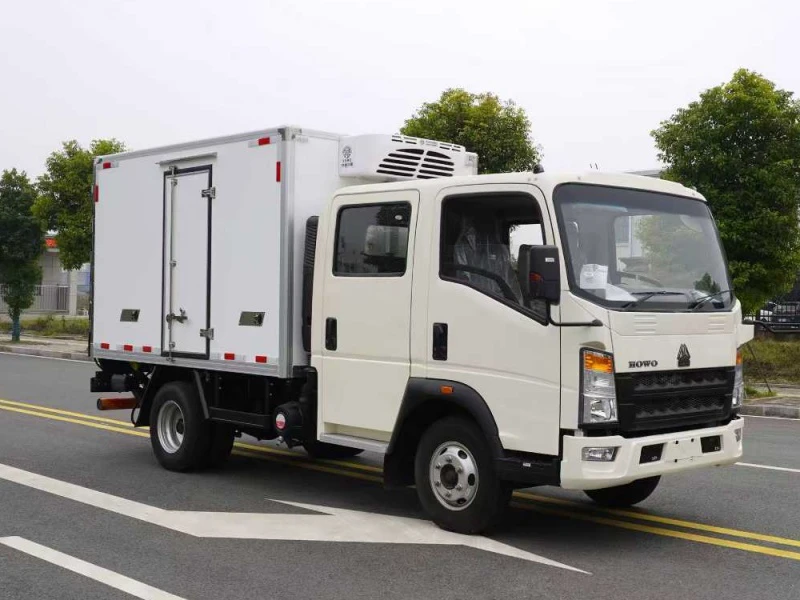

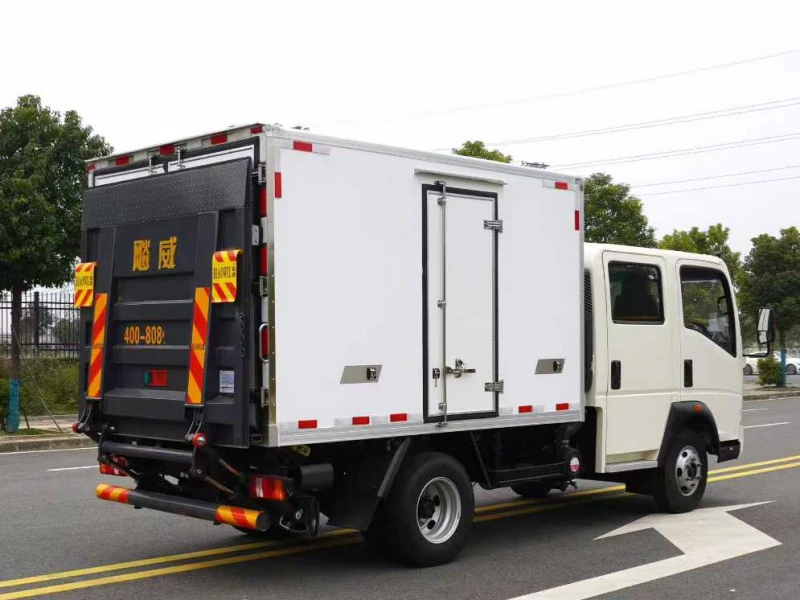

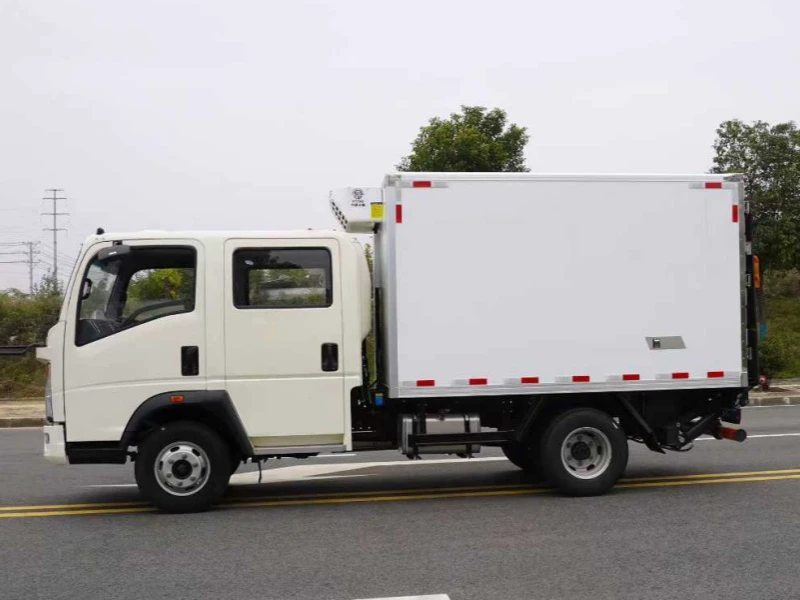

Sinotruk Double Cab Refrigerated Truck | Sinotruk 4x2 Double Cab Refrigerated Truck 3m Box Length 9m³ Volume

I. Product Overview
The Sinotruk Double Cab Refrigerated Truck is a versatile and compact cold chain solution designed for urban and suburban temperature-controlled logistics. Featuring a spacious double-row cab that accommodates up to 6 personnel, this model is ideal for delivery teams requiring both passenger transport and refrigerated cargo capacity. Built on a reliable chassis with a fuel-efficient Yunnei engine, it delivers consistent refrigeration performance for fresh food, pharmaceutical, and daily goods distribution.

II. Core Specifications

• Overall Dimensions (L×W×H): 6500×2000×2800 mm

• Cargo Box Dimensions (L×W×H): 2980×1830×1710 mm (Approx. 9.3 m³ interior volume – ideal for small to medium refrigerated loads)

• Engine: Yunnei 116 HP Diesel Engine – fuel-efficient powerplant for urban commercial applications

• Chassis Features:

  • Wheelbase: 3400 mm – optimized for maneuverability in urban environments

  • Transmission: WLY 6-Speed Manual Gearbox – smooth gear shifting for varied road conditions

  • Tires: 7.00R16 – durable commercial tires for light to medium duty

  • Cab: Double Row Cab – seats up to 6 personnel with factory-installed heating and cooling

• Refrigeration Unit: Huasheng Mars X590 – industrial-grade cooling system maintaining consistent temperatures

III. Exterior Design & Build Quality

• Exterior Dimensions: 6.5-meter overall length with 3400 mm wheelbase enables easy maneuvering in narrow urban streets and confined loading areas.

• Cab Design: Double row cab with ergonomic seating for up to 6 occupants. Factory-installed冷暖空调 ensures driver and passenger comfort in all weather conditions.

• Cargo Box Construction:

  • Insulation Core: 80 mm XPS extruded polystyrene foam – meets national insulation standards for temperature retention

  • Panel Materials: High-strength fiberglass reinforced plastic inner/outer panels – UV-stabilized, thermal-insulating, corrosion-resistant

  • Hardware: Stainless steel door locks and hinges for durability

  • Sealing System: Labyrinth rubber door seals preventing air leakage and temperature fluctuation

• Design Philosophy: Compact multi-purpose design combining passenger transport capability with reliable cold chain functionality for urban delivery operations.

IV. Structural Advantages

• Engine Performance: Yunnei 116 HP diesel engine – delivers reliable power for fully loaded urban transport with excellent fuel economy.

• Transmission: WLY 6-speed manual gearbox – ensures optimal power delivery across varying urban terrain and load conditions.

• Chassis Engineering: 3400 mm wheelbase configuration balances cargo capacity with tight turning radius for superior urban maneuverability.

• Tires & Braking: 7.00R16 tires with robust braking system ensure safety and durability for daily urban delivery routes.

• Suspension & Axles: Reinforced chassis construction minimizes vibration transmission to sensitive cargo during transit.

V. Key Features & Manufacturer Advantages

• Refrigeration Performance:

  • Huasheng Mars X590 refrigeration unit maintains consistent temperatures for frozen and fresh cargo

  • Compatible with various temperature requirements for diverse cold chain applications

  • Standard 80 mm insulation thickness ensures energy-efficient operation

• Dual-Purpose Design:

  • Double cab accommodates delivery teams, reducing need for separate crew vehicles

  • Ideal for catering, pharmaceutical delivery, and multi-stop urban distribution

• Advanced Manufacturing:

  • Cargo box constructed with thermal-efficient sandwich panel technology

  • XPS insulation core ensures minimal temperature loss during multi-stop deliveries

  • Fiberglass panels resist moisture, UV damage, and thermal degradation

• Chengli Group Advantages:

  • Industry Leadership: ISO-certified production facilities with rigorous quality control standards

  • Customization Expertise: Extensive experience manufacturing specialized refrigerated trucks for diverse applications

  • Durable Construction: Stainless steel hardware and corrosion-resistant materials ensure long service life

  • Nationwide Support: Comprehensive after-sales service network providing rapid maintenance and genuine parts

  • Cost Efficiency: Reliable components reduce downtime and maintenance costs for fleet operators

  • Proven Performance: Trusted by urban logistics companies for reliable cold chain delivery

This Sinotruk Double Cab Refrigerated Truck exemplifies Chengli Group's commitment to versatile, reliable, and efficient cold chain solutions for urban and suburban applications.
