Sinotruk Howo New Energy Refrigerated Truck (Model: ZZ5047XLCH3414Z146BEVD1) | Howo New Energy Refrigerated Truck 4m Box Length Fudi Power Battery 131.98kWh Range 300+ km

I. Product Overview
The Sinotruk Howo New Energy Refrigerated Truck is an all-electric zero-emission cold chain solution engineered for sustainable urban logistics and environmentally conscious temperature-controlled transport. Powered by a high-capacity Fudi battery and a heavy-duty electric drive motor, this model delivers reliable refrigeration performance with 300+ km driving range, making it ideal for fresh food delivery, pharmaceutical transport, and green fleet operations.

II. Core Specifications

• Overall dimensions (L×W×H): 5990×2260×3250 mm – compact urban truck dimensions for city maneuverability and last-mile delivery

• Cargo box dimensions (L×W×H): 4080×2100×2100 mm (Approx. 18.0 m³ interior volume – ideal for palletized freight and medium-duty refrigerated transport)

• Electric motor: Sinotruk TZ220XS-ZQV22 – high-efficiency permanent magnet synchronous motor for instant torque delivery

• Battery system: Fudi Power Battery (Lithium Iron Phosphate) | Capacity: 131.98 kWh | Range: 300+ km on full charge – long-range electric truck for daily urban routes

• Chassis features:

  • Wheelbase: 3500 mm – optimized for urban stability and tight turning radius

  • Transmission: Handle Shifting Gearbox – smooth electric drive control for stop-and-go traffic

  • Front Axle: 1058 Air Brake Front Axle (Drum/2T capacity) – light-duty commercial axle

  • Rear Axle: MCE05BG Electric Drive Axle (Drum/5T capacity | Langao Motor | Ratios: 25.339/11.802) – integrated electric axle for compact efficiency

  • Tires: 7.50R16-16PR Vacuum Tires | High-Strength Steel Wheels – durable commercial tires for loaded transport

  • Suspension: 3/8+6 Leaf Spring Suspension – load stability and ride comfort

  • Cab Features: 2100mm Single Row Cab | Air Suspension Driver Seat | Multifunction Steering Wheel | Central Locking | Power Windows | Remote Key | Automatic Headlights | Deluxe Electric Heated Mirrors | Ambient Lighting | Door Observation Windows | Electric Sunroof (Optional) | 12.8" MP5 Screen with Navigation and Reverse Camera (Optional)

  • Braking System: Air Brakes | ABS+ASR (Anti-lock Braking System + Traction Control) – enhanced safety for urban delivery

  • Electrical System: Huichuan Six-in-One Controller | Battery Side-Mounted | Refrigeration Power Take-Off Port – integrated power management for auxiliary systems

III. Exterior Design & Build Quality

• Exterior dimensions: 5.99-meter overall length with 3500 mm wheelbase enables easy urban navigation and tight space maneuverability in congested city centers.

• Cab design: 2100mm wide single-row cab with air suspension driver seat for enhanced comfort during long shifts. Features include multifunction steering wheel, automatic headlights, electric heated mirrors, and ambient lighting for premium driving experience. Optional 12.8" MP5 screen with navigation and reverse camera for enhanced visibility and safe maneuvering.

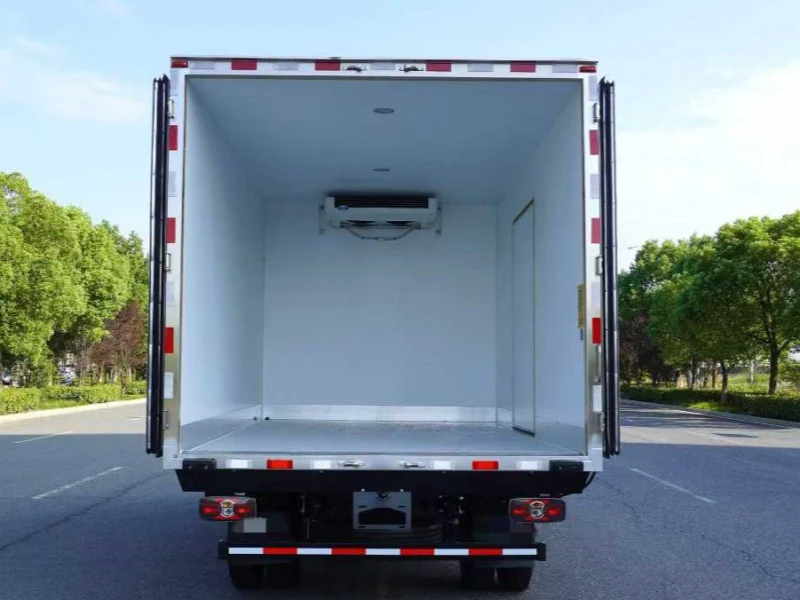

• Cargo box construction:

  • Panel materials: High-strength fiberglass reinforced plastic inner/outer panels – UV-stabilized, thermal-insulating, corrosion-resistant for extended service life in demanding environments.

  • Insulation core: XPS extruded polystyrene foam (thickness optimized to meet national A-class insulation standards for temperature retention and energy efficiency).

  • Hardware: Stainless steel door locks, hinges, and fasteners for corrosion resistance and durable performance.

  • Sealing system: Labyrinth rubber door seals preventing air leakage and temperature fluctuation during transit and multi-stop deliveries.

  • Power supply: Refrigeration power take-off port for direct battery-powered cooling during operation and stationary periods.

• Design philosophy: Modern electric vehicle styling with functional durability, integrating zero-emission technology and cold chain efficiency for sustainable urban logistics.

IV. Structural Advantages

• Electric powertrain:

  • Sinotruk TZ220XS-ZQV22 permanent magnet motor – delivers instant torque for smooth acceleration from standstill and hill climbing capability on urban gradients.

  • Fudi 131.98 kWh LFP battery – high-energy-density chemistry provides 300+ km range with long cycle life and thermal stability.

  • Huichuan six-in-one controller – integrates motor control, battery management, power distribution, and auxiliary systems for optimal efficiency and reduced complexity.

• Transmission & drive:

  • Handle shifting gearbox – simplified operation reduces driver fatigue in urban stop-and-go traffic.

  • MCE05BG electric drive axle – integrates motor and rear axle for compact powertrain efficiency, weight reduction, and improved ground clearance.

• Axles & suspension:

  • Front Axle: 1058 air brake front axle (2T capacity) – reliable braking performance for urban delivery applications.

  • Rear Axle: MCE05BG electric drive axle (5T capacity) – heavy-duty construction for fully loaded transport of refrigerated cargo.

  • Suspension: 3/8+6 leaf spring configuration – load stability under variable payloads and ride comfort on urban roads.

• Braking & safety:

  • Air brake system with ABS+ASR – enhanced stopping power and traction control on wet or slippery surfaces.

  • Battery side-mounted design – improves weight distribution and chassis accessibility for maintenance.

• Driver assistance:

  • Automatic headlights and electric heated mirrors for all-weather visibility in rain or fog.

  • Optional 12.8" MP5 screen with reverse camera for safe maneuvering in tight loading bays.

  • Door observation windows for enhanced side visibility during urban turns.

V. Key Features & Manufacturer Advantages

• Refrigeration performance:

  • Compatible with electric-powered refrigeration units maintaining temperatures from -20°C to +20°C for frozen cargo, fresh produce, and pharmaceuticals.

  • Refrigeration power take-off port enables direct battery power for cooling during transit and stationary operation at delivery stops.

  • Optional: Multi-temperature zones, temperature/humidity recorders for cold chain monitoring, and ventilation upgrades for airflow optimization.

• Electric vehicle advantages:

  • Zero tailpipe emissions – ideal for low-emission zones, urban environmental regulations, and green fleet certifications.

  • Low operating costs – reduced energy expenditure compared to diesel and minimal maintenance with fewer moving parts.

  • Quiet operation – suitable for nighttime deliveries in residential areas and noise-sensitive locations.

• Driver-centric features:

  • Air suspension driver seat for reduced fatigue during long shifts and multi-stop routes.

  • Multifunction steering wheel with integrated controls for audio and cruise management.

  • Ambient lighting for improved cabin experience during night operations.

  • Optional electric sunroof for ventilation and natural light.

• Advanced manufacturing:

  • Cargo box constructed with vacuum adsorption + hydraulic molding technology for seamless composite panels and superior insulation.

  • XPS insulation core ensures minimal temperature loss and energy-efficient operation for extended battery range.

  • Fiberglass panels resist moisture ingress, UV damage, and thermal cycling degradation.

• Chengli Group advantages:

  • Industry leadership: ISO-certified facilities with new-energy vehicle manufacturing expertise and rigorous quality control.

  • Customization expertise: Specialized configurations for pharmaceutical cold chain, vaccine transport, fresh food logistics, and ice cream delivery.

  • Durable construction: Stainless steel hardware and corrosion-resistant materials ensure extended service life in demanding applications.

  • Nationwide support: Comprehensive after-sales network providing rapid maintenance, genuine parts, and technical support.

  • Operational efficiency: 300+ km range covers daily urban routes with ample reserve for detours and multi-stop deliveries.

  • Environmental compliance: Eligible for green vehicle incentives, tax benefits, and low-emission zone access in major cities.

  • Proven performance: Trusted by eco-conscious logistics operators for reliable electric cold chain solutions in urban environments.

This Sinotruk Howo New Energy Refrigerated Truck represents Chengli Group's commitment to sustainable cold chain innovation, combining advanced electric technology with reliable refrigeration performance for modern urban logistics and green fleet operations.
