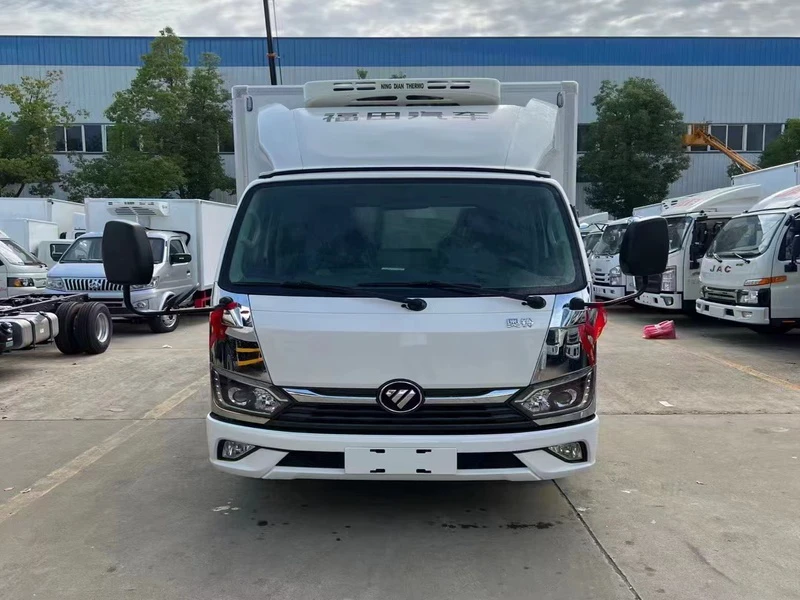

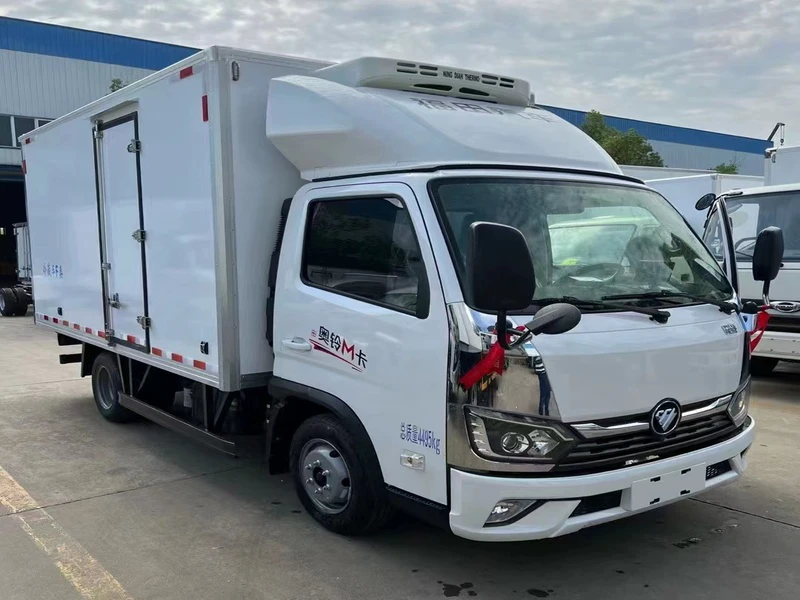

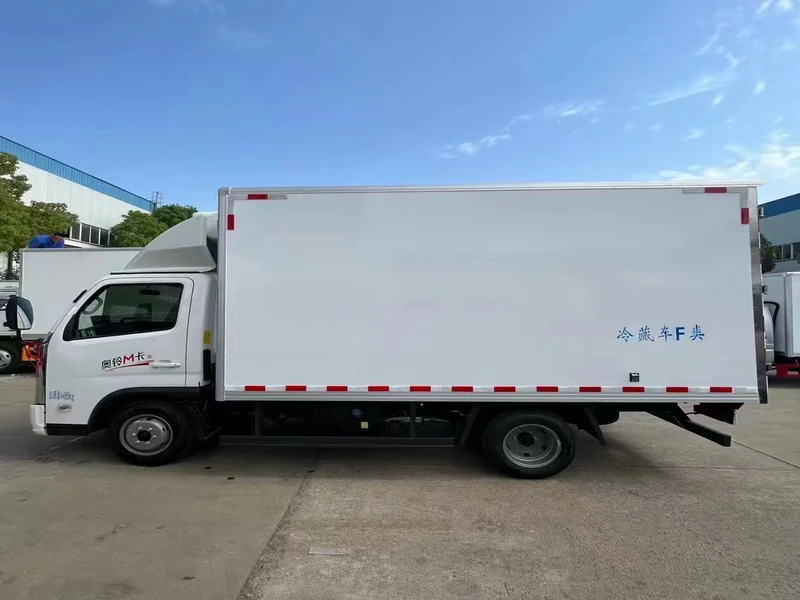

Foton M Card 3700 Refrigerated Truck – Cold Chain Logistics Solution

I. Product Introduction

The Foton M Card 3700 refrigerated truck is a purpose-built vehicle designed for urban cold chain logistics, combining reliable thermal performance with the maneuverability required for city delivery routes. Built on a dedicated refrigerated truck chassis and equipped with a high-quality insulated body manufactured by Chengli Group, this vehicle ensures temperature-sensitive cargo remains at optimal conditions throughout transit. With flexible cooling options and a compact design suited for narrow streets, this model is ideal for fresh food, pharmaceutical, and other temperature-controlled distribution applications.

II. Core Parameters

• Model: BJ5044XLC9JBA-AB3

• Overall Dimensions (L×W×H): 5,590 mm × 2,070 mm × 2,910 mm

• Cargo Box Dimensions (L×W×H): 3,700 mm × 1,850 mm × 1,900 mm

• Wheelbase: 2,900 mm — optimized for urban maneuverability while maintaining cargo capacity

• Engine: Yunnei diesel engine with 122 hp and 2.0 L displacement, delivering reliable power for refrigerated transport

• Cargo Volume: Approximately 13.0 m³ (approx. 459 cubic feet) of insulated storage space

• Refrigeration Options: Available with Ningdian, Hanya, Glacier or equivalent refrigeration units, offering -5°C or -15°C temperature settings to accommodate various cold chain requirements

III. Exterior Dimensions, Cargo Box Specifications, Material, and Design Philosophy

• Chassis Type: Dedicated refrigerated truck chassis with integrated features for cold chain applications

• Cargo Box Construction: Vacuum adsorption and hydraulic compression integrated production line, utilizing sandwich composite bonding technology for superior thermal insulation

• Panel Material: High-quality fiberglass inner and outer panels — non-light-absorbing, excellent thermal insulation, high hardness, and oxidation resistance

• Insulation Layer: XPS extruded polystyrene foam board, providing consistent thermal barrier performance

• Floor Material: Fiberglass checkered plate for durability and slip resistance

• Door Seals: Labyrinth-style rubber sealing strips for enhanced temperature retention

• Design Philosophy: The insulated body meets National Class A insulation standards, ensuring stable interior temperatures during transport. The compact exterior footprint allows for easy navigation in urban environments while maximizing usable cargo space. Optional side doors, ventilation channels, and removable rails provide operational flexibility for different cargo types.

IV. Structural Advantages: Engine, Transmission, and Chassis Features

• Engine & Powertrain: The Yunnei 122 hp diesel engine with 2.0 L displacement delivers balanced power output for refrigerated applications, providing sufficient torque for fully loaded urban operation while maintaining fuel efficiency.

• Transmission & Drivetrain: Equipped with manual transmission and electric power steering, offering responsive handling and reduced driver effort during frequent stop-and-go city driving.

• Chassis & Suspension: The dedicated refrigerated truck chassis is specifically configured to support the weight of insulated body panels and refrigeration equipment, ensuring load stability and ride comfort even when fully loaded.

• Cab Features: The driver-focused cab includes air conditioning, cruise control, a multi-function steering wheel, split-back adjustable seats, power windows, central locking, remote keyless entry, and a roof fairing for improved aerodynamics — all contributing to reduced driver fatigue during extended delivery routes.

• Thermal Integrity: The sandwich composite panel construction minimizes thermal bridging, while the labyrinth-style door seals maintain temperature consistency throughout the cargo area.

V. Product Features and Chengli Group Manufacturer Advantages

• Refrigeration System: Compatible with multiple refrigeration unit brands including Ningdian, Hanya, and Glacier, with temperature options of -5°C or -15°C to suit different cold chain requirements. The system ensures consistent temperature control throughout the cargo area.

• Cargo Box Hardware: Equipped with stainless steel door locks, hinges, door frames, and latches for corrosion resistance and long-term durability. Interior LED lighting provides energy-efficient illumination for nighttime loading and unloading.

• Optional Equipment: Side doors available for convenient curbside access; ventilation channels for improved air circulation; removable rails for flexible cargo securing.

• Chengli Group Strengths: As a leading manufacturer of specialized vehicles in China, Chengli Group brings extensive experience in refrigerated truck production to this export model. The company utilizes advanced vacuum adsorption and hydraulic compression manufacturing processes to ensure consistent insulation quality. With a global export presence spanning over 100 countries and regions, Chengli provides localized support through established distribution channels. Each vehicle is built to meet international cold chain standards, ensuring reliable temperature control for sensitive cargo.

This Foton M Card 3700 refrigerated truck is fully assembled and tested, ready for deployment in urban cold chain logistics fleets seeking a reliable, temperature-controlled solution for fresh food, pharmaceutical, and other sensitive cargo transport applications.
