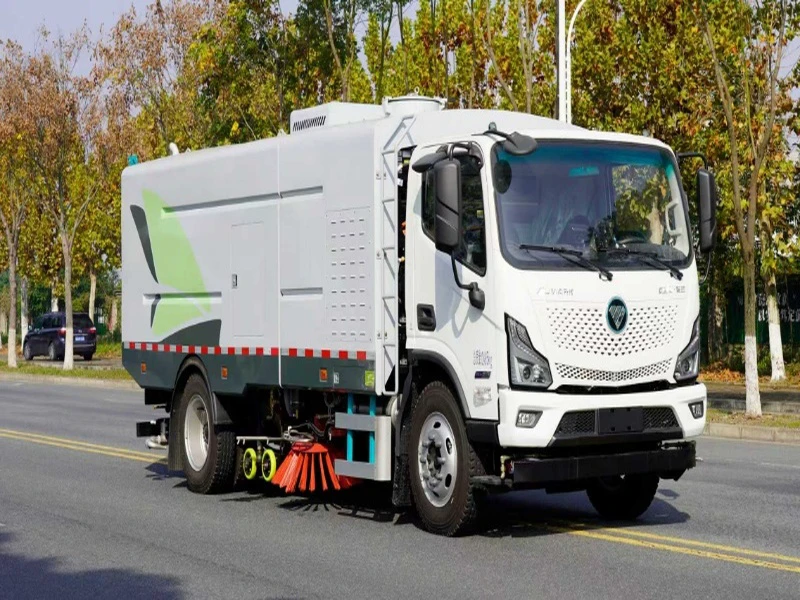

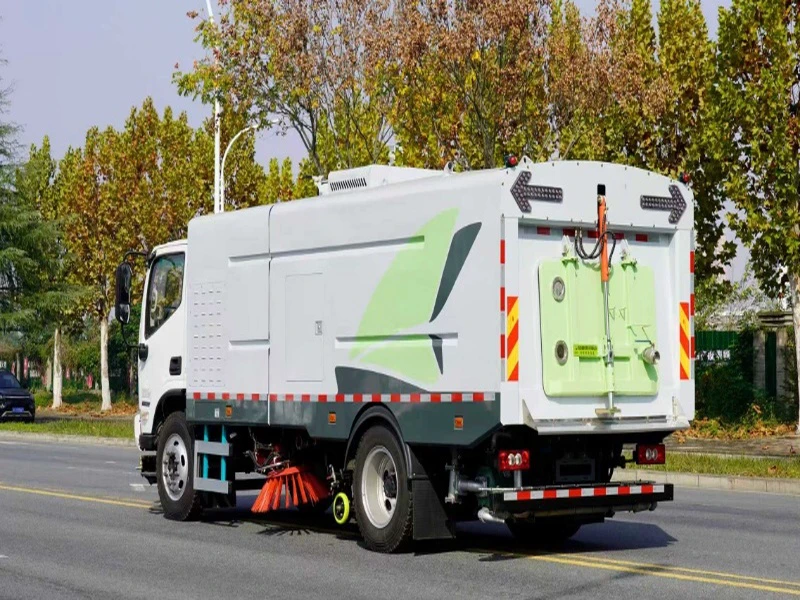

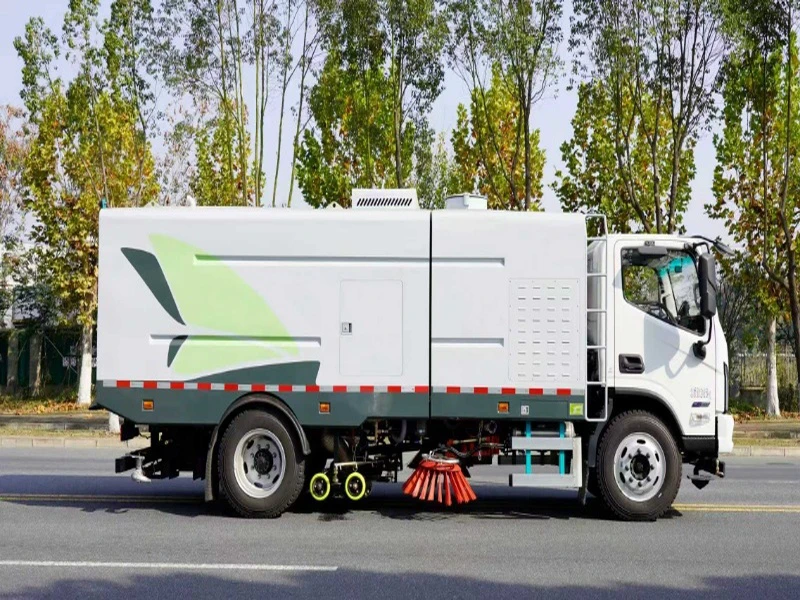

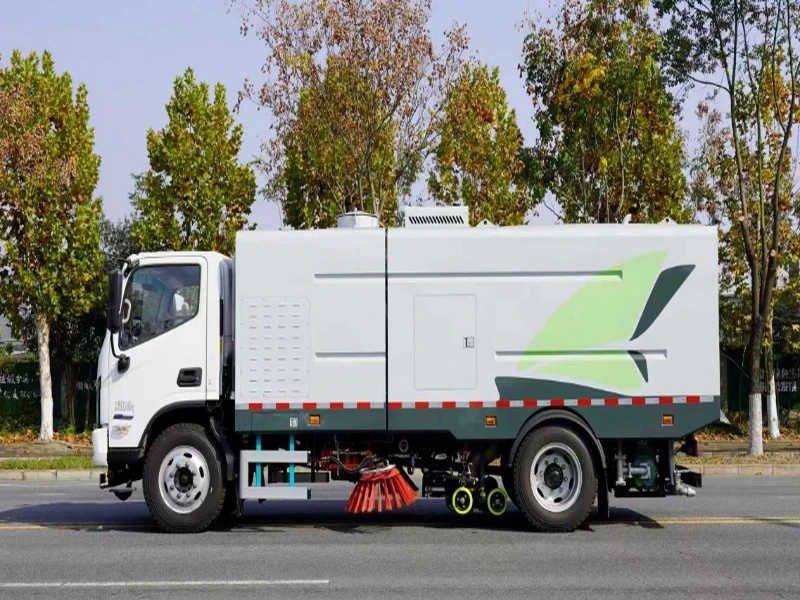

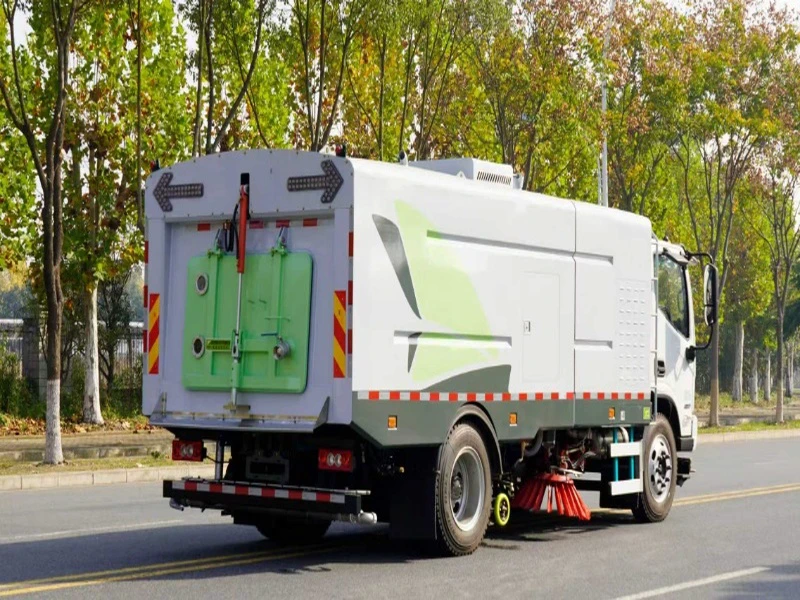

Foton 12-Ton Pure Electric Sweeper Truck – CL5120TXSBEVBGX

I. Product Introduction

The Foton 12-Ton Pure Electric Sweeper Truck represents a significant advancement in urban sanitation and environmental maintenance. Built on the reliable Foton BJ1128EVJA2 chassis and equipped with a high-performance electric powertrain, this vehicle combines zero-emission operation with the heavy-duty cleaning capacity required for municipal applications. Designed for efficient road sweeping, dust suppression, and curb cleaning, this export-ready model integrates advanced electric drive technology with a robust body manufactured by Chengli Group, ensuring reliable performance in diverse urban environments.

II. Core Parameters

The vehicle is powered by a high-capacity battery system and an efficient electric motor, delivering both cleaning effectiveness and operational economy.

• Model: CL5120TXSBEVBGX

• Chassis Model: BJ1128EVJA2

• Battery: CATL Lithium Iron Phosphate (LFP) battery with 162 kWh capacity, offering high safety and long service life

• Chassis Range: 280 km on a full charge, supporting full-day sanitation operations

• Motor Power: Maximum 160 kW, providing ample power for both driving and cleaning equipment operation

• Wheelbase: 4,200 mm, ensuring stable handling and smooth operation during sweeping tasks

• Front/Rear Axle: 4.2 T / 6.5 T load ratings, designed for heavy-duty sanitation work

• Tire Specification: 8.25R20 16PR, suitable for urban road conditions and providing good load-bearing stability

• Water Tank Capacity: 6 m³ for clean water

• Dustbin Capacity: 6 m³ for collected debris

• Maximum Cleaning Width: 3.2 m, covering a full traffic lane in a single pass

III. Exterior Dimensions, Tank Specifications, Material, and Design Philosophy

• Overall Dimensions (L×W×H): Approx. 7,600 × 2,350 × 2,900 mm — designed for maneuverability on urban streets while maintaining substantial cleaning capacity

• Water Tank Material: Carbon steel construction for durability and corrosion resistance

• Dustbin Material: Stainless steel construction, offering easy cleaning and long-term resistance to rust and debris corrosion

• Design Philosophy: The vehicle adopts a modular layout that separates clean water storage from debris collection, allowing for efficient daily operation. The integrated design ensures easy access for maintenance while maintaining a low center of gravity for stability during sweeping operations. Both the water tank and dustbin are equipped with low-level and overflow alarms, preventing operational interruptions and protecting equipment.

IV. Structural Advantages: Powertrain, Transmission, and Chassis

• Powertrain & Motor: The vehicle draws power from the chassis battery to drive a permanent magnet synchronous motor, which delivers smooth, variable-speed control for both driving and sweeping functions. This electric drive system allows for real-time speed adjustment, optimizing energy consumption based on actual working conditions and providing an exceptional user experience.

• Transmission System: The electric drivetrain eliminates the need for a traditional gearbox, reducing maintenance requirements and improving overall system efficiency. The direct-drive configuration minimizes energy loss during power transfer.

• Front & Rear Axle: The chassis is equipped with a 4.2 T front axle and 6.5 T rear axle, specifically selected to support the combined weight of water, debris, and cleaning equipment. This robust axle configuration ensures load-carrying stability even on uneven road surfaces during active sweeping.

• Sweeping System: Features dual side-mounted sweepers positioned at the center, driven by hydraulic motors for consistent brush pressure. The system includes a high-pressure water pump for efficient road washing, complemented by a universal high-pressure curb cleaning nozzle that adapts to various roadside geometries.

• Hydraulic & Control Components: Utilizes Wanyuan gear pumps, Hypro hydraulic oil cylinders, and Schneider control switches for reliable hydraulic operation. An American-made sensor provides accurate feedback for system monitoring.

• Filtration & Debris Collection: A maintenance-free centrifugal fan provides strong suction for efficient debris pickup. The stainless steel high-pressure spray bar ensures consistent water distribution across the cleaning path.

• Electrical System: The vehicle features a dedicated working device control circuit separate from the chassis driving system, ensuring reliable operation and simplified diagnostics. A rear-mounted electronic control system allows the operator to manage sweeping functions from the rear of the vehicle.

V. Product Features and Chengli Group Manufacturer Advantages

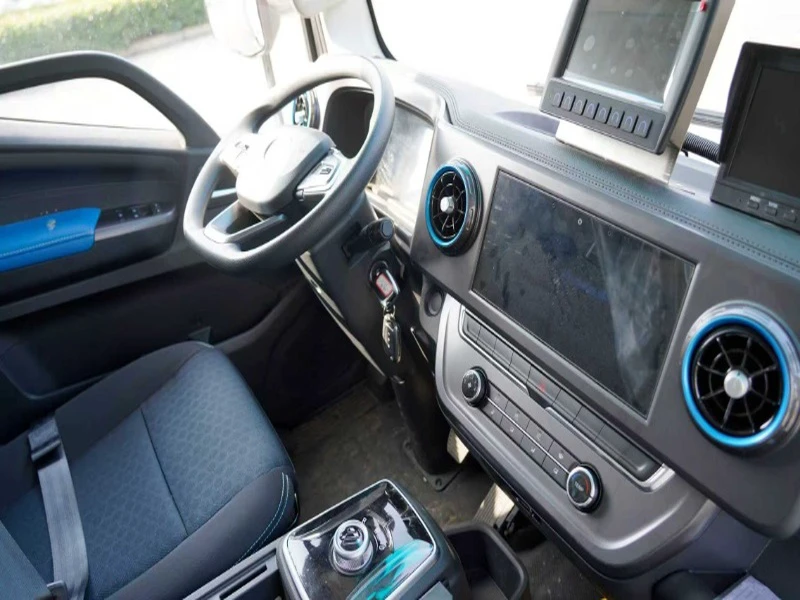

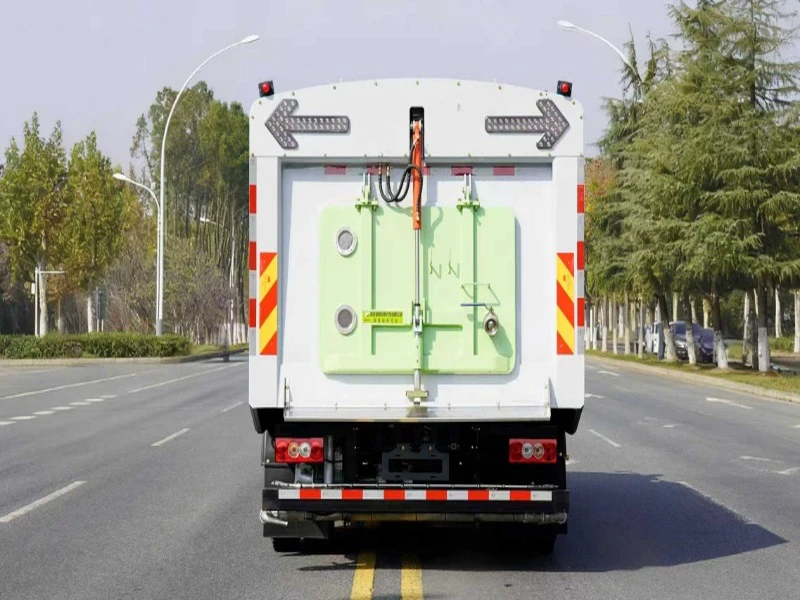

• Smart Monitoring & Safety: Equipped with a rear-view and sweeping-status interior monitoring system, allowing the driver to observe both reversing conditions and real-time sweeping effectiveness from inside the cab. A tail LED arrow board provides clear warning signals to following traffic during operation. The system also includes a 15-meter high-pressure wash reel for manual cleaning tasks, adding operational flexibility.

• Operator Convenience: The rear electronic control system enables convenient operation from the rear of the vehicle, reducing the need for back-and-forth movement during manual cleaning or system checks.

• Chengli Group Strengths: As a premier manufacturer of specialized vehicles in China, Chengli Group brings extensive experience in sanitation equipment production to this export model. The company operates advanced manufacturing facilities that ensure precision assembly and rigorous quality control. With a global export network spanning over 100 countries and regions, Chengli provides localized support through established distribution channels. Each vehicle is built to meet international standards for durability, safety, and environmental compliance, ensuring reliable performance in demanding municipal applications.

This Foton 12-Ton Pure Electric Sweeper Truck is fully assembled and tested, ready for deployment in urban sanitation fleets seeking a zero-emission, high-efficiency solution for road cleaning and environmental maintenance.
