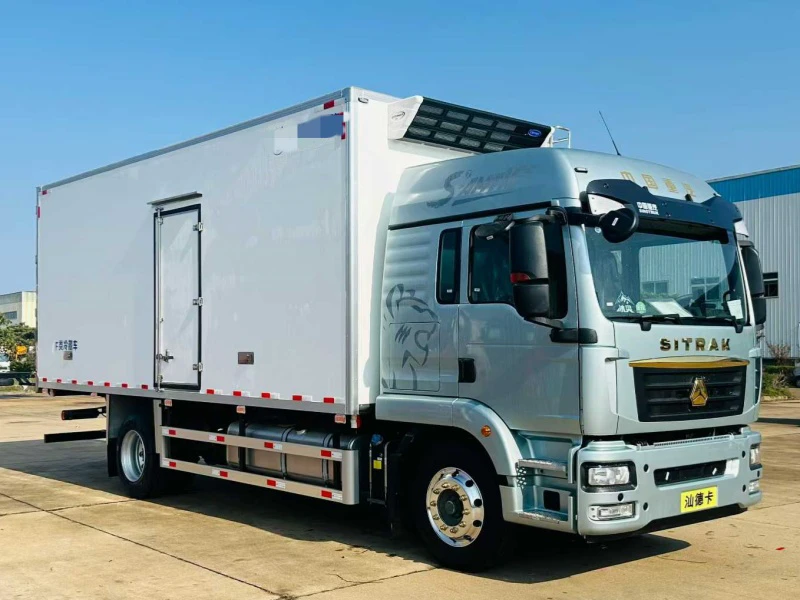

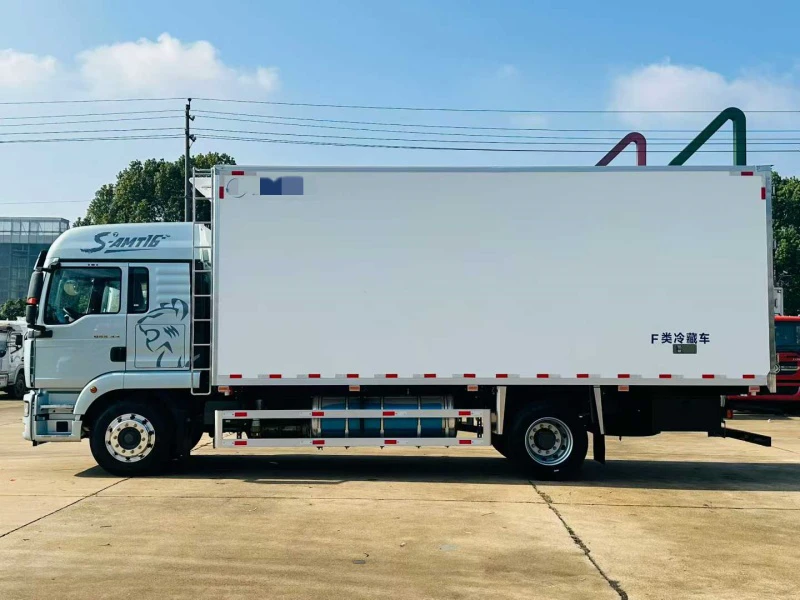

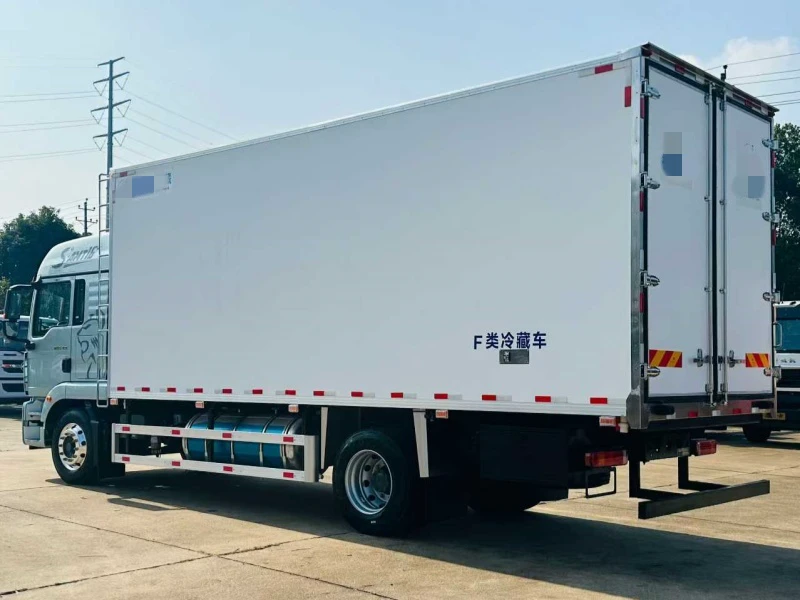

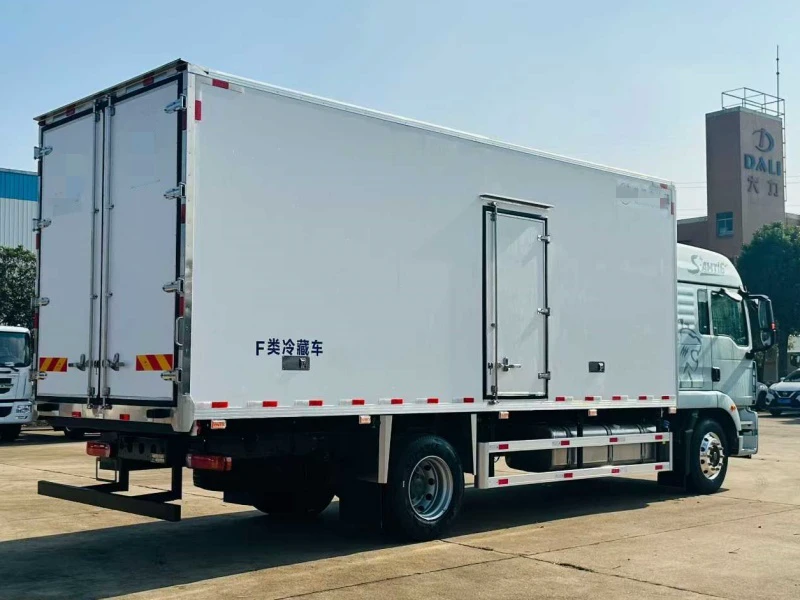

Sinotruk Howo TS7 Refrigerated Truck (Model: ZZ5187XLCN511KF1) | Sinotruk 4x2 Refrigerated Truck 6.8m Box Length 42m³ Volume

I. Product Overview
The Sinotruk Howo TS7 refrigerated truck is a heavy-duty long-haul cold chain solution engineered for large-scale temperature-controlled logistics. Built on a robust 4x2 rigid chassis with a MAN technology diesel engine, this model delivers exceptional refrigeration performance for cross-regional transport of frozen foods, pharmaceuticals, and perishable goods. The high-roof double sleeper cab enables long-distance operations with driver comfort and advanced safety features.

II. Core Specifications

• Overall dimensions (L×W×H): 9160×2600×3980 mm – heavy-duty truck dimensions for maximum payload capacity

• Cargo box dimensions (L×W×H): 6830×2420×2520 mm (Approx. 41.6 m³ interior volume – ideal for palletized freight and bulk refrigerated transport)

• Engine: MAN technology MC07H.35-61 | Power: 350 HP (254 kW) | Displacement: 7360 ml – high-torque diesel engine for fuel-efficient long-haul performance

• Chassis Features:

  • Wheelbase: 5100 mm – optimized for load distribution and highway stability

  • Transmission: HW10C-HD14 10-speed manual gearbox with high/low range

  • Front Axle: 1094 self-adjusting arm front axle (drum brake)

  • Rear Axle: MCJ09BGY self-adjusting single rear axle | Ratio: 3.7 – fuel economy and pulling power

  • Tires: 275/80R22.5 (longitudinal tread/18PR) | Lightweight wheels

  • Fuel Tank: 600L capacity – extended range for long-haul operations

  • Electrical System: 135AH battery | Terminal emission monitoring device | Fire extinguisher

  • Cab Features: TS7-L high-roof double sleeper | Electric-hydraulic cab lifting | Multifunction steering wheel | Electric heated mirrors | 12.3" full HD LCD center console with 4-way camera system | Lower metal bumper

III. Exterior Design & Build Quality

• Exterior dimensions: 9.16-meter overall length with 5100 mm wheelbase configuration ensures highway stability and maximum cargo capacity for long-haul fleet operations.

• Cab design: TS7-L high-roof double sleeper cab with ergonomic features including sleeper control switches, wide lower bunk, folding passenger seat, and main seat with air suspension, ventilation, and backrest air support for driver comfort during extended journeys.

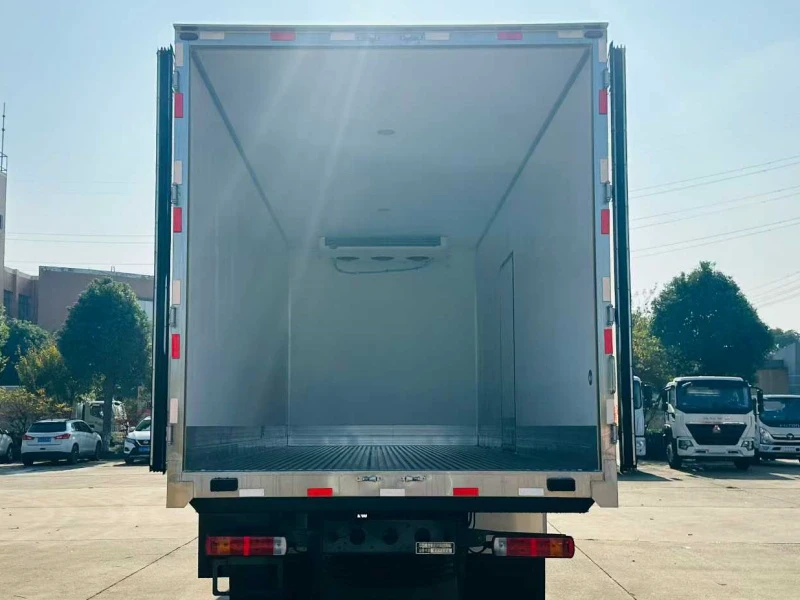

• Cargo box construction:

  • Panel materials: High-strength fiberglass reinforced plastic inner/outer panels – UV-stabilized, thermal-insulating, corrosion-resistant for extended service life.

  • Insulation core: XPS extruded polystyrene foam (thickness optimized to meet national A-class insulation standards for temperature retention).

  • Hardware: Stainless steel door locks, hinges, and fasteners for corrosion resistance.

  • Sealing system: Labyrinth rubber door seals preventing air leakage and temperature fluctuation during transit.

• Design philosophy: Aerodynamic heavy-duty truck styling with functional durability, integrating advanced driver technology and cold chain efficiency.

IV. Structural Advantages

• Engine performance: MAN technology MC07H.35-61 350 HP engine – delivers high torque for fully loaded highway transport with fuel efficiency and reliability.

• Transmission: HW10C-HD14 10-speed manual gearbox with high/low range – ensures optimal power delivery across varying terrains and load conditions.

• Axles & suspension:

  • Front Axle: 1094 self-adjusting arm type with drum brakes for reliable braking performance.

  • Rear Axle: MCJ09BGY self-adjusting single rear axle with 3.7 ratio – balances fuel economy and load pulling power.

  • Suspension: Front less leaf spring + rear multi-leaf spring (3/7+3) – optimized for load stability and ride comfort.

• Chassis engineering: Single-layer frame (6/232) with reinforced construction for heavy-duty applications. Domestic steering gear ensures precise handling.

• Safety & monitoring: ABS (4S/4M) braking system; 4-way camera system for blind spot elimination; terminal emission monitoring device for environmental compliance.

V. Key Features & Manufacturer Advantages

• Refrigeration performance:

  • Compatible with industrial-grade refrigeration units maintaining temperatures from -20°C to +20°C for frozen cargo and fresh produce.

  • Optional: Multi-temperature zones, temperature/humidity recorders, and 5-sided ventilation grooves for optimized airflow.

• Driver-centric technology:

  • 12.3" full HD LCD center console with 4-way camera display for enhanced visibility.

  • Multifunction steering wheel with integrated controls.

  • Electric heated mirrors for all-weather operation.

• Advanced manufacturing:

  • Cargo box constructed with vacuum adsorption + hydraulic molding technology for seamless composite panels.

  • XPS insulation core ensures minimal temperature loss and energy-efficient operation.

• Chengli Group advantages:

  • Industry leadership: ISO-certified facilities with rigorous quality control for commercial vehicle manufacturing.

  • Customization expertise: Specialized configurations for pharmaceutical cold chain, vaccine transport, and frozen food logistics.

  • Durable construction: Stainless steel hardware and corrosion-resistant materials ensure extended service life.

  • Nationwide support: Comprehensive after-sales network providing rapid maintenance and genuine parts.

  • Operational efficiency: 600L large fuel tank reduces refueling stops; lightweight wheels improve fuel economy.

  • Environmental compliance: Terminal emission monitoring device ensures adherence to emission standards.

This Sinotruk Howo TS7 refrigerated truck represents Chengli Group's commitment to heavy-duty long-distance cold chain solutions with advanced driver comfort and operational efficiency.
