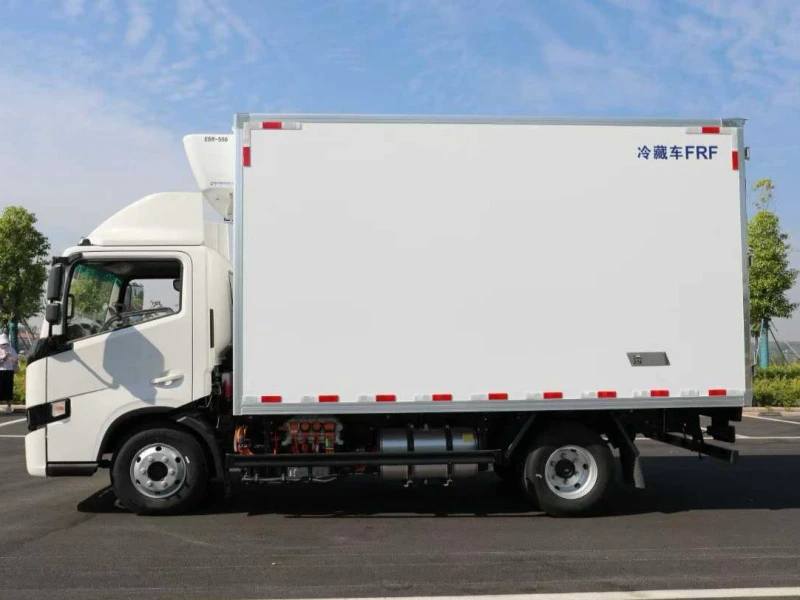

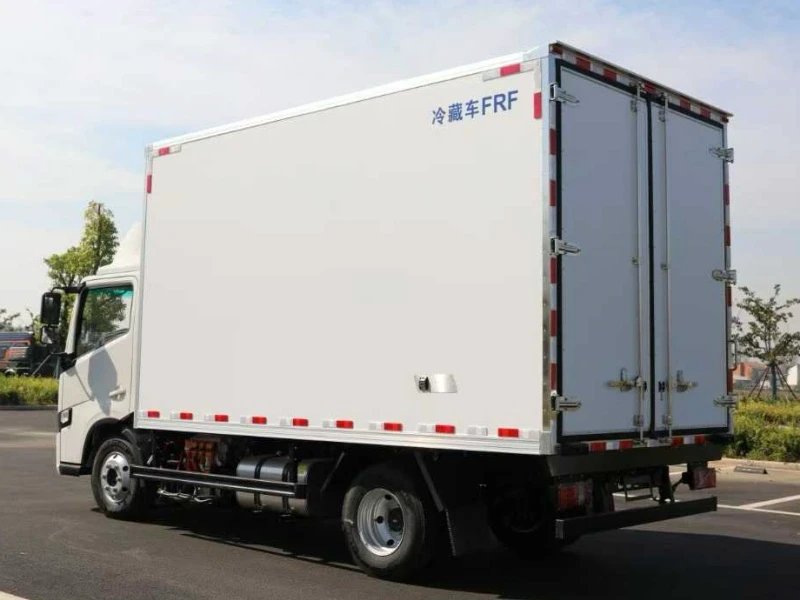

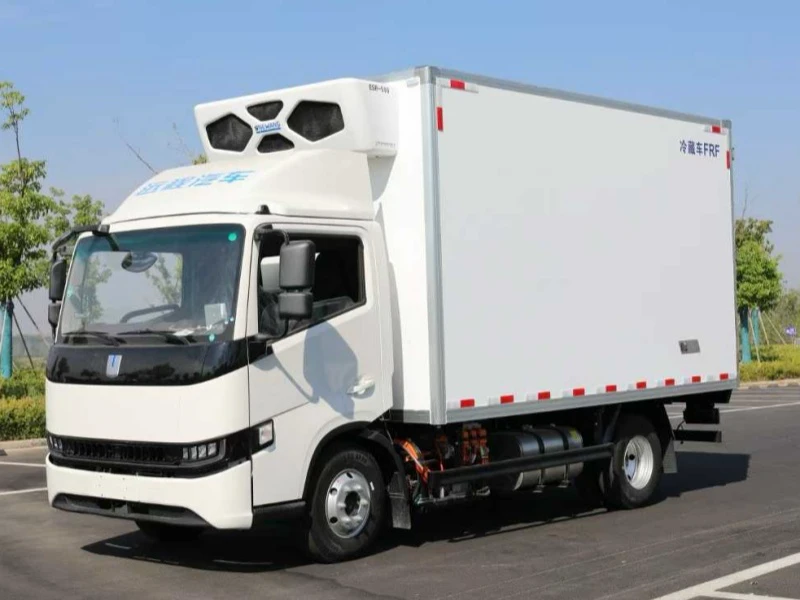

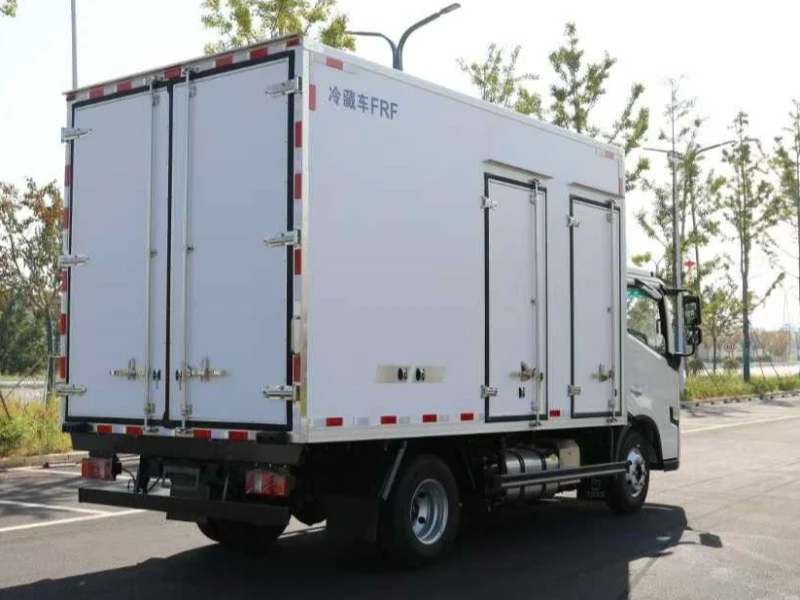

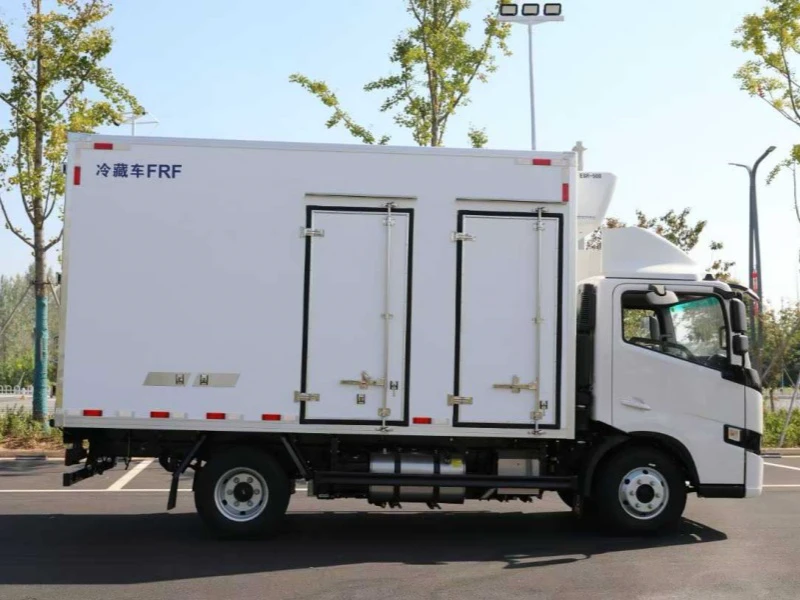

Geely Remote H9M Methanol-Hybrid Electric Refrigerated Truck (4.2m Cargo Box) Special Chassis | Geely Methanol-Hybrid Electric Refrigerated Truck 4.2m Box Length 18m³ Volume

I. Product Overview
The Geely Remote H9M methanol-electric hybrid refrigerated truck is an innovative new-energy cold chain solution featuring range-extender technology. Combining methanol power generation with battery electric drive, this model delivers exceptional extended range and fuel flexibility while maintaining zero-emission operation in urban zones. Designed for medium-distance temperature-controlled logistics, it offers pharmaceutical-grade refrigeration capability with industry-leading 1200km total driving range.

II. Core Specifications

• Refrigerated box dimensions (L×W×H): 4020×2100×2100 mm (Approx. 17.7 m³ cargo capacity – ideal for palletized freight)

• Vehicle curb weight: 3950 kg | Gross vehicle weight rating: Compliant with light-duty truck standards

• Chassis features: Wheelbase: 3360 mm | Wide cab width: 2080 mm | Tires: 7.00R16/10PR commercial tires | Air brake system | Automatic headlights (height-adjustable) | LCD digital instrument cluster | Power door locks | Power windows | Factory-installed HVAC | Remote keyless entry | DC fast charging port | Rotary gear shifter | Electronic parking brake

• Powertrain: Methanol range-extender electric system

• Range extender: Geely 1.8L methanol engine | Rated power: 68 kW (auxiliary power unit)

• Drive motor: Rated/Peak power: 80/185 kW (permanent magnet synchronous motor)

• Traction battery: Geely Zhixin Lithium Iron Phosphate battery | Capacity: 81.144 kWh (high-energy-density battery pack)

• Fuel tanks: Methanol: 120L (dual 60L tanks for balanced weight distribution) | Gasoline: 15L (cold start auxiliary tank)

• Range performance: Pure electric range: 200 km | Total combined range: 1200 km (Full Methanol + Full Charge)

• Top speed: 110 km/h (highway-capable)

• Axles: Front: 2.5T light-duty axle | Rear: 5T Hande integrated electric drive axle

III. Exterior Design & Build Quality

• Vehicle dimensions: 4.02m insulated cargo box on 3360mm wheelbase optimizes urban delivery maneuverability.

• Cab design: 2080mm wide-body cab with ergonomic layout featuring LCD instrumentation, rotary gear selector, and automotive-grade climate control.

• Refrigerated body construction:

  • Manufacturing process: Vacuum adsorption technology + hydraulic molding integrated production creating seamless composite sandwich panels.

  • Panel materials: High-strength fiberglass reinforced plastic inner/outer – UV-stabilized, thermal-insulating, corrosion-resistant.

  • Insulation core: XPS extruded polystyrene foam (meets national A-class insulation standard for temperature retention).

  • Sealing system: Labyrinth rubber door seals with stainless steel hinges and locking hardware.

  • Flooring: Anti-corrosion textured floor (optional heavy-duty flooring available).

• Design philosophy: Aerodynamic commercial vehicle styling with functional durability for new-energy fleet applications.

IV. Structural Advantages

• Range-Extender System:

  • Geely 1.8L methanol-fueled generator (68kW) operates at optimal RPM efficiency for extended range operation.

  • Methanol alternative fuel offers lower carbon emissions and reduced operating costs compared to diesel.

  • 15L gasoline auxiliary tank ensures reliable cold weather starting in low temperatures.

• Electric Drive System:

  • 80/185kW traction motor delivers instant torque for hill climbing capability and highway merging.

  • Geely Zhixin 81.144kWh LFP battery chemistry provides 200 km all-electric range for low-emission zones.

  • Hande 5T electric drive axle integrates motor and rear axle for compact powertrain efficiency.

• Chassis & Handling:

  • 3360mm wheelbase configuration balances payload distribution with turning radius.

  • Air-over-hydraulic brakes with 7.00R16/10PR load-range tires ensure stopping power under full load.

  • 2.5T front axle with electronic power steering for precise urban handling.

• Driver Technology:

  • Auto-leveling LED headlights improve night visibility and road safety.

  • Digital instrument cluster displays real-time energy flow and remaining range.

  • Rotary shift-by-wire with auto park brake simplifies commercial vehicle operation.

V. Key Features & Manufacturer Advantages

• Refrigeration Capability:

  • Compatible with -15°C to +20°C refrigeration units for frozen food transport and fresh produce delivery.

  • Optional: 5-sided airflow channels, temperature data loggers, multi-temperature refrigeration.

  • High-voltage battery powers refrigeration during stationary operation with shore power charging.

• Advanced Manufacturing:

  • Vacuum bonding process + hydraulic pressing creates thermally efficient insulation panels.

  • Fiberglass composite construction resists moisture ingress and thermal cycling degradation.

• Chengli Group Advantages:

  • Industry Leadership: ISO 9001 certified facilities with new-energy vehicle manufacturing expertise.

  • Customization Capability: Specialized configurations for vaccine cold chain with temperature mapping validation.

  • Nationwide Support Network: Authorized service centers providing rapid maintenance and genuine replacement parts.

  • Operational Cost Savings: Methanol fuel economy reduces fuel expenditure by 30-40% versus diesel counterparts.

  • Environmental Benefits: Eligible for green vehicle incentives and low-emission zone access.

  • Range Confidence: 1200km total range eliminates range anxiety for regional distribution routes.

This Geely Remote H9M methanol hybrid electric refrigerated truck represents the next generation of sustainable refrigerated transport, combining Chengli Group bodybuilding expertise with Geely advanced new-energy vehicle technology.
