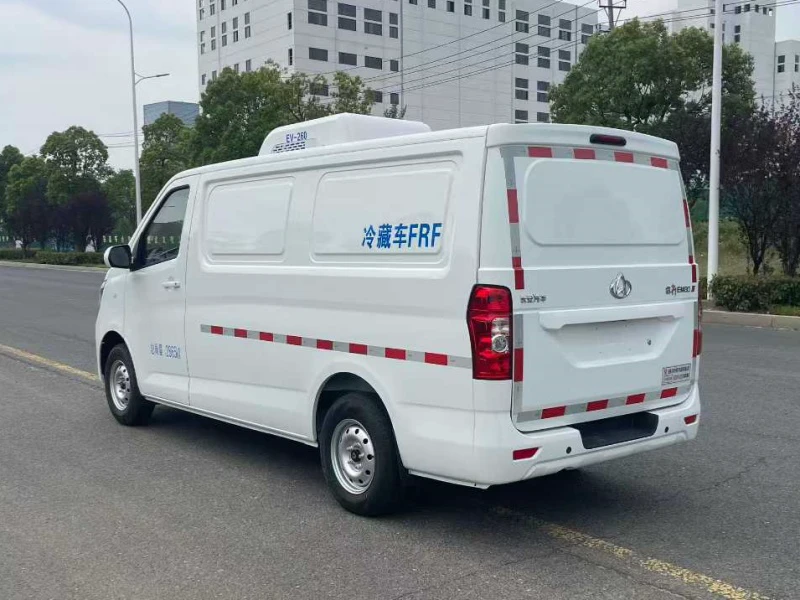

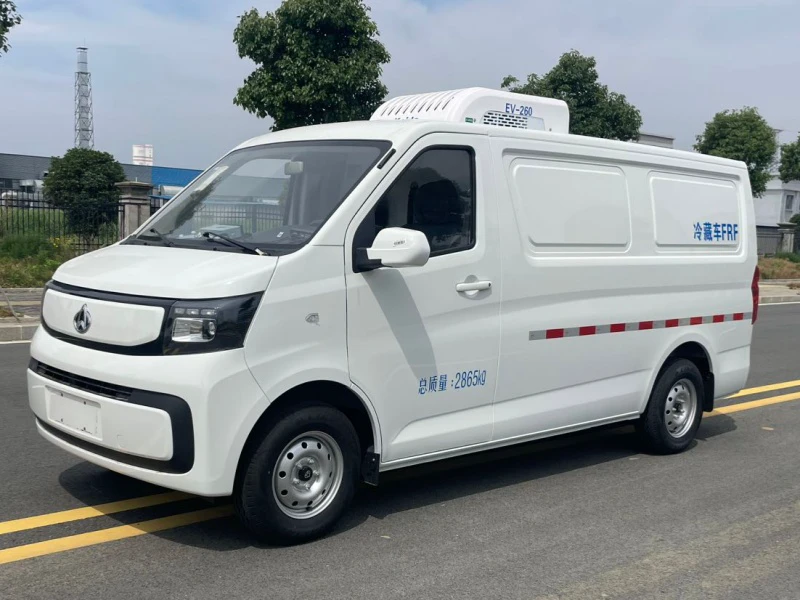

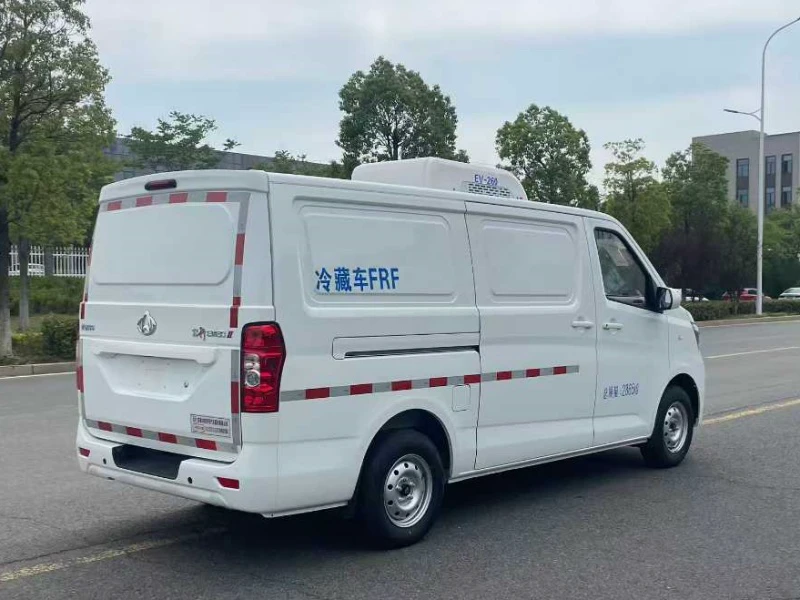

Chang'an Ruixing EM80 Electric Refrigerated Truck (Model: XBZ5031XLCBEV) | Chang’an Electric Refrigerated Truck 2.3m box length 3.5m³ volume CATL 41.86 kWh battery

I. Product Overview
The Chang'an Ruixing EM80 Electric Refrigerated Truck is an eco-friendly, zero-emission cold chain solution designed for urban and suburban temperature-controlled logistics. Powered by a high-capacity CATL battery and a efficient electric drive motor, this vehicle delivers reliable refrigeration performance with low operating costs. Ideal for fresh food, pharmaceutical, and vaccine transport, it combines advanced insulation technology with quiet, vibration-free electric operation.

II. Core Specifications

• Overall Dimensions (L×W×H): 4820×1715×2200 mm

• Cargo Box Dimensions (L×W×H): 2300×1340×1150/1220 mm (Approx. 3.5-3.8 m³ interior volume)

• Weight Ratings: Gross Vehicle Weight: 2865 kg | Payload Capacity: 955 kg | Curb Weight: 1780 kg

• Chassis Features: Wheelbase: 3050 mm | Tires: 185R14LT | Fast/Standard Charging Ports | Factory-Installed Air Conditioning | Electronic Power Steering | Power Windows | Remote Key | Central Locking

• Battery & Motor: CATL 41.86 kWh Battery (Range: 170-210 km) | Sichuan Jian'an Motor (Peak Power: 70 kW / Rated Power: 35 kW) | Rotary Gear Shifter

• Cooling System: Domestic Refrigeration Unit (Adjustable to -15°C)

III. Exterior Design & Build Quality

• Exterior Dimensions: Compact 4.82-meter length with 3050 mm wheelbase ensures stability and maneuverability in dense urban environments.

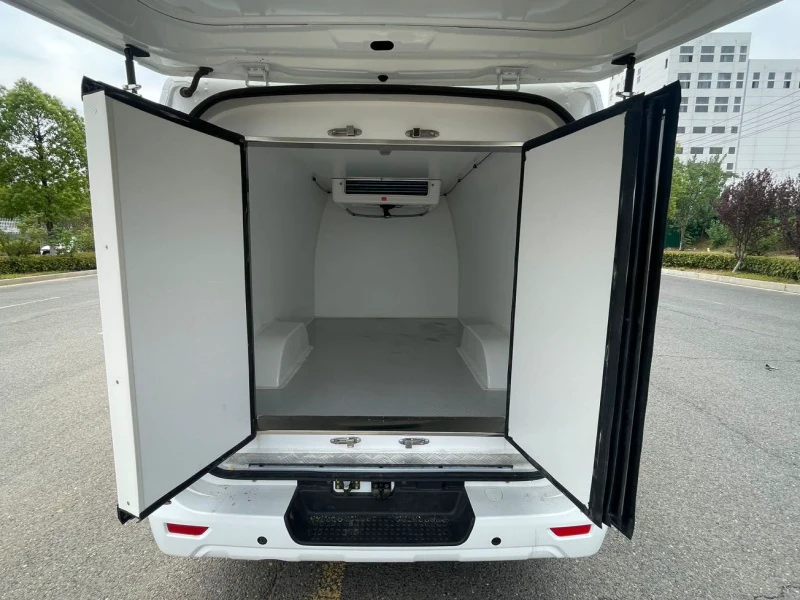

• Cargo Box Construction:

  • Manufacturing Process: Vacuum adsorption + hydraulic molding integrated production line creating seamless sandwich composite bonding.

  • Panel Materials: High-strength fiberglass inner/outer panels – UV-resistant, excellent thermal insulation, high hardness, and oxidation resistance.

  • Insulation Core: XPS Extruded Polystyrene Foam – Optimized thickness meeting national A-class insulation standards.

  • Flooring: Plastic-steel patterned floor – Corrosion-resistant, anti-warping, and easy to clean.

  • Sealing: Labyrinth rubber door seals for airtight temperature retention.

• Design Philosophy: Modern aerodynamic styling with functional durability. Features stainless steel door frames, hinges, locks, and energy-saving LED interior lighting.

IV. Structural Advantages

• Electric Powertrain:

  • Battery: CATL 41.86 kWh lithium-ion battery – High energy density, long cycle life, and reliable performance in varying temperatures. Fast charging capability minimizes downtime.

  • Motor: Sichuan Jian'an permanent magnet synchronous motor (35 kW rated / 70 kW peak) – Provides instant torque for smooth acceleration and hill climbing while maintaining energy efficiency.

  • Transmission: Rotary gear shifter with electronic control – Effortless operation reduces driver fatigue.

• Chassis & Suspension: 3050 mm wheelbase optimizes load distribution. Reinforced front/rear axles handle heavy payloads while minimizing vibration transmission to sensitive cargo.

• Driving Features: Electronic power steering for precise handling; 185R14LT tires provide stability under load; ensures driver comfort during deliveries.

V. Key Features & Manufacturer Advantages

• Refrigeration Performance:

  • Domestic refrigeration unit maintains consistent -15°C temperatures.

  • Optional upgrades for vaccine transport: 5-sided ventilation grooves for uniform airflow, temperature/humidity recorders for real-time monitoring, dual-temperature zone configurations.

• Advanced Manufacturing:

  • State-of-the-art vacuum adsorption + hydraulic molding technology ensures seamless composite panel bonding for leak-proof insulation.

  • Premium materials: Fiberglass panels resist corrosion and UV damage; XPS foam core delivers A-class thermal efficiency.

• Chengli Group Advantages:

  • Industry Leadership: ISO-certified production facilities with rigorous quality control standards.

  • Customization Expertise: Extensive experience manufacturing specialized vehicles including vaccine with temperature mapping validation.

  • Comprehensive Support: Nationwide service network providing rapid maintenance, parts availability, and technical support.

  • Cost Efficiency: Electric drivetrain significantly reduces fuel and maintenance costs compared to diesel alternatives.

  • Proven Reliability: Trusted by logistics operators for durable construction and consistent performance in demanding cold chain applications.

This Chang'an Ruixing EM80 Electric Refrigerated Truck represents the future of sustainable cold chain logistics, combining Chengli's manufacturing excellence with advanced electric vehicle technology.
